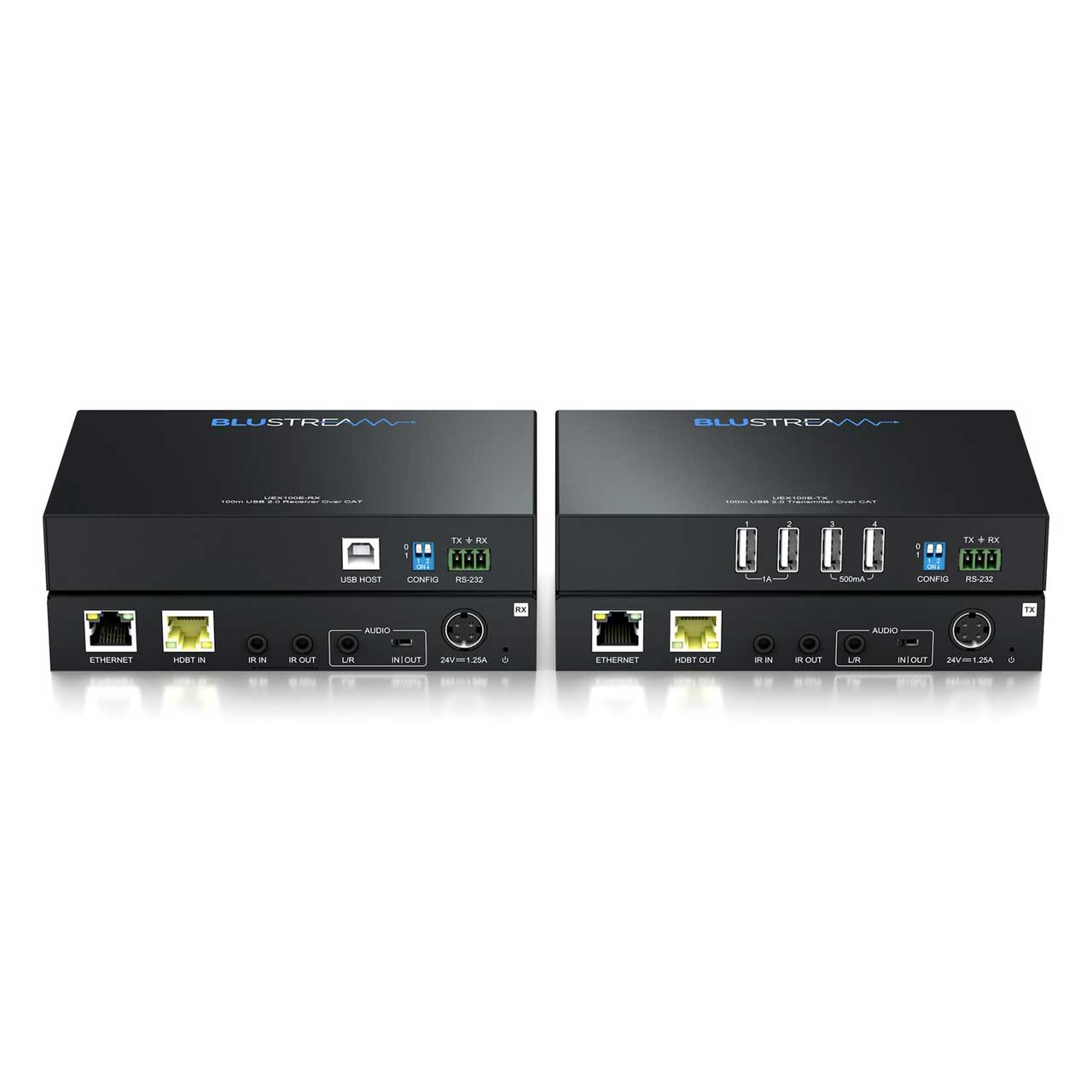

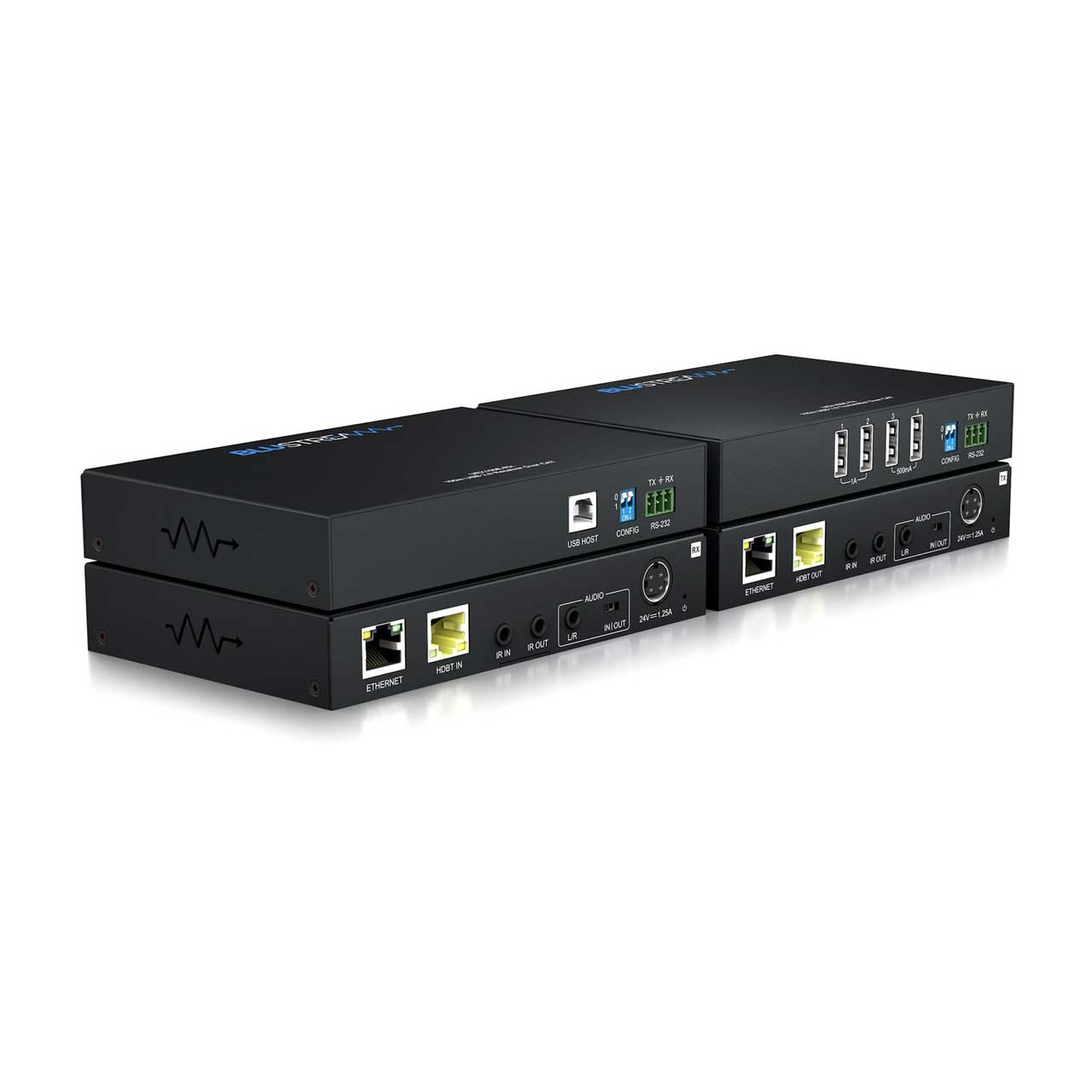

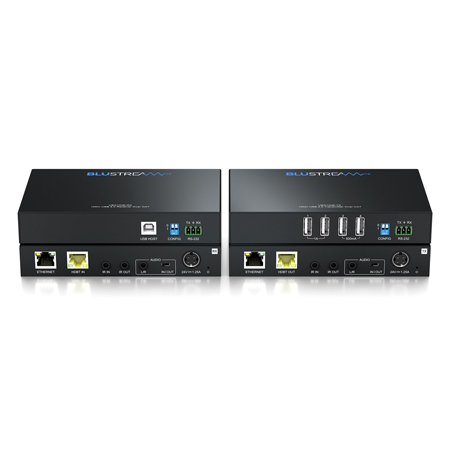

Blustream UEX100E-KIT Advanced USB 2.0 HDBaseT Extender Set - 100m

UEX100E-KIT - Overview

• Features:

  • Extends USB up to a distance of 100m over a single CAT cable using HDBaseT technology
  • Supports USB 2.0 signal extension
  • Backwards compatible with USB 1.1 devices
  • Transmitted data bandwidth up to 480Mbps (combined)
  • 1 x USB-B port on the receiver for connection to host device
  • 4 x USB-A ports on transmitter for connection to devices
  • USB-A ports 1-2 support 5V 1A, USB-A ports 3-4 support 5V 500mA
  • Bi-directional Ethernet pass-through (100Mbps)
  • Bi-directional IR & RS-232 pass through
  • Supports 2ch PCM Analog Audio pass through (direction selectable)
  • Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver
  • Simple plug and play, no driver installation or setup required


• Specifications:

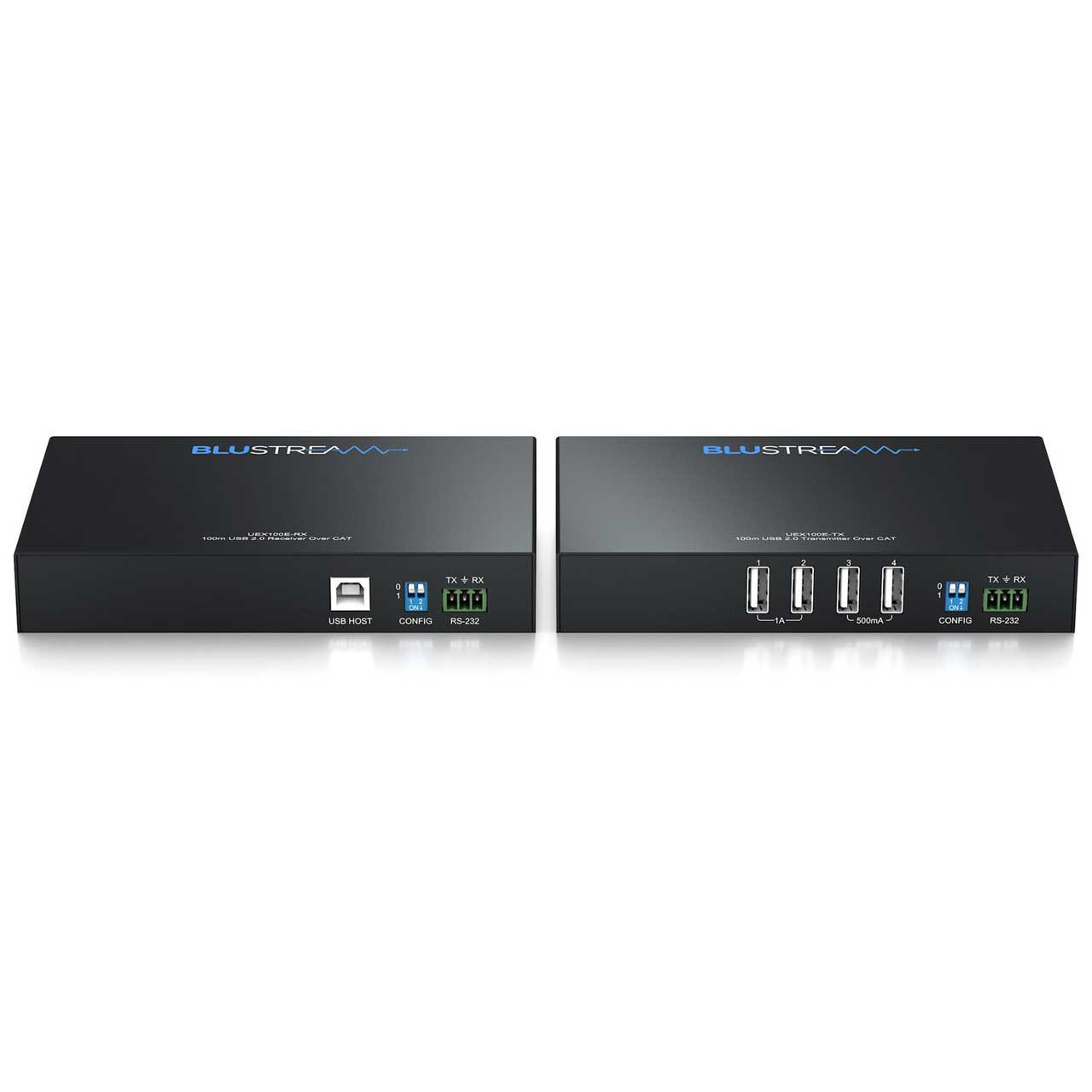

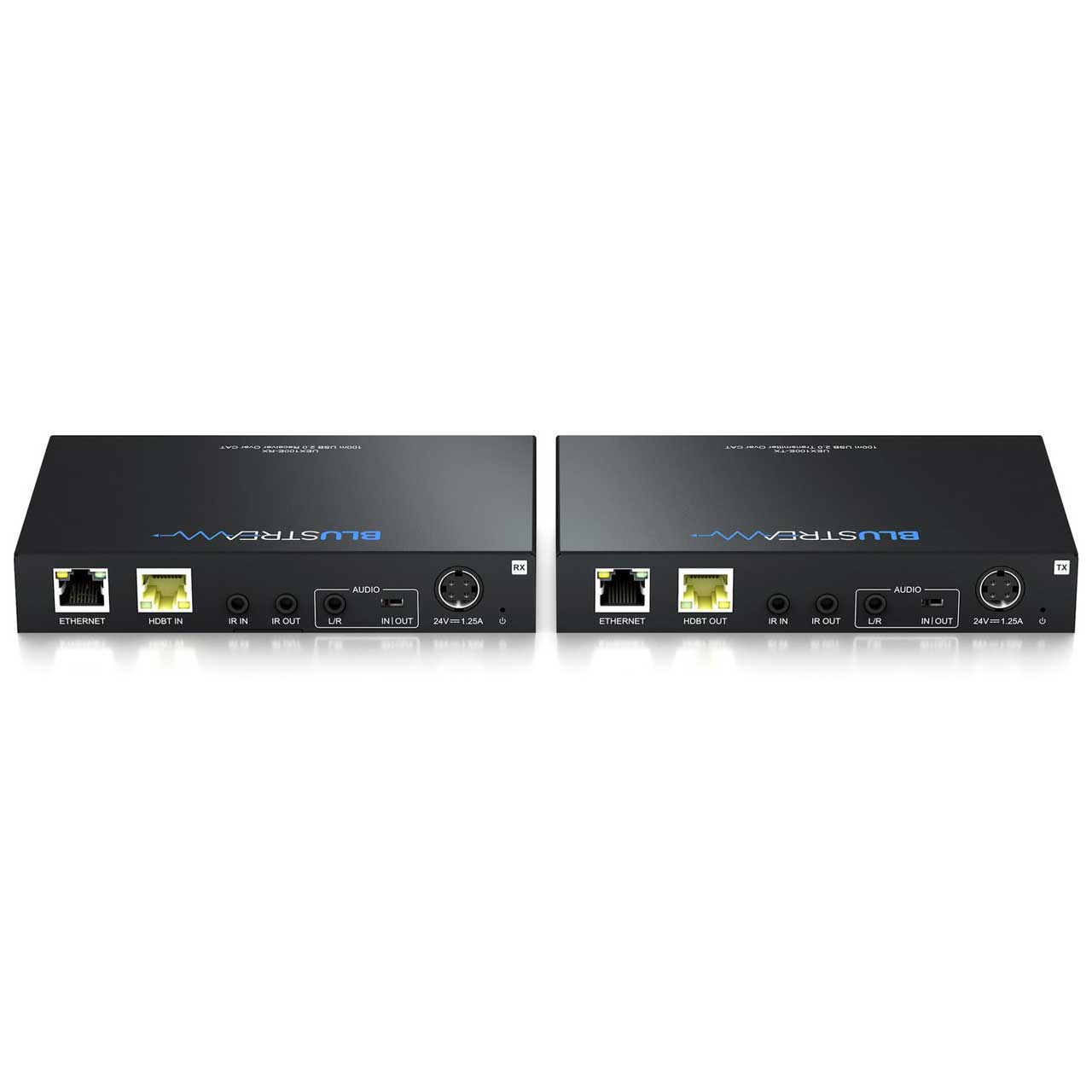

  • UEX100E Receiver
  • CAT Connector: 1 x RJ45 connector, female
  • USB Port: 1 x USB-Type B
  • Audio Input/Output Connector: 1x Analog L/R audio (3.5mm stereo jack)
  • Ethernet Port: 1 x RJ45 connector, female
  • RS-232 Serial Port: 1 x 3-pin Phoenix connector
  • IR Input Ports: 1 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • Config Switch: 2-pin DIP switch

    UEX100E Transmitter
  • CAT Connectors: 1 x RJ45 connector, female
  • USB Ports: 4 x USB-Type A
  • Audio Input/Output Connector: 1x Analog L/R audio (3.5mm stereo Jack)
  • Ethernet Port: 1x RJ45 connector, female
  • RS-232 Serial Port: 1x 3-pin Phoenix connector
  • IR Input Ports: 1x 3.5mm stereo jack
  • IR Output Ports: 1x 3.5mm mono jack
  • Config Switch: 2-pin DIP switch


  • Power Supply: 24V/1.25A DC
  • Product Dimensions (W x D x H ): 5.9 x 4 x 1"
  • Shipping Weight: 3.5lb
  • Operating Temperature: 32°F to 104°F
  • Storage Temperature: -4°F to 140°F


• Item Includes:

  • 1x UEX100E-TX
  • 1x UEX100E-RX
  • 1x USB-A to USB-B cable (1m)
  • 1x 24V/1.25A DC power supply
  • 2x Mounting kits
  • 1x Quick Reference Guide
