Icron 2344 USB 2.0 Ranger 2344 Four-port Singlemode Fiber 10km extender

ITEM #: ICR-2344 MFG #: 2344

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Icron
Free Shipping with $49 Minimum Order

List Price:

$1,054.00

Our Price:

$1,012.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

2344 - Overview

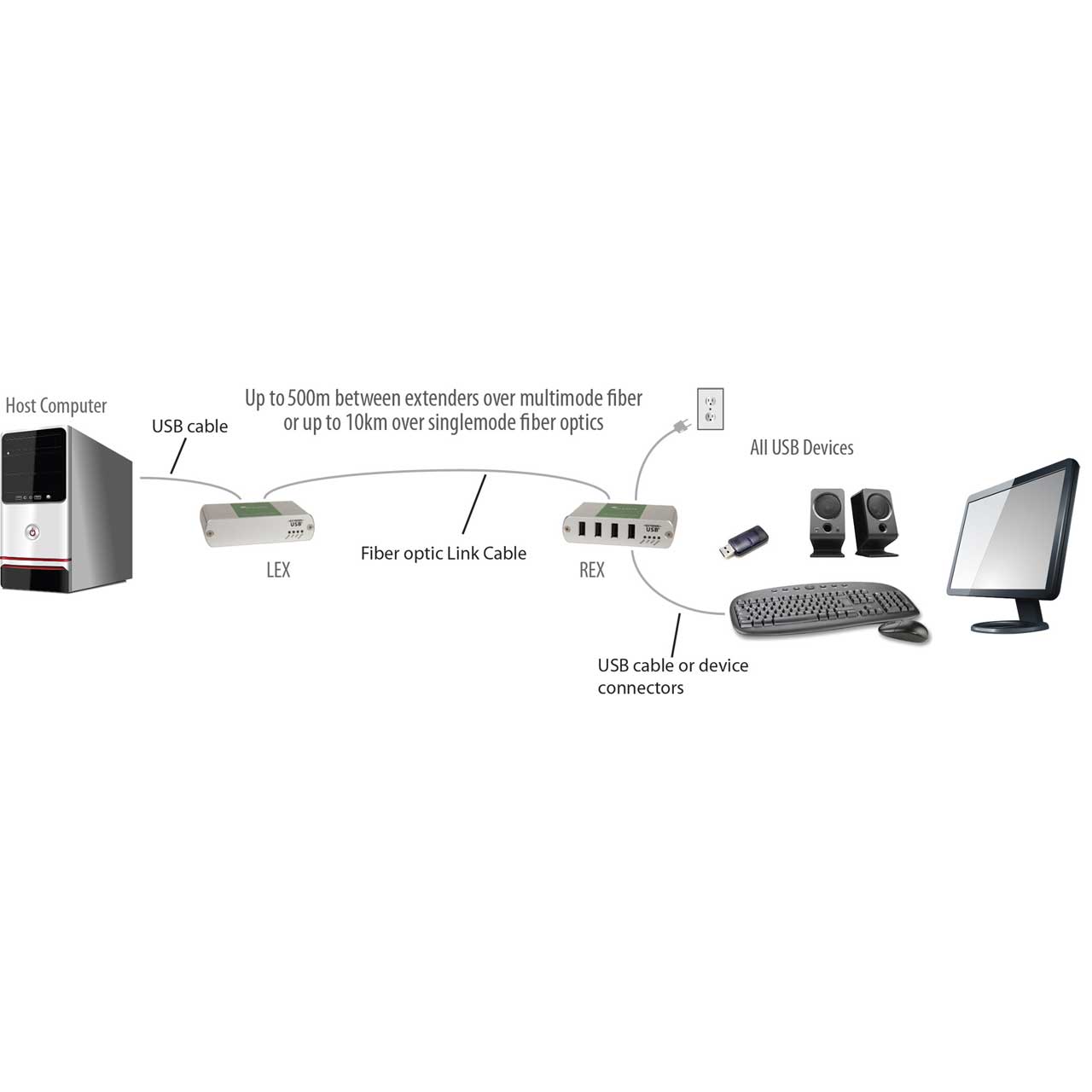

The Icron USB 2.0 Ranger® 2344 extends high-speed USB 2.0 connections at up to 480 Mbps over 10km (6.2 miles) of singlemode fiber optic cable. This 4-port USB 2.0 singlemode fiber extender with ExtremeUSB® is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.

The USB 2.0 Ranger® 2344 allows users to extend USB 2.0/1.1 connections up to 10km (6.2 miles) using singlemode fiber optic cable.

This 4-port USB 2.0 singlemode fiber extender supports data rates at up to 480 Mbps and is plug and play - no software drivers required - for all major operating systems: Windows®, macOST, and Linux®.

Additionally, this ExtremeUSB® based USB 2.0 singlemode fiber extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.

Applications:
Medical
Keyboard and mouse extension
Sensor/data acquisition
Industrial control

  • Features:

    • Supports USB 2.0 throughputs of up to 480Mbps
    • Supplies up to 1 Amp per USB port; 600mA when all four ports are used concurrently
    • Integrated hub provides ports for four USB devices, use hubs to add more
    • Electrical isolation
    • Reliable operation with USB 2.0 and 1.1 devices and hubs
    • Includes the ExtremeUSB® suite of features:
      Transparent USB extension
      True plug and play; no software drivers required
      Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™


  • Specifications:

    • Distance
    • Up to 10km over Singlemode Fiber

      USB Device Support Speeds
    • Maximum Throughputs: USB 2.0: Up to 480Mbps, USB 1.1: Up to 12Mbps
    • Traffic Types: All USB 2.0 and 1.1 Traffic Types
    • Device Types: All USB 2.0 and 1.1 Device Types
    • Maximum Number: Up to 30 devices

      LEX (Local Extender)
    • USB Connector: 1 x USB Type B Receptacle
    • Link Connector: 1 x SFP Duplex LC
    • Dimensions: 100.0 x 76.0 x 26.0mm (3.9 x 3.0 x 1.0")
    • Enclosure Material: Silver Anodized Aluminum

      REX (Remote Extender)
    • USB Connectors: 4 x USB Type A Receptacles
    • Link Connector: 1 x SFP Duplex LC
    • Dimensions: 100.0 x 76.0 x 26.0mm (3.9 x 3.0 x 1.0")
    • Enclosure Material: Silver Anodized Aluminum
    • Available Current: Up to 600mA to each USB port concurrently
    • Power Supply: 100-240V AC Input, 24V 1A DC Output

      Environmental
    • Operating Temperature: 0°C to 50°C (32°F to 122°F)
    • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
    • Operating Humidity: 20% to 80% Relative Humidity, Non-Condensing
    • Storage Humidity: 10% to 90% Relative Humidity, Non-Condensing

      Compliance
    • EMC: FCC (Class B), CE (Class B)
    • Environmental: RoHS2 (CE)


  • Item Includes:

    • Local Extender (LEX)
    • Remote Extender (REX)
    • SFP singlmode transceiver modules
    • 2 meter USB cable
    • Quick Start Guide
    • International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)


  • Warranty:

    • 2 Year Warranty
