Icron Raven 3204C-PRO 4 Port USB 3-2-1 656 Feet/200m 10GbE LAN or 328 Feet/100m CAT 6a/7 Switch Extender System

Name: Icron Raven 3204C-PRO 4 Port USB 3-2-1 656 Feet/200m 10GbE LAN or 328 Feet/100m CAT 6a/7 Switch Extender System
Brand: Icron
SKU: ICR-3204C-PRO
Price: 1982.00 USD
Availability: PreSale

ITEM #: ICR-3204C-PRO MFG #: 00-00476

Icron

Extender Options:

Extender Options

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,982.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

00-00476 - Overview

The Icron Raven™ 3204C Pro is the world's first USB 3-2-1 extender over a 10GbE LAN. The Raven 3204C Pro allows simultaneous extension of USB 3.0 (USB C data: up to speeds of 5Gbps), 2.0, and 1.1 protocols across a single link with auto negotiated communication between hosts and devices for maximum interoperability and ease of use. Extending over LAN and the Firmware Upgrade over Network feature, saves on installation and maintenance costs. The Raven 3204C Pro is easy to install; simply plug and play (no software drivers required) and it works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™.

Additionally, this ExtremeUSB-C™ based USB 3 extender system is FCC/CE certified, and is ideal for use with all USB-C or USB-A peripherals in addition to USB 3.1 conference cameras including: sound bars, touchscreens, hubs, DACs, and other USB 3, 2 and 1 devices.

Applications:
Conference rooms
Security and monitoring
Video matrix systems
Remote storage

Features:
- Supports all USB 3, 2, and 1.1 devices simultaneously up to 5Gbps (shared)

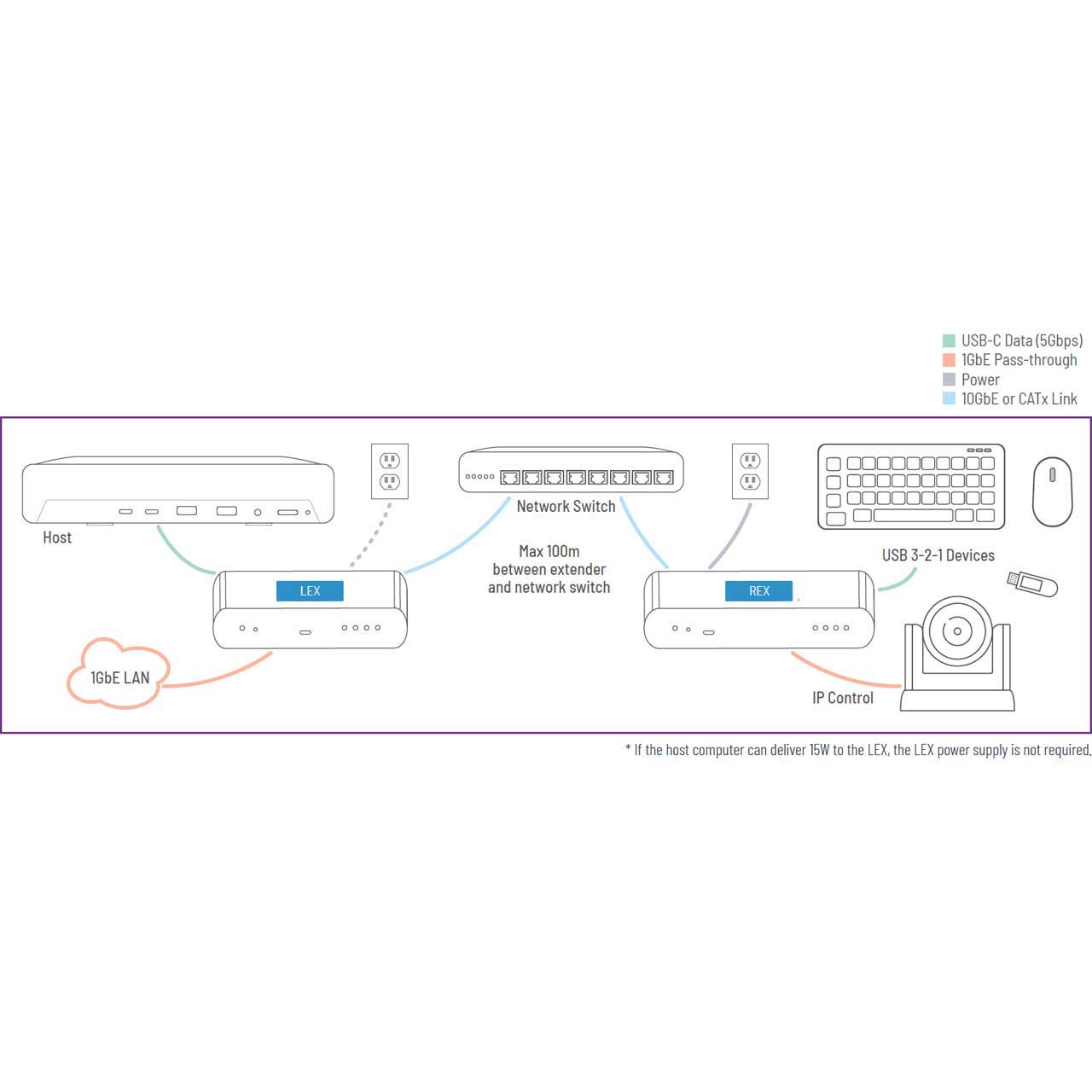

- Extends USB 3-2-1 up to 200m across a 10GbE LAN switch or 100m though a single CAT 6a/7 cable
- Power the LEX (Local Extender) using the USB-C connection to the host*
- The REX (Remote Extender) includes 2 USB-C ports and 2 USB-A ports
- Delivers 3A at each USB-C port and 1.2A at each USB-A port
- Convenient 'Firmware Upgrade over Network; capability saves time and reduces maintenance costs
- 1Gb Ethernet pass-through eliminates extra cable runs for simplified installations
- Compatible with all major UC conferencing applications
- Supports all USB transaction types (Control, Interrupt, Bulk, and Isochronous)
- Includes the ExtremeUSB-C suite of features:
- Transparent USB extension supporting USB 3, 2 and 1
- True plug and play; no software drivers required
- Works with all major operating systems; Windows, macOS, Linux and ChromeOS
Specifications:

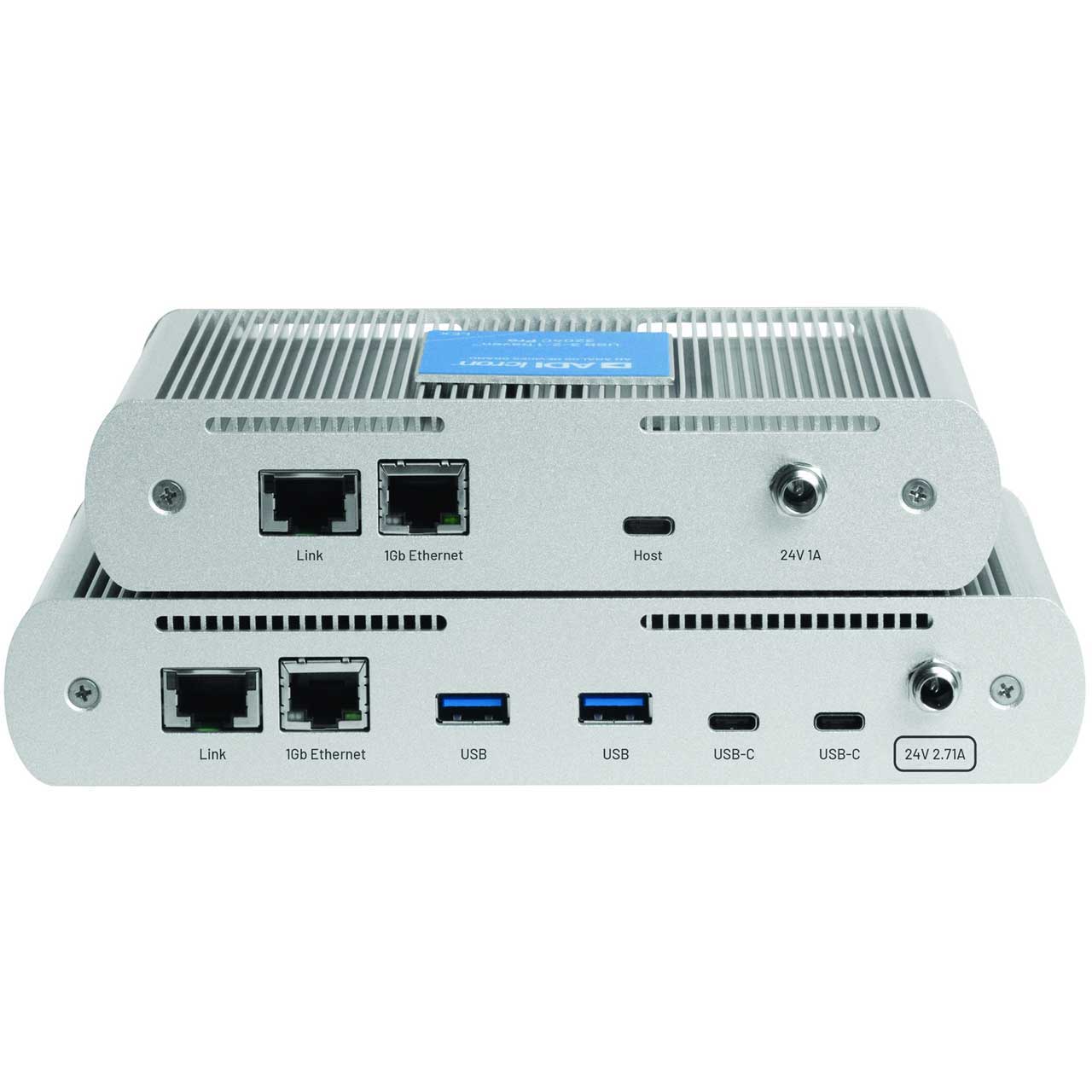

- USB Connectors:
  1x USB-C Receptacle - LEX (LOCAL EXTENDER)
  2x USB-C Receptacles - REX (REMOTE EXTENDER)
  2x USB-A Receptacles - REX (REMOTE EXTENDER)
- 1GbE Pass-through: 1x RJ45 Ethernet 100/1000 Port
- Link Connector: 1x RJ45 Ethernet Link Port
- Power Input:
  24V 1A DC Locking Jack - LEX (LOCAL EXTENDER)
  24V 2.71A DC Locking Jack - REX (REMOTE EXTENDER)
- Dimensions (W x D x H*):
  6.50" x 4.00" x 1.38" - LEX (LOCAL EXTENDER)
  7.75" x 4.00" x 1.38" - REX (REMOTE EXTENDER)
- Weight:
  1.26lbs. - LEX (LOCAL EXTENDER)
  1.54lbs. - REX (REMOTE EXTENDER)
- Enclosure Material: Silver Anodized Aluminum
- Point-to-Point: Up to 100m (330 ft) over CAT 6a/7
- Network: Up to 200m across a single 10GBASE-T Switch (Layer 2)
- USB Bandwidth: Up to 5Gbps
- Device Compatibility: All Device Types and Classes (Control, Interrupt, Bulk, and Isochronous)
- Host Compatibility: OHCI, UHCI, EHCI, xHCI
- Available Current at REX: Supplies 3A (15W) per USB-C port and 1.2A (6W) per USB-A port
- Maximum Devices: Supports up to 30
- Temperature: 32°F to 122°F / Operating: -4°F to 158°F Storage
- Relative Humidity: 20% to 80% Operating / 10% to 90% Storage (Non-condensing)
- Certifications: FCC, CE, RoHS2/3 (CE), ICES-003 Issue 7, IEC 62368-1
Item Includes:
- 1x LEX (Local Extender)
- 1x REX (Remote Extender)
- 2x USB-C Cable
- 2x International Locking AC Adapters
- 2x Country Specific Power Cords
- 1x Quick Start Guide
Warranty:
- 2-year

00-00476 - Recommended Accessories

Laird ProReel Series Shielded Category 6 Integrated Cable Reel w/ Built-In RJ45 Jack in Hub - 656 Foot
PROREEL-CAT6-656
Our Price: $854.95
Connectronics USB 3.0 A Male to B Male Cable 2 Meter (6ft)
USB3-AB-2M
Our Price: $10.99
Connectronics USB-C to USB-C Male to Male Gen2 10Gbps USB 3.1 Cable - 3 Foot
USB3-CM-CM-003
Our Price: $9.99
Connectronics CAT6A Snagless Molded 600MHz UTP 10 Gigabit Ethernet Patch Cable - 10 Foot - Black
CAT6A-010-BK
Our Price: $7.95
Netgear AV Line M4250 Series GSM4212P 12-Port / 8x PoE+ 125W / 2x 1G / 2x SFP Managed Switch
GSM4212P-100NAS
Our Price: $609.99
Laird Stage Systems Heavy Duty 15-Amp 12/3 AC Power Extension Cord w/ Quad Box - 25 Foot
SSPC-25
Our Price: $198.49
Morley MHUMX Hum Exterminator
EB-HUMX
Our Price: $89.00
West Penn 254246 23 AWG 4 Pair Cat6 Plenum Cable 1000 Ft. Reel in Box Black
WP-254246-1000
Our Price: $342.15
CAT7 10Gbps S-STP Flexible Molded Patch Cord - 100 Ft.
MC3-CC716-100
Our Price: $74.35

00-00476 - Reviews

00-00476 - Attachments

3204C-Pro Specs (download)
