KanexPro EXT-USB250M Compact USB 2.0 over Cat6 Extender Transmitter / Receiver Set - 164 Feet/50M

ITEM #: KAN-EXT-USB250M MFG #: EXT-USB250M

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$149.95

Availability: In Stock
iAvailability Description Popup


EXT-USB250M - Overview

The KanexPro EXT-USB250M extender is a compact USB 2.0 transmitter - receiver set designed to extend USB 2.0 (480Mbps) signals from a Printer, touch screen, USB hub, USB camera or Human Interface Device (HID) to a Host PC remotely located 164 feet away. The system is simple, plug and play and it's ready to go. No drive and setting installation required.

Industry Standard USB 2.0 480Mbps
USB 2.0 (High-speed USB) provides enough bandwidth for multimedia and storage application. USB 2.0 has full forward and backward compatibility with original USB 1.1 devices and works with cables and connectors made for original USB, too.

USB 2.0 supports low-bandwidth devices such as keyboards and mice, as well as high-bandwidth ones like high-resolution webcams, scanners, printers and high-capacity storage systems.

Applications:
Residential installations: Great for extending a webcam used for that work from home zoom meeting
Educational Environments: Can be used to extend a computer connection to a digital projector screen or to an in-class meeting camera system.
Digital signage: HID (Human Interface Device) capable displays require a USB 2.0 connection to pass the touch and control data to the host PC. Also, connect a mass storage device from an easy to reach convenient location away from the host PC or Display.

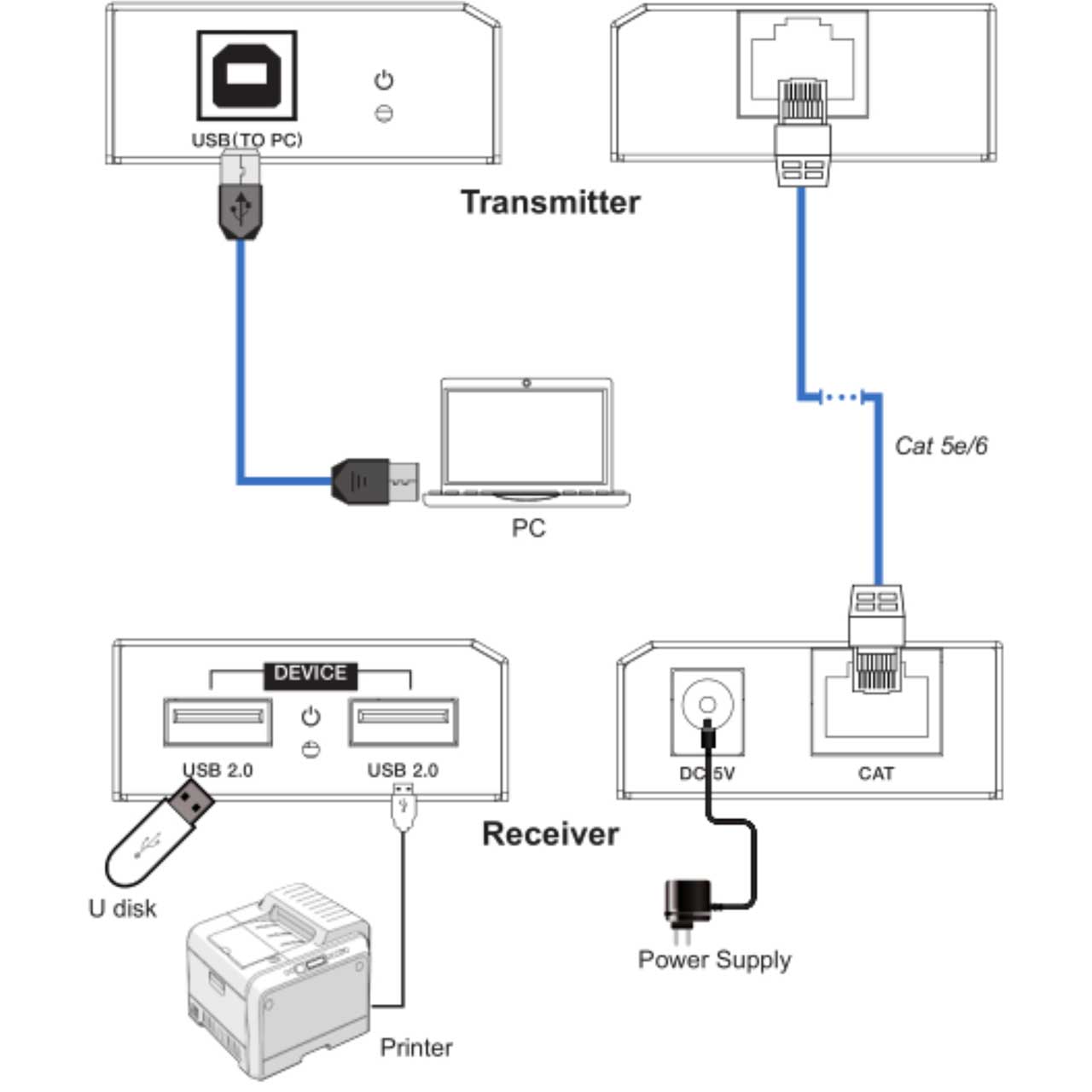

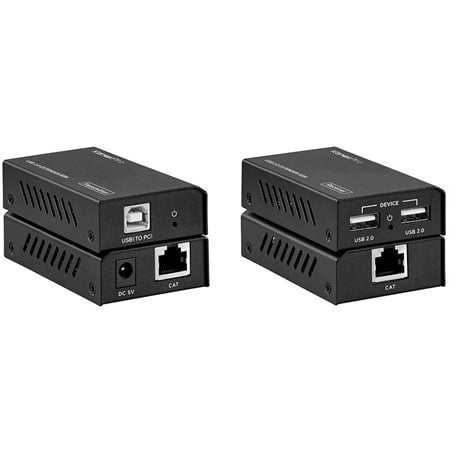

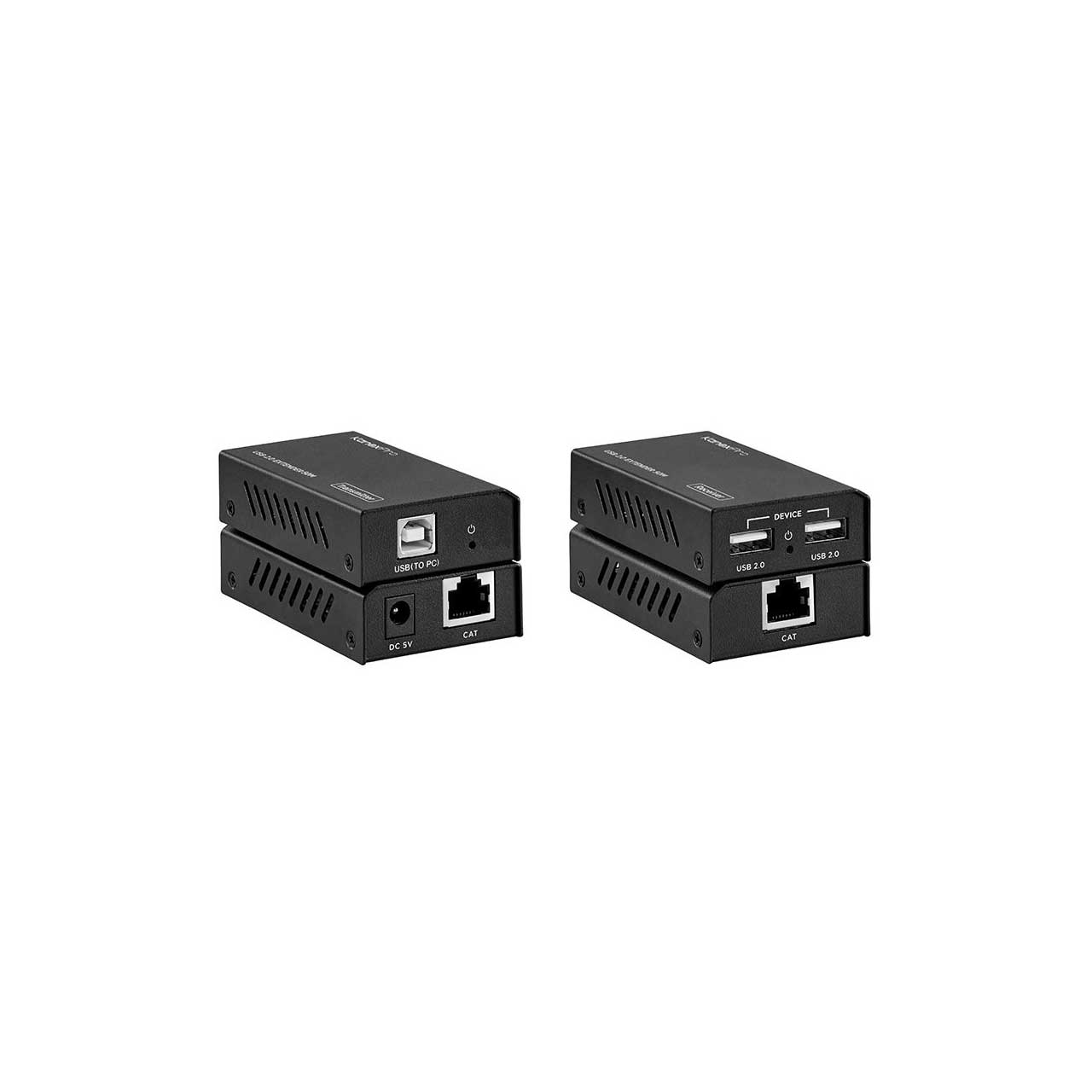

The extender kit includes two units: transmitter unit and receiver unit.

Note: The transmission distance can only extend up to 40 meters / 131.2ft for some USB 2.0 Hubs.

  • Features:

    • Ultra Slim 165ft. (50m) USB 2.0 extender
    • Simple plug and play, no drive and setting installation required
    • Supports USB 2.0 protocol, transmission rate up to 480Mbps
    • Features one USB-B port input in transmitter
    • Features two USB 2.0 ports outputs on the receiver
    • Compact design for easy and flexible installation
    • Backed by KanexPro 3-Year Parts and Labor Warranty

  • Specifications:

    • Technical
    • USB Protocol: USB 2.0
    • Transmission Rate: Up to 480Mbps
    • Transmission Distance: 50M (164ft)
    • ESD Protection: Human-body Model:±8kV (Air-gap discharge) , ±4kV (Contact discharge)

      Connections
      Transmitter:
    • Input Port: 1xUSB [USB-B, female]
    • Output Port: 1xCAT [RJ45, female]
      Receiver:
    • Input Port: 1xCAT [RJ45, female]
    • Output Port: 2xUSB [USB-A, female]

    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions: Transmitter / Receiver: 82mm (W)x49mm (D)x20mm (H)
    • Weight: Transmitter / Receiver: 100g
    • Power Supply: Input: AC100~240V 50/60Hz, Output: DC 12V/1A
    • Power Consumption: Transmitter: 1.3W, Receiver: 2.3W
    • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
    • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
    • Relative Humidity: 20~90% RH (non-condensing)

  • Item Includes:

    • 1x USB 2.0 Extender (Transmitter)
    • 1x USB 2.0 Extender (Receiver)
    • 1x USB cable (USB-B male head to USB-A male head, one meter)
    • 1x 5V/1A Power Adapter
    • 1x User Manual

  • Warranty:

    • 3-Year Parts and Labor Warranty
