Icron 3251C-10PL 1 Port USB 3-2-1 USB-C 10m Extender - Plenum Cable

ITEM #: ICR-3251C-10PL MFG #: 3251C-10PL

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$774.00

Availability: In Stock
iAvailability Description Popup


3251C-10PL - Overview

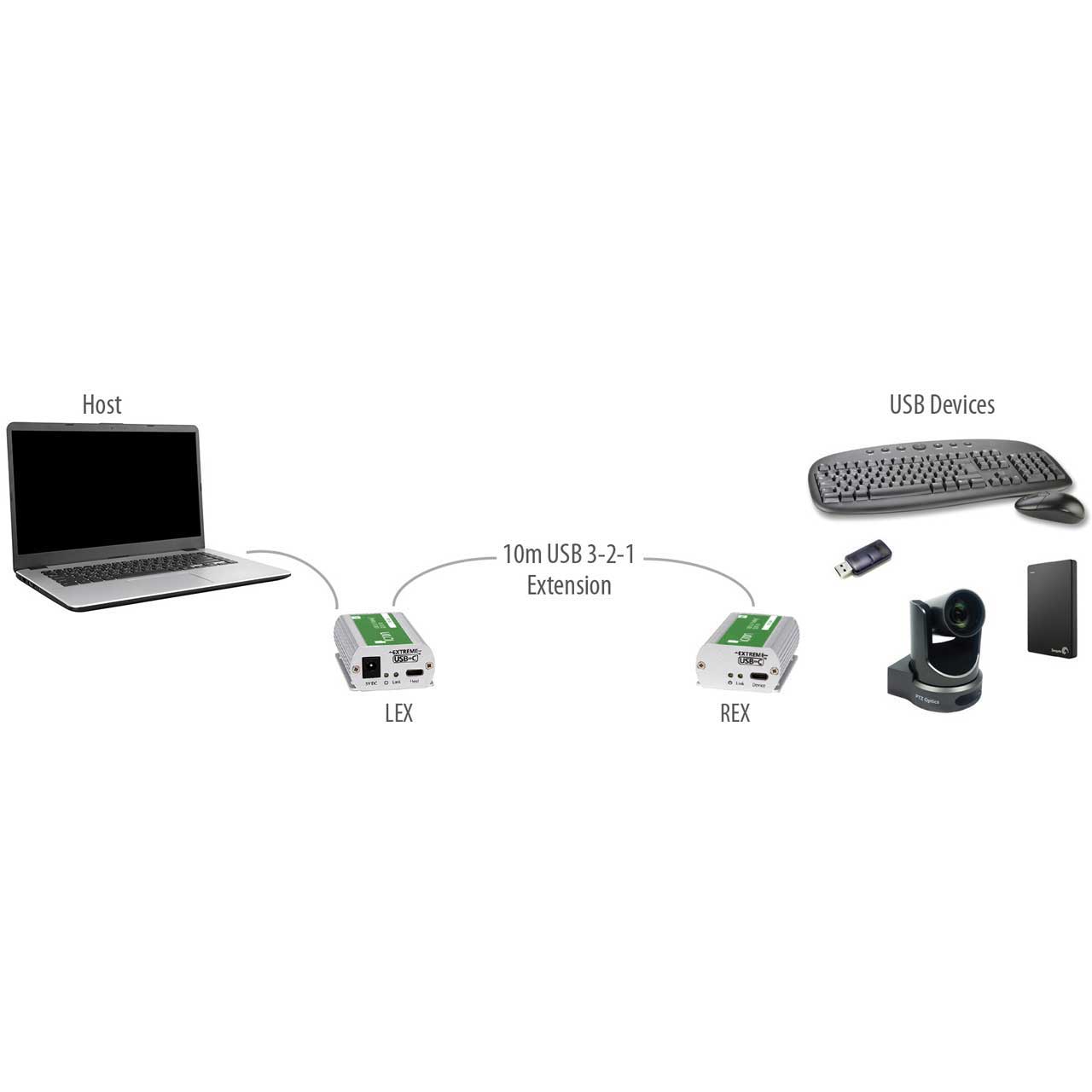

The Icron 3251C-10PL USB 3-2-1 Starling 3251C is the world's first backwards compatible USB 3.2 Gen 1 extender allowing users to extend USB 3.2 Gen 1 (5Gbps) device types as well as USB 2.0 and 1.1 devices across a custom 10m Cable while being completely USB BUS powered. The Starling 3251C comes with Plenum or CM fire rated cables. Applications include extending USB 3 conferencing cameras, video capture devices, and audio devices for boardrooms and conference rooms. The Starling extender series has been successfully tested with most major USB 3.1 conferencing cameras in conjunction with major UC conferencing applications (Zoom, Teams, Webex, Hangouts Meet).

This 1-port USB 3.2 Gen extender supports data rates at up to 5Gbps and isplug and play - no software drivers required - for all major operating systems: Windows, macOS, Linux and Chrome OS.

Additionally, this Extreme USB-C based USB 3.2 Gen 1 extender system is FCC/CE Class A certified and, being backward compatible, is ideal for use with all USB peripherals in addition to USB 3.2 Gen 1 conference cameras including: flash drives, hard drives, keyboards, mice, interactive white boards, touchscreens, audio devices, and other USB 3, 2 and 1 devices.

Applications
Remote Storage
Security & Monitoring
Conferencing Cameras
Test and Measurement

Please Note: The 3251C-10PL is the USB 3-2-1 3251C Extender with a Plenum Cable.

  • Features:

    • USB 3.2 Gen 1 data rate up to 5Gbps
    • Supports all USB 3.2, 2.0, 1.1 devices simultaneously at full bandwidth
    • USB-C port connectivity (USB data only)
    • Bus-powered with optional DC input
    • Single 10-meter CM or Plenum-rated cable
    • FCC and CE (Class A) compliant
    • Two year warranty
    • ExtremeUSB-C suite of features:
    • Transparent USB extension supporting USB 3, 2 and 1
    • True plug and play; no software drivers required
    • Works with all major operating systems: Windows, macOS, Linux and Chrome OS

  • Specifications:

    • Range
    • Point-to-point 10 meters (32.8 feet) using included Cable

      Speeds
    • USB 3.2: up to 5Gbps
    • USB 2.0: up to 480Mbps
    • USB 1.1: up to 12Mbps

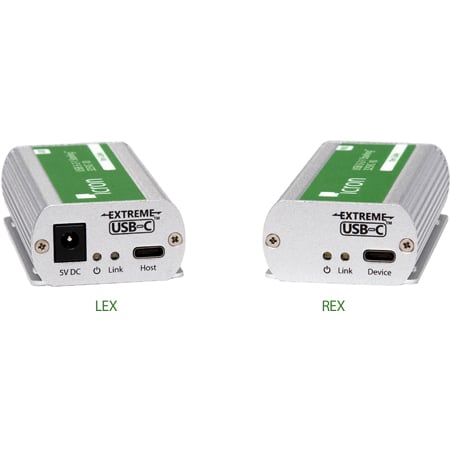

      LEX (Local Extender)
    • 1x USB 3.2 Gen 1 Type-C Receptacle
    • 1x ARJ45 Link Port
    • Maximum wattage: 15W (5V 3A) USB or Self-Powered
    • 5V 3A DC Jack (Power Supply sold separately)
    • Enclosure Material: Silver anodized aluminum
    • Dimensions: 86.0 x 45.0 x 24.0mm (3.4" x 1.8" x 0.9")
    • 80g (0.18 lbs.)
    • Mounting: 4 surface mounting holes or optional mounting kit available

      REX (Remote Extender)
    • 1x USB 3.1 Gen 1 Type-C Port
    • 1x ARJ45 Link Port
    • Available Current: up to 900mA
    • Enclosure Material: Silver anodized aluminum
    • Dimensions: 86.0 x 45.0 x 24.0mm (3.4" x 1.8" x 0.9")
    • 90g (0.20 lbs.)
    • Mounting: 4 surface mounting holes or optional mounting kit available

      Environmental
    • Operating Temperature: 0C to 50C (32F to 122F)
    • Storage Temperature: -20C to 70C (-4F to 158F)
    • Operating Humidity: 20% to 80% relative humidity, non-condensing
    • Storage Humidity: 10% to 90% relative humidity, non-condensing

      Compliance
    • EMC: FCC (Class A), CE (Class A)
    • Environmental: RoHS2/3, (CE) REACH, Conflict Minerals

  • Item Includes:

    • 1x Local Extender (LEX)
    • 1x Remote Extender (REX)
    • 1x USB 3.2 Gen 1 USB-C Cable
    • 1x Custom Link Cable (10m, CM or Plenum-Rated)
    • 1x Cable Pulling Eye
    • 1x Quick Start Guide

  • Warranty:

    • 2 Year Warranty
