INOGENI INO-BUTTON KIT Backlit Switch Button for use with TOGGLE ROOMS and TOGGLE ROOMS XT - 12 Foot Cable

ITEM #: IN-BUTTONKIT-12 MFG #: INO-BUTTON KIT - 4M (12FT)

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Inogeni
Free Shipping with $49 Minimum Order

Our Price:

$185.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

INO-BUTTON KIT - 4M (12FT) - Overview

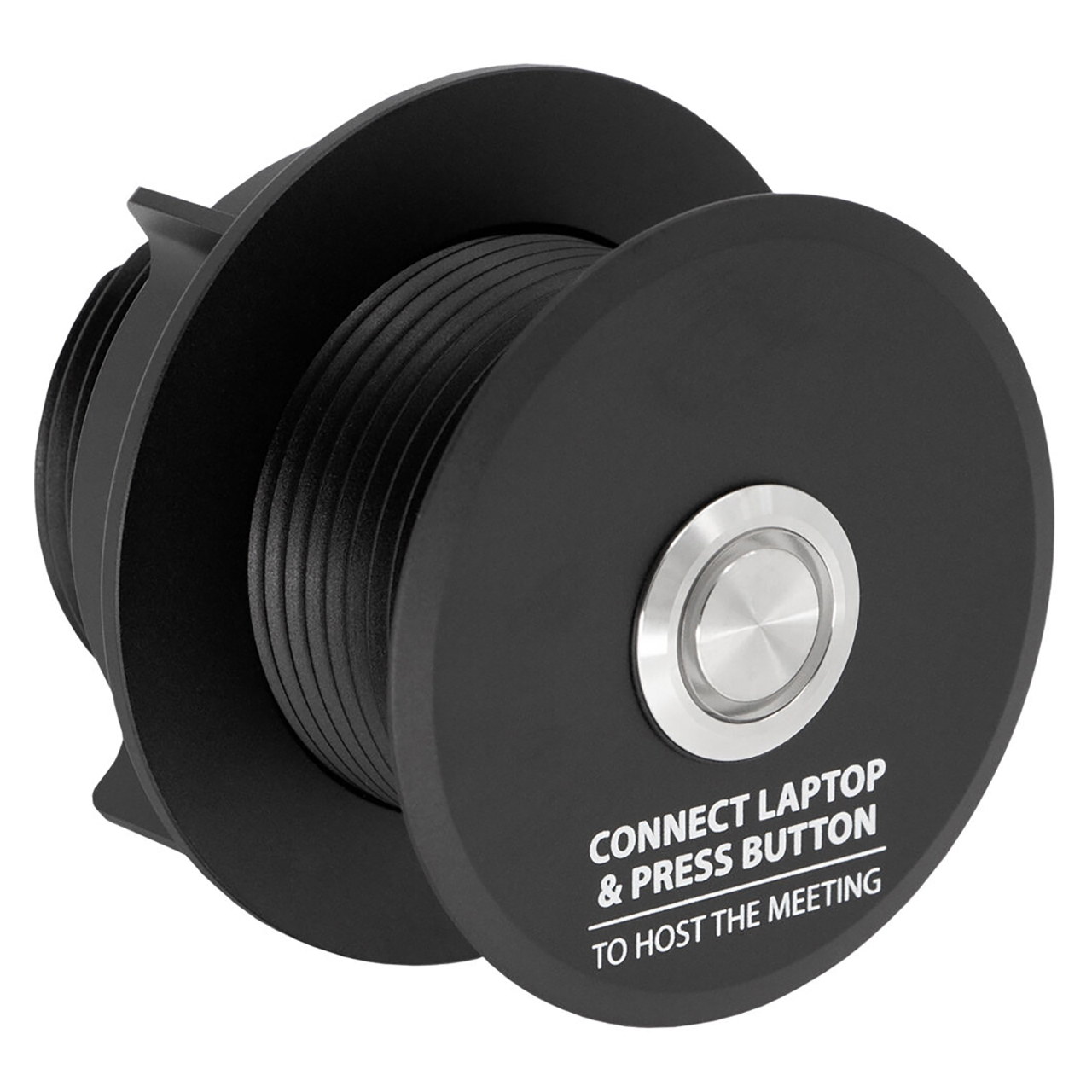

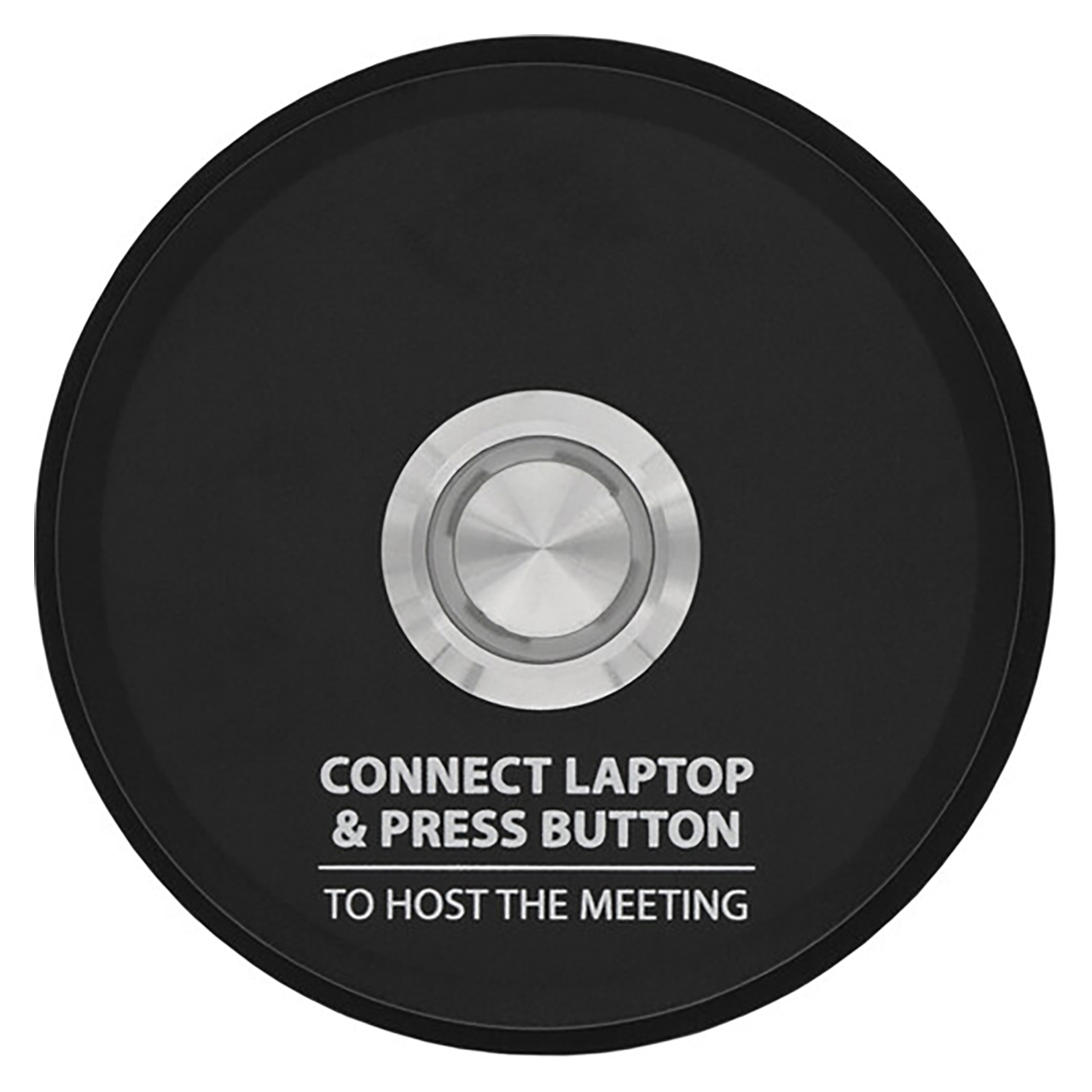

Introducing the INOGENI INO - BUTTON KIT - an elegant, high-quality metal-grade switch designed to subtly enhance conference tables. With a sleek, illuminated design, this button effortlessly toggles between room PC and laptop hosts, providing a seamless and sophisticated solution for Bring Your Own Meeting (BYOM) scenarios. Designed for TOGGLE ROOMS and TOGGLES ROOMS XT for larger spaces, it is easy to install and perfectly fit for aesthetic integration into modern conference spaces.

  • Features:

    • Enables easy switching between two PCs-from the room PC to the laptop and vice versa

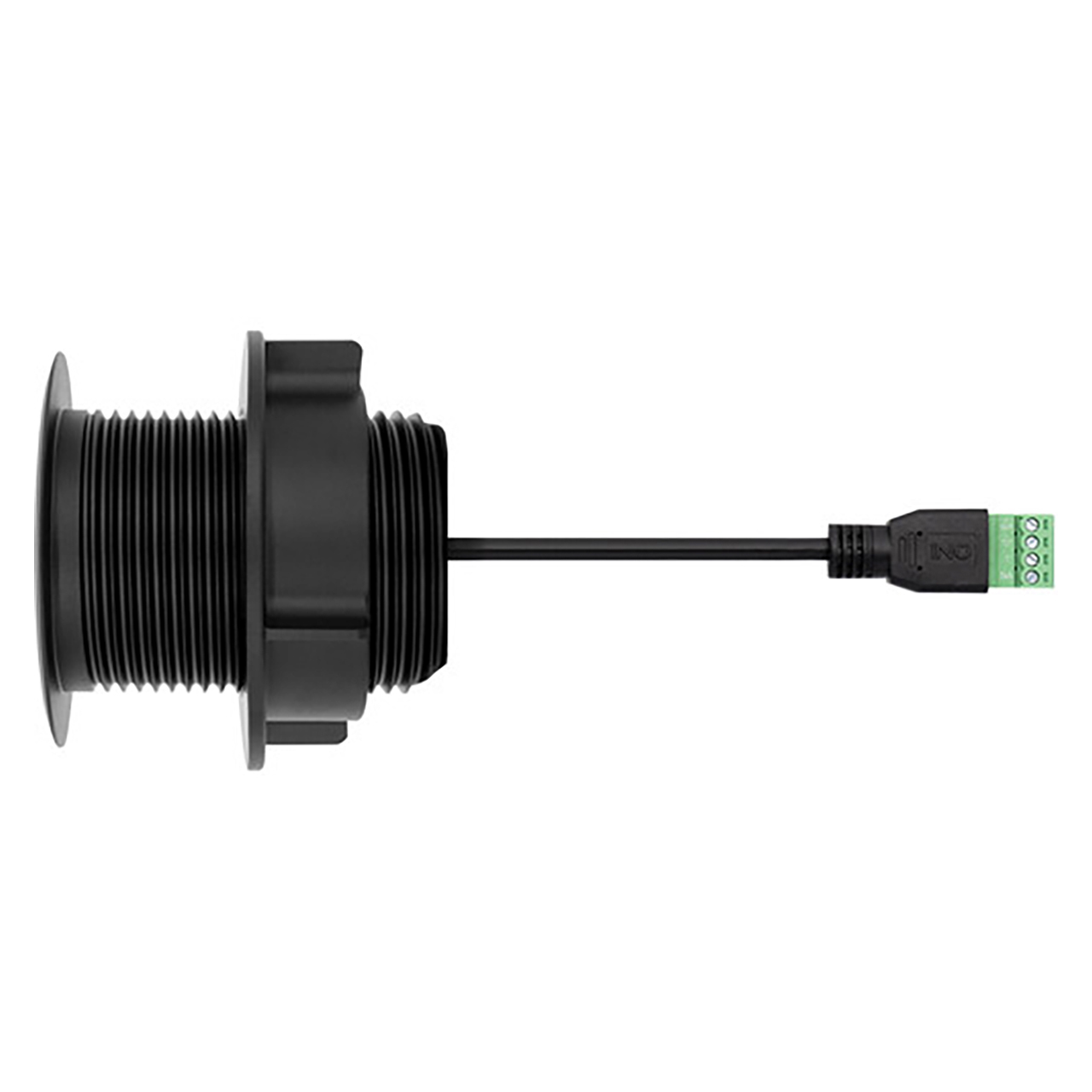

    • Anodized metal button with LED ring and terminal block hardware

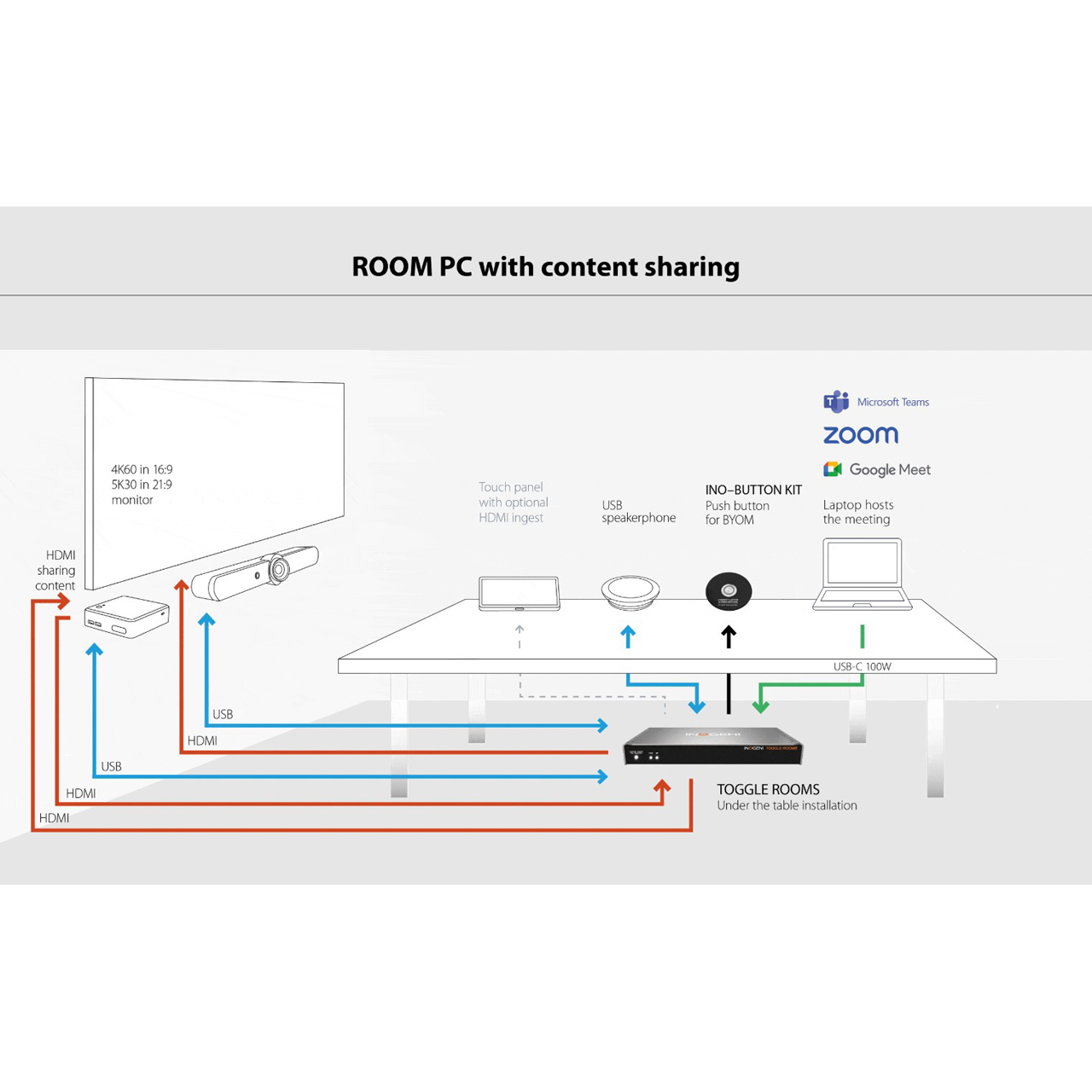

    • Linked to TOGGLE ROOMS through a simple CAT cable (not included) using terminal block connections
    • Operates the device via the GPI interface
    • Manages device modes, including PC selection/Bring Your Own Meeting (BYOM) activation
    • Easy plug and play connections between the Button and the TOGGLE ROOMS or the TOGGLE ROOMS XT for larger spaces.


  • Specifications:

    • Physical Details
    • Dimensions (WxLxH): 7.24" x 3.27" x 2.91" (18.4cm x 8.3cm x 7.4cm)
    • Power Supply: Powered by external device
    • Weight for INO-BUTTON KIT - 4 m (12 ft): 0.68 lbs (310g)
    • Construction: Stainless
    • Mounting: Flush tabletop (2.124 in) 53.95 mm round hole
    • LED Color: White
    • LED Resistance: No resistance in button (Need to put an external resistance on the + connection if used with a system different than the TOGGLE ROOMS or TOGGLE ROOMS XT)
    • Rated Voltage: 3 @ 24VDC
    • Maximum Current: 20mA

      Certifications
    • Certifications: CE, UKCA

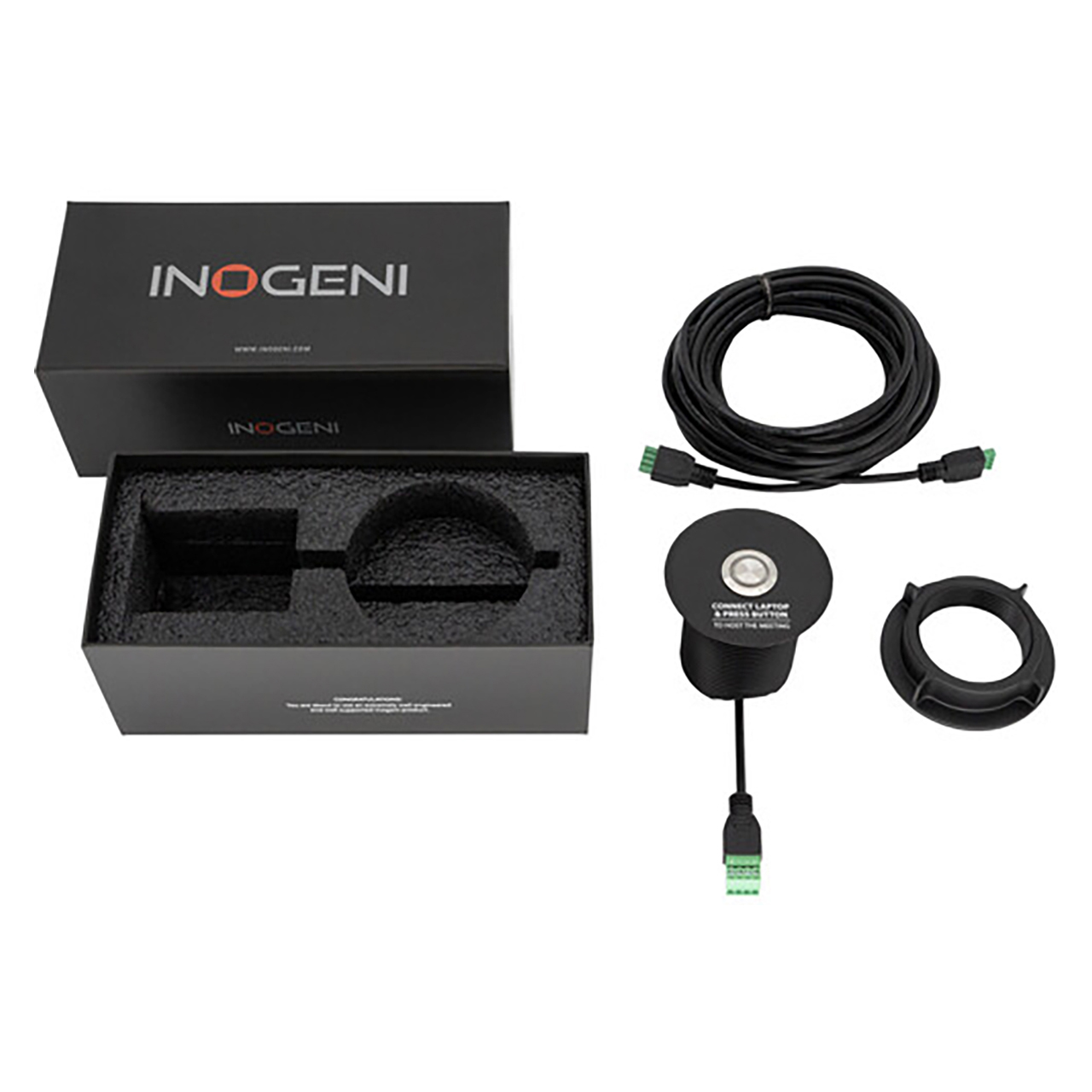

  • Item Includes:

    • 1x Button with assembled cable with screw and nut hardware
    • 1x Terminal block plug
    • 1x Installation Guide
    • 1x 12ft Terminal Block Cable


  • Warranty:

    • 5 Year Limited Warranty
