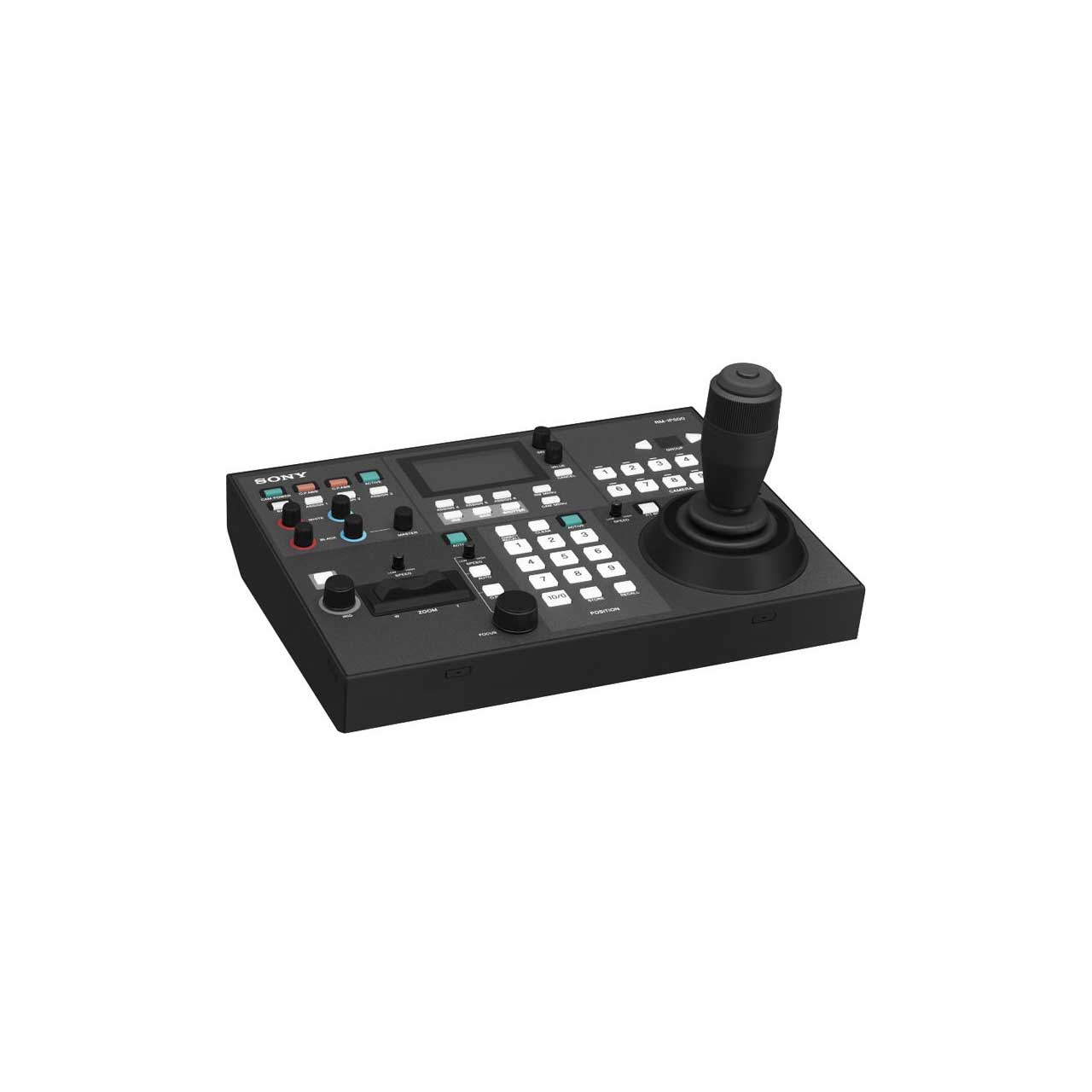

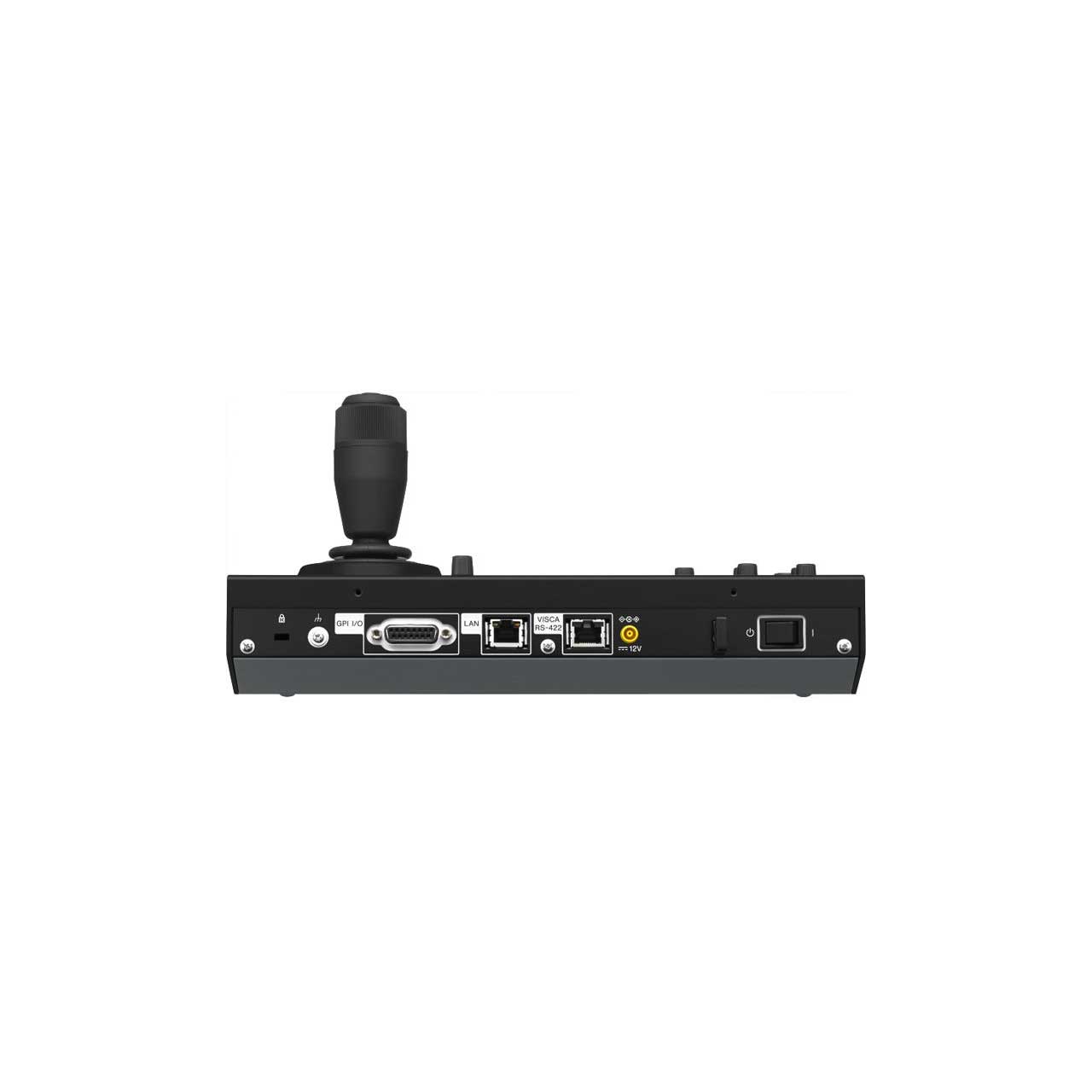

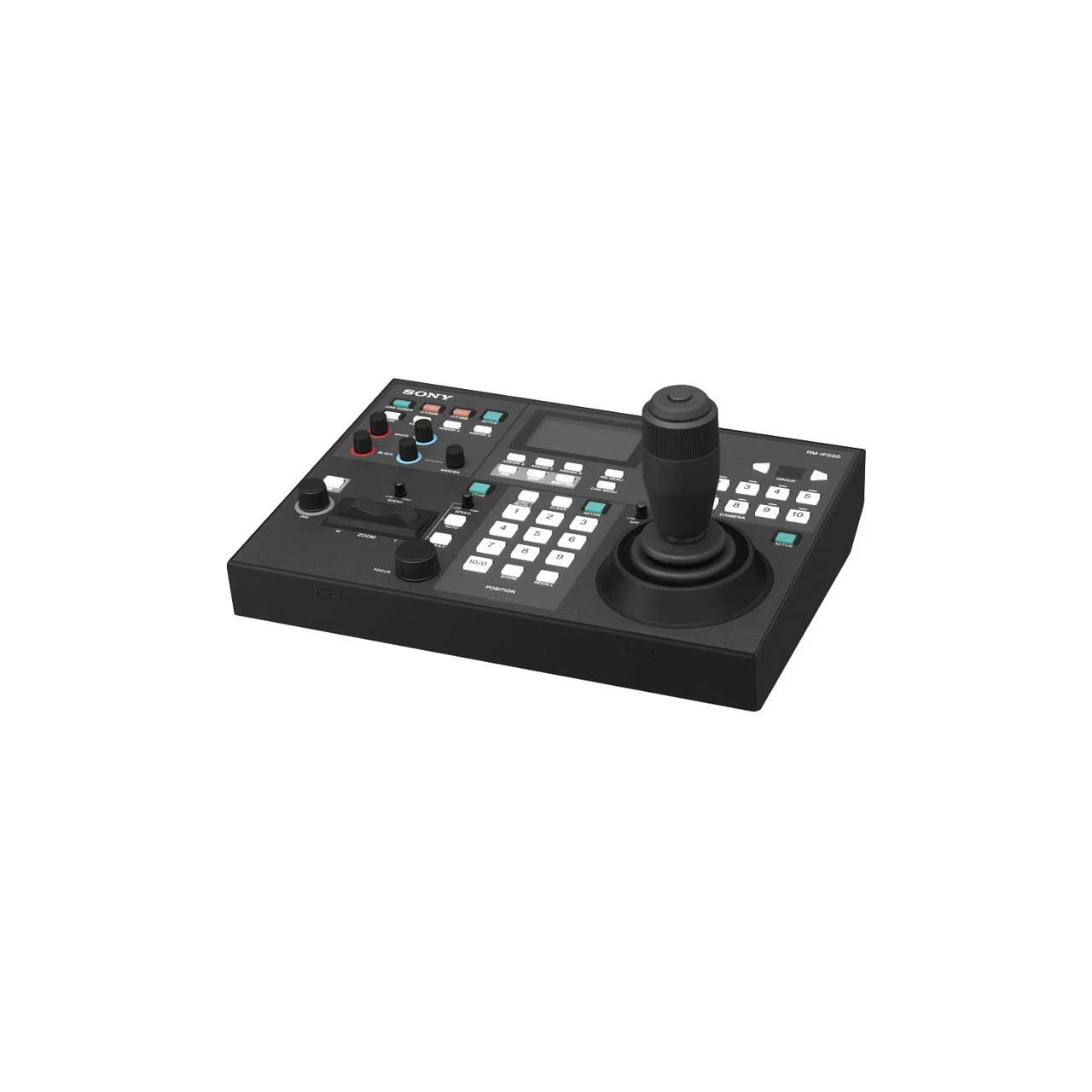

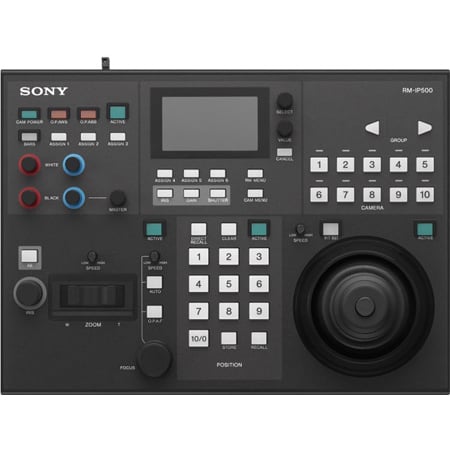

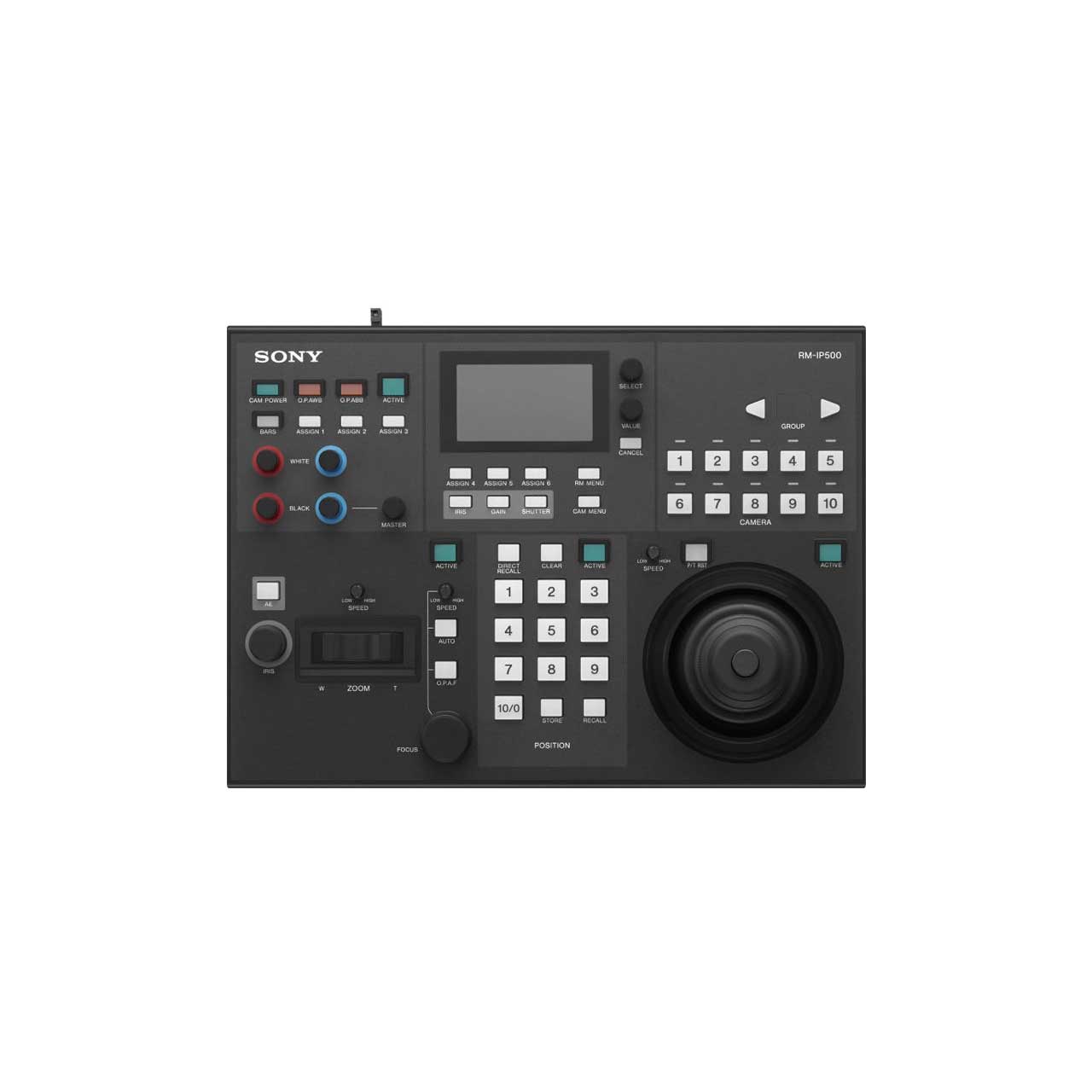

Sony RMIP500/1 PTZ Camera Remote Controller for Select Sony PTZ Cameras with US AC Power Supply and Cord

ITEM #: SNY-RM-IP500-1 MFG #: RM-1P500/1

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$3,095.00

Our Price:

$2,730.88

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


RM-1P500/1 - Overview

The Sony RM-1500-1 gives you easy, ergonomic PTZ control of multiple remote cameras for live events production and contents creation. This compact remote controller features a high-quality joystick that allows effortless one-handed pan, tilt and zoom adjustments of compatible Sony PTZ remote cameras. Zoom can also be controlled via the joystick or a supplementary seesaw lever; dedicated knobs and control buttons simplify direct access to frequently-needed camera functions.

The RM-IP500 simplifies the building of cost-effective multi-camera content creation systems with a wide range of applications - from live events to conference halls, broadcast studios, education institutes and houses of worship.

PTZ speed can be adjusted from slow to fast for more polished, professional-looking results. Up to 100*1 combinations of camera angles and settings can be stored as presets. Trace Memory*1 allows a sequence of camera moves to be stored and recalled whenever required.

Up to 100 compatible Sony BRC or SRG Series PTZ remote cameras can be controlled over a standard IP network. Set-up's simple: the controller automatically assigns IP addresses to connected Sony PTZ cameras on the network, also assigning a camera number to each.

Full compatibility is provided with these Sony PTZ remote camera models: BRC-X400*3, SRG-X400 *3, SRG-X120*3 , BRC-X401*2,*3 , SRG-201M2*2,*3, SRG-HD1M2*2,*3 , BRC-X1000, BRC-H900, BRC-H800, BRC-H780*², SRG-360SHE, SRG-280SHE*², SRG-300SE, SRG-300H, SRG-301H*², SRG-120DH, SRG-120DS, SRG-120DU, SRG-121DH*², SRG-HD1*².

The RM-IP500 is an ideal partner for the Sony MCX-500 Multi-Camera Live Producer, creating a complete IP streaming and SD recording solution for a wide range of content production applications.

The RM-IP500/1 is a US/Canada model which is bundled with the AC-UES1230MT AC power supply and cord. In all other regions the AC power supply and cord are sold separately.

*1 Depends on camera specification. Version up might be required.
*2 China models.
*3 Requires firmware V2.10

  • Features:

    • High-quality Control of PTZ Functions
    • Control up to 100 BRC/SRG or ILME-FR7 Cameras via IP
    • Simple Set-up
    • Store and Recall up to 100 Camera Presets
    • Up to 5 Controllers can Operate on a Single Network
    • Tally Indicator
    • Adjust Camera Paint Functions
    • Additional Ability to Use VISCA Control
    • Selectable ASSIGN Items

  • Specifications:

    • General
    • Input Voltage: 12V DC (10.8 to 13.2V DC)
    • Current Consumption: 0.6A max. (All lamps lit), 7.2W (at 12V DC) / 0.2A typ.(2.4W)
    • Operating Temperature: 32°F to 104°F (0°C to 40°C)
    • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
    • Dimensions (W x H x D): 12.125" x 6.375" x 8.875" (306mm x 159.3mm x 224.1mm) (excluding protrusions)
    • Weight: 5.29lbs (2.4kg)

      User Interface
    • Display: Yes
    • Speed Control: Yes 3 dials (PT, Zoom and Focus separately)
    • Zoom Seesaw Lever: Yes
    • Zoom Ring of Joystick: Yes
    • Zoom Control Selectable: Seesaw Lever or Ring of Joystick
    • ASSIGN Button: 6
    • Kensington Lock Hole: Yes

      Camera Control
    • Maximum IP Connections: 100
    • Maximum Serial Connections: 7
    • Control Protocol: VISCA over IP/VISCA RS-422 Switchable
    • Max Controller qty (/system): 1

  • Item Includes:

    • 1x Sony RM-IP500 PTZ Camera Remote Controller
    • 1x Safety Regulations
    • 1x Download Site Information
    • 1x Panel Sheet for ILME-FR7

  • Warranty:

    • 1-Year Limited Warranty

  • GTIN:

    0027242286108
