X-Keys XK-24 USB Programmable Keypad for Windows or Mac

ITEM #: XK-24-USB-R MFG #: XK-24-USB-R

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$159.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


XK-24-USB-R - Overview

The XK-24 offers twenty-four programmable keys to trigger macros, shortcuts, and applications, select tools or open files or directories.

With a co-injected case equally suitable for handheld or desktop applications, the XK-24 provides a versatile control box for any computer-driven application.

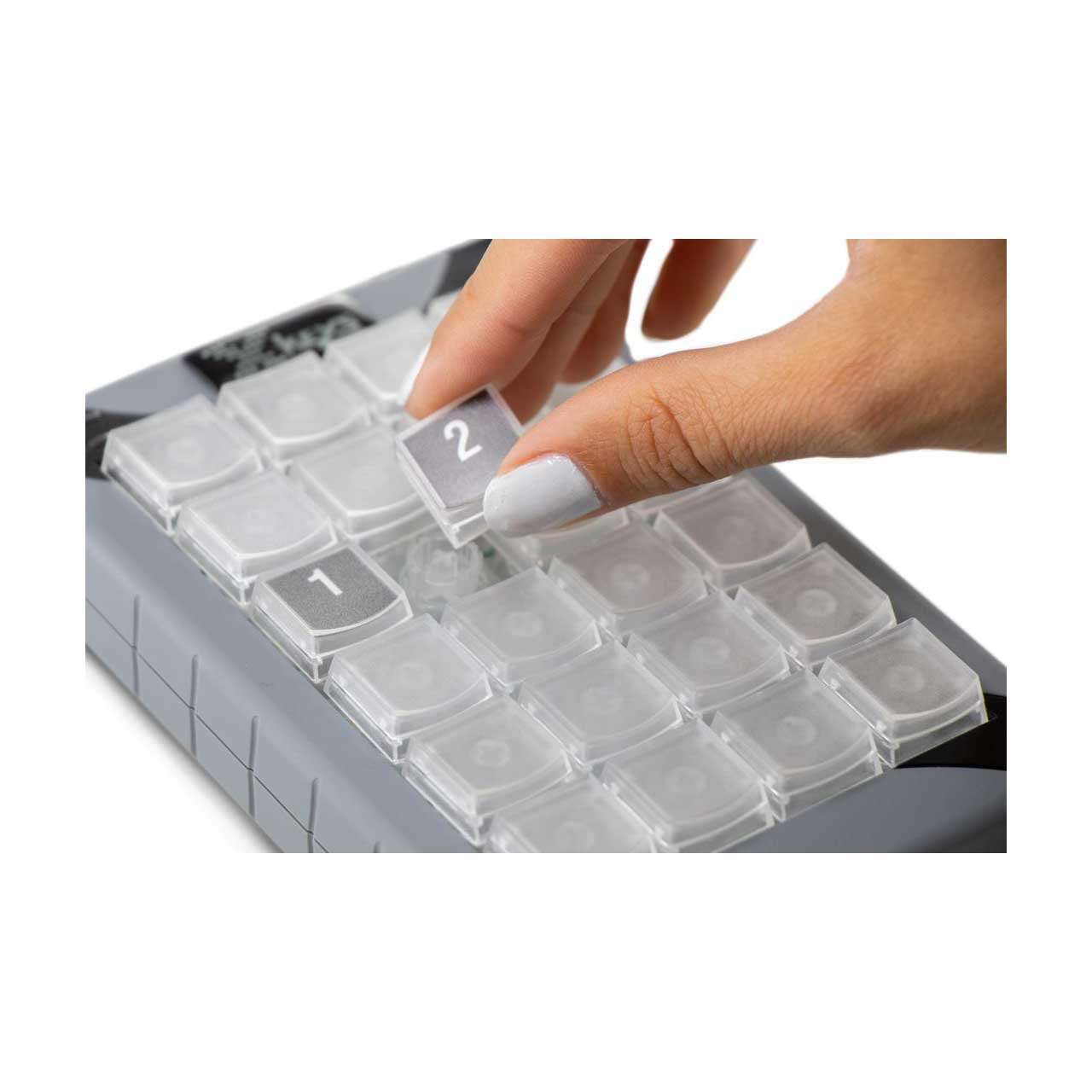

Use key blockers and tall or wide keycaps to instantly customize the XK-24 for your specific requirements.

Detachable feet give the XK-24 a slight angle to make the key legends easier to read.

Repositioning keys and feet allow the XK-24 to assume a "landscape" orientation with four rows and six columns.

  • Features:

    • 24 relegendable keys
    • Suitable for handheld, desktop, or mounted use
    • Addressable blue and red backlighting for each key
    • USB connection (other versions available)

  • Specifications:

    • Operating System: Use: Any OS via USB HID / Programming: Windows XP through 11, Mac OS 10.14 - Mac OS 13
    • Free Programming Software: Windows: MacroWorks 3.1
    • Free Software Development Kits: Windows (C++, C#, VB.NET), OS X SDK, Linux (C++), Android (Java), Raw HID (any language/OS)
    • Emulation Modes: HID keyboard, HID mouse, HID game controller, HID multimedia
    • Switch Types: Full-travel rubber dome, carbon on gold contacts, guaranteed for over 1 million operations
    • Number of Keys: 24 single keys + programming button
    • Actuation Force: Approx. 2.5 oz (72g) break-over, approx. 1.5 oz (42g) hold
    • Keycaps: 0.625" (16mm) sq.; relegendable with Cherry MX compatible stem
    • Key Spacing: 0.75" O.C.
    • Optional Keys: 2X1, 1X2, 2X2
    • Backlighting: 24 blue and 24 red LEDs, individually addressable
    • Connector: Wired USB standard "A" plug
    • Cord Length: 118" (3m)
    • Dimensions: 5.8" x 3.8" x 0.94"
    • Weight: 10 oz. (285 g)
    • USB Type: USB 1.1 compatible through 3.0 Type-c with adapter
    • Power Source: USB port, nominal voltage = 5 VDC
    • Current Draw: No backlight: 18 mA, Blue backlight full: 38 mA, Red backlight full: 57 mA, All backlights: 75 mA
    • Temperature Range: -20 to 60 C
    • Memory Capacity: Approximately 1,000 keystrokes or commands in onboard memory
    • Memory Type: EEPROM, non-volatile memory (X-keys retains memory for over 200 years)
    • Environmental Rating: IP 40, typical indoor office environment

  • Item Includes:

    • Macroworks 3.1 Software
    • product manual
    • key puller
    • blank legend sheet
    • and pre-printed lengend sheet

  • GTIN:

    0703273002404


XK-24-USB-R - Required Accessories
