X-Keys XK-1456-124VS-R T-bar Video Switcher Kit with vMix Keys

ITEM #: XK-1456-124VS-R MFG #: XK-1456-124VS-R

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$914.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    XK-1456-124VS-R - Overview

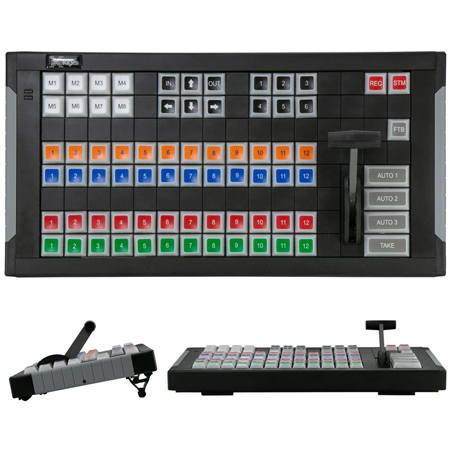

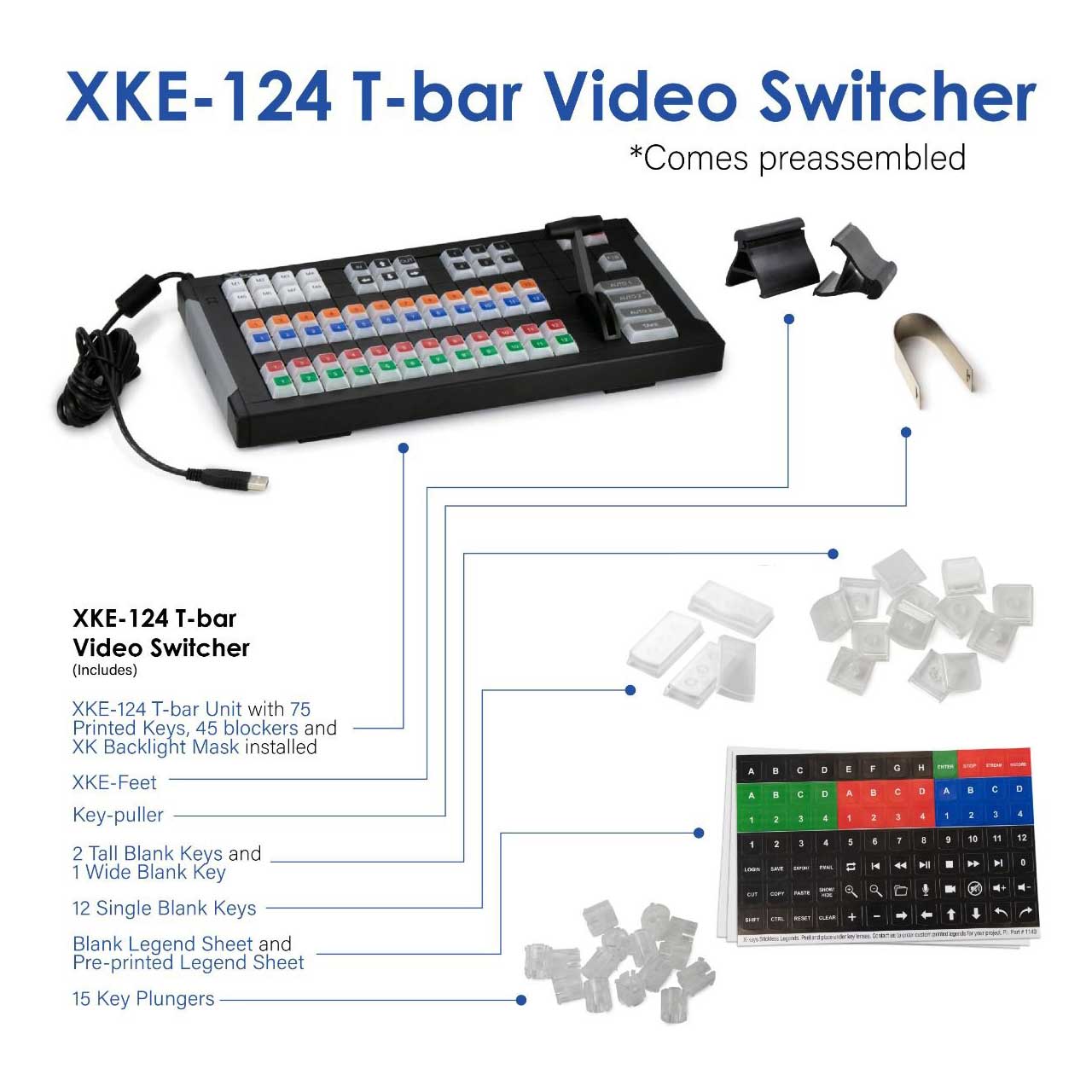

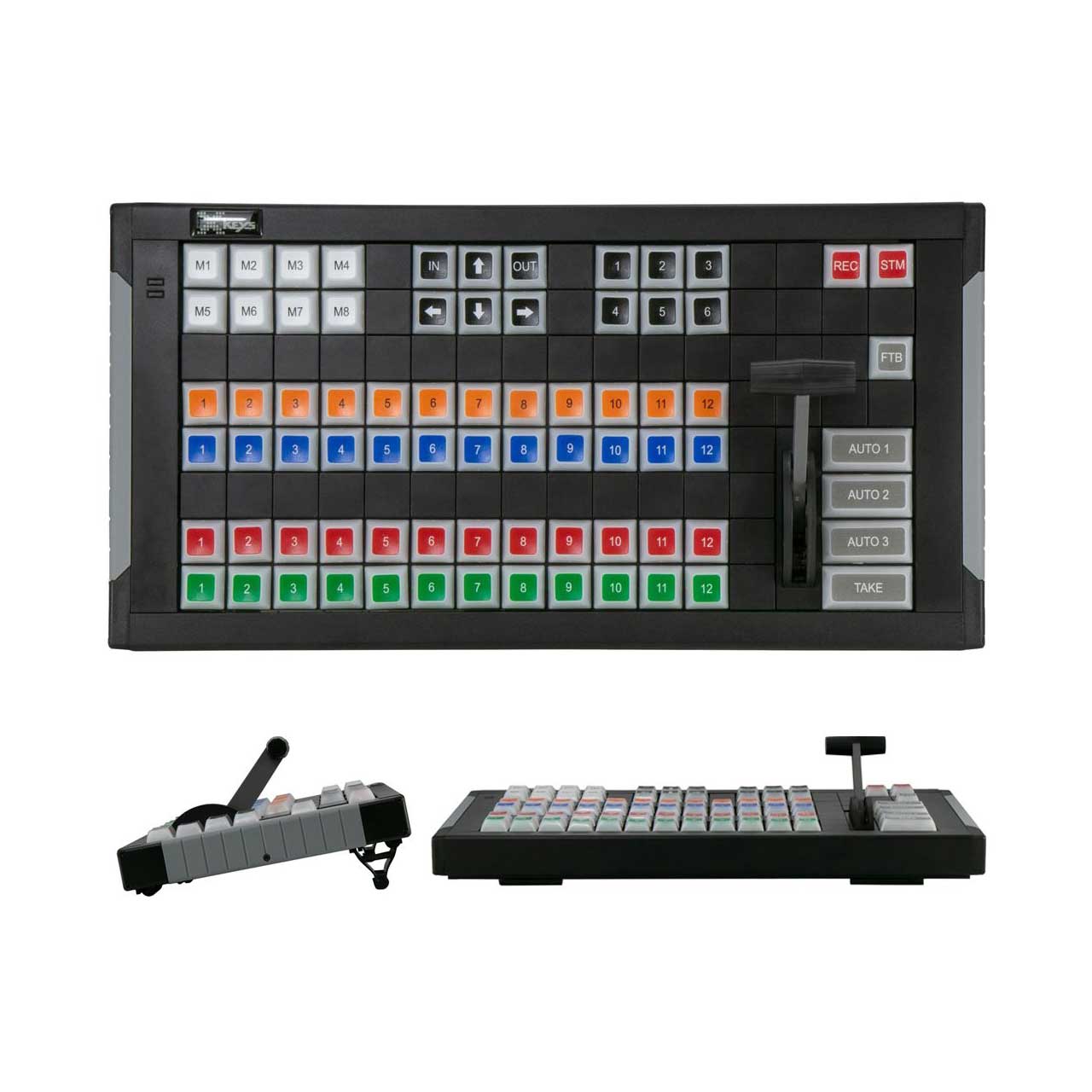

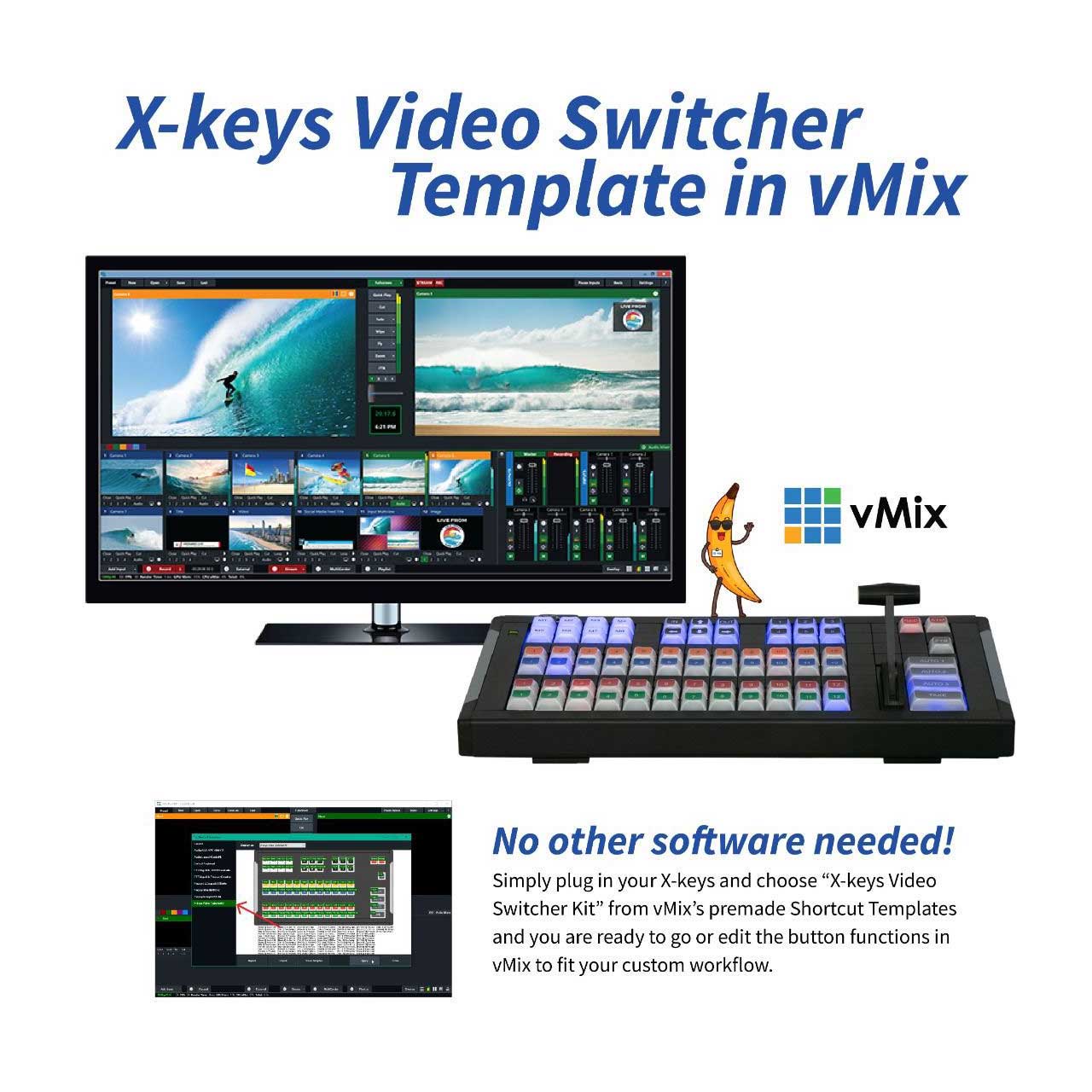

    The XK-1456-124VS-R is a T-bar video switcher controller that comes pre-assembled to match the template in vMix that makes it an easy, ready-to-go solution right out of the box bundled with the Video Switcher Key Kit.

    • Features:

      • Perfect bundle to turn your XKE-124 T-bar into a video switching controller for vMix, Tricaster or your favorite streaming software.

    • Specifications:

      • Emulation Modes: HID keyboard, HID mouse, HID game controller
      • Switch Types: Full-travel rubber dome, carbon on gold contacts, guaranteed for over 1 million operations
      • Number of Keys: 124 single keys
      • Actuation Force: 120g (4.2oz) break-over, 60g (2.1oz) hold
      • Key Cap Type: Relegendable with Cherry MX compatible stem
      • Key Cap Size: 0.625" (16mm) sq.
      • Key Spacing: 0.75" O.C.
      • Optional Keys: 2X1, 1X2, 2X2
      • Backlighting: 124 blue and 124 red LEDs, individually addressable
      • Connector: Wired USB 2.0 standard "A" plug
      • Cord Length: 56" (1.42 m)
      • Dimensions: 14" x 7.3" x 1.8" (279mm x 185mm x 46mm)
      • Weight: 4.7lbs (2.13 kg)
      • USB type: USB 1.1 compatible through 3.0
      • Power Source: USB port, nominal voltage = 5 VDC
      • Current Draw: NO backlight: 37 mA , Blue backlight full: 176 mA, Red backlight full: 265 mA, All backlights full: 358 mA
      • Temperature Range: -20 to 60 °C
      • Memory Capacity: Approximately 21,000 keystrokes or commands in onboard memory
      • Humidity: 80% Rh non-condensing


    XK-1456-124VS-R - Required Accessories
