X-Keys XKE-40 USB Programmable 40 Key Rackmountable Strip - 1RU

ITEM #: XK-XKE-40 MFG #: XKE-40

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
X-Keys
Free Shipping with $49 Minimum Order

Our Price:

$209.95

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

XKE-40 - Overview

The XKE-40 offers forty programmable keys to trigger macros, shortcuts, and applications, select tools, open files or directories. The XKE-40 provides a versatile control strip for any computer-driven application. Blue and red addressable backlighting enhances key identification in low light environments. Perfect for server control or production truck installations.

  • Features:

    • Available in standard or rack mount version
    • 1 RU high
    • Includes software for Windows and OS X
    • Free software development kits and code samples
    • 40 relegendable, low profile keys with red and blue backlighting
    • Accepts tall, wide, and 2x2 keys
    • USB connection to PC or Mac


  • Specifications:

    • Operating System: Use: Any OS via USB HID | Programming: Windows XP through 10, Mac OS X 10.4 through 10.10
    • Free Programming Software: Windows: MacroWorks 3.1
    • Free Software Development Kits: Windows (C++, C#, VB.NET), Linux (C++), Android (Java), Raw HID (any language/OS)
    • Emulation Modes: HID keyboard, HID mouse, HID game controller, HID multimedia
    • Switch Types: Full-travel rubber dome, carbon on gold contacts, guaranteed for over 1 million operations
    • Number of Keys: 40 single keys
    • Actuation Force: Approx. 2.5 oz (72g) break-over, approx. 1.5 oz (42g) hold
    • Keycaps: 0.625" (16mm) sq.; relegendable with Cherry MX compatible stem
    • Key Spacing: 0.75" O.C.

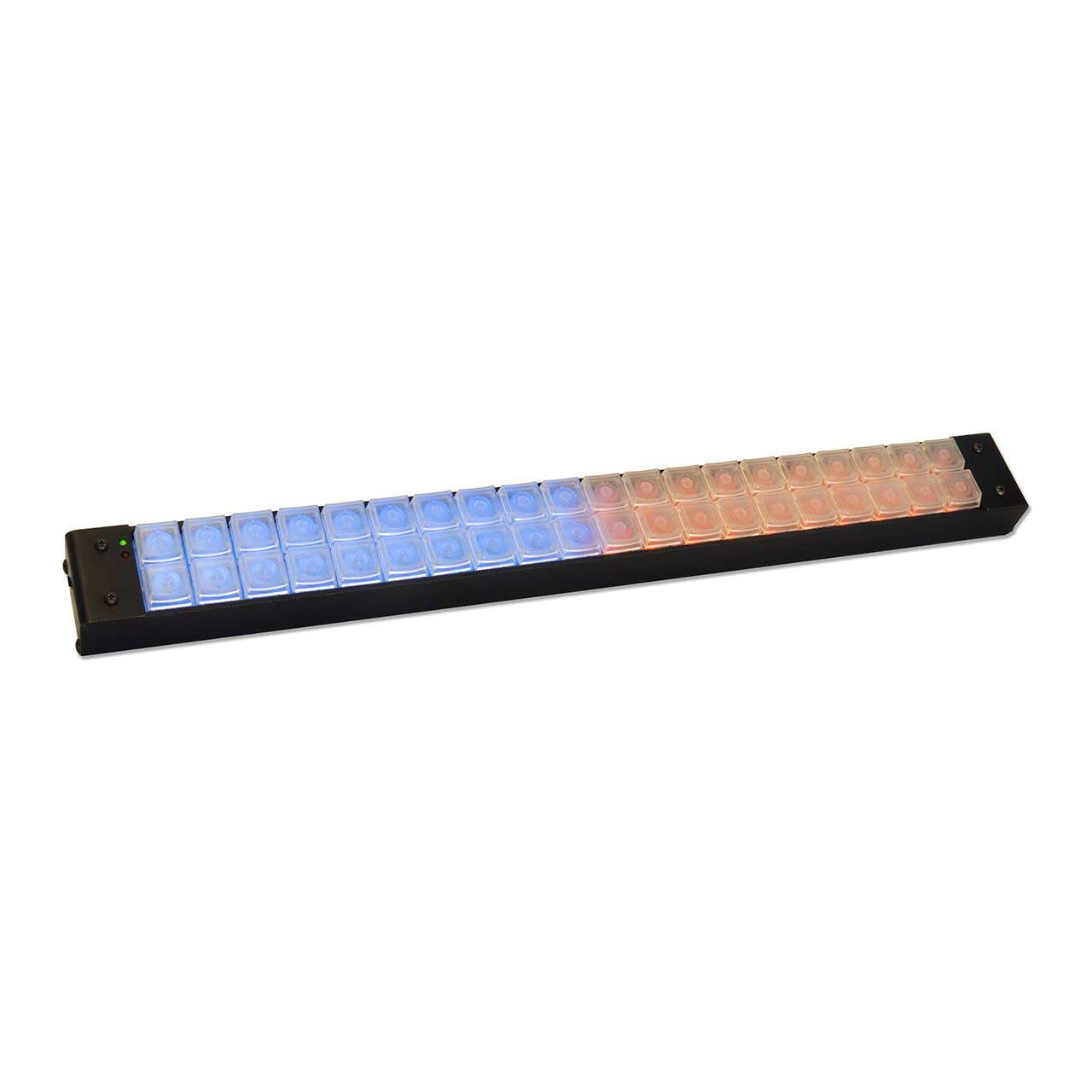

    • Backlighting: 40 blue and red LEDs, individually addressable
    • Connector: Wired USB 2.0 standard "A" plug
    • Cord Length: 118" (3 m)
    • Dimensions and Weight: 19" x 1.75" x 1.4", (483 mm x 44 mm x 10 mm), 21 oz. (600 g)
    • USB Type: USB 1.1 compatible through 3.0 Type-c with adapter
    • Power Source: USB port, nominal voltage = 5 VDC
    • Current Draw: No BL: 40 mA, All Blue: 80 mA, All Red: 110 mA, All Red and Blue: 140 mA
    • Temperature Range: -20 to 60 C
    • Memory Capacity: Approximately 21,000 keystrokes or commands in onboard memory
    • Memory Type: EEPROM, non-volatile memory (X-keys retains memory for over 200 years)
    • Environmental Rating: IP 40, typical indoor office environment
    • Certifications: FCC class B, CE, RoHS, WEEE compliant


  • Item Includes:

    • 1x X-keys XKE-40
    • 1x Replacement key set (2 tall, 1 wide, 1 key puller)
    • 2x Legend Sheets (1 blank, 1 pre-printed)
    • 1x Product Manual (this document)
    • 2x Angled feet (XK-1500-USK40-R only)
