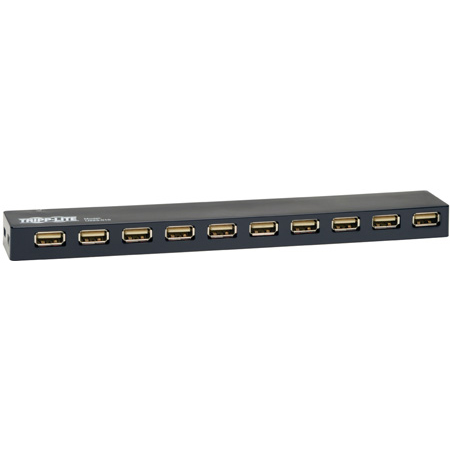

Tripp Lite U223-010 10-Port USB 2.0 Hi-Speed Hub

U223-010 - Overview

• Features:

  • USB 2.0 10-Port Hub
  • Supports data transfer rates up to 480Mbps

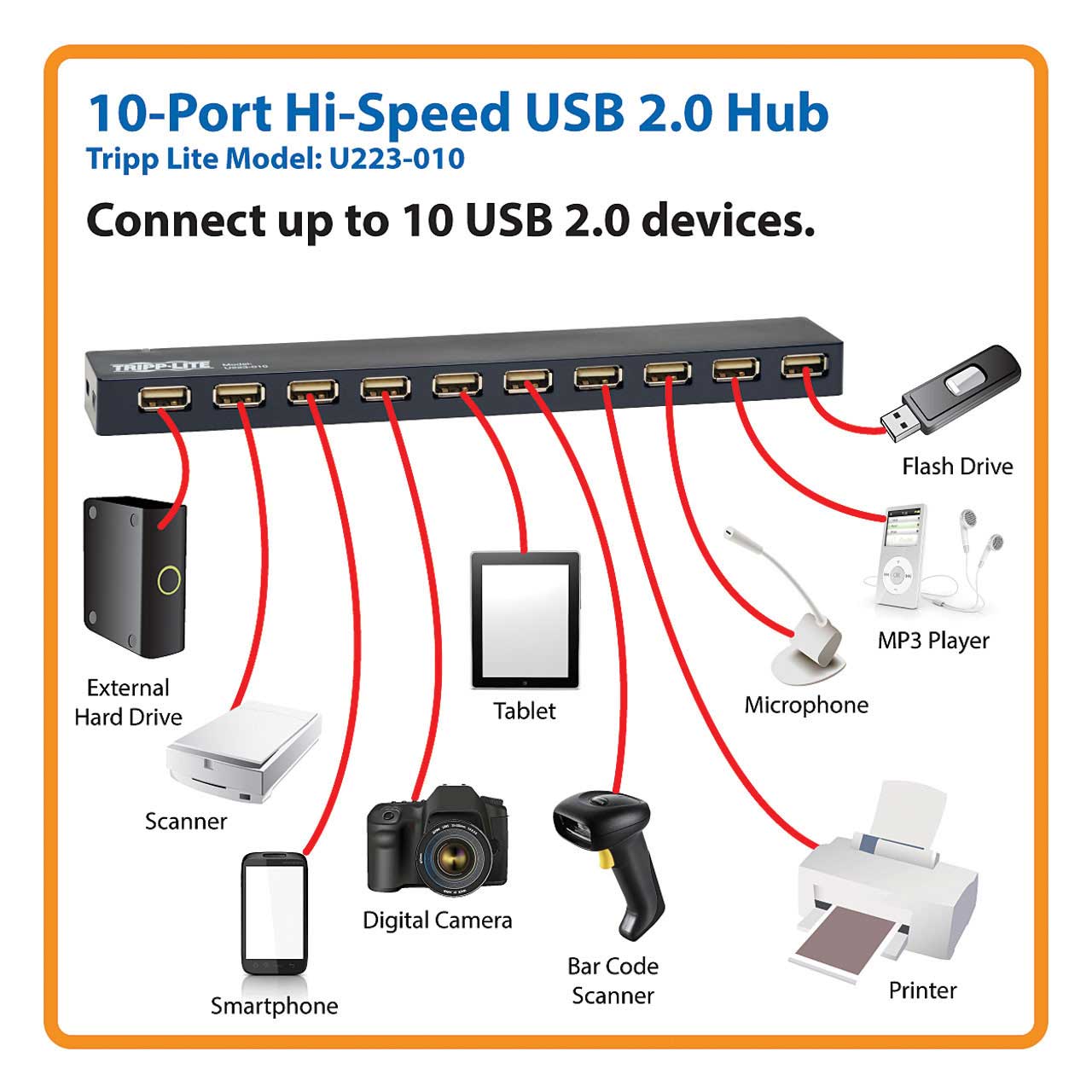

  • Connect up to 10 USB devices to a single USB port on your computer
  • Compact design is ideal for use with a laptop/notebook computer
  • Does not require external power, software, or complicated set-up procedures
  • Plug-and-play/hot-swappable allows you to add or remove a device at any time
  • Per-port overcurrent protection
  • Bus-powered or self-powered
  • Supports USB 2.0 spec up to 500mA per port
  • On bus-power, 500mA from the USB 2.0 computer port is shared between the hub ports
  • The included external power supply provides 4A of power, to be shared between the hub ports (up to 500mA per port)
  • Compact, multi-voltage power supply (100-240V) provided
  • Compatible with all major operating systems


• Specifications:

  • Input
  • Voltage Compatibility (VAC): 100; 110; 120; 127; 200; 208; 220; 230; 240
  • External Power Supply Input Specs (V / Hz / A): 100-240V / 50/60Hz / 0.9A
  • External Power Supply Output Specs (V / A): 5V / 4A
  • External Power Supply Cord Length (ft.): 4
  • External Power Supply DC Barrel Connector Specs: OD: 3.5 x 1.35 x 8mm, Positive Pin, Negative Sleeve
  • External Power Supply Plug(s): NEMA 1-15P North America
  • External Power Supply Certifications: DOE; FCC; UL
  • Bus Powered: No

    User Interface, Alerts & Controls
  • LED Indicators: Blue (Power)

    Physical
  • Color: Black
  • Material of Construction: ABS
  • Shipping Dimensions (hwd / in.): 2.20 x 3.20 x 9.10
  • Shipping Weight (lbs.): 0.70
  • Unit Dimensions (hwd / in.): 0.6 x 8.6 x 1.3
  • Unit Packaging Type: Box
  • Unit Weight (lbs.): 0.2

    Environmental
  • Operating Temperature Range: 32 to 158 F (0 to 70 C)
  • Storage Temperature Range: 14 to 194 F (-10 to 90 C)
  • Relative Humidity: 10% to 90 % RH, Non-Condensing
  • BTUs: 1.9 BTU/Hr
  • Power Consumption (Watts): 0.55
  • Power Provided to Connected Device(s): 5V 0.5A (2.5W) Output per USB port

    Connections
  • Ports: 10
  • Side A - Connector 1: USB A (FEMALE)
  • Side B - Connector 1: (10) USB A (FEMALE)
  • Connector Plating: Nickel

    Features & Specifications
  • USB Specification: USB 2.0 (up to 480 Mbps)
  • Driver Required: No
  • Technology: USB 2.0 (High Speed); USB

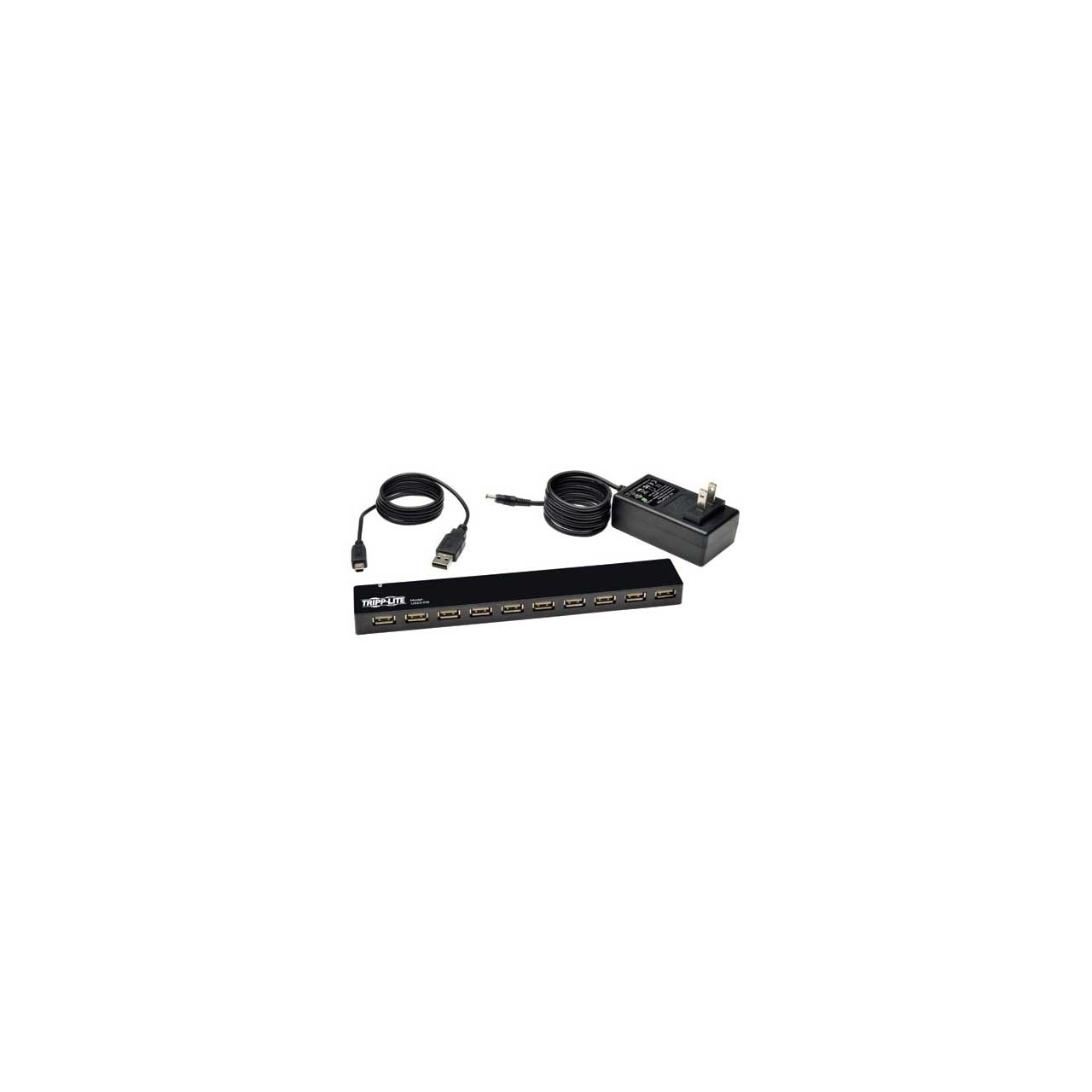

• Item Includes:

  • 1x U223-010 USB 2.0 Hub
  • 1x User's Manual
  • 1x USB 2.0 Mini B male to USB 2.0 A male cable
  • 1x External Power Supply with NEMA 1-15P Plug (Input: AC100-240V, 50/60Hz, 1.5A; Output: 5V, 4A)


• Warranty:

  • 1 Year


• GTIN:

  0037332185396
