Startech CDPVGDVHDMDP Aluminum Travel A/V Adapter: 4-in-1 USB-C to VGA DVI HDMI or mDP - 4K

ITEM #: ST-CDPVGDVHDMDP MFG #: CDPVGDVHDMDP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$85.99

Our Price:

$80.12

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


CDPVGDVHDMDP - Overview

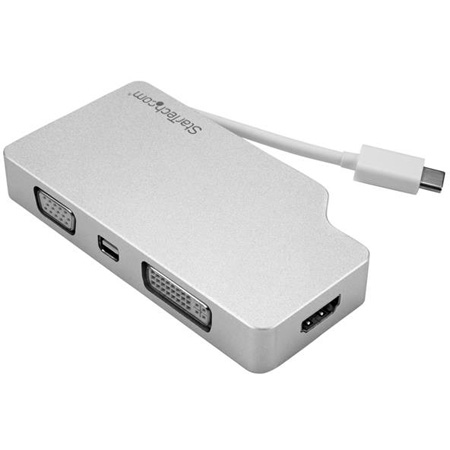

The CDPVGDVHDMDP 4-in-1 travel adapter offers a portable solution for connecting your USB-C computer to a VGA, DVI, HDMI® or Mini DisplayPort display.

The travel adapter is VESA certified to ensure compatibility with your DP alt mode computer. DP alt mode means your computer can pass a DisplayPort video signal through the USB-C port.

Stylish connectivity for your MacBook with USB-C

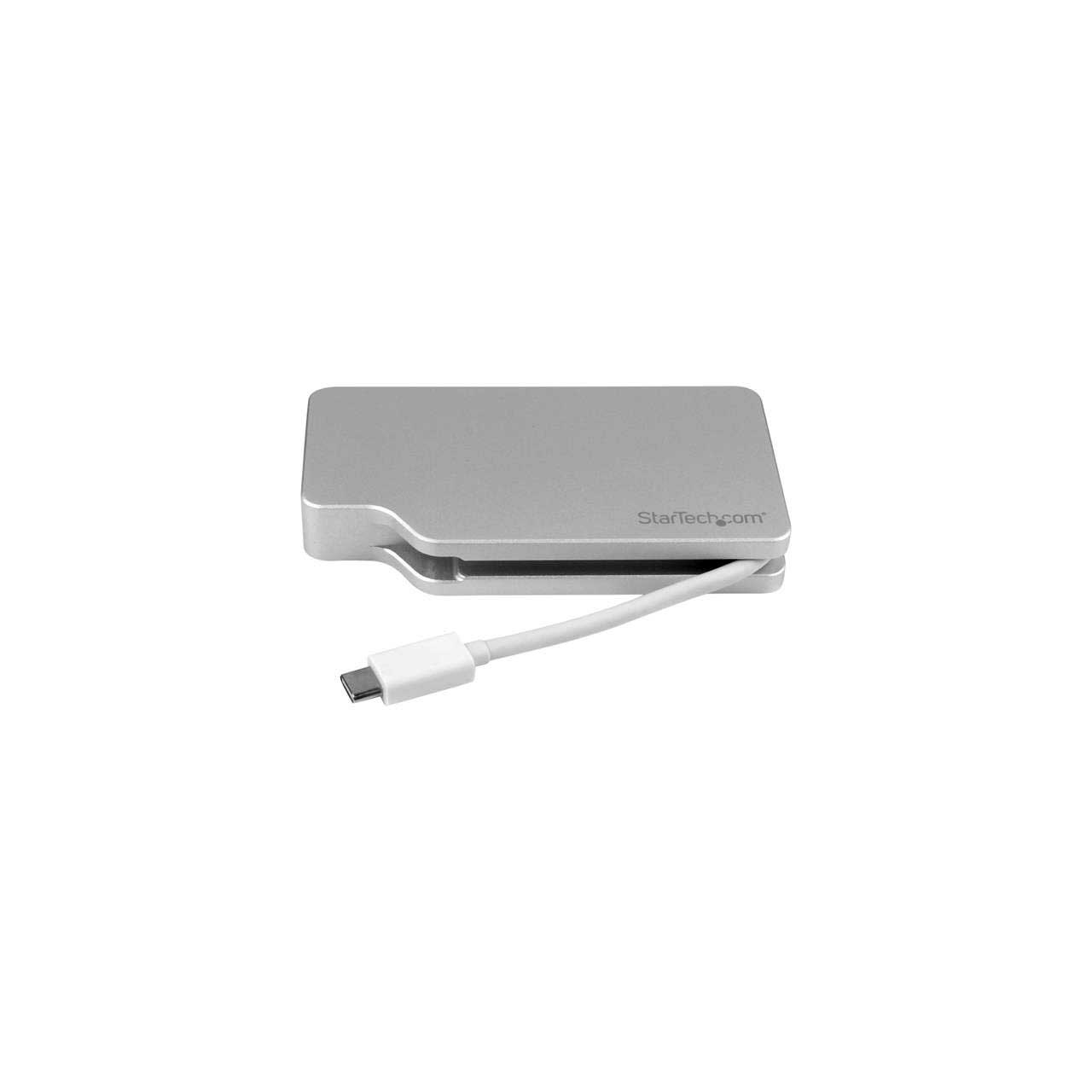

This travel adapter has been constructed with a sturdy aluminum housing and a built-in white USB-C cable. The adapter looks great and works well with any device that supports USB-C DP alt mode.

All-in-one video connectivity, with travel in mind

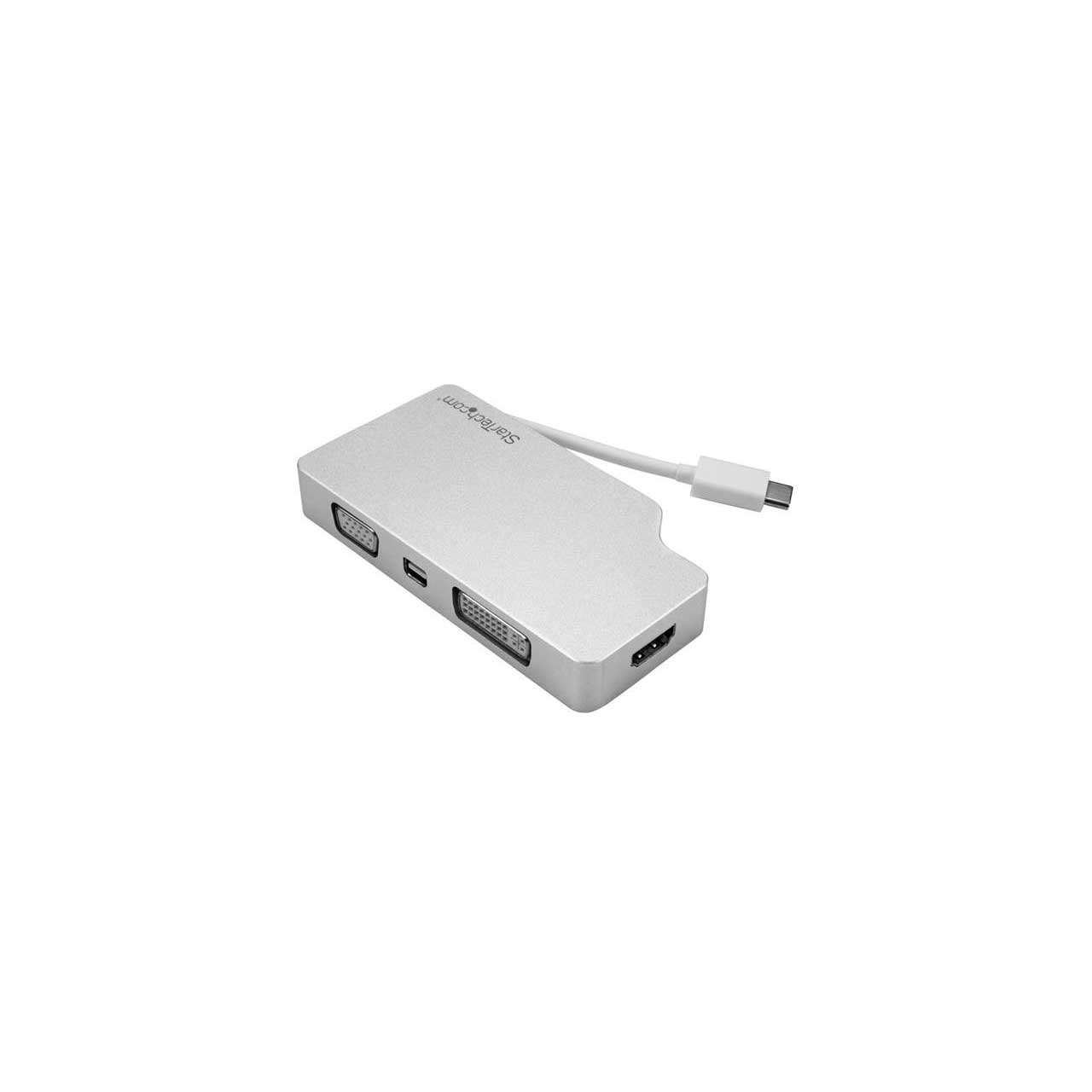

Instead of filling your laptop bag with different converters for different displays, this 4-in-1 adapter gives you all the video outputs you'll need. With VGA, DVI, HDMI and Mini DisplayPort outputs, this adapter lets you connect from your laptop's USB Type-C port to any boardroom or classroom display, without the inconvenience of carrying a separate adapter for each display type.

With support for multiple video outputs and a small-footprint design, this adapter is the ideal plug-and-play solution for travel or BYOD (Bring Your Own Device) applications around the office.

Innovative, built-in cable manager

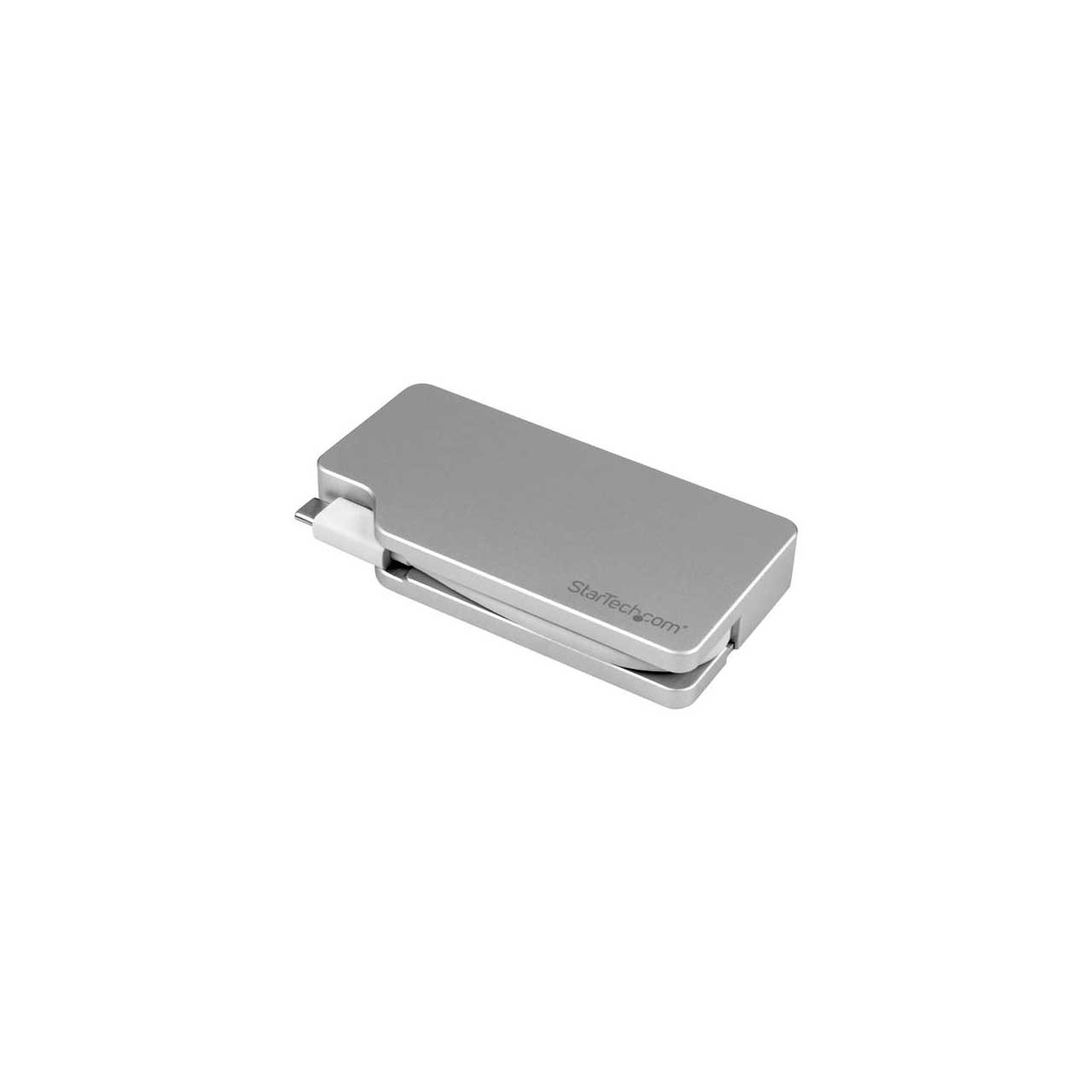

The adapter features a built-in magnetic fastener, for cable management. The magnet helps guide the breakout cable into place for quick and secure storage while traveling, ensuring the adapter is neatly stored in your travel bag.

Astonishing picture quality
The HDMI and Mini DisplayPort outputs on this travel adapter support Ultra HD 4K resolutions providing four times the picture quality of high-definition 1080p. The HDMI and mDP outputs are also backward compatible with lower resolutions, such as 1080p and 720p, so the adapter is also perfect for your legacy video equipment. The VGA and DVI outputs also support a high-definition maximum resolutions of up to 1920 x 1200 so you can still enjoy excellent video quality.

The travel adapter is compatible with USB Type C Intel® Thunderbolt™ 3 devices that are capable of outputting a DisplayPort signal.

The CDPVGDVHDMDP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

  • Features:

    • 4-in-1 adapter - USB-C to VGA, USB-C to DVI, USB-C to HDMI and USB-C to Mini DisplayPort
    • Maximum portability with built-in magnetic cable manager
    • Astonishing picture quality with support for UHD 4K
    • VESA certified
    • Plug-and-play installation
    • Small footprint
    • Lightweight design
    • Compatible with USB Type-C Thunderbolt™ 3 devices that are capable of outputting a DisplayPort signal

  • Specifications:

    • Hardware
    • Active or Passive Adapter: Active
    • Adapter Style: Adapters
    • Chipset ID: Cypress - CYPD1120; Cypress - CY7C65210; Parade - PS8348B; Parade - PS171
    • Converter Type: Travel A/V Adapters
    • Output Signal: HDMI; VGA; DVI-D (DVI Digital); Mini DisplayPort
    • Audio Specifications: HDMI and mDP output - 7.1 surround sound
    • General Specifications: Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function.
    • Maximum Analog Resolutions: 1920 x 1200 @ 60Hz
    • Maximum Digital Resolutions: 3840 x 2160 @ 30Hz
    • Supported Resolutions: Max HDMI output: 3840 x 2160 @ 30Hz
    • Max mDP output: 3840 x 2160 @ 60Hz
    • HDMI and mDP output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280 x 720
    • DVI and VGA output: 1920 x 1200, 1920 x 1080, 1280 x 720
    • Video Revision: DisplayPort 1.2
    • Wide Screen Supported: Yes
    • Connector A: 1 - USB-C (24 pin) DisplayPort Alt Mode Male Input
    • Connector B: 1 - Mini-DisplayPort (20 pin) Female Output; 1 - VGA (15 pin, High Density D-Sub) Female Output; 1 - DVI-D (25 pin) Female Output; 1 - HDMI (19 pin) Female Output

      Physical Characteristics
    • Cable Length: 4.3 in [110 mm]
    • Color: White
    • Product Height: 0.6 in [15 mm]
    • Product Length: 4.1 in [105 mm]
    • Product Weight: 4.4 oz [125 g]
    • Product Width: 2.2 in [55 mm]
    • Humidity: 40%-50%RH
    • Operating Temperature: 0°C to 70°C (32&tdeg;F to 158°F)
    • Storage Temperature: -10°C to 80°C (14°F to 176°F)

  • Warranty:

    • 2 Year

  • GTIN:

    0065030863094
