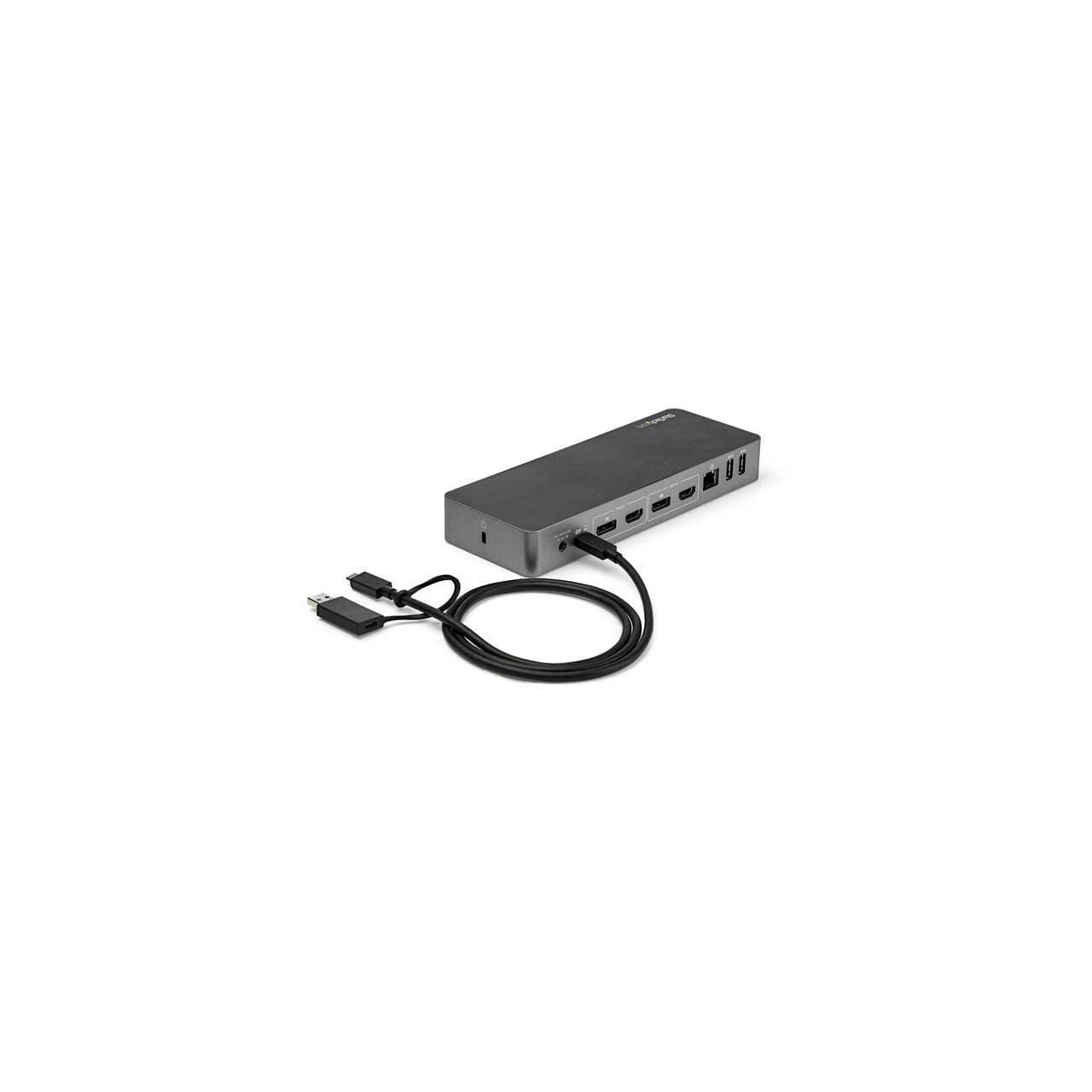

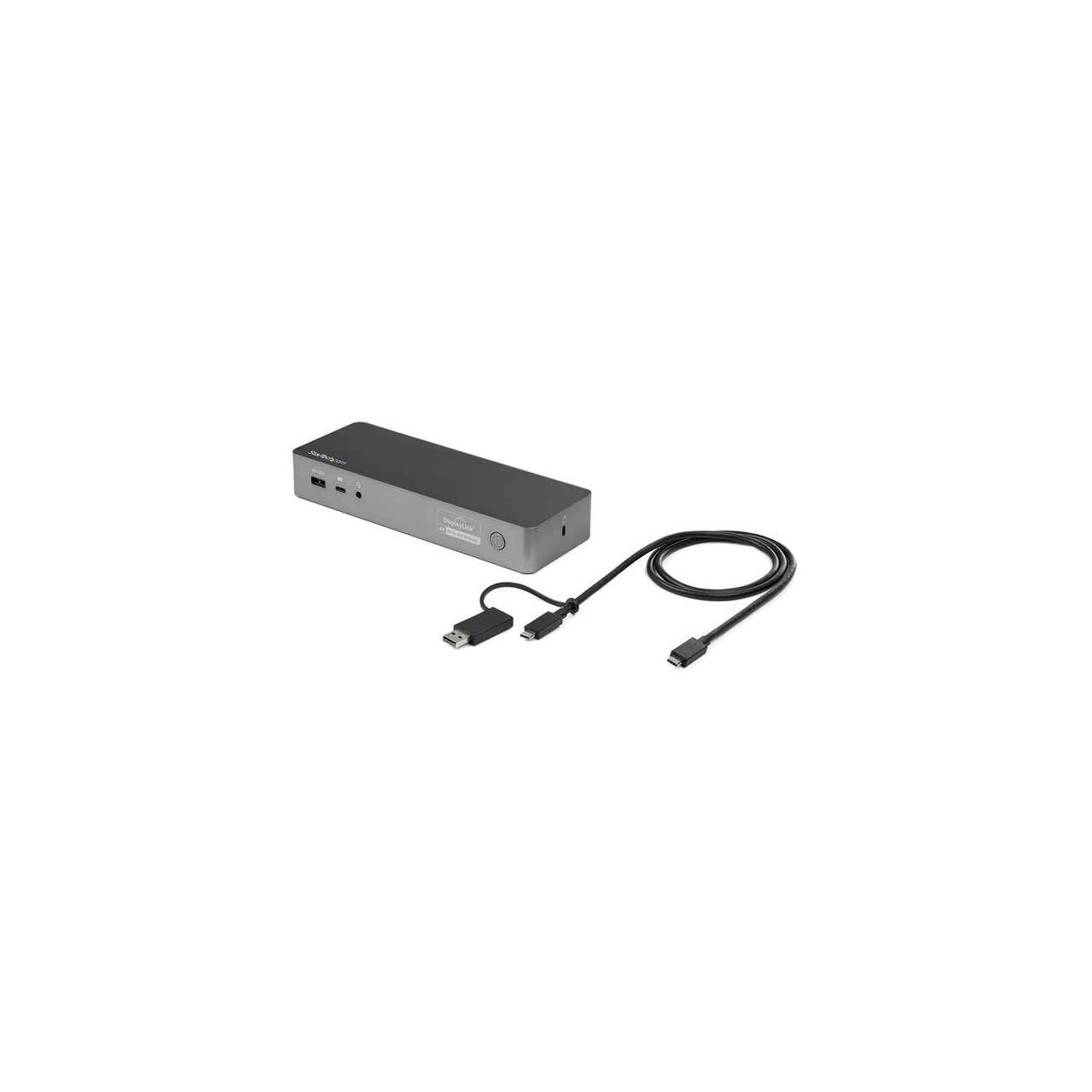

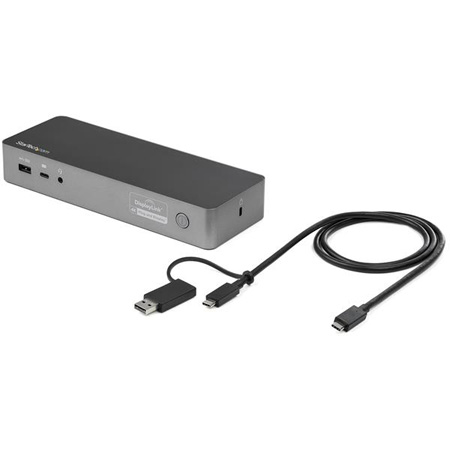

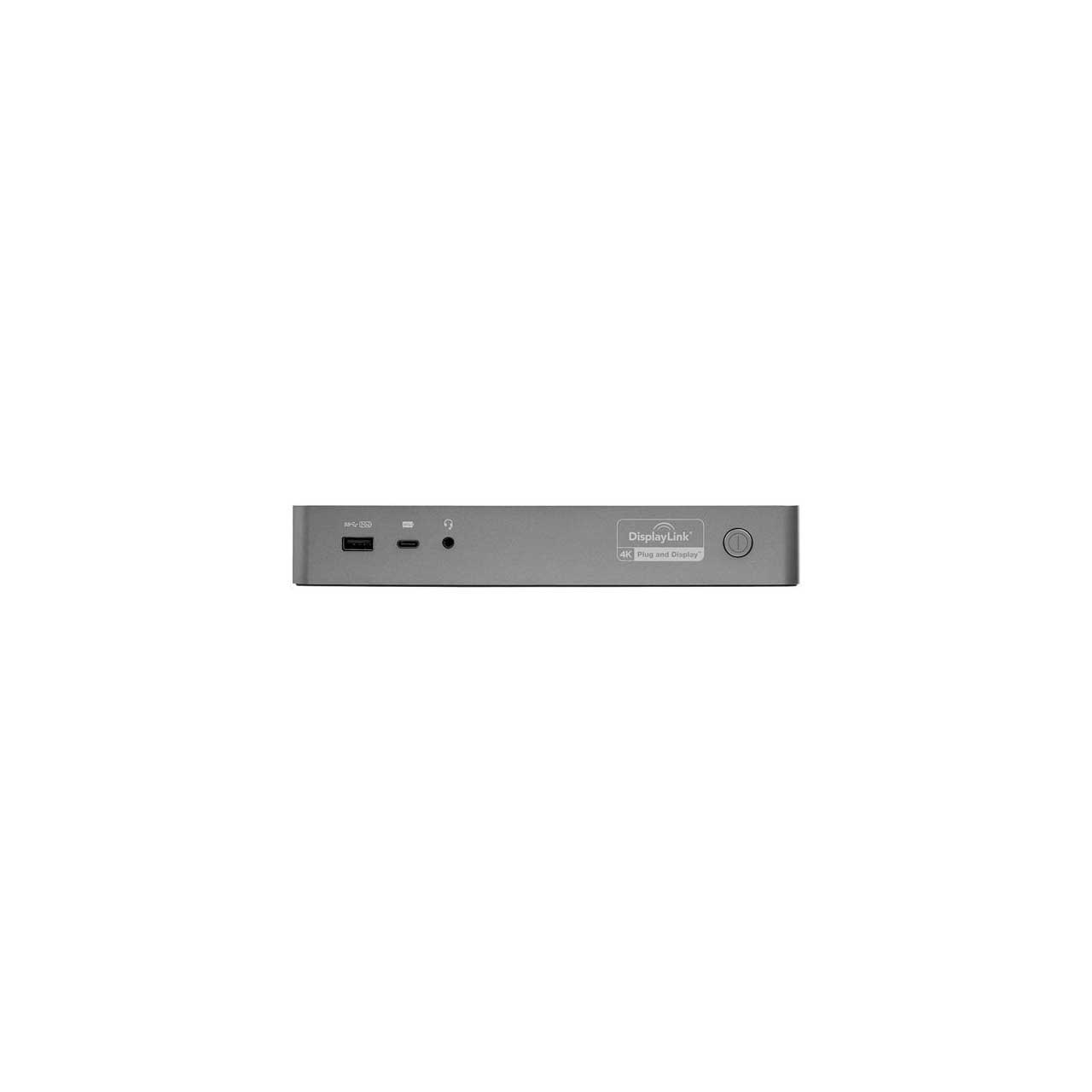

StarTech DK30C2DPPD Hybrid Laptop Docking Station - USB-C/USB-A/Displayport/HDMI/Ethernet - 60W PD

DK30C2DPPD - Overview

• Features:

  • Hybrid Dock: Universal docking station works with USB Type-C, Thunderbolt 3 & USB Type-A laptop computers, using a 2-in-1 USB-C/USB-A 3.1 Gen 1 cable, ideal for hoteling or shared workspace setup
  • Guaranteed Compatibility: USB-C & USB-A hybrid dock is USB-IF, VESA & DisplayLink certified for max performance & universal compatibility w/ Dell, HP, Lenovo & Apple where mixed laptop brands deployed
  • Flexible Dual Monitor Video Outputs: This Dual 4K60Hz UHD USB-C & USB-A docking station lets you connect multiple screens: Dual DisplayPort or Dual HDMI or DP + HDMI displays for easy deployment


• Specifications:

  • Hardware
  • 4K Support: Yes
  • Bus Type: USB-C
  • USB 3.0
  • Chipset ID:
    DisplayLink - DL6950
    Genesys Logic - GL3523
    Fresco Logic - FL7102
    Fresco Logic - FL7201
    VIA Labs - VL160
    RealTek - RTL8153
    Texas Instruments - TS3A225E
  • Displays Supported: 2
  • Fast-Charge Port(s): Yes
  • Industry Standards:
    USB Power Delivery Specification Rev. 3.0
    USB Battery Charging Specification Rev. 1.2
    DisplayPort 1.2
    IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
    USB 3.0 - Backward compatible with USB 2.0 and 1.1
  • Interface: USB 3.0
  • K-Lock Slot: Kensington Standard Slot (K-Slot)

    Performance
  • Compatible Networks: 10/100/1000 Mbps
  • Full Duplex Support: Yes
  • Maximum Data Transfer Rate:
    5 Gbps (USB 3.0)
    2 Gbps (Ethernet; Full-Duplex)
  • Maximum Digital Resolutions:
    2x HDMI - 4096 x 2160p @60Hz
    2x DisplayPort - 4096 x 2160p @60Hz
    1x HDMI + 1x DisplayPort - 4096 x 2160p @60Hz
    1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz
    Lower resolutions are also supported. For example, if the max is 4096 x 2160p (4K), it also supports 3840 x 2160p (4K), 2560 x 1600p and 2560 x 1440p.
  • PXE: Yes
  • Type and Rate: USB 3.0 - 5 Gbit/s
  • UASP Support: Yes

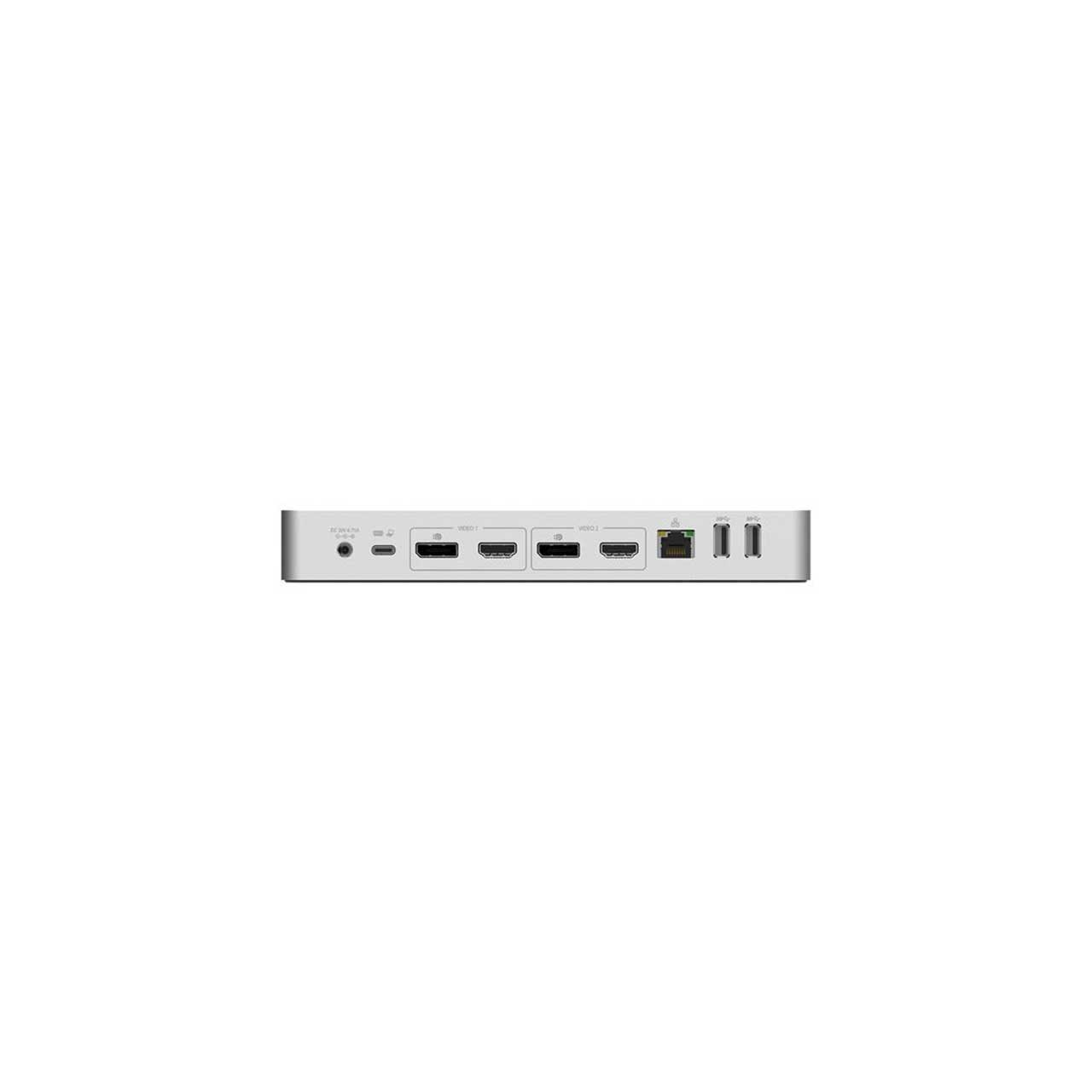

    Connector(S)
  • 2 - DisplayPort (20 pin) Female
  • 2 - HDMI (19 pin) Female
  • 1 - USB Type-C (Fast-Charge, 24 pin) USB 3.0 Female
  • 1 - USB 3.0 A (Fast-Charge, 9 pin) Female
  • 2 - USB Type-A (9 pin) USB 3.0 Female
  • 1 - Ethernet Gigabit Female
  • 1 - 3.5 mm Mini-Jack (4 Position) Female

    Software
  • OS Compatibility: Windows® 7, 8, 8.1, 10
  • macOS 10.11 - 10.12, 10.14 - 10.15
  • Chrome OS™ v55+

    Power
  • Center Tip Polarity: Positive
  • Input Current: 2.5 A
  • Input Voltage: 100 - 240 AC
  • Output Current: 6.75 A
  • Output Voltage: 20V DC
  • Plug Type: N
  • Power Consumption (In Watts): 135 W
  • Power Delivery: 60W
  • Power Source: AC Adapter Included

    Environmental
  • Humidity: 0 to 95% RH
  • Operating Temperature: 0° to 50°C (32° to 122°F)
  • Storage Temperature: -20° to 70°C (-4° to 158°F)

    Physical Characteristics
  • Color: Black & Space Gray
  • Material: Plastic
  • Height: 1.2" (3cm)
  • Length: 8.7" (22cm)
  • Width: 3.1" (80mm)
  • Weight: 9.9oz (280g)

    Packaging Information
  • Height: 3.5" (90mm)
  • Length: 10.6" (27cm)
  • Width: 6.1" (15.5cm)
  • Weight: 2.9Lbs (1.3kg)


• Item Includes:

  • 1x Docking Station

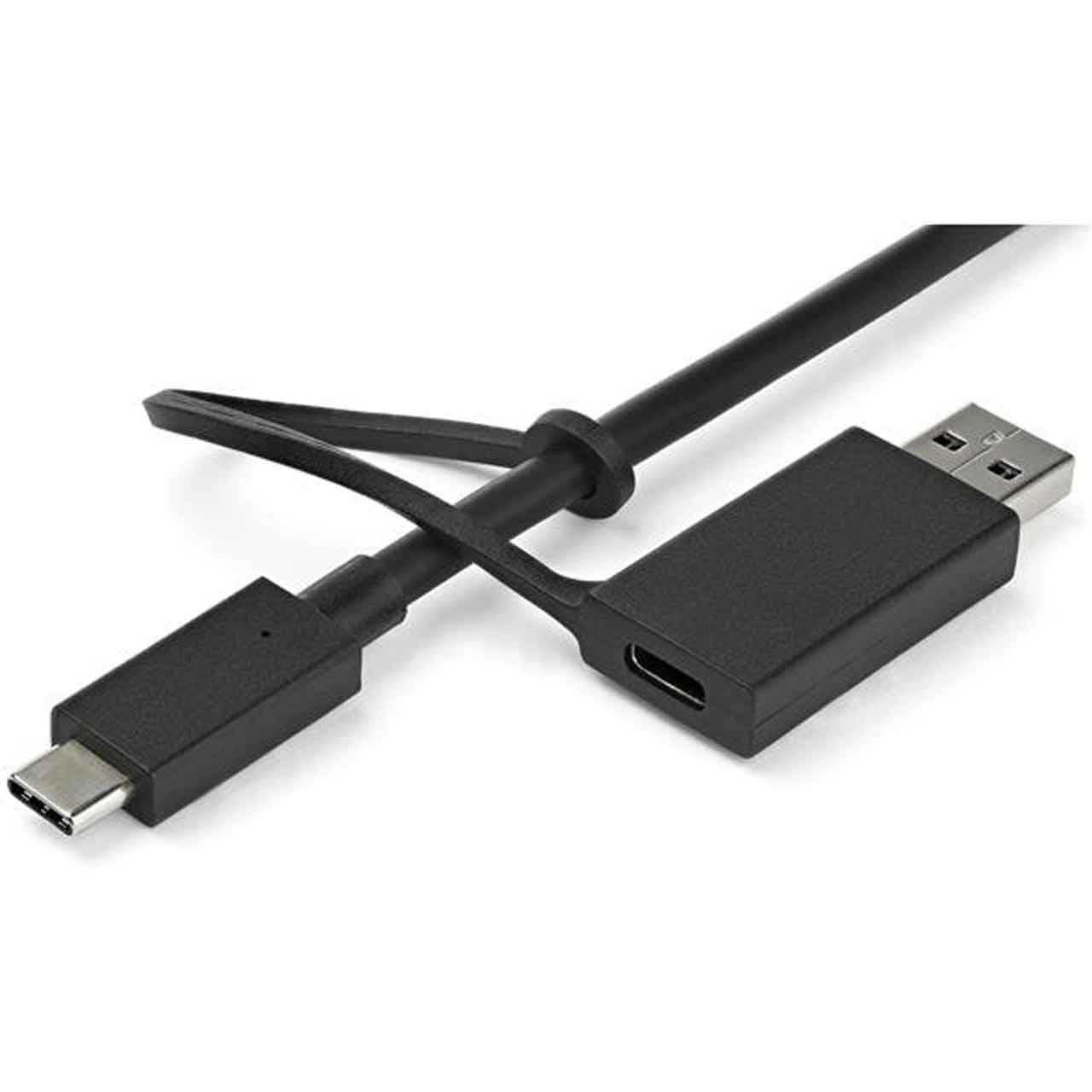

  • 1x USB-C Cable (with Attached USB-C to USB-A Adapter)
  • 1x Universal Power Adapter (NA/JP, ANZ)
  • 1x Quick-Start Guide


• Warranty:

  • 3 Years


• GTIN:

  0065030879958
