StarTech DK30CH2DEP Triple-Monitor 4K USB-C Dock with 5x USB 3.0 Ports

DK30CH2DEP - Overview

• Features:

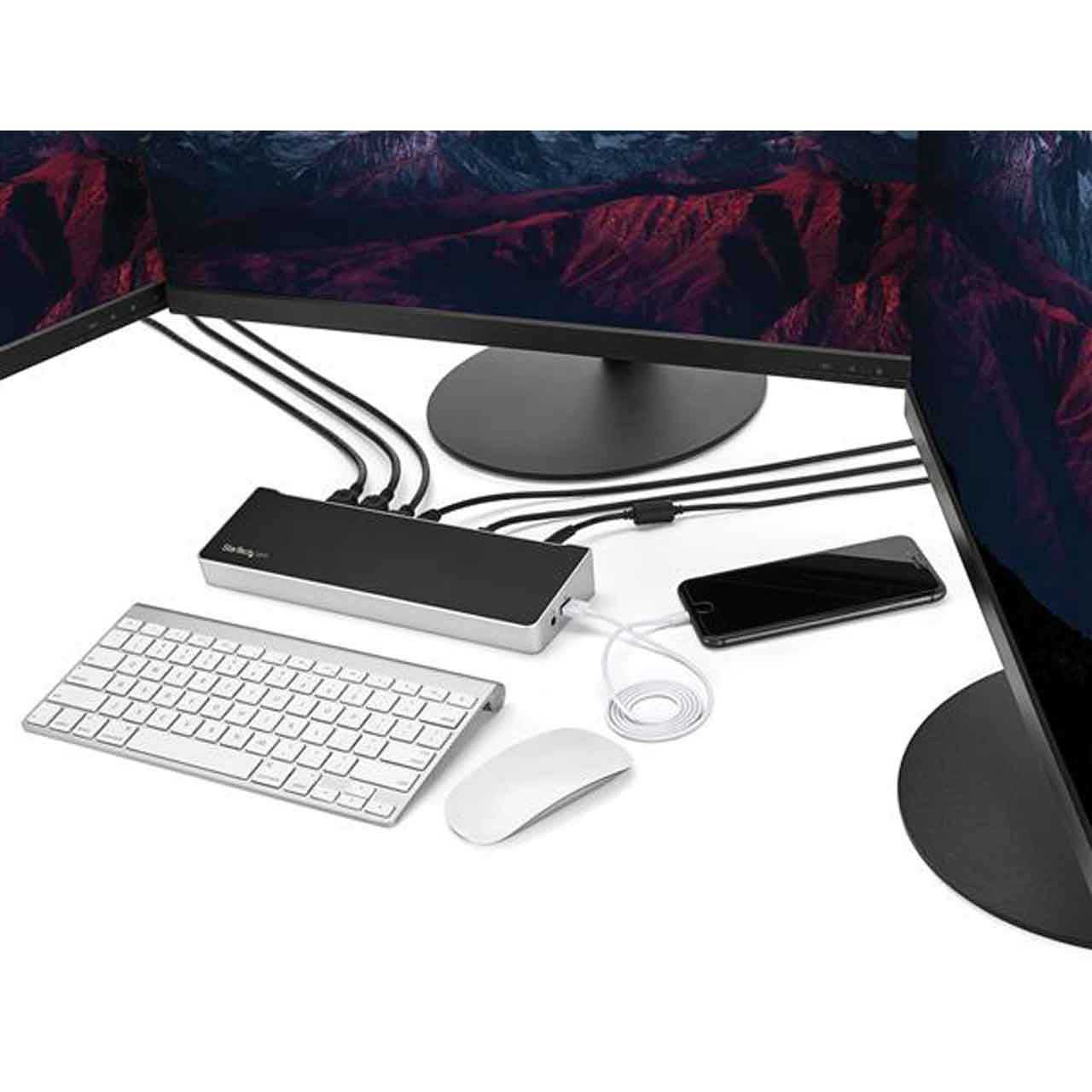

  • Flexible Monitor Outputs: This USB-C docking station is a perfect choice for dual or triple monitor setup, supports up to triple 4K display incl. dual 4K 60Hz DisplayPort (DP++/DP) and/or 4K 30Hz HDMI
  • 100W Power Delivery: Power & charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks incl. Lenovo X1, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, Zbook & MacBook Pro 16
  • Full Feature Dock: USB-C Dock w/ 3 video outputs (DP & HDMI), 100W PD, 4x USB-A & 1x USB-C, gigabit ethernet, headset port, separate speaker/mic audio ports, K-Slot for security & 1m/3.3' USB-C cable


• Specifications:

  • Hardware
  • 4K Support: Yes
  • Bus Type: USB-C
  • Chipset ID:
    DisplayLink - DL-6950
    Genesys Logic - GL3523
    Genesys Logic - GL3523S
    Texas Instruments - TPS65982
    Parade Technologies - PS176
  • Displays Supported: 3
  • Fast-Charge Port(s): Yes
  • Industry Standards:
    USB Power Delivery Specification Rev. 2.0
    USB Battery Charging Specification Rev. 1.2
    DisplayPort 1.2
    IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
    USB 3.0 - Backward compatible with USB 2.0 and 1.1

    Performance
  • Auto MDIX: Yes
  • Compatible Networks: 10/100/1000 Mbps
  • Full Duplex Support: Yes
  • Maximum Data Transfer Rate:
    5 Gbps (USB 3.0)
    2 Gbps (Ethernet; Full-Duplex)
  • Maximum Digital Resolutions:
    1x HDMI (DP Alt Mode) - 4096 x 2160p @24Hz / 3840 x 2160p @30Hz
    2x DisplayPort (DisplayLink) - 4096 x 2160p @60Hz / 3840 x 2160p @60Hz
    1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz
    Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
  • Type and Rate: USB 3.0 - 5 Gbit/s
  • UASP Support: Yes

    Connector(S)

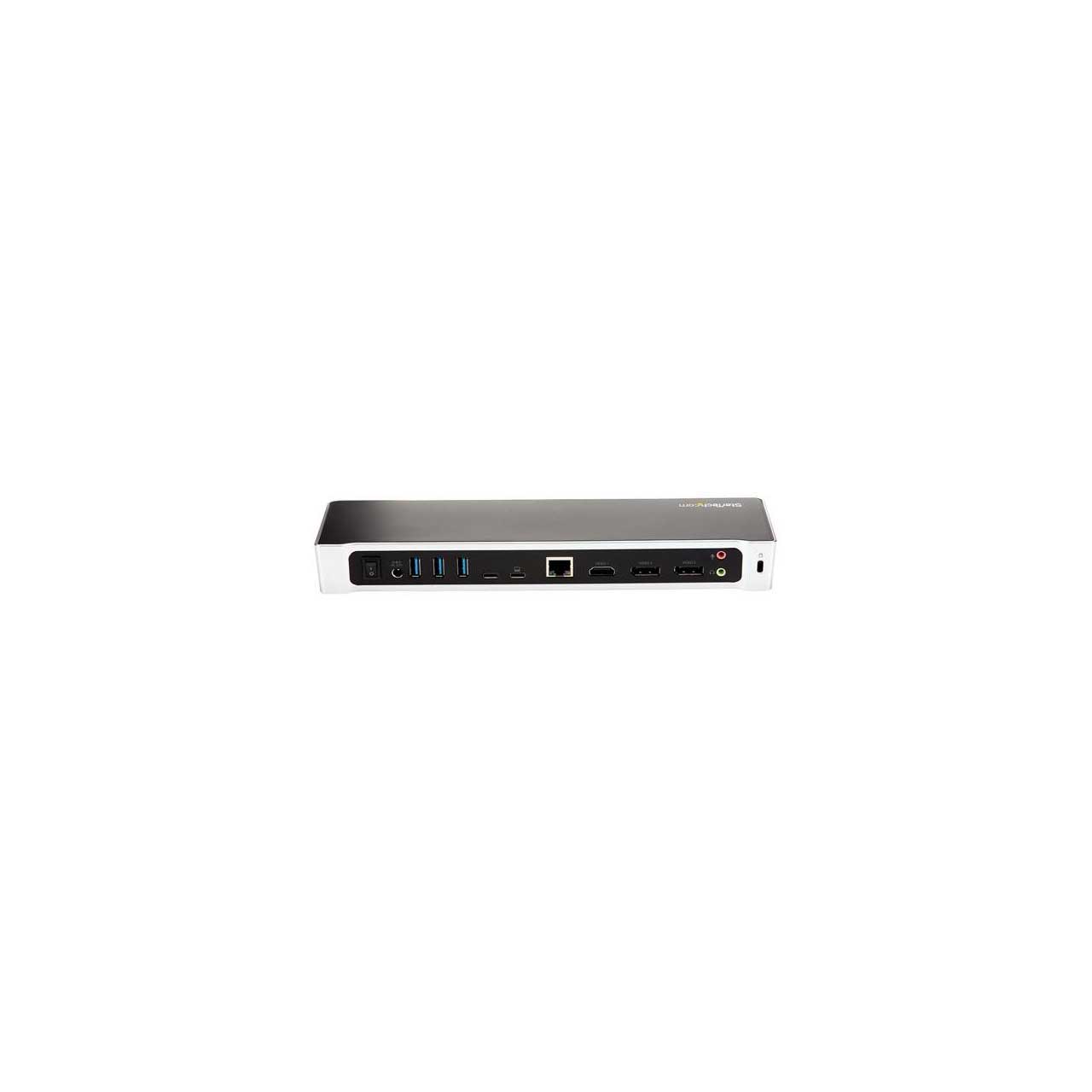

  • 2 - DisplayPort (20 pin) Female
  • 1 - HDMI (19 pin) Female
  • 2 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female

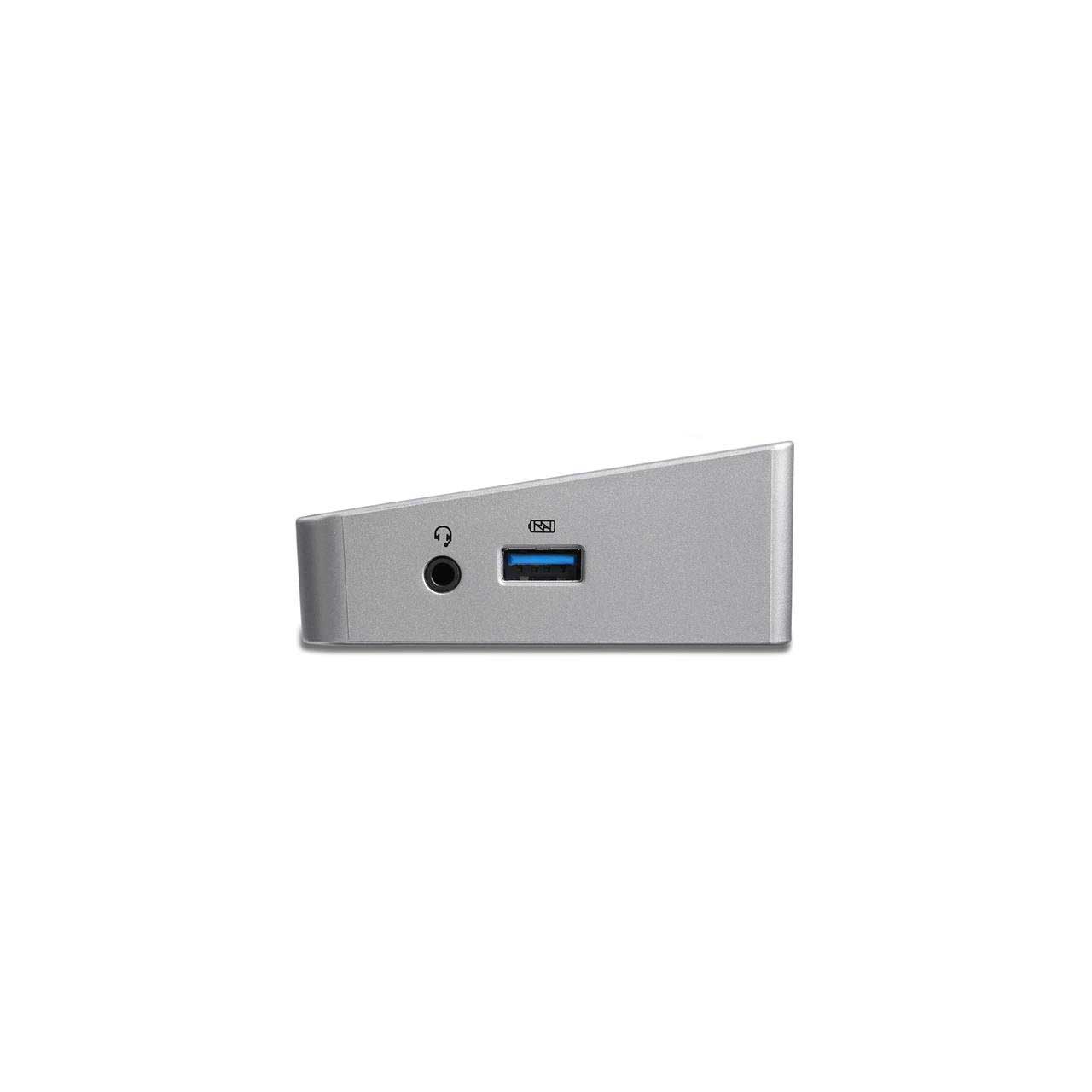

  • 1 - USB 3.0 A (Fast-Charge, 9 pin) Female
  • 3 - USB Type-A (9 pin) USB 3.0 Female
  • 1 - RJ-45 Female
  • 1 - 3.5 mm Mini-Jack (4 Position) Female
  • 2 - 3.5 mm Mini-Jack (3 Position) Female
  • 1 - Security Lock Slot Female

    Software
  • OS Compatibility: Windows® 7, 8, 8.1, 10
  • macOS 10.9 - 10.12, 10.14 - 10.15
  • Chrome OS™ v55+

    Power
  • Center Tip Polarity: Positive
  • Input Current: 2.5 A
  • Input Voltage: 100 - 240 AC
  • Output Current: 7.5 A
  • Output Voltage: 20V DC
  • Plug Type: N
  • Power Delivery: 100W
  • Power Source: AC Adapter Included

    Environmental
  • Humidity: 0 to 70% RH
  • Operating Temperature: 0° to 40°C (32° to 104°F)
  • Storage Temperature: -20° to 60°C (-4° to 140°F)

    Physical Characteristics
  • Color: Black & Silver
  • Material: Plastic
  • Height: 1.3" (3.4cm)
  • Length: 10.6" (27cm)
  • Width: 3.2" (82mm)
  • Weight: 13.5oz (382g)

    Packaging Information
  • Height: 3.1" (80mm)
  • Length: 12.6" (32cm)
  • Width: 6.3" (16cm)
  • Weight: 58.4oz (1654g)


• Item Includes:

  • 1x Docking Station
  • 1x USB-C Cable
  • 1x Universal Power Adapter (NA/JP, ANZ)
  • 1x User Manual
  • 1x Anti-Slip Rubber Pads


• Warranty:

  • 3 Years


• GTIN:

  0065030879996
