MuxLab 500502 DisplayPort 1.2A Fiber Extender Kit

ITEM #: MUX-500502 MFG #: 500502

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$2,288.00

Our Price:

$1,830.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


500502 - Overview

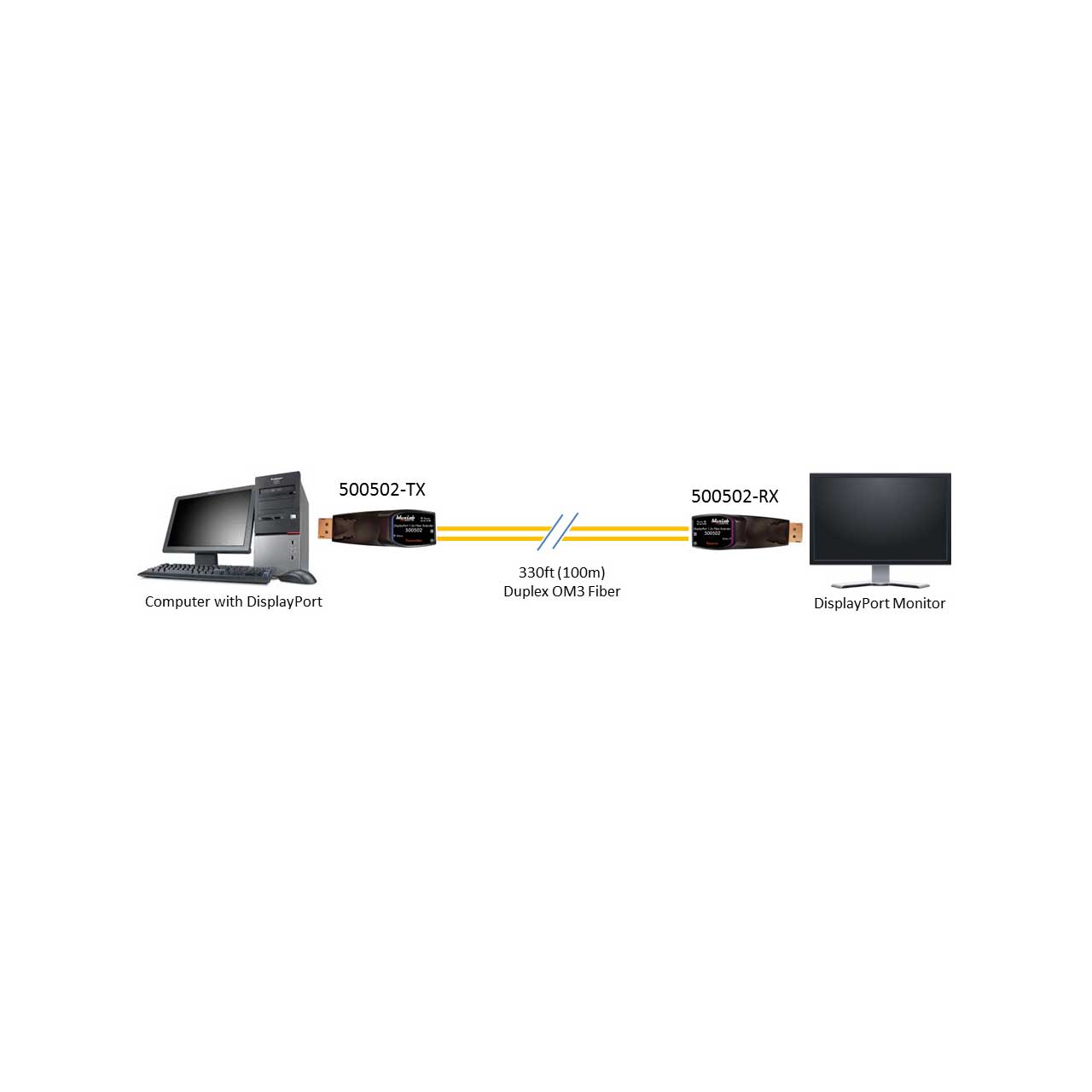

The DisplayPort 1.2a Fiber Extender Kit, 500502 enables the user to transmit WQUXGA (3840x2400) video at 60Hz signal up to 330ft (100m), with any form of scaling or data compression being applied to the signal. This device support a total data throughput of 21.6Gbps (5.4Gbps per lane).

  • Features:

    • Extend DisplayPort connectivity via multi-mode fiber
    • Supports the DisplayPort 1.2a standard
    • Up to 330ft (100m) over 50/125µm multi-mode fiber
    • Supports WQUXGA (3840x2400) resolution @ 60Hz
    • Bandwidth of 21.6Gbps
    • Supports Dual-Mode DP (DP++)
    • Supports auxiliary/I2C channel over fiber
    • Compact Metal Enclosure for a robust and easy installation

  • Specifications:

    • Environment: DisplayPort 1.2a
    • Devices: Plasma, projectors, monitors, PC, laptops, and servers supporting DisplayPort.
    • Transmission: Transparent to the user
    • Video Bandwidth: 21.6 Gbps (5.4 Gbps per lane)
    • Video Resolution: Up to 3840x2400 @ 60Hz
    • Signals: DisplayPort 1.2a
    • Connectors:
    • One DisplayPort Male Connector
    • Two LC Optical Connectors
    • One Micro USB connector for external power
    • Maximum Distance: 330ft (100 m) over 50/125µm multi-mode fiber (OM3)
    • Cable: Two LC multi-mode fibers, having a 50/125µm core
    • Power Supply: Two 110-240V to 5VDC, 1A power supply with interchangeable blades for US, UK & Euro
    • Operating Temp.: 0° to 50°C
    • Storage: -30° to 70°C
    • Humidity: Up to 85% non-condensing
    • Enclosure: Metal
    • Dimensions: 1.02" x 2.83" x 0.57" (26 x 72 x 15 mm)
    • Weight: 1.0 lbs (0.45 kg)
    • Compliance: Regulatory: FCC, CE, RoHS

  • Item Includes:

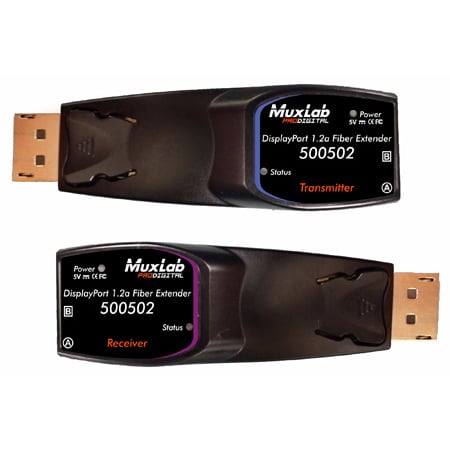

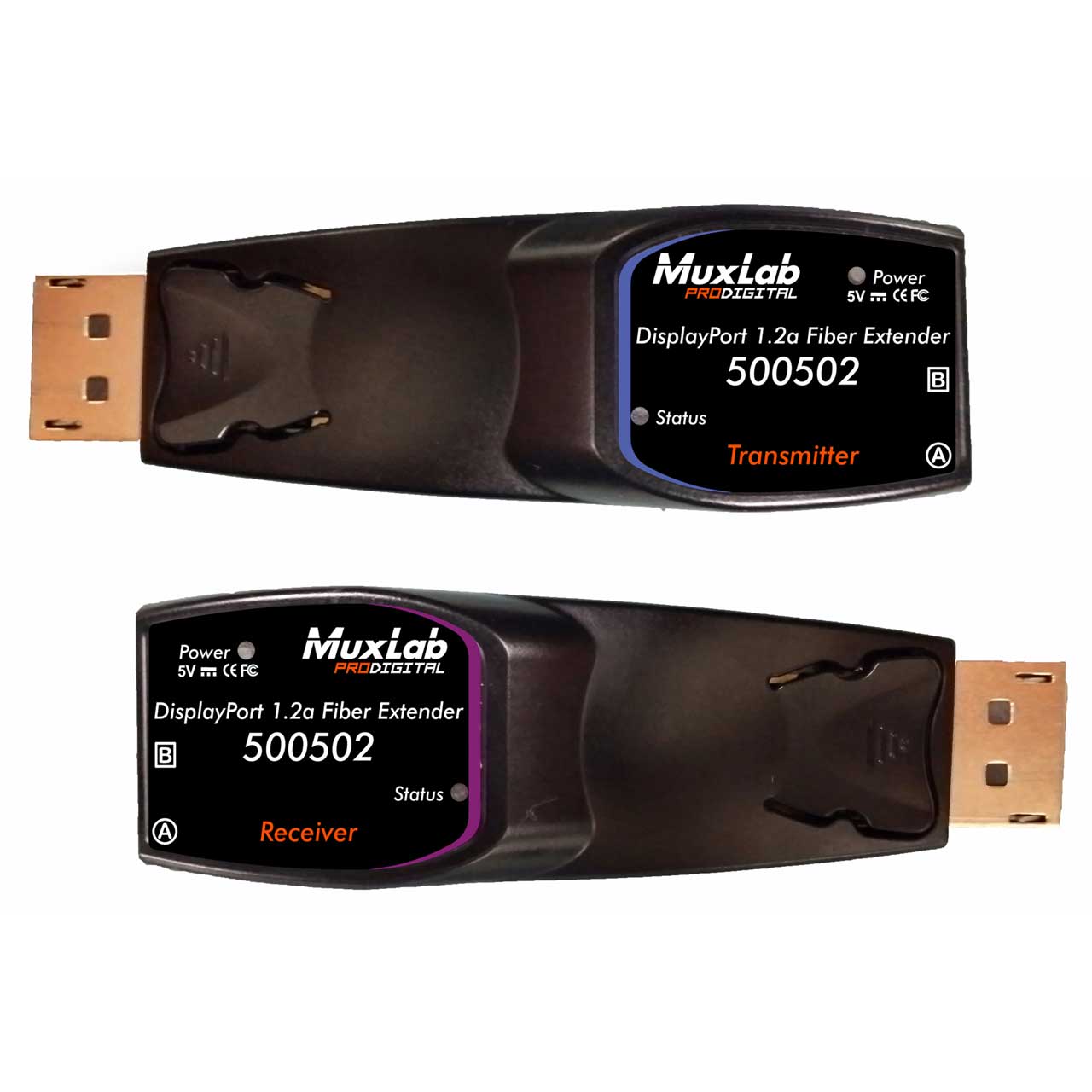

    • 1x - DisplayPort 1.2a Fiber Transmitter
    • 1x - DisplayPort 1.2a Fiber Receiver
    • 2x - Power Supplies, 5VDC @ 1A with interchangeable US, UK & Euro Blades
    • 2x - USB type A to micro USB cables
    • 1x - User Manual

  • Warranty:

    • 2 years

  • GTIN:

    0627699005026
