DPFX-250-TR - Overview

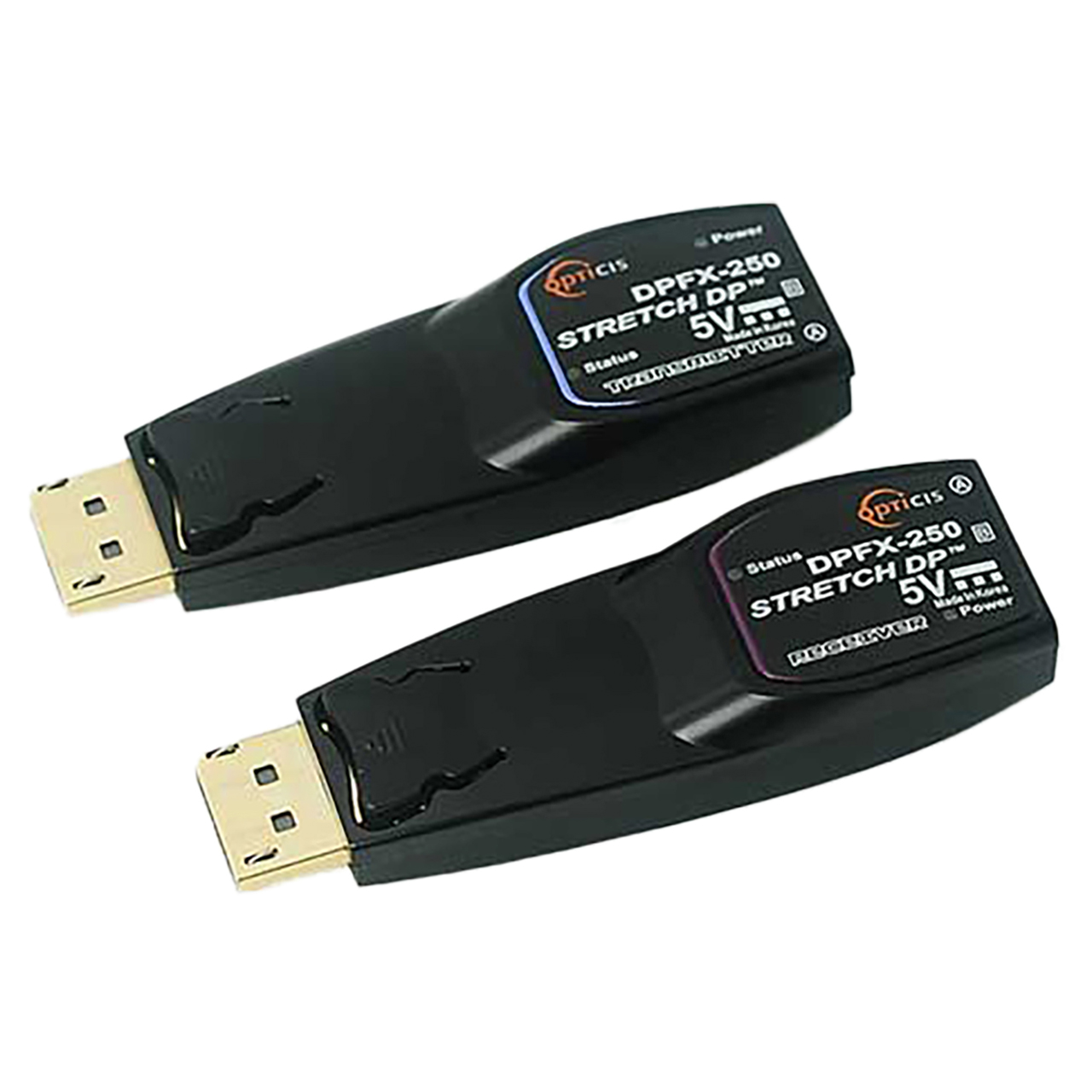

Optical DisplayPort extender, DPFX-250-TR is designed compact enough to be fitted into various installation environments with two (2) LC fibers connection.

The transmitter and receiver set, DPFX-250-TR enables to transmit 4K (4096x2160) at 60Hz signal up to 200m (656feet) over two (2) LC multi-mode fibers, avoiding any tricks like scaling or data compression for lessening a burden of data transmission.

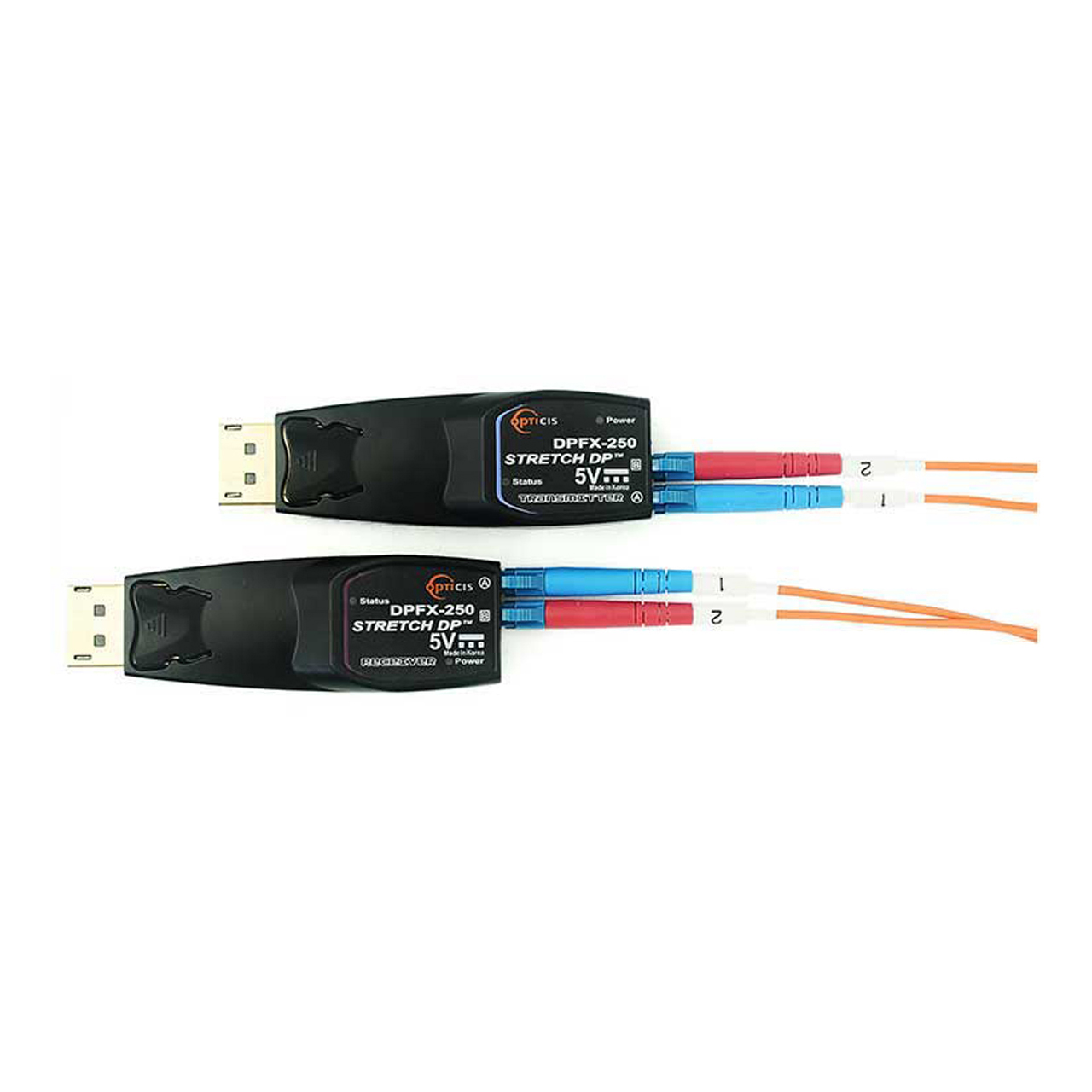

Between the transmitter and the receiver, pure fiber connection by two (2) LC fibers connector gives clean, secure and easy installation with a perfect electrical isolation and no electrical hazard. The DPFX-250-TR can be operated by USB power without external DC power adapter by plugging the supplied USB to DC plug cables to each module.

Applications
Medical imaging
Military
Control room
Simulator

  • Features:

    • Supports 4K and DisplayPort 1.2 standards
    • Extends 4K (4096x2160) at 60Hz
    • Transmits DP data up to 200m (656feet) over two (2) LC multi-mode fibers (50/125um).
    • Offers total data rate 21.6Gbps (5.4Gbps per lane)
    • Supports Dual-mode DP (DP++)
    • Supports Auxiliary /l²C channel over fiber
    • Supports Multi-Stream transport
    • Compact design allows direct connect to the DP display.
    • Plug & Play
    • Auto power switching
    • Data security with negligible EMI emission.
    • Certifies FCC and CE standards for EMI/RFI emission


  • Specifications:

    • Resolution: Up to 4K(4096x2160) at 60Hz
    • Data Rate: 5.4Gbps (per lane)
    • Maximum Distance: 200m (656feet) with (50/125um) fiber
    • Fiber: LC terminated 2 core multi-mode fibers
    • AUX CH: Direct AUX CH
    • Power Supplying: TX / RX: External 5V/1A DC power or USB cable
    • LED Indicators: TX: Power, Signal transmission - RX: Power, Signal detection
    • Operating Temperature: 32° to 122°F (0° to 50°C)
    • Operating Humidity: 0 to 85% RH, non-condensing


  • Item Includes:

    • 1x Transmitter (Tx)
    • 1x Receiver (Rx)
    • 1x 0.2m Male to Female DisplayPort copper cable
    • 2x Micro USB to USB cables
    • 2x AC adapters to 110-240V with DC 5V 1A outlet
    • 1x User's Manual
