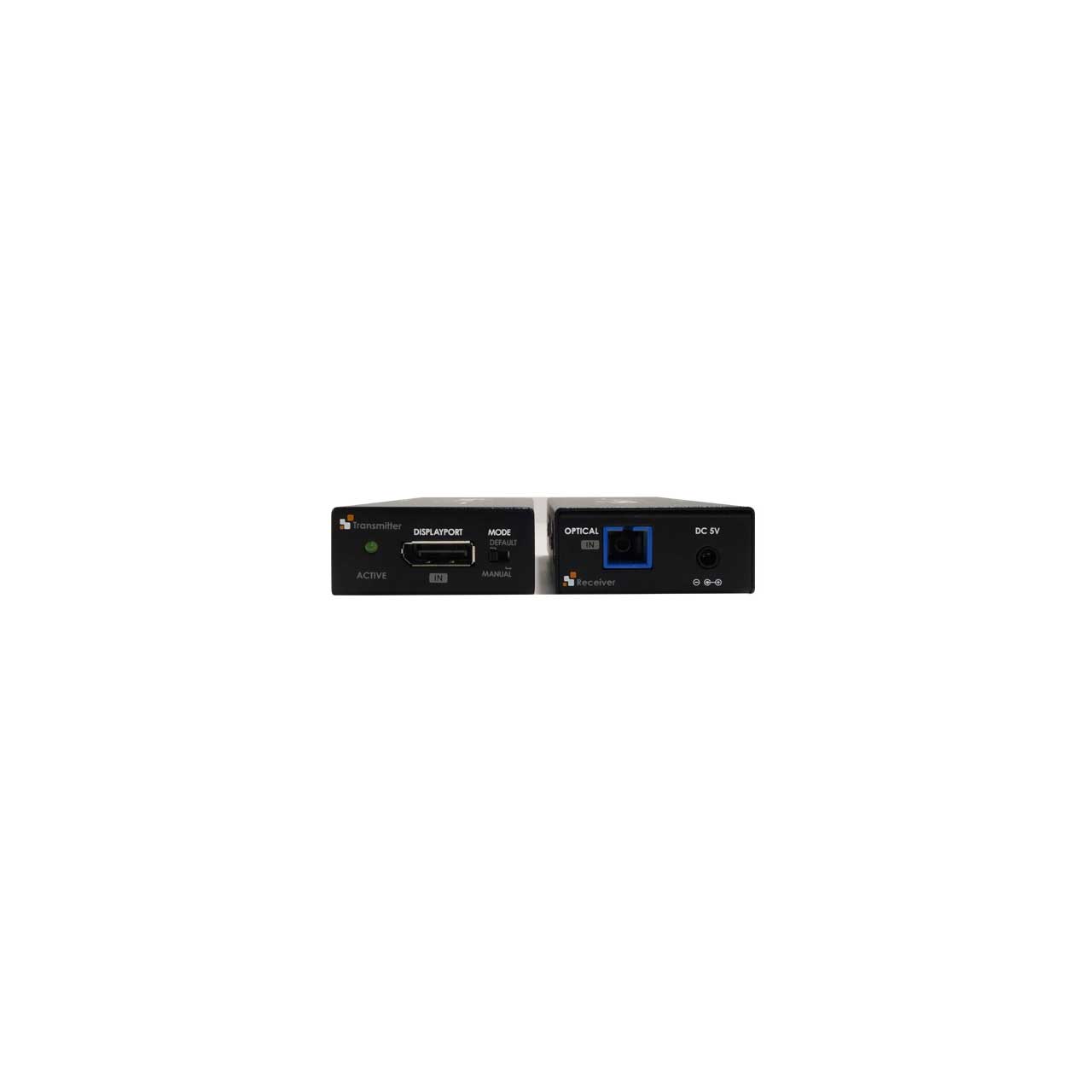

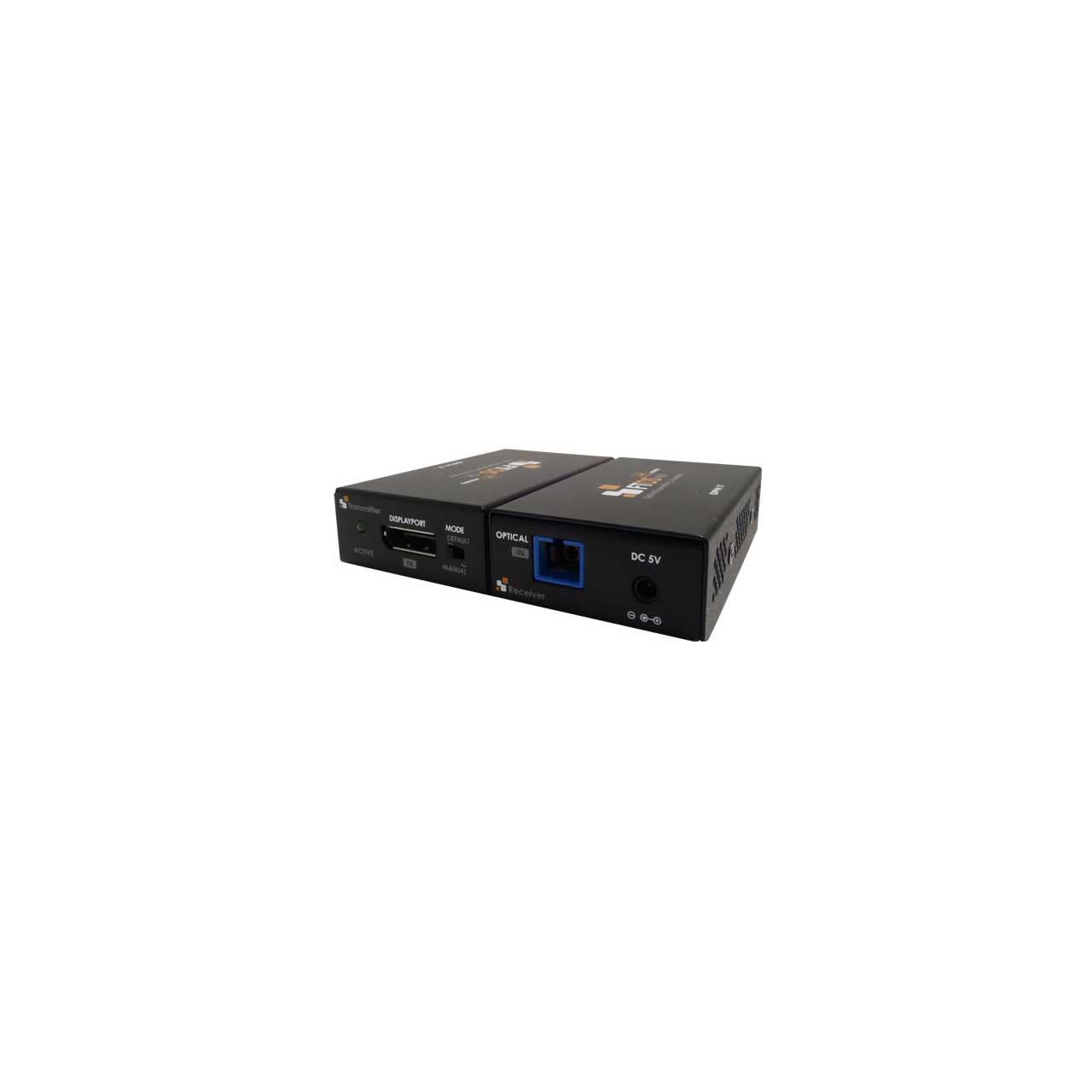

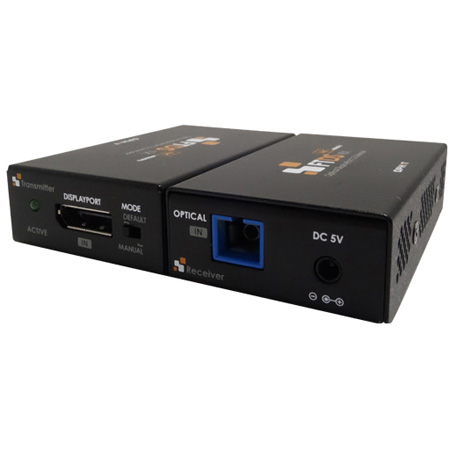

Ophit FTDS 1 Channel Displayport 1.2 Fiber Optic Extender - up to 200 Meters (656 Feet)

FTDS - Overview

• Features:

  • High Speed and long distance transmission by optical system
  • Compatible with DisplayPort standard V1.2
  • Supports 50-micron OM3 or OM4 Fiber with an SC Connector
  • Main-link video signal / AUX data and Hot Plug Detection signal is transmitted by - 1 channel multimode optical fiber
  • External power supply use(TX, RX)
  • Mode switch use(TX, RX)
  • DPCD(DisplayPort Configuration Data) compliant
  • DPCP or HDCP compliant
  • EMC & Safety : CE, FCC


• Specifications:

  • Input and Output Signal: DISPLAYPORT 1.2a Standard
  • Video Bandwidth: 21.6Gbps
  • Dimension(W x D X H): 0.83 inch x 2.4 inch x 1.87 inch (81.2W x 21.1D x 47.5H mm)
  • Optical Connector: SC Connector
  • Electrical Connector: DisplayPort 20 Pin Connector (Female)
  • Applied Fiber: OM3 or OM4 Multi-mode glass-fiber.
  • Maximum Supporting Resolution: UHD(3840x2160 / 4096x2160@60Hz)
  • Transmission distance: 200 meter (656 ft)
  • External Power: 5V / 2A (1.35ø DC JACK)
  • Power Consumption (transmitter): 1.75W (Typ)
  • Power Consumption (receiver): 2.0W (Typ)
  • Operating Temperature Range: 32°F ~ 122°F (0°C ~ 50°C)
  • Storage Temperature Range: -4°F ~ 158°F (-20°C ~ 70°C)


• Item Includes:

  • (1) FTDS Transmitter & Receiver
  • (2) +5V DC Power supply
  • (2) DP Short copper cable (*Recommend to use these copper cable which is enclosed to ensure maximum operating performance.)
  • (1) User's Guide
