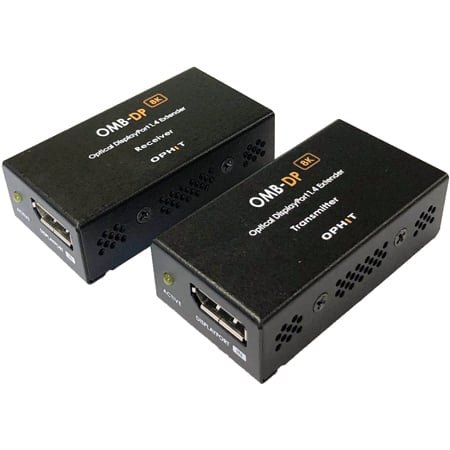

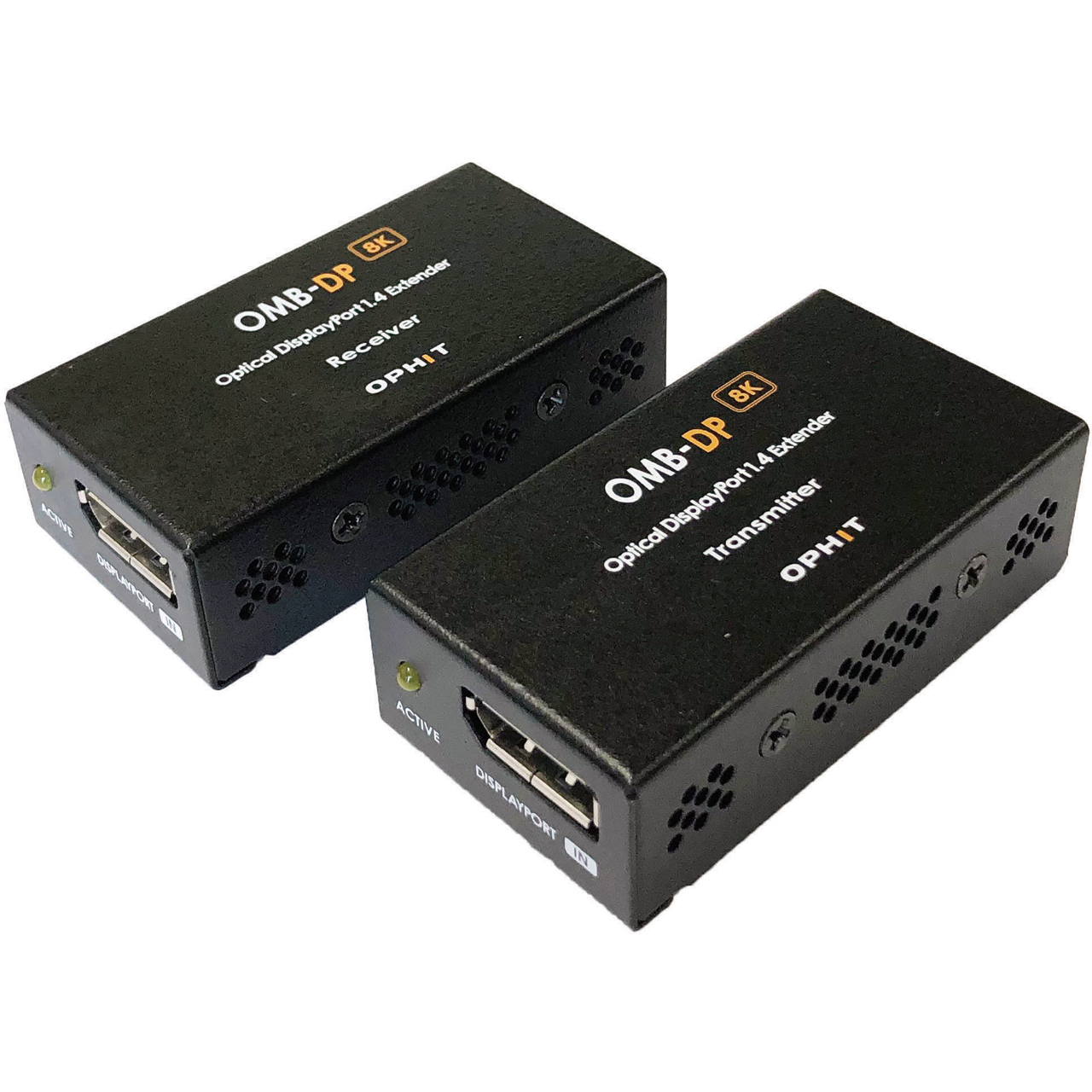

Ophit OMB-DP 8K DisplayPort 1.2/1.4 Optical Fiber Extender - Supports 4K/8K Resolution using MM - Standalone Box

- Overview

• Features:

  • High Speed and long-distance transmission by optical fiber
  • Compatible with DisplayPort standard V1.2/1.4
  • Supports 4K@120Hz resolution
  • Ensured that your main-link video signal, AUX data, and Hot Plug Detection signal are all transmitted without any loss in quality, thanks to the use of optical fiber.
  • DPCD(DisplayPort Configuration Data) compliant
  • 19" rack mountable design
  • EMI & Safety: CE, FCC


• Specifications:

  • General
  • Optical Converter:
    - Transmitter: 1x4 Array 850nm VCSEL,1xPD, 1xVCSEL for sideband
    - Receiver: 1x4 Array PD,1xPD, 1xVCSEL for sideband
  • Input/Output Signal: DisplayPort Signal (Std. V1.2a/1.4)
  • Video Bandwidth: Per lane, 5.4Gbps(HBR2)/8.1Gbps(HBR3)
  • Using Electrical Receptacle: 20 pin DisplayPort
  • Recommended Optical Fiber: MPO/MTP, 8core(or 12 Core), OM3, 50/125µ Multi-mode fiber

    Power
  • Supply Voltage(DC):
    - Min: +4.75
    - Typ.: +5.0
    - Max.: +5.4
    - Units: V
    - Condition: External Adapter
  • Supply Current (TX):
    - Typ.: 180
    - Max.: 210
    - Units: mA
    - Condition: DC +5.0V
  • Supply Current (RX):
    - Typ.: 90
    - Units: mA
    - Condition: DC +5.0V
  • Power Dissipation (TX):
    - Typ.: .9
    - Max: 1.05
    - Units: W
    - Condition: DC +5.0V
  • Power Dissipation (RX):
    - Typ. .45
    - Units: W
    - Condition: DC +5.0V

    Electrical
  • Differential Input Voltage:
    - Min.: 200
    - Max.: 1400
    - Units: mV
  • Differential input impedance at per lane+/-:
    - Min.: 80
    - Typ.: 100
    - Max.: 125
    - Units: Ohm
  • Input Data Transition Time:
    - Min.: 0
    - Max.: .4
    - Units: UI
    - Condition: 20%, -80%
  • Output Voltage Swing:
    - Min: 180
    - Max: 380
    - Units: mVp
    - Condition: Fixed 380mVp
  • Output Impedance at Per Lane+/-:
    - Min.: 80
    - Typ.: 100
    - Max: 125
    - Units: Ohm


• Item Includes:

  • 1x Transmitter
  • 1x Receiver
  • 2x DisplayPort Cable
  • 2x Power Adapter
  • 1x User Manual


• Warranty:

  • Limited 1-Year Warranty
