The Gefen EXT-DP-CP-FM10 DisplayPort fiber optic pigtail module extender with DPCP support extends a DisplayPort up to 1000 feet (300 meters) using a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable with resolutions up to 2560 x 1600 (WQXGA). Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper based extension modules.

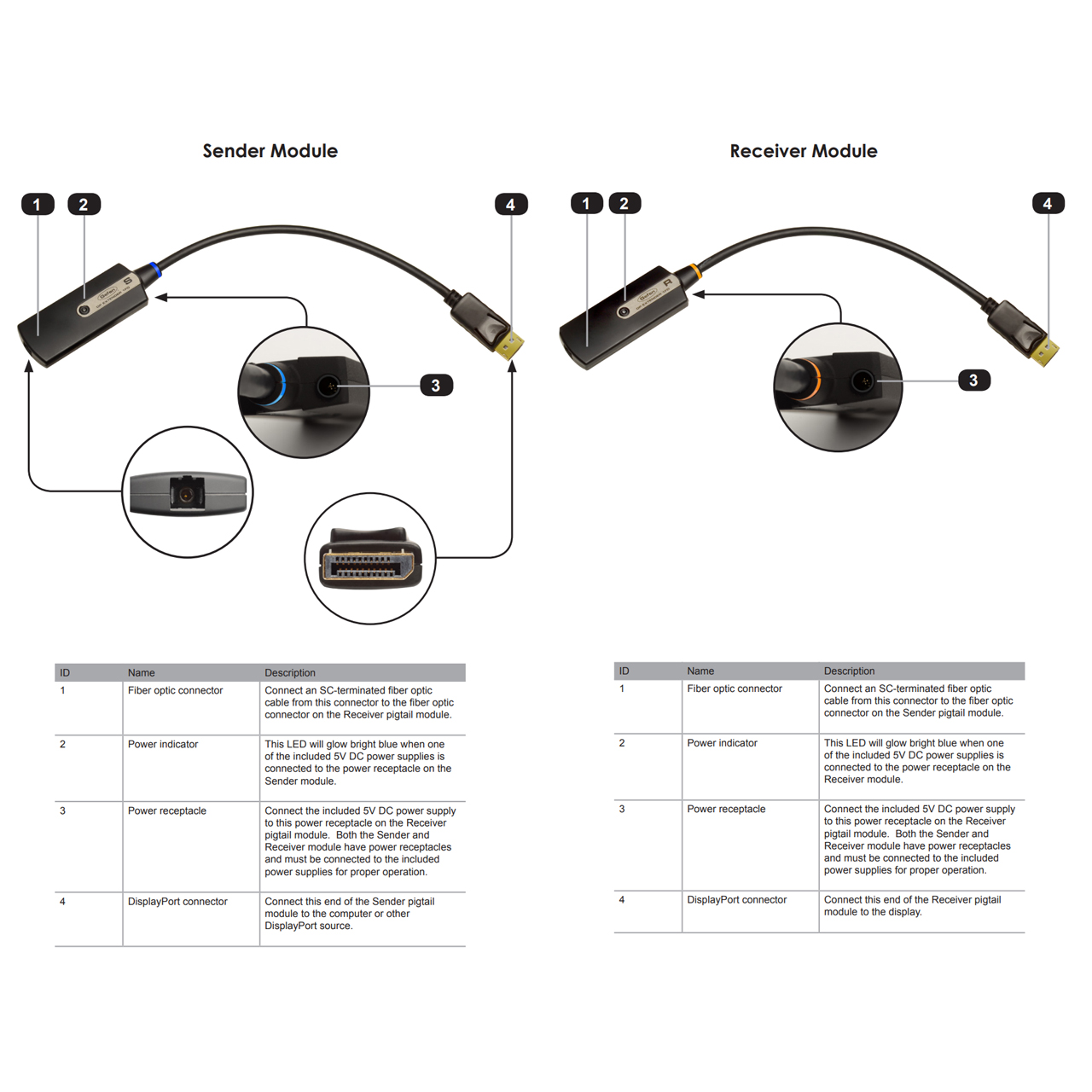

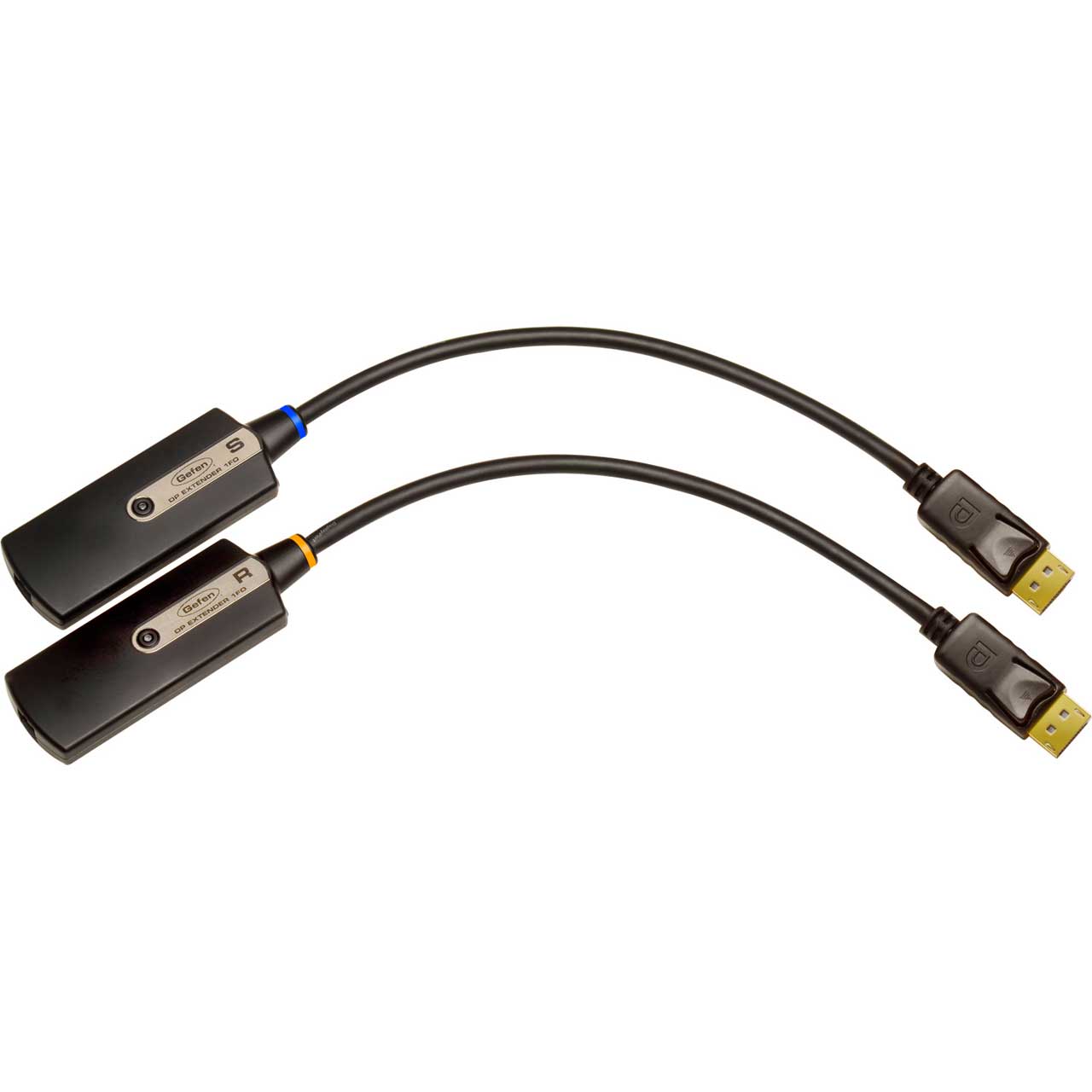

The pigtail design of the Sender and Receiver modules relieves stress and clutter on the source and display connector panels. Their compact design makes them ideal for fitting neatly behind equipment for a clean installation, making it a great way to easily extend DisplayPort.
How It Works
The Sender pigtail end plugs into the DisplayPort source. The Receiver pigtail end plugs into the display. Connect a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable from the Sender to the Receiver module. Plug the power supply into the Receiver module and a vibrant Hi-Def picture will appear on your display.
Note: 62.5/125um (OM1) fiber may also be used at a reduced maximum range of up to 1000 feet (300 meters). DPCP is not available when using Apple MDP monitors.
