Purelink VIP-T400-D 4K60 HDMI and USB/KM CAT and Fiber AV over IP Decoder - TAA Compliant

VIP-T400-D - Overview

• Features:

  • 4K60 4:4:4 HDR
  • Ultra-low latency (<17mS)
  • Data rate 300 Mbps typical; 50-850 Mbps range, variable
  • Fiber or CAT transport - 1G port
  • Extend signals up to 120 meters over CAT6, 240 meters using a network switch, and up to 2km with SFP fiber single mode
  • HDCP 2.2 compliant
  • USB 1.1 and 2.0 including USB camera support
  • Comprehensive diagnostics via API - device discovery, signal data, and EDID
  • Supports instant switching (same resolutions)
  • Multiple control interfaces - built-in web interface, front panel buttons, VPX Management Software, QSC modules, and 3rd party control development via API
  • Built-in video wall processing (up to 8x8)
  • Built-in scaler on the receiver (decoder)
  • Image rotation; 90, 180 degrees
  • IR and RS232 extension
  • TCP/IP to RS232
  • HDMI loop-out on TX (encoder)
  • Powered by included AC power adapter, or via PoE 802.3af (8.5W)
  • Supports Dolby, DTS, and LPCM audio and more
  • Matrix switching systems up to 999 sources and 65K displays


• Specifications:

  • Performance
  • Supported Distance: 120M CAT6a, up to 2KM using SFP Single Mode
  • Supported Resolutions: Up to 4K UHD 4:4:$ @ 60Hz
  • Compliance: HDCP 2.2
  • Video Input Format: HDMI 2.0
  • Video Output Format: HDMI 2.0
  • Supported Audio Formats: 5.1 Ch, 7.1 Ch LPCM, 5.1 Ch Dolby, Dolby Pro Logic, DTS, 7.1 Ch Dolby TrueHD, DTS-HD Dolby Atmos DTS:X
  • IR Receiver(Internal): 3 Pin Mini-Pheonix
  • Power Consumption: 8.5 Watts
  • Power Supply: DC 12V 1500mA
  • RS-232: Extension. and access via TCP/IP
  • IR Extension: Bidirectional
  • PoE (Power Over Ethernet): 802.3af
  • HDR Support: Yes
  • Data Rate: 50-850 Mbps, 300 Mbps typical

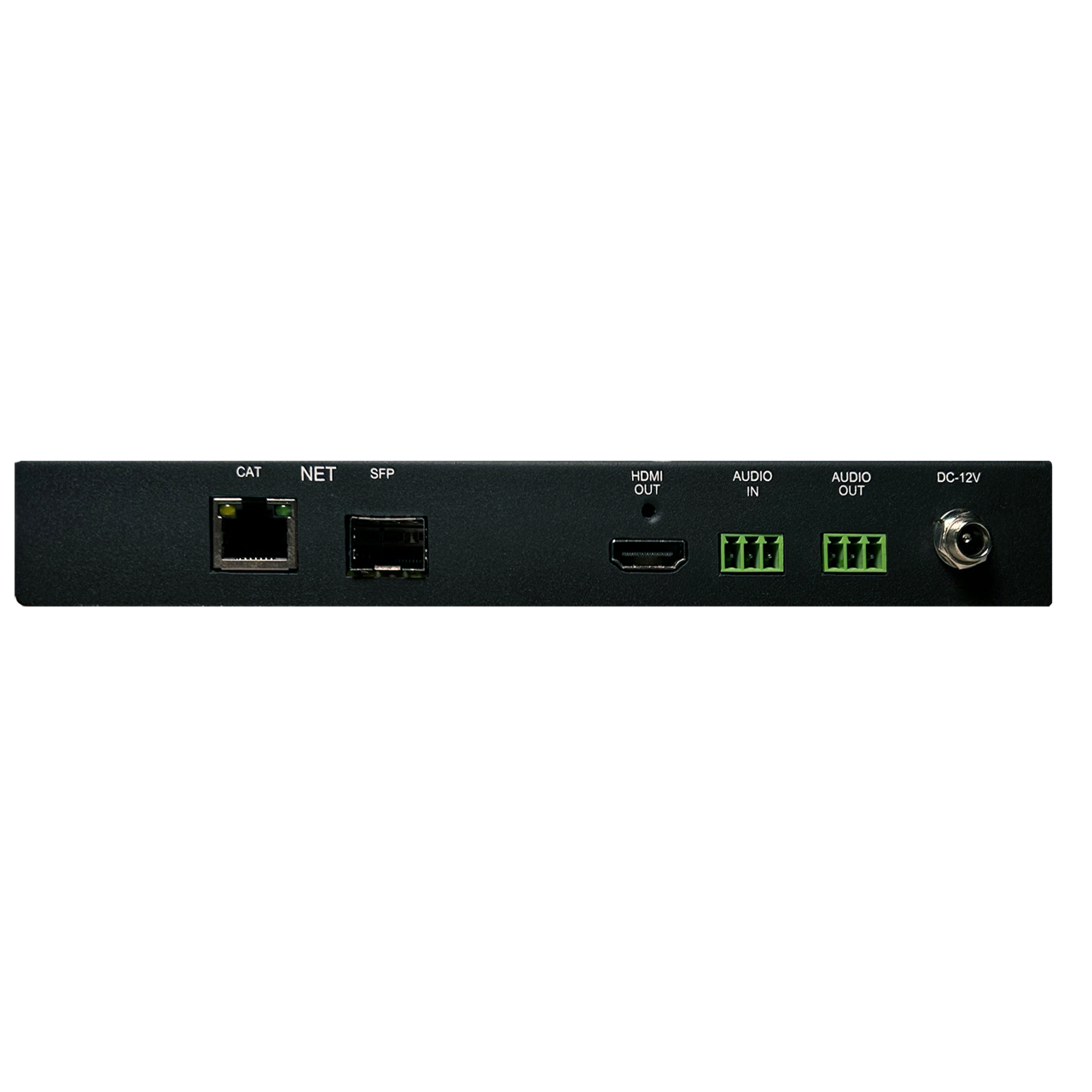

    Connections
  • Outputs: 1x HDMI
  • Control Ports: RS232 - 3 Pin Mini Phoenix, Relay 2 pi Mini Phoenix, Digital OIO (2) - Mini Phoenix
  • Audio Input Types: Analog Stereo - 3 Pin Mini Phoenix
  • Audio Output Types: Analog Stero - 3 Pin Mini Phoenix, SPDIF (ARC)
  • IR Receiver (Internal): 3 Pin Mini Phoenix

    Software
  • VPX Software Suite: Compatible
  • OS Compatibility: QSC Modules Available


• Item Includes:

  • 1x VIP-T400-D Receiver/Decoder
  • 1x 12 VDC Power Adaptor
  • 1x Mounting Brackets


• Warranty:

  • 3-Year Warranty
