Ophit 19RM-003 2RU 19 Inch Rackmount for 4K/8K OMB Series Optical Extenders

19RM-003 - Overview

• Features:

  • 19 inches 2U size (Four screw holes on the front, can be mounted on commercial 19 inch rack)
  • Dual AC/DC power supply (power sharing)
  • Up to 8 OPHIT's 4K/8K Optical Extender (OMB series) can be installed.
  • 8 MPO type(19RM-003) optical connectors on the front.
  • Power state indicate LED x 2 ( Each per AC/DC power supply)
  • Eight DC cables that can be removed / installed are installed inside


• Specifications:

  • Power
  • AC/DC power supply (Each)
  • Input:
    - Voltage Range: 90~264VAC
    - Frequency Range: 47~63Hz
    - Leakage Current (max): Earth < 130uA/264VAC
  • Output:
    - DC Voltage : 5V (10A)
    - Current Range: 0~11A
    - Rated Power: 50W
  • Max power consumption based on eight active 4K Extender OMB-DP/HM (MPO type) installed
  • Power: 5V DC, Max. 2.2A

    Accessories
  • Inside Installed Optical Cable: OM3, 22cm, 8EA, Can be detached
  • Inside Installed Electric Cable: Circular type, 15cm, 8EA, Can be detached

    Construction Features

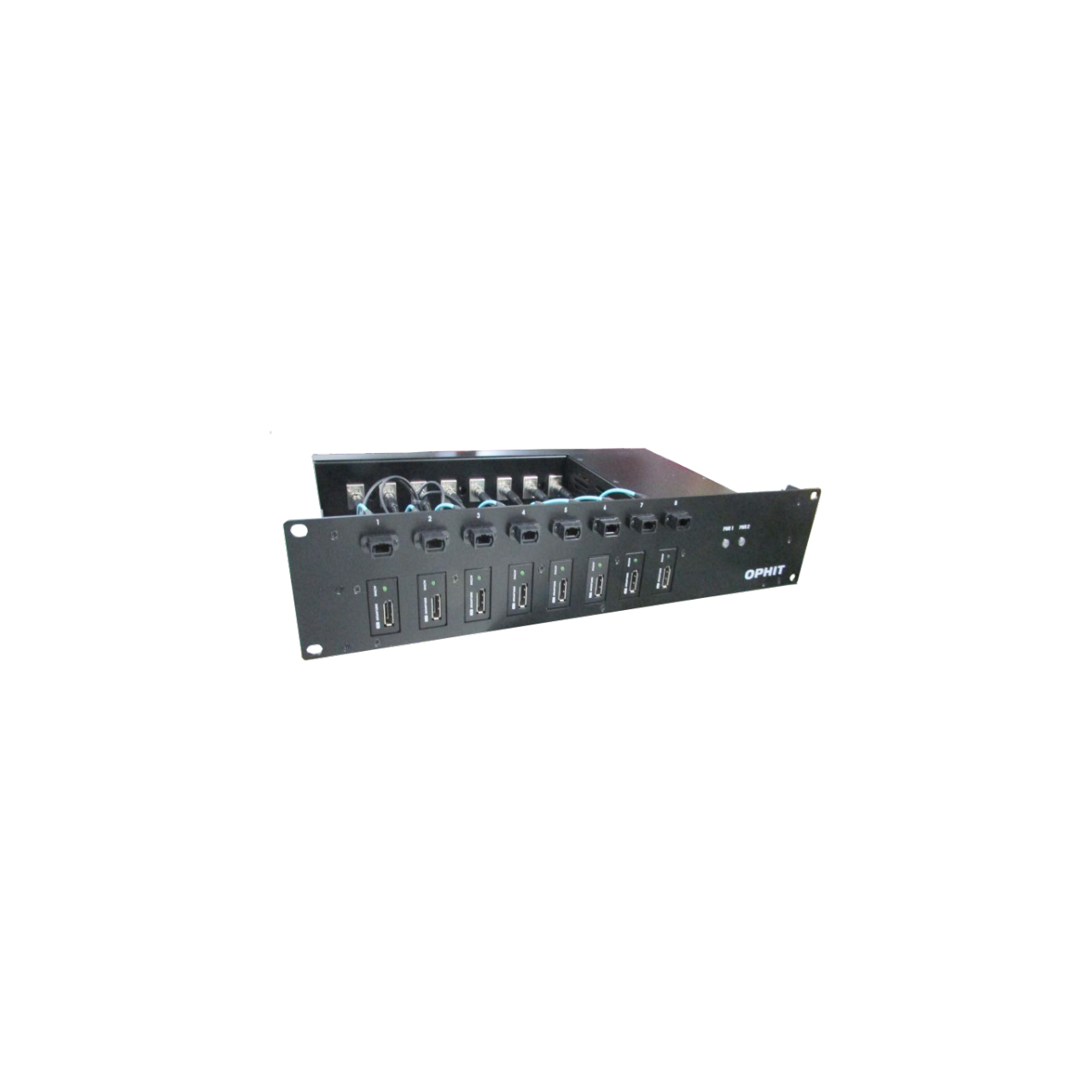

  • Front: SC Type Jack x 8, LED x 2, Screw hole x 4

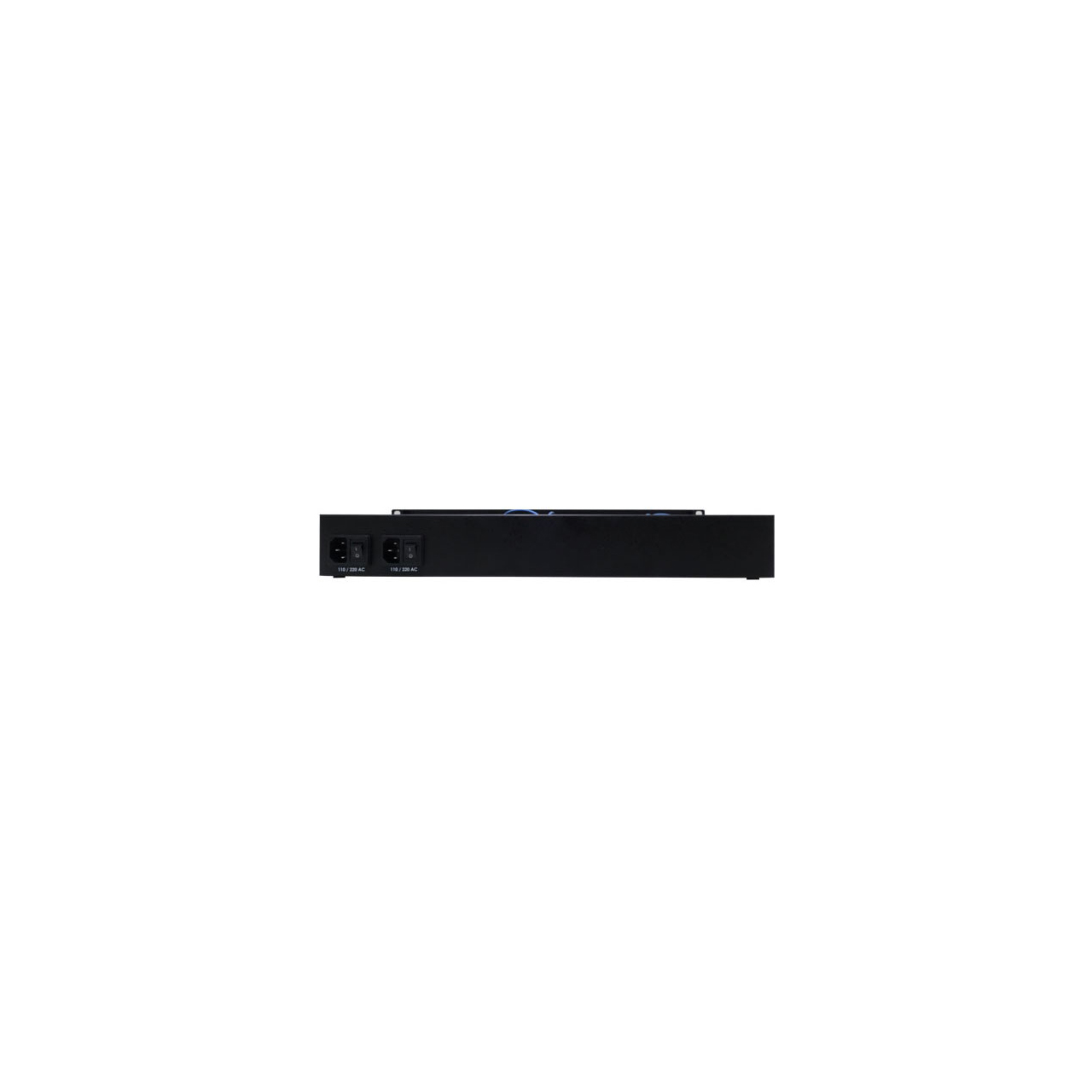

  • Back: AC Jack x 2

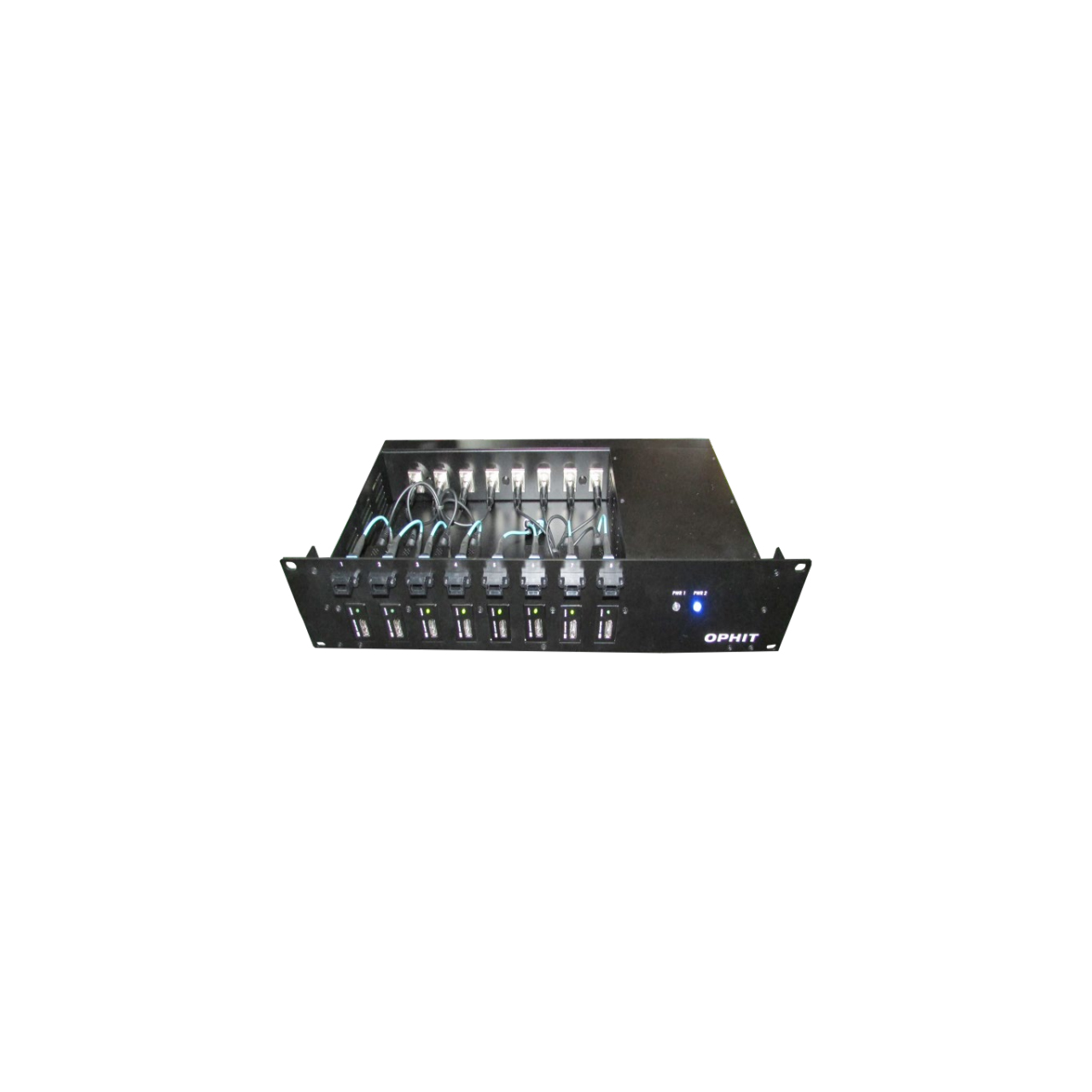

  • Inside: DC Jack x 8, SC Type Jack x 8
  • Operating Temperature Range: 32°F ~ 104°F (0°C ~ +40°C)
  • Storage Temperature Range : 14°F ~ 158°F (-10°C to 70°C)
  • Dimensions(WxDxH): 19 x 8.9 x 3.5 In (482.6 x 226 x 88mm


• Item Includes:

  • 8x Optic Fiber Cable: OM3 1Ch SC 220mm
  • 2x Power Cord
  • 8x 3x5 Washer Nickel Screws
