HDMI / DisplayPort to HDMI MPO-Type Output Wall Plate Converter
Ophit's WMC-DH is an MPO/MTP-type wall plate video signal converter with an option to manually select the HDMI (2.0) or DisplayPort (1.2) input switch, transmitting high-speed data through HDMI (2.0) TMDS-compatible optical output signal, producing high resolution up to 4K@60Hz with no signal degradation.
It provides a more efficient and streamlined connectivity experience engineered to meet modern connectivity requirements confidently.

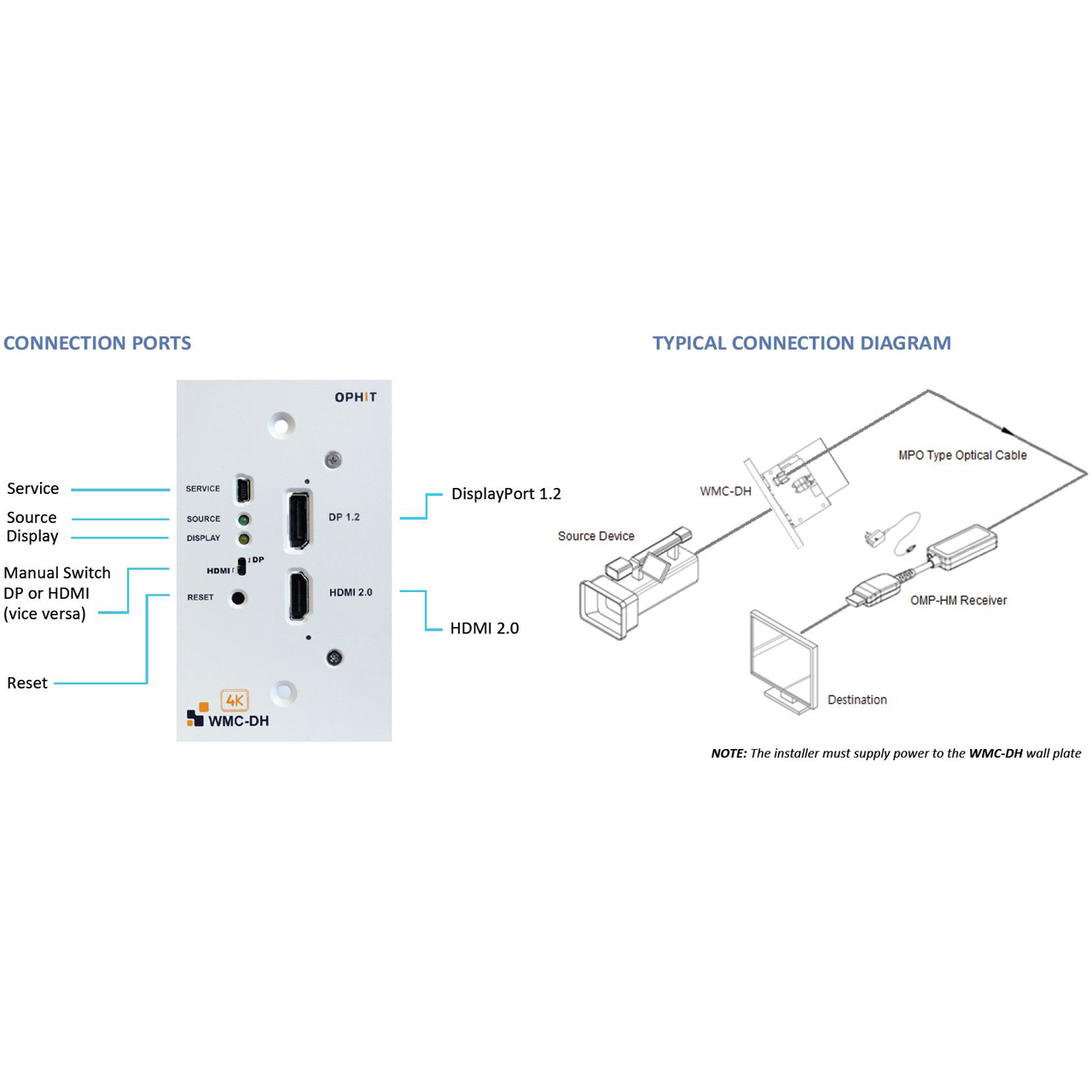

The wallplates video signal converter connects to the OMP-HM-R (Receiver - Sold separately) via MPO-type optical cable for up to 330ft (100m) of uncompressed data transmission. Specifically designed to be mounted in a single gang enclosure, the WMC-DH provides zero latency and offers high-speed video signal transmission solutions for the OR suite, broadcast, control room, live stage, flight simulation, and digital signage applications.
Applications:
- Broadcast
- Control Rooms
- Large Auditoriums
- Live Stage
- Medical Imaging
- Military
- Flight Simulation
- Conference Room
Its wall-mountable design saves space and helps you maintain a neat and organized setup, making it a practical addition to your system.
