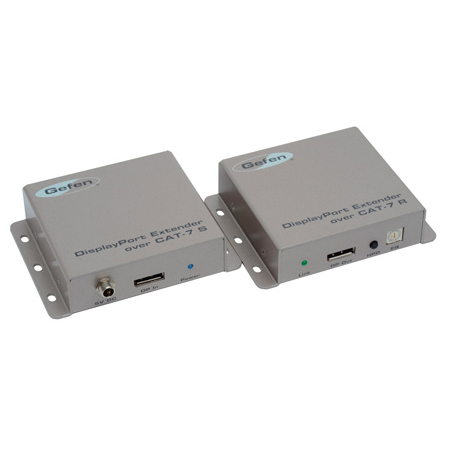

Gefen EXT-DP-2CAT7 DisplayPort Extender over CAT-7

Name: Gefen EXT-DP-2CAT7 DisplayPort Extender over CAT-7
Brand: Gefen Inc
SKU: GEF-DP-2CAT7
Price: 782.00 USD
Availability: InStock

ITEM #: GEF-DP-2CAT7 MFG #: EXT-DP-2CAT7

Gefen Inc

List Price:

$1,110.90

Our Price:

$782.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

EXT-DP-2CAT7 - Overview

Extend DisplayPort over two CAT-7 cables

The DisplayPort Extender over CAT-7 cables allows any DisplayPort device to be extended up to 100 feet (30 meters) away, using CAT-7 cables. Resolutions up to 2560 x 1600 (WQXGA) are supported. The Receiver unit is powered by the CAT-7 cable, eliminating the need for a power supply by the display side. A 16 position rotating pot offers EQ adjustment to compensate for cable skew.

How It Works

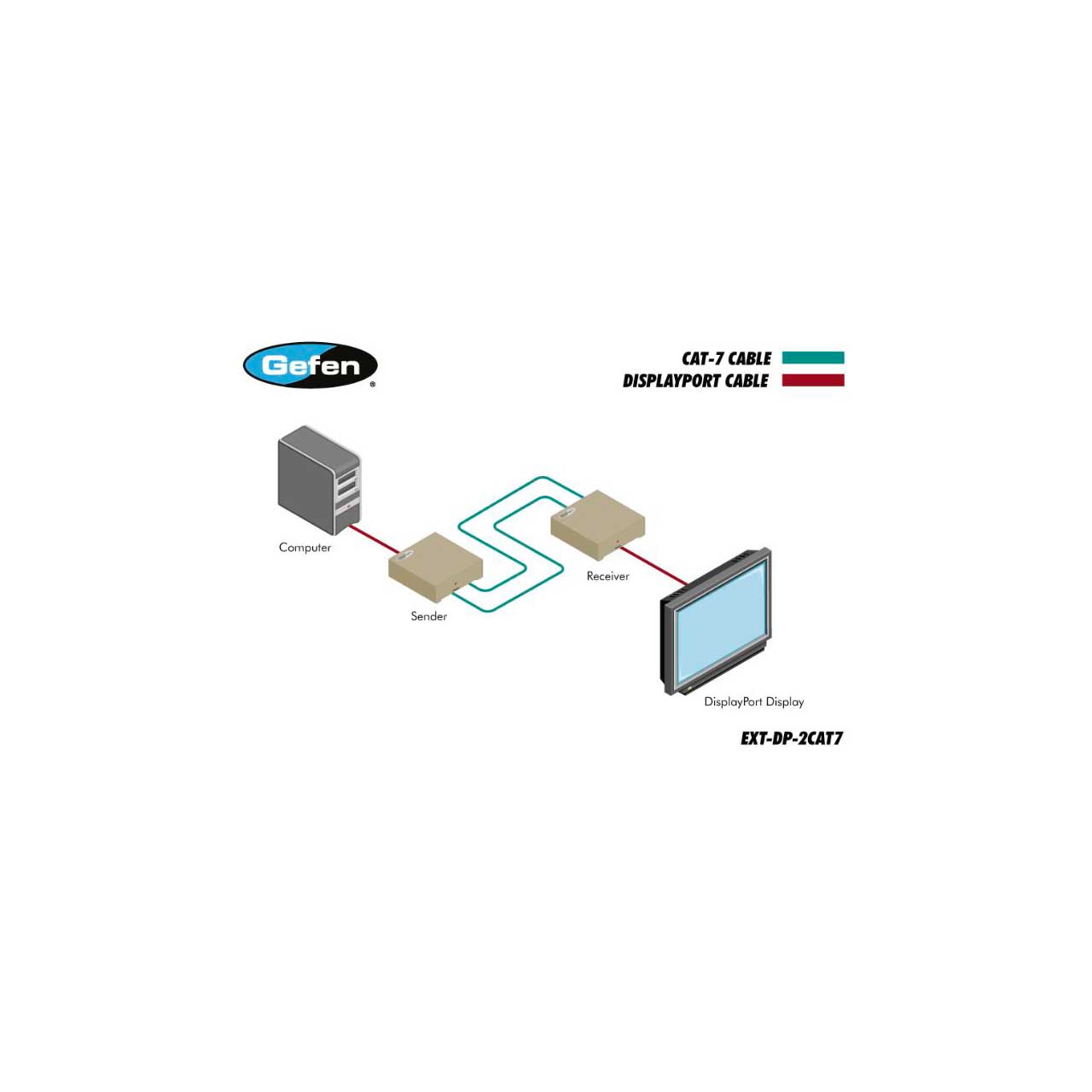

Connect the Sender unit to the DisplayPort source using the included DisplayPort cable. Connect the Receiver unit to the DisplayPort display using another DisplayPort cable. Connect the CAT-7 cable between the Sender unit and the Receiver unit. Connect the included locking power supply to the Sender unit and an available electric outlet. The Receiver unit is powered by the first CAT-7 cable and does not require an external power supply. Turn on the power to the source and the display.

Features:
- Extends DisplayPort up to 100 feet (30 meters)
- Supports resolutions up to 2560 x 1600 over two CAT-7 cables, and up to 1920 x 1200 over one CAT-7 cable
- Supports DisplayPort 1.1a
- 16-position EQ rotary switch to compensate for cable skew
- HPD Auto-Calibration button
- Pre-emphasis switch
- Drive level switch
- Boost level switches
- Power On and Link indicators
- Locking power supply
- Surface-mountable
Specifications:
- Video Data Rate: up to 2.7 Gbps

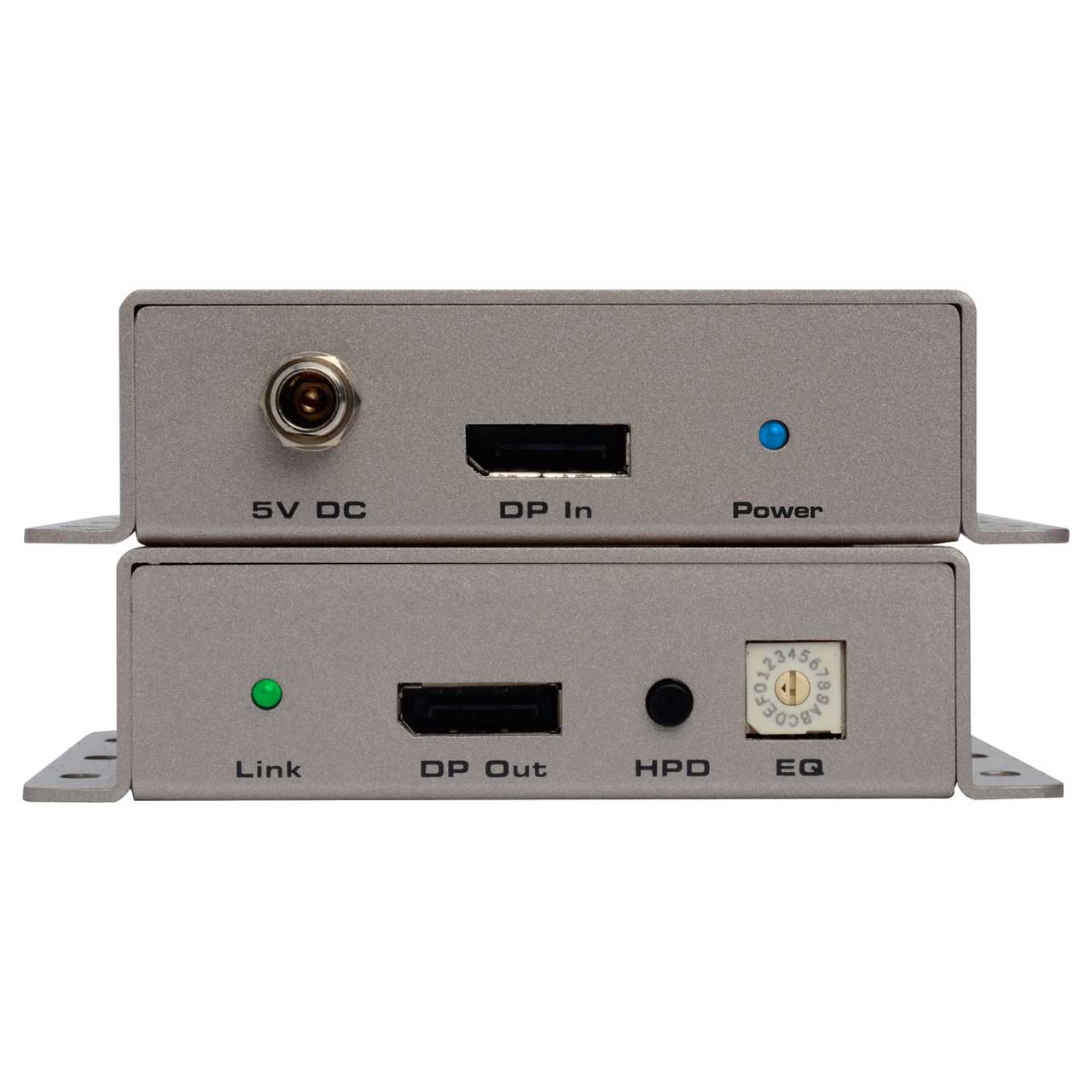

- Video Input Connector (Sender): (1) DisplayPort, 20-pin, female
- Video Output Connector (Receiver): (1) DisplayPort, 20-pin, female
- Link Connectors (Sender/Receiver): (2) RJ-45, shielded
- EQ Switch (Receiver): (1) 16-position rotary type
- HPD Auto Calibration button (Receiver): (1) tact-type
- Boost Level Switches (Sender): (2) 3-position DIP switch
- Drive level switch (Sender): (1) 3-position DIP switch
- Power On indicator (Sender): (1) LED, blue
- Link indicator (Receiver): (1) LED, green: good link, red: no link
- Power Supply connector (Sender): (1) 5V DC, locking type
- Operating Temperature: +32 to +104 °F (0 to +40 °C)
- Dimensions (W x H x D) (Sender/Receiver): 4.3" x 1" x 3.3" (110mm x 25mm x 83mm)
- Shipping Weight: 3 lbs (1.4 kg)
Item Includes:
- (1) DisplayPort Extender over CAT-7 - Sender Unit (EXT-DP-2CAT7S)
- (1) DisplayPort Extender over CAT-7 - Receiver Unit (EXT-DP-2CAT7R)
- (1) 6 ft.DisplayPort Cable (CAB-DP-06MM)
- (1) 5V DC Locking Power Supply (EXT-PS526AIP-LP)
- (1) Quick-Start Guide (QSG-DP-2CAT7)
GTIN:
0845344005713
