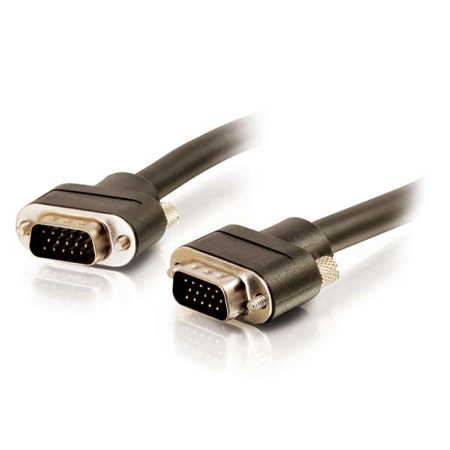

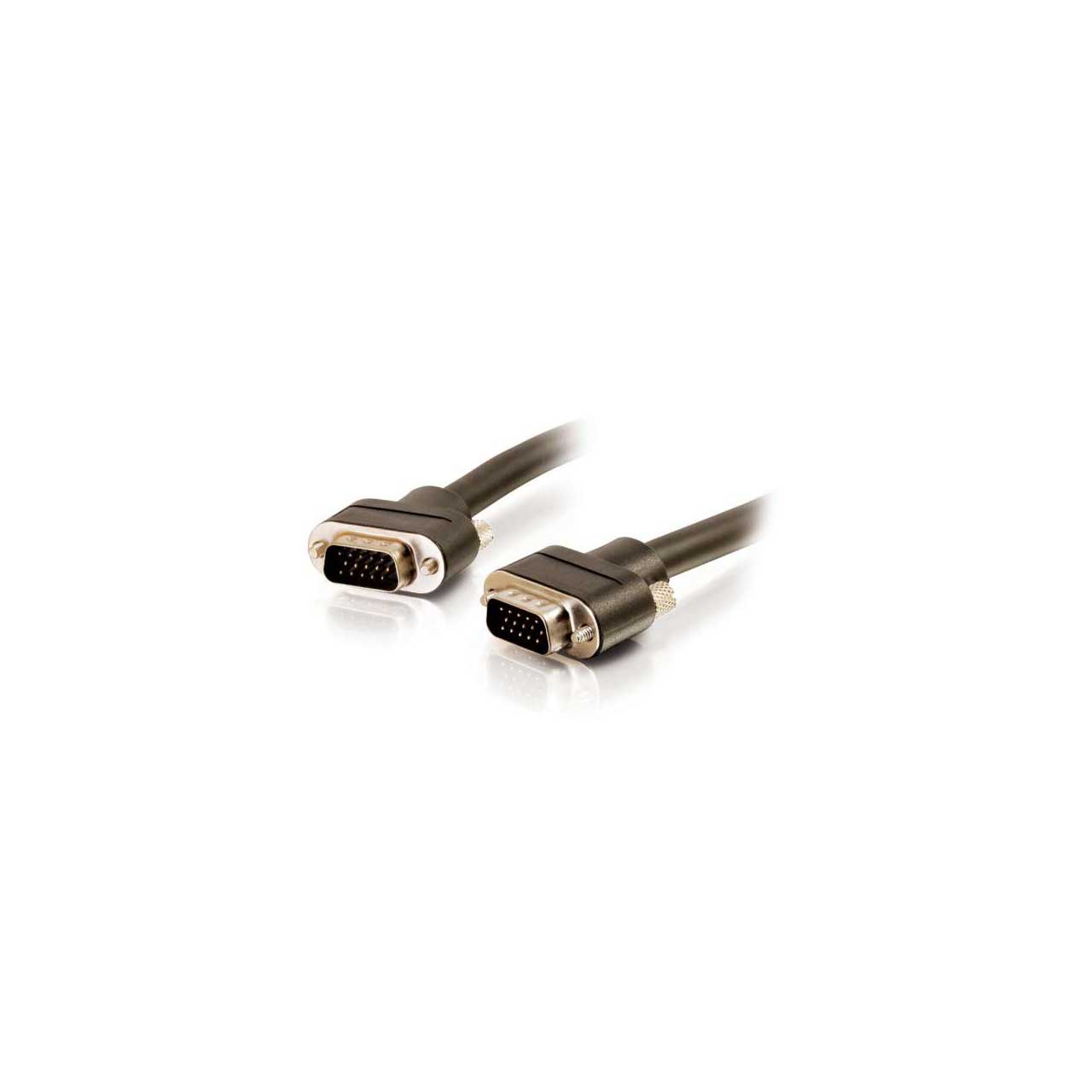

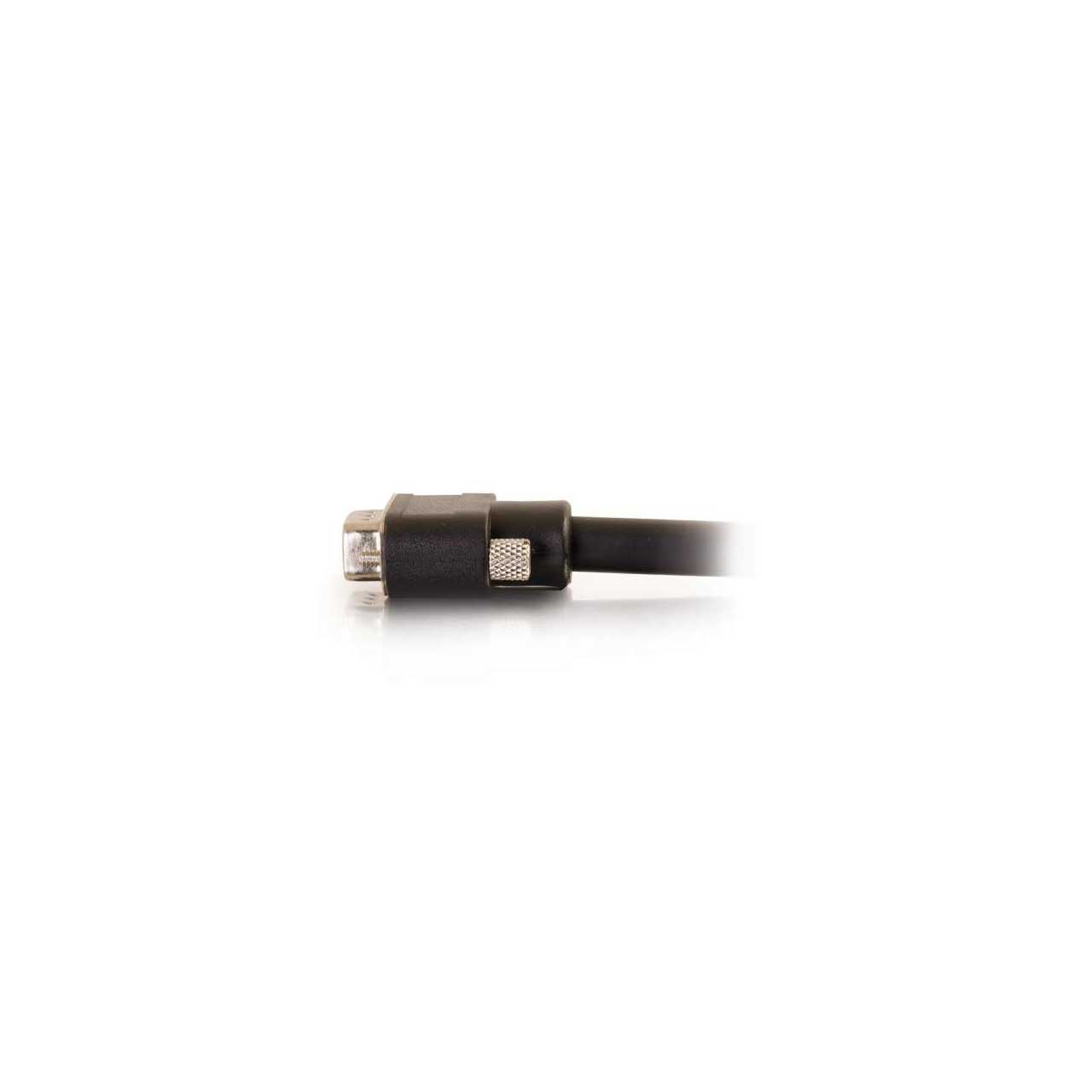

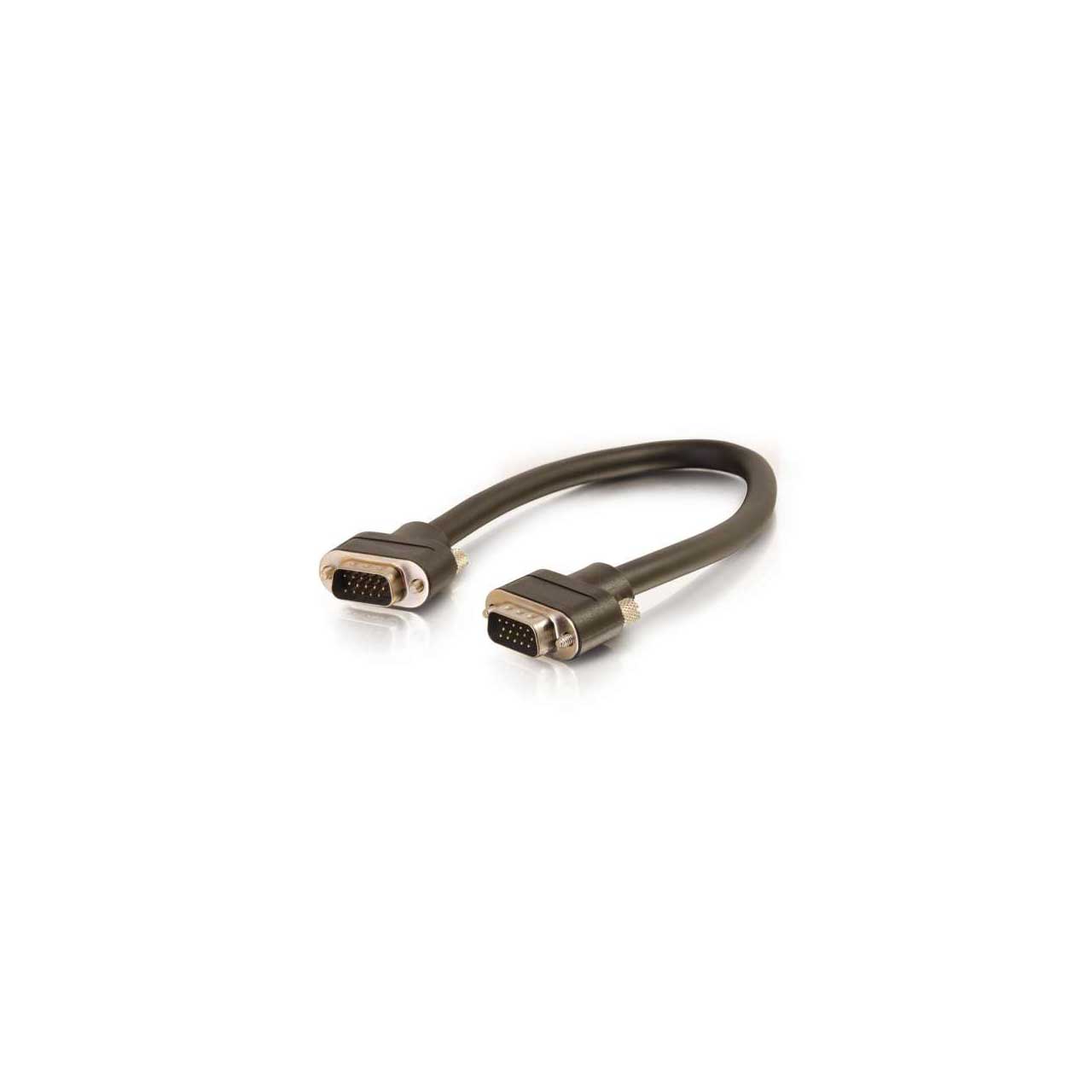

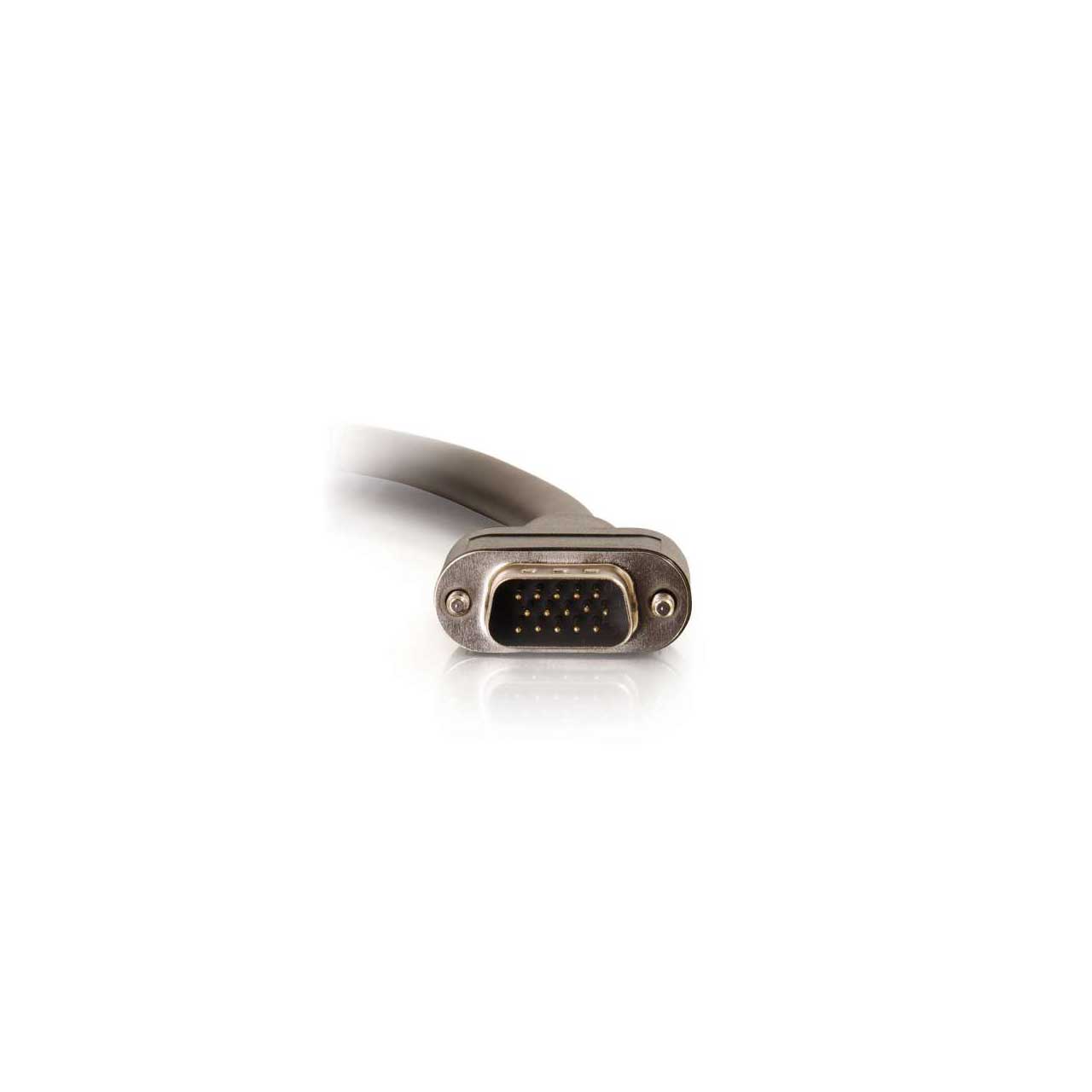

C2G 50222 150 Foot Select VGA Video Cable Male/Male - In-Wall CMG-Rated

ITEM #: C2G-50222 MFG #: 50222

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$203.99

Availability: In Stock
iAvailability Description Popup


50222 - Overview

The C2G Select VGA Video Cable is perfect for source to display connectivity for in-home desktop or in-wall commercial applications which require video resolutions of up to QXGA (2048x1536). The CMG rated jacket provides a solution for in-wall applications, while the low-profile, rounded connectors make installing in tight spaces, such as a projector mount pole, easy. This cable is designed to support high resolution video applications over long distances of up to 150ft. All 15 pins are wired providing support for DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals, i.e. communication of the display's capabilities, ensuring that the content from the source is sent at the optimal resolution for the display.

  • Features:

    • In-wall, CMG-rated jacket
    • Supports up to a 2048x1536 resolution
    • All 15 pins wired to support DDC2 (E-DDC) and EDID
    • Low profile connectors

  • Specifications:

    • Color: Black
    • Length: 150.00 Foot
    • Jacket Rating: Standard
    • Weight: 11.500 LB
    • Maximum resolution supported: 2048x1536
    • Nominal impedance: 75±5ω
    • Nominal capacitance: 58pF/m
    • Conductor resistance: 28AWG - 237.25ω/km, 24AWG - 93.25ω/km
    • Insulation resistance: 10Mω/km at 20°C DC-500V
    • Dielectric strength: AC 500V/1 minute
    • Voltage rating: 30V
    • Minimum bend radius: 90mm

  • Warranty:

    • Lifetime Warranty

  • GTIN:

    0757120502227
