StarTech VGA2VID VGA to Composite or S-Video Converter

Name: StarTech VGA2VID VGA to Composite or S-Video Converter
Brand: Startech.com
SKU: VGA2VID
Price: 114.92 USD
Availability: InStock

ITEM #: VGA2VID MFG #: VGA2VID

Startech.com

List Price:

$122.99

Our Price:

$114.92

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VGA2VID - Overview

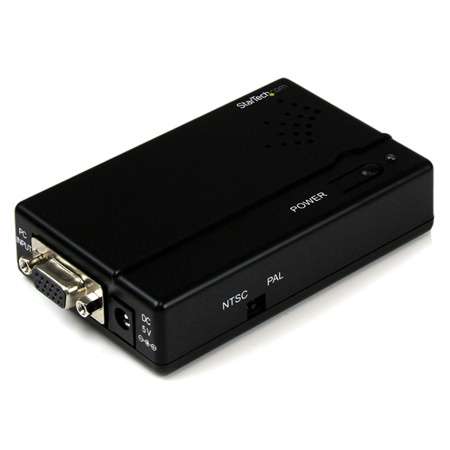

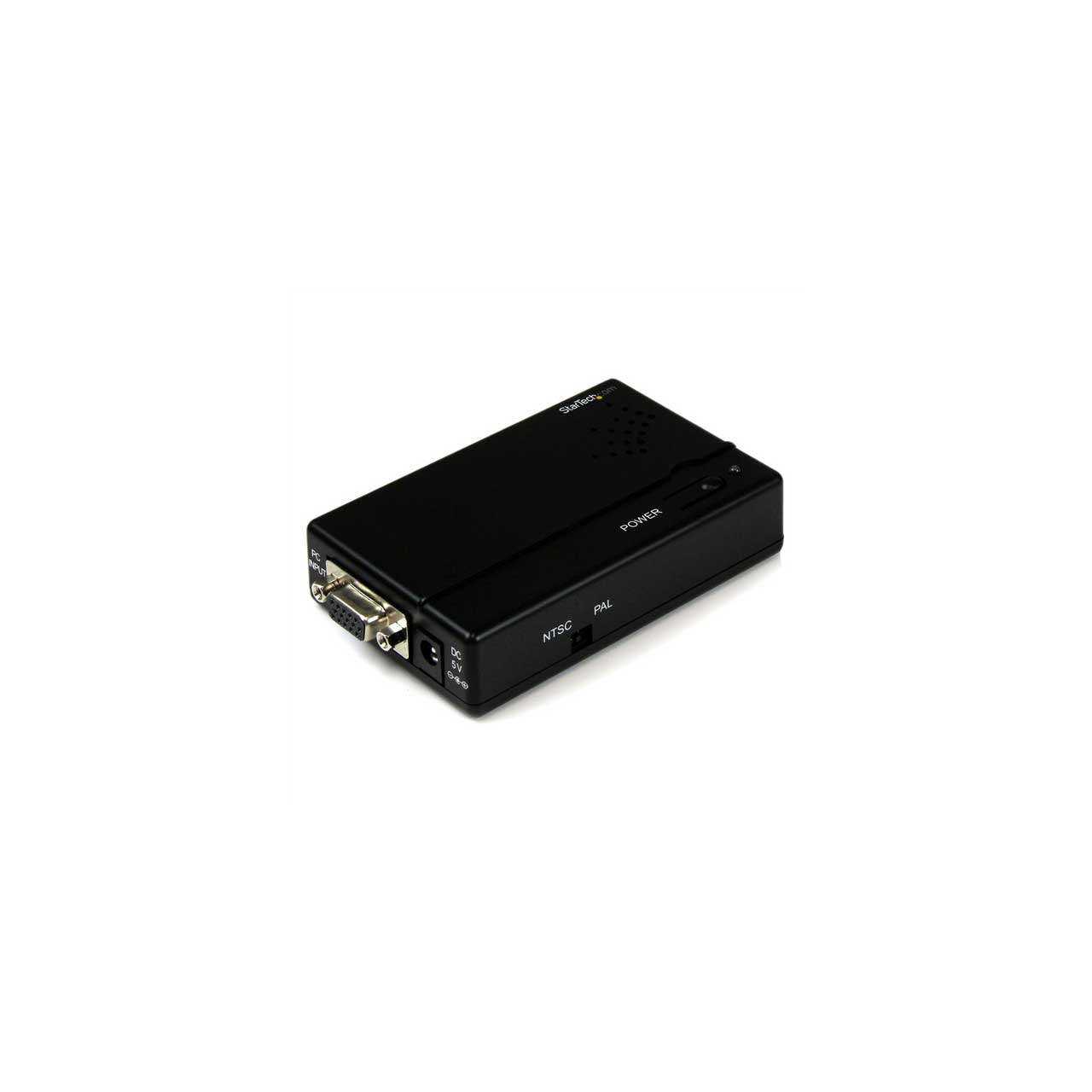

This High Resolution VGA to Composite or S-Video Converter is a simple hardware solution that allows you to convert a VGA/PC video signal into a Composite or S-Video signal for use with a CRT or flat panel display.

The ideal solution for synchronizing monitors with television displays etc., the VGA to Composite/S-Video Converter offers selectable NTSC or PAL format operating modes to ensure compatibility with virtually any configuration.

Features:
- High resolution inputs from your PC up to 1600x1200
- Provides output in both composite and S-Video formats

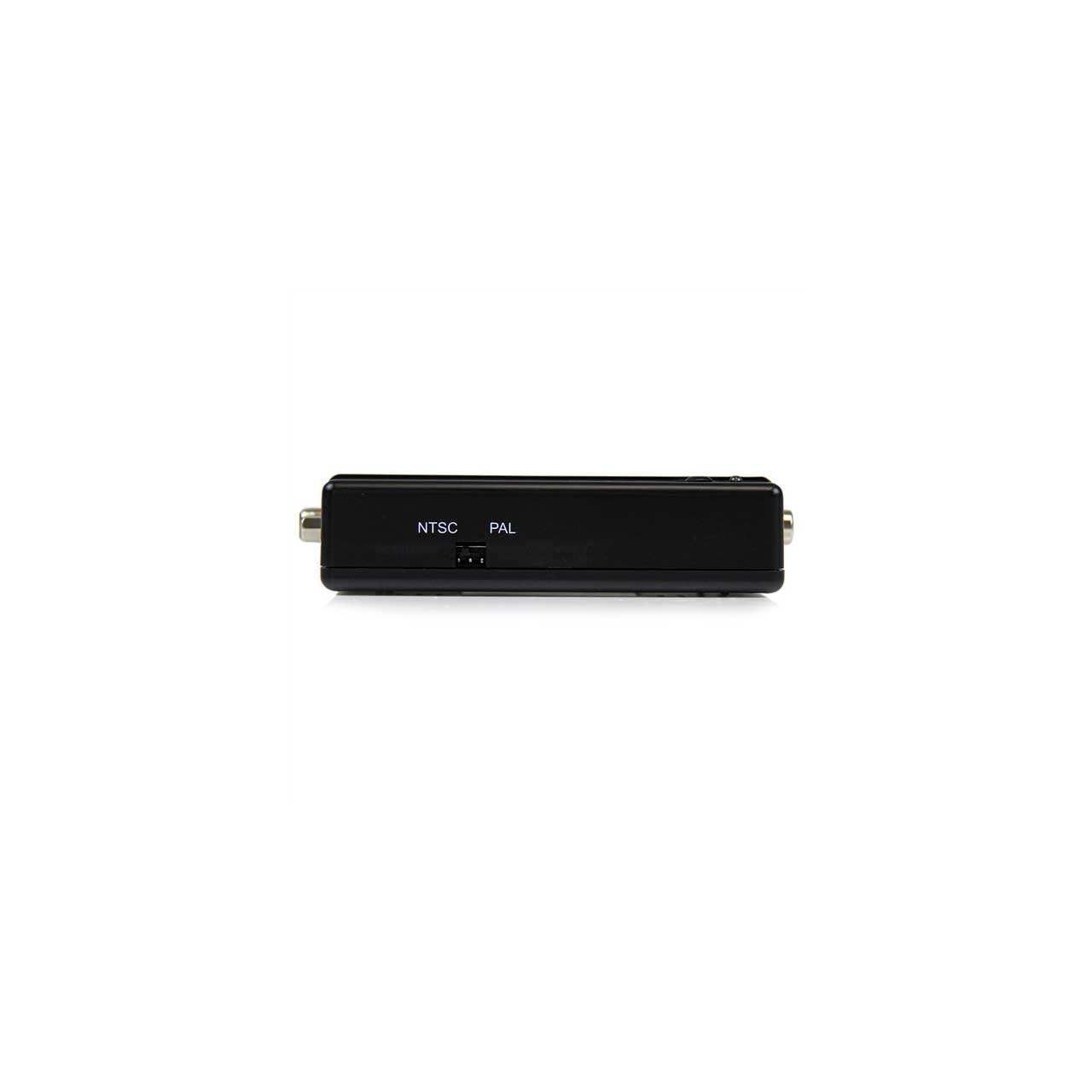

- Supports NTSC and PAL compatible displays
- Image underscan and overscan selectable switch
- An inexpensive way to increase the size of a computer display
- Displays computer screen images on your TV
- Great for boardroom meetings, tradeshows, lectures, and CRT digital signage solutions
- Use your TV to display computer presentations, surfing the Internet, playing video games and more
Specifications:

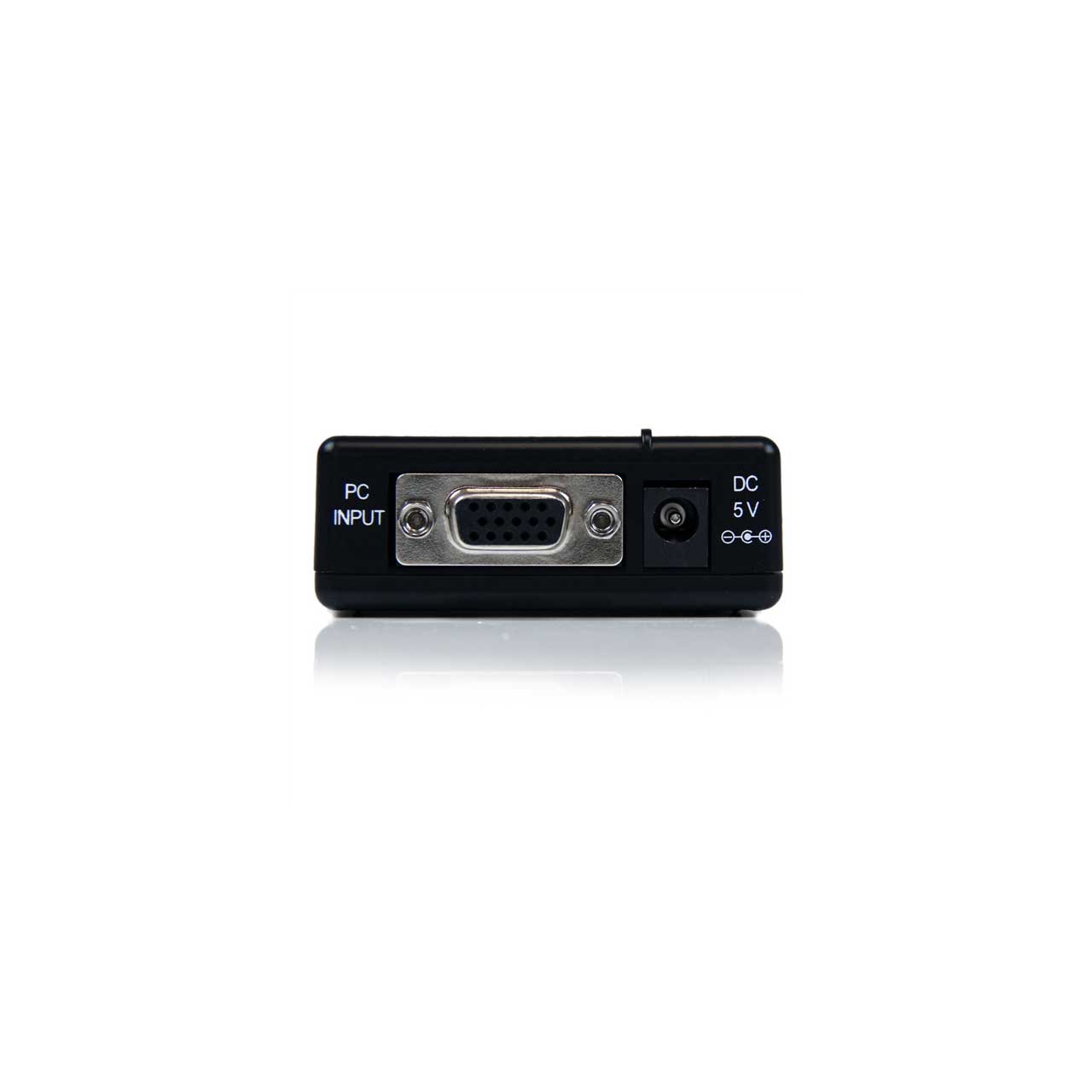

- Input Connectors - 1 x VGA (15 pin; High Density D-Sub) Female

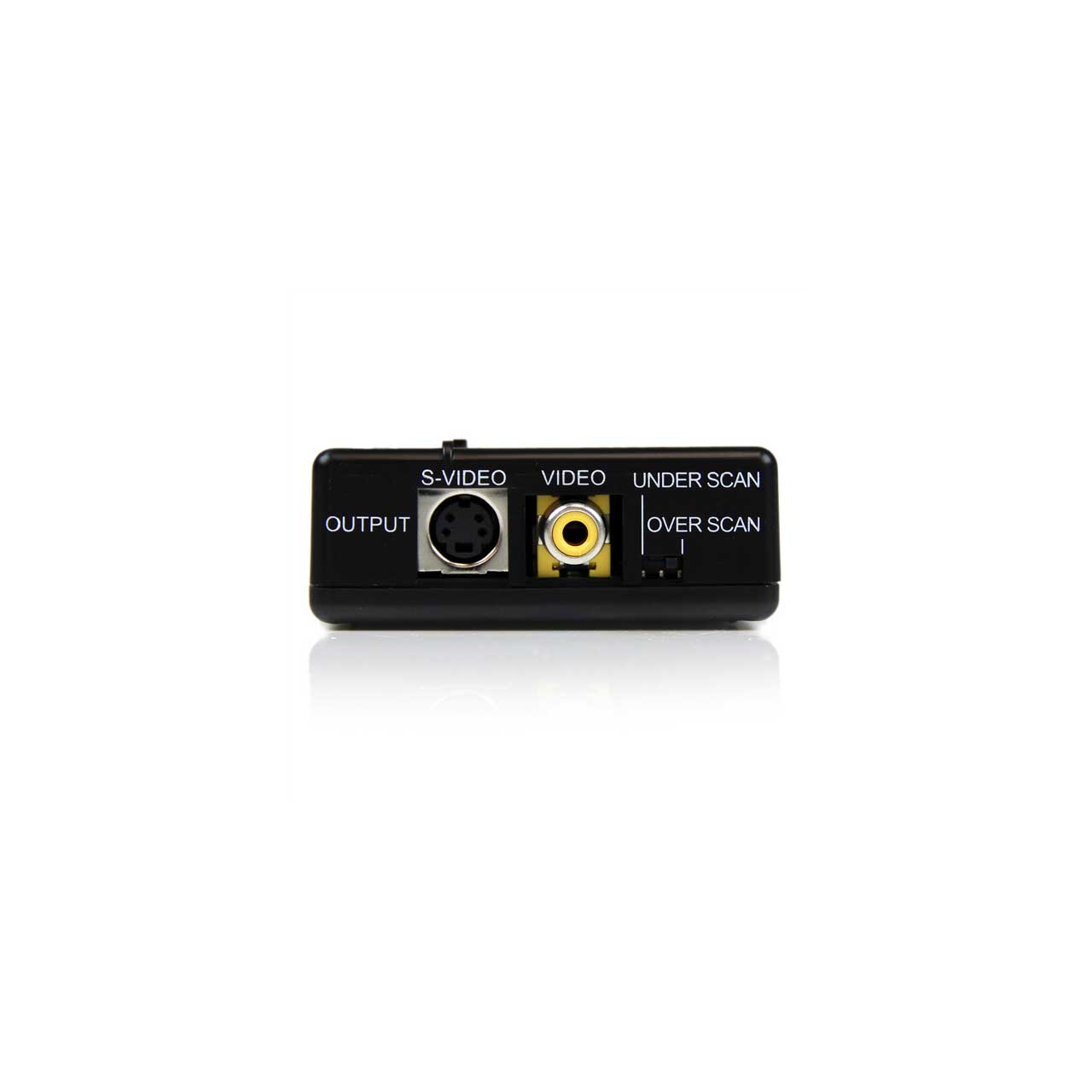

- Output Connectors -1 x Composite Video (1 x RCA) Female 1 x S-Video (4 pin; Mini-DIN) Female
- Power Supply 5V DC, center positive
- Operating Temperature 0°C ~ 70°C (32°F to 158°F)
- Dimensions (LxWxH) 100.0mm x 64.0mm x 18.5mm
- Weight 100g
GTIN:
0065030830591
