NTI VGA-DVI-FOSC VGA to DVI Converter & Extender via Fiber Cable - Up to 1640 Feet/500 Meters

ITEM #: NETT-VGA-DVIFOSC MFG #: VGA-DVIFOSC

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Network Technologies Inc
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,025.00

Our Price:

$932.75

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VGA-DVIFOSC - Overview

The NTI VGA-DVI-FOSC converts analog VGA into a digital DVI signal that can be extended up to 1,640 feet (500 meters) using single-strand (simplex) multimode SC fiber optic cable.

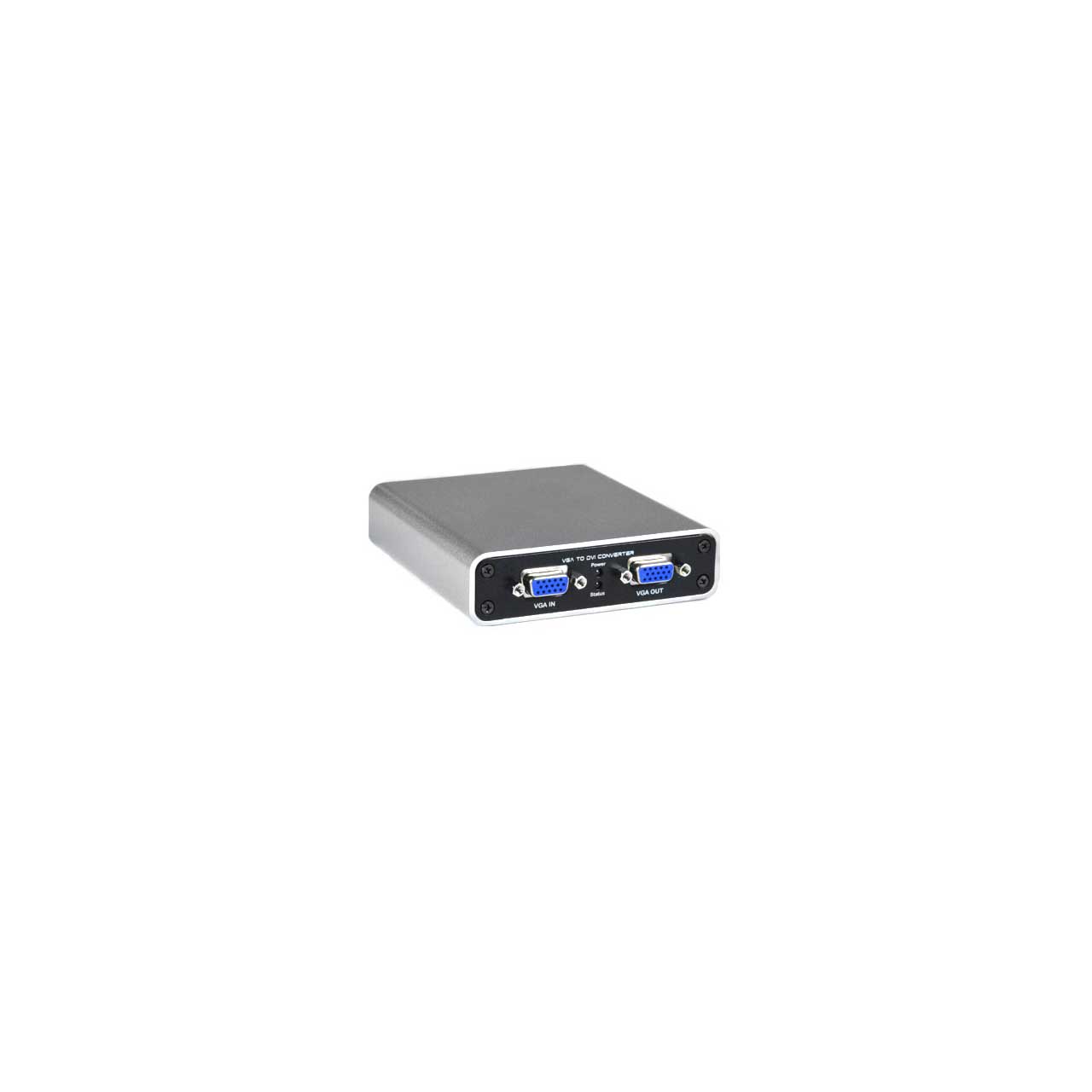

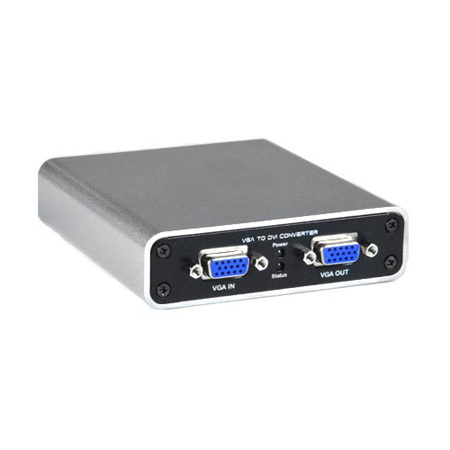

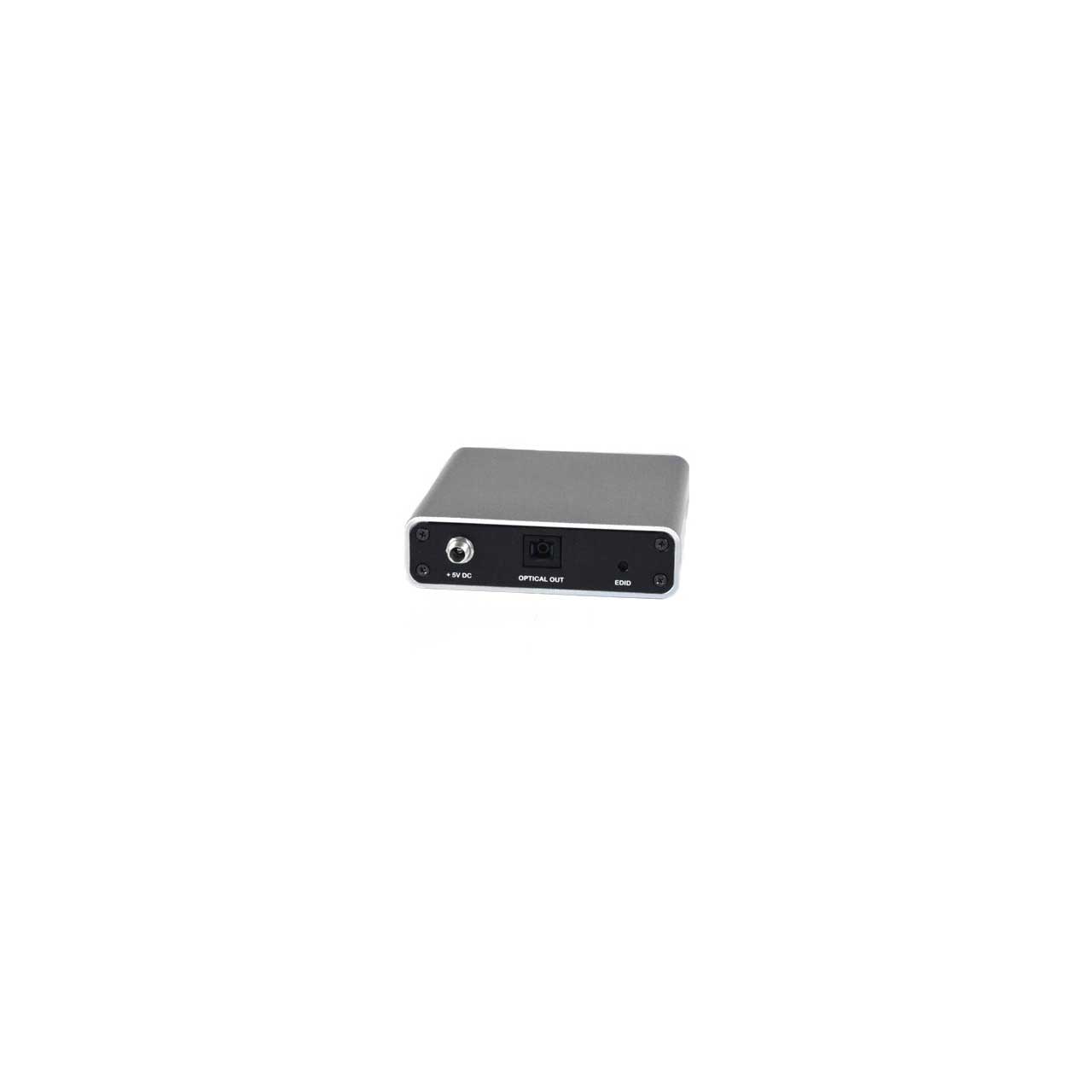

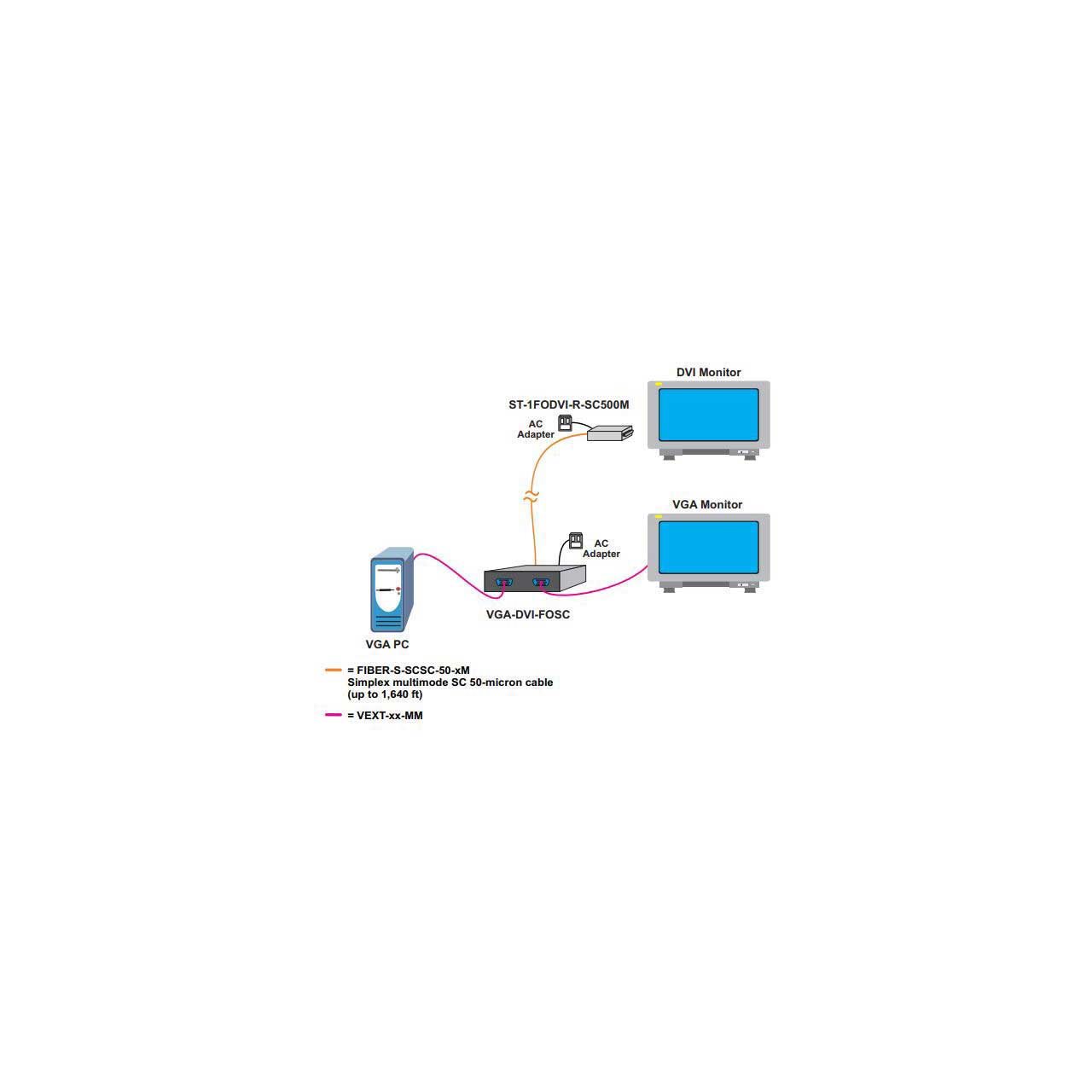

This Converter/Extender system has two components: the VGA-DVI FOSC VGA converter/transmitter, which connects to the VGA source and also supplies video to a local VGA display, and an included ST-1FODVI-R-SC500M receiver that connects to a remote DVI monitor. The units are interconnected by a single-strand multimode SC fiber optic cable.

Please Note: Fiber Cable NOT included. It is recommended to a simplex multimode SC 50-micron fiber optic cable to extend the remote unit up to 1,640 ft (not included). Simplex multimode SC 62.5-micron fiber optic cables are also compatible.

  • Features:

    • Convert a video source with analog VGA signal to a digital DVI signal.
    • Comes with the ST-1FODVI-R-SC500M optical receiver to extend a remote DVI monitor 1,640 ft (500m).
    • Signal transmission via a single-strand (simplex) multimode (50-micron or 62.5 micron) SC fiber optic cable - no RF interference.
    • Supports resolutions to 1920x1200 (WUXGA).


  • Specifications:

    • Converter(VGA-DVI-FOSC)
    • Video Input One female 15-pin HD connector for VGA input.

    • Video Output
    • One female 15-pin HD connector for VGA output.
    • One female SC fiber connector for optical DVI output.
    • Supports resolutions to 1920x1200.

    • Power 100 to 240 VAC at 50 or 60 Hz via AC adapter.

    • Environmental
    • Operating temperature: 32 to 122°F (0 to 50°C).
    • Storage temperature: -22 to 158°F (-30 to 70°C).
    • Relative humidity: 0 to 85% non-condensing RH.

    • Dimensions WxDxH in: 4.09x4.41x1.10 (104x112x28 mm)

    • Regulatory Approvals CE, FCC, RoHS

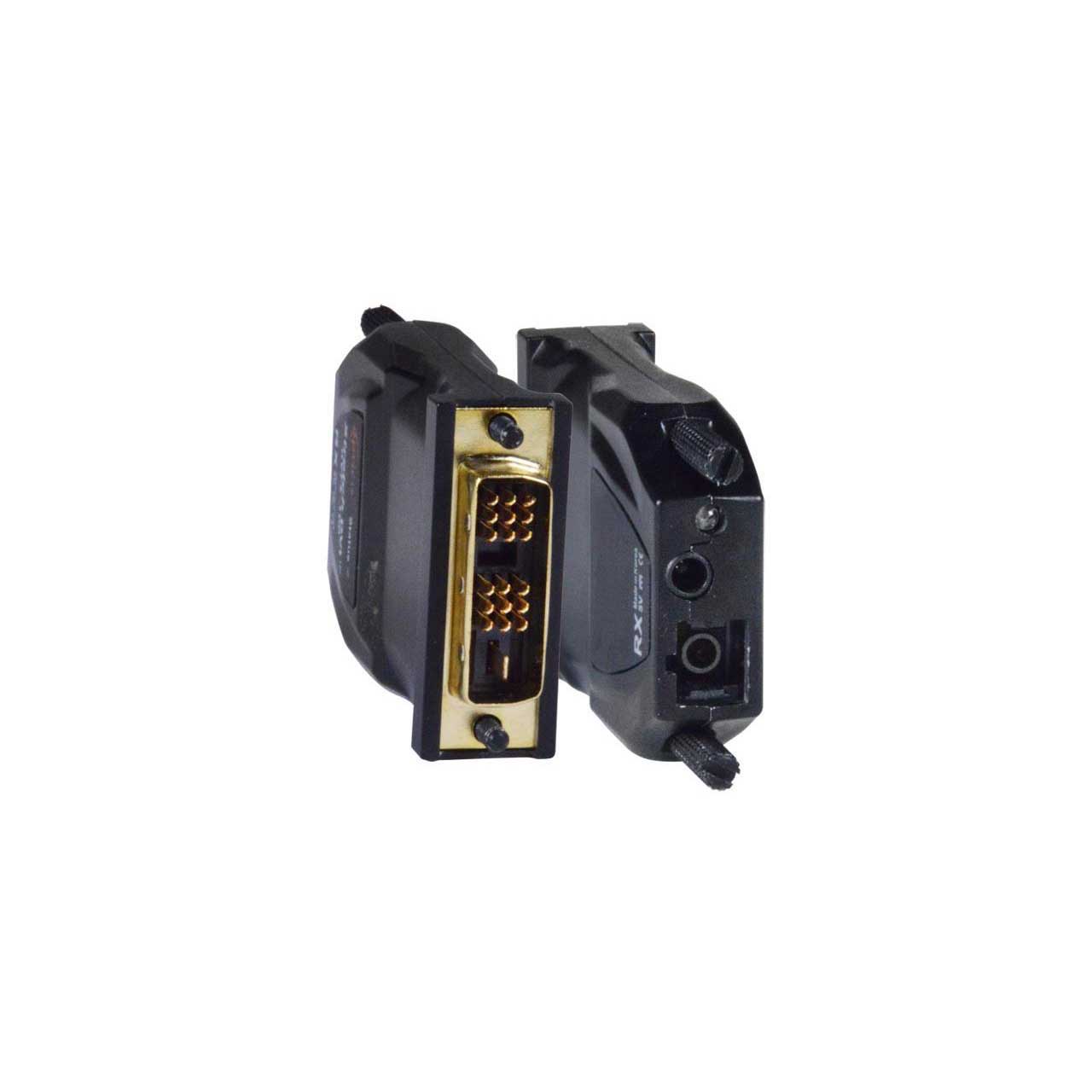

    • Optical Receiver (ST-1FODVI-R-SC500M)
    • Video Input One female SC fiber connector for optical DVI input.

    • Video Output
    • One male DVI-D single link connector for DVI output.
    • Supports resolutions to 1920x1200.
    • Max Distance 1,640 feet (500 meters) over 50æm multimode SC fiber optic cable.

    • Power 100 to 240 VAC at 50 or 60 Hz via AC adapter.

    • Environmental
    • Operating temperature: 32 to 122°F (0 to 50°C)
    • Storage temperature: -22 to 158°F (-30 to 70°C)
    • Relative humidity: 0 to 85% non-condensing RH

    • Regulatory Approvals CE, FCC, RoHS


  • Item Includes:

    • 1x Converter (VGA-DVI-FOSC)
    • 1x Optical Receiver (ST-1FODVI-R-SC500M) (cable sold separately)


  • Warranty:

    • Two years
