Roland VR-6HD Direct Streaming A/V Mixer - Compact & Portable for Live Events

ITEM #: ROL-VR-6HD MFG #: VR-6HD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,999.99

Availability: In Stock
iAvailability Description Popup


VR-6HD - Overview

Ideal for Corporate Meetings, Online Sales Presentations, Worship Services, and other Professional Streaming and Video Capture Applications!

Portable All-in-One Hub for Business Livestreaming!
Ultra-compact and filled with innovative Roland AV technologies, the VR-6HD is the ultimate all-in-one solution for everyday business livestreaming events. Offering advanced features and versatile connectivity in a portable, go-everywhere format, the VR-6HD is ideal for corporate meetings, online sales presentations, worship services, and other professional streaming and video capture applications.

Offering advanced features and versatile connectivity
Video switching, audio mixing, and LAN/USB streaming encoders are integrated into a single streamlined unit, eliminating the hassle and frustration that comes with connecting multiple devices. And one operator can easily handle all production tasks with minimal study, thanks to the smart interface, deep automation tools, one-touch macro sequencing, PTZ camera control, and more.

High-Quality Presentations Made Easy
The powerful video capabilities in the VR-6HD make it simple to bring professional production values to business streaming productions. Connect multiple cameras and computers via HDMI for different views, and incorporate robotic PTZ cameras to change angles at the touch of a button. Quickly assign and switch among sources on the fly, including live HDMI inputs, presentation decks, still images, and video clips. You can also create custom feeds for live and online viewers by assigning composition layers to multiple busses.

Multiple HDMI Inputs
The VR-6HD supports HDMI-the most common video connector in the world-and you can seamlessly combine six HDMI sources in Full HD with a range of broadcast and cinematic frame rates and color spaces. Built-in scalers with EDID and HDCP support provide easy integration with sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.

  • Features:

    • Ultra-compact audio/video mixer with direct streaming encoders
    • Powerful live production automation with sequencing, macros, and scene memories

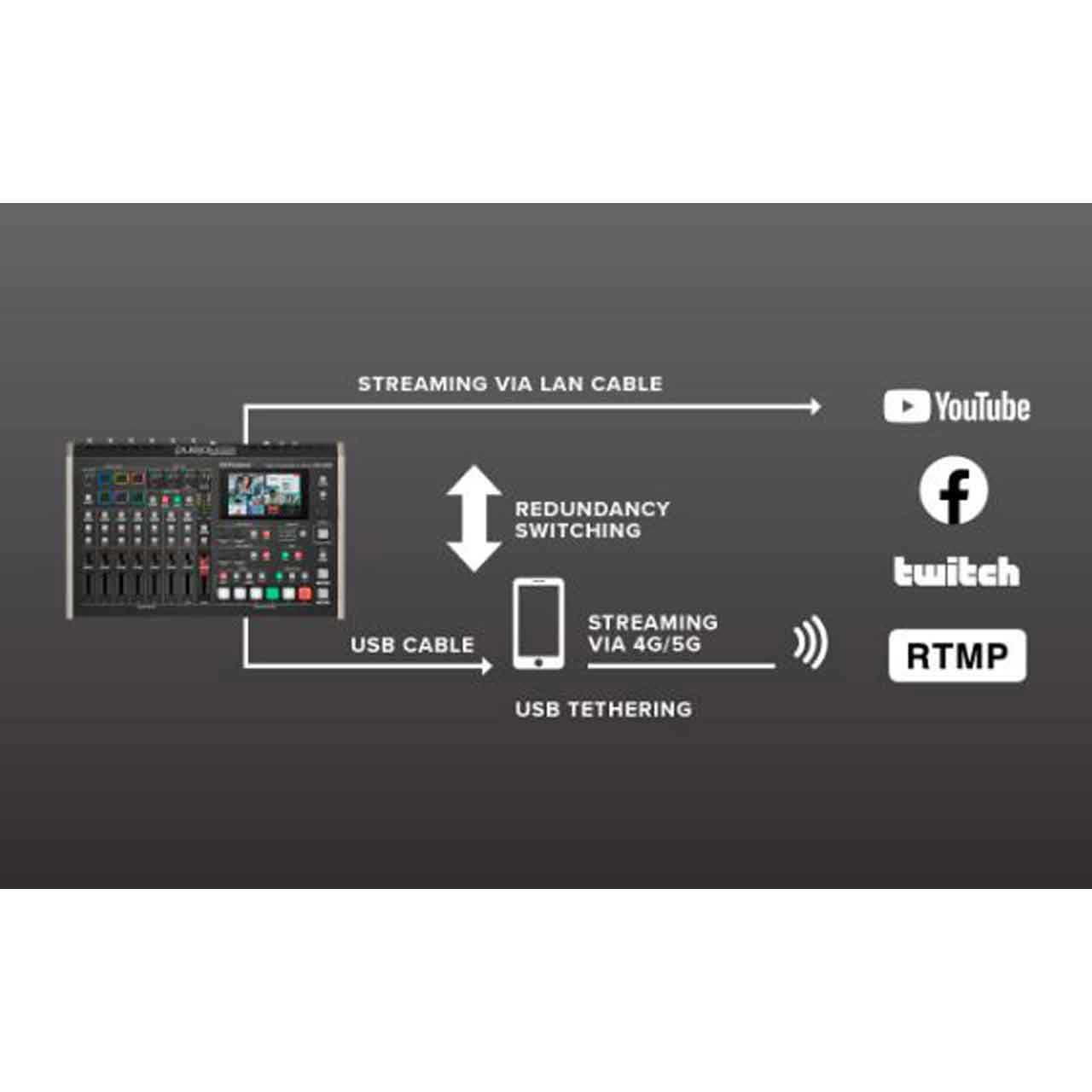

    • Built-in streaming encoders for transmitting two livestreams at rates up to 1080p/60 FPS
    • Record streams directly to an SDXC card for archiving, editing, and distribution
    • Six 1080p HDMI inputs with frame rate converters and real-time scalers
    • Support for cinema and broadcast frame rates
    • Five-layer video effects engine
    • Five total outputs: three HDMI, USB-C streaming, and a dedicated direct streaming output
    • Six selectable output modes: Program, Sub-Program, Aux, Preview, Multi-View, and Still-View
    • 28-channel digital audio mixer with advanced effects and processing
    • 16-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
    • Enhance your livestreams with sound effects, still images, and video sources stored on an SDXC card
    • Audio Player function with six trigger pads and onboard storage for 12 audio files
    • Control six PTZ cameras with support for multiple brands and mixed protocols
    • 4.3-inch touch screen with graphical menu
    • Extensive device control with Bluetooth®, USB, RS-232, and LAN
    • Remote control software available for iPad, macOS, and Windows
    • Wireless and wired camera tally support

  • Specifications:

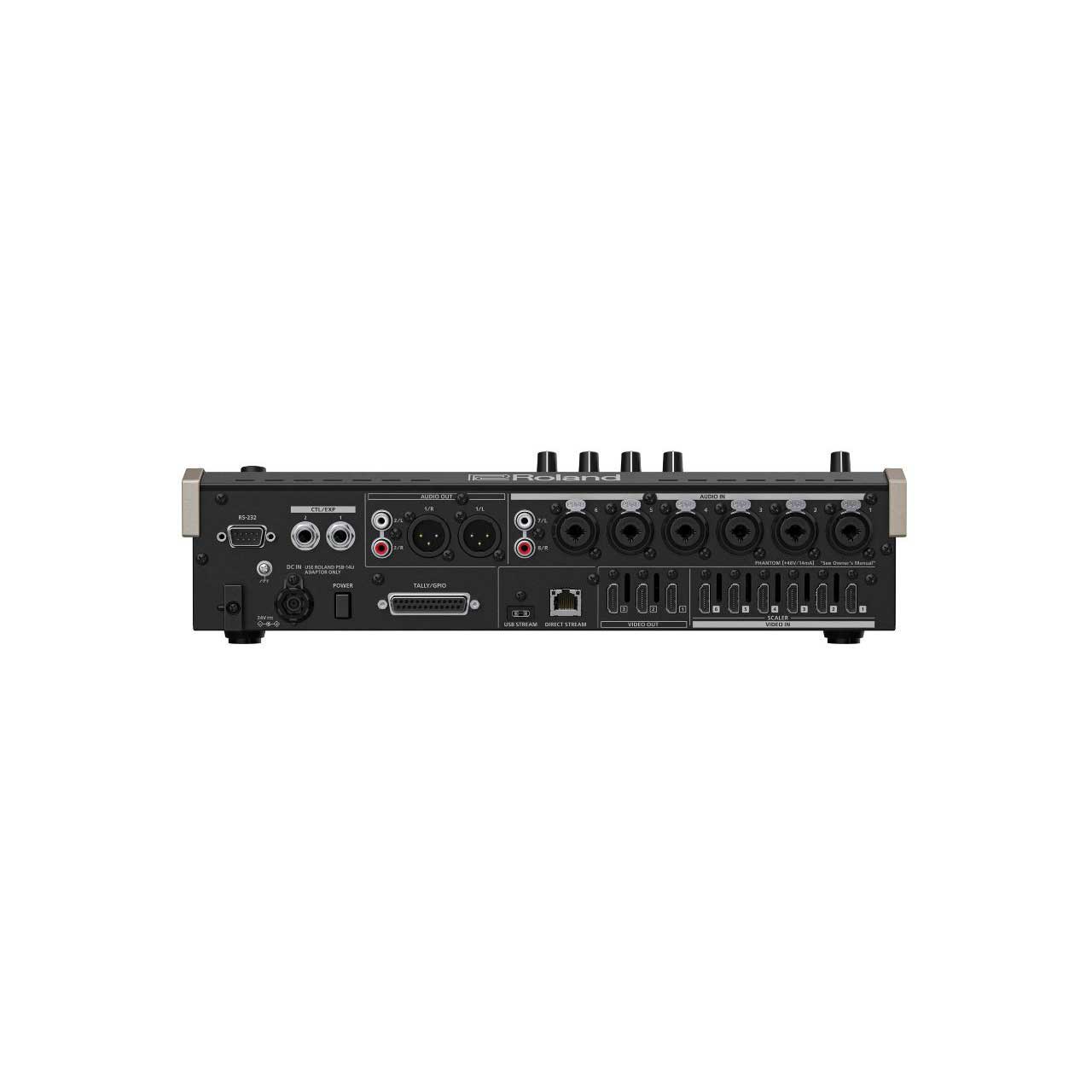

    • CONNECTORS
    • Video Input Connectors:
      VIDEO IN 1--6: HDMI type A x 6 HDCP Supported Multi-format Supported
    • Video Output Connectors:
      VIDEO OUT 1--3: HDMI type A x 3 HDCP Supported
      USB STREAM: USB Type-C (TM)Audio
    • Input Connectors
      Analog: AUDIO IN 1--6: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load)
    • Digital:
      USB STREAM: USB Type-C (TM) Bluetooth
      VIDEO IN 1--6: HDMI type A x 6Audio Output Connectors
    • Analog:
      AUDIO OUT 1/L, 2/R: XLR type
      AUDIO OUT 3/L, 4/R: RCA phono type
      PHONES: Stereo miniature phone type
    • Digital:
      USB STREAM: USB Type-C (TM)
      VIDEO OUT 1--3: HDMI type A x 3Other ConnectorsUSB HOST: USB A type (for USB flash drive)
      USB STREAM: USB Type-C (TM) (for remote control from PC and iPad)
      Bluetooth: for remote control from iPad CTL/EXP 1, 2:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
      TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)
      RS-232: DB-9 type (Male) (for Remote Control)
    • DIRECT STREAM:
      RJ45, 1000BASE-TX (for Live Streaming and Remote
      AUDIO INPUT/OUTPUT CHARACTERISTICS: Input Level
      AUDIO IN 1--6: -64--+4 dBu (Maximum: +24 dBu)
      AUDIO IN 7/L, 8/R: -10 dBu (Maximum: +10 dBu)Input ImpedanceAUDIO IN 1--6: 8.4 k ohms
      AUDIO IN 7/L, 8/R: 10 k ohmsOutput LevelAUDIO OUT 1/L, 2/R (XLR): +4 dBu (Maximum: +24 dBu)
      AUDIO OUT 3/L, 4/R (RCA): -10 dBu (Maximum: +10 dBu)
      PHONES: 92 mW + 92 mW (32 ohms)Output ImpedanceAUDIO OUT 1/L, 2/R (XLR): 600 ohms
      AUDIO OUT 3/L, 4/R (RCA): 1 k ohm
    • PHONES: 33 ohms
    • OTHERS: - BluetoothVer 5.0
    • Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
    • Codec: SBC (Support to the content protection of the SCMS-T method)DisplayGraphic Type, 4.3", Wide QVGA (480 x 272 dots), backlite LCD (Color/Touch screen)Power SupplyAC AdaptorCurrent Draw2.3 APower Consumption: 55 W
    • Operation Temperature: +0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit

  • Item Includes:

    • 1x VR-6HD Mixer
    • 1x Startup Guide
    • 1x Leaflet "USING THE UNIT SAFELY"
    • 1x AC adaptor
    • 1x Power cord

  • Warranty:

    • 1-Year Limited Manufacturer Warranty

  • GTIN:

    0761294519745
