The Symetrix ARC Wall Panels control basic audio functions or complex logic events.

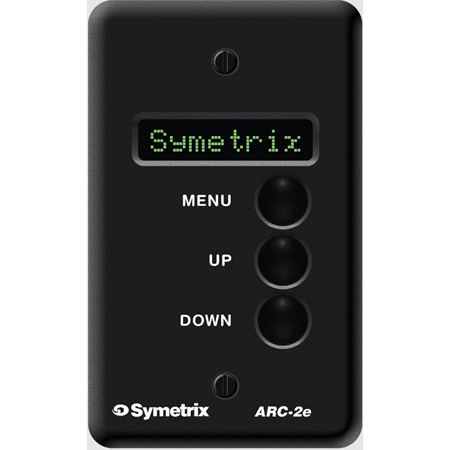

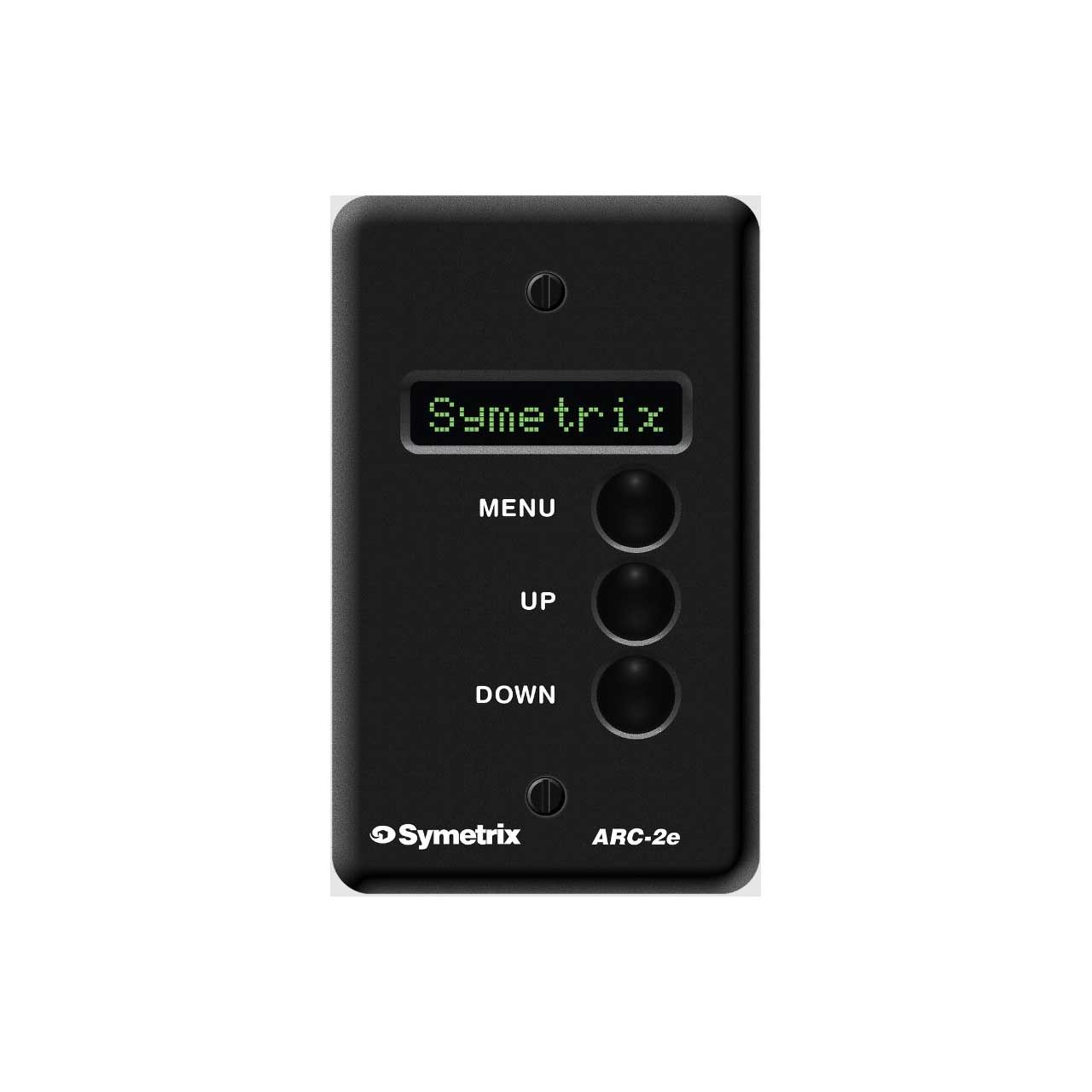

The ARC-2e is a menu-driven remote control for Symetrix DSPs with twenty- four menus each with up to sixteen items used to control multiple basic functions or complex logic-based events including volume, presets, source selection, room combining and more. The 8-character backlit display supports up to thirty-one scrolling characters, providing user feedback for control assignments, default settings, and actions. The three buttons navigate menus, adjust parameters, and enable or disable the wall panel. The ARC-2e mounts in a single gang electrical box (US).
Navigation: Pressing the menu button moves the user through the menu names. The menu button also acts as a preset trigger when a preset list is scrolled. The up/down arrow buttons adjust parameter settings and scroll through preset lists. Holding the menu button and using the up/ down arrow keys move the user forward or backward through the menus.
Behavior: The wall panel's behavior is programmable. Menu brightness in active and inactive states can be set independently so the display will dim in light-sensitive environments. When idle the ARC-2e can scroll a message and return to the top of its menu tree. Programmable upper and lower parameter limits contain ranges of adjustment and a button press lockout prevents tampering. The ARC-2e is furnished with a white faceplate and mounts in a single gang electrical box
User Control of Symetrix DSP Systems
Flexible and Extensible
Easy to Install Using CAT5/6 Cabling
Easy to Program Using Composer
Note! The "ARC" RJ45 connectors on Symetrix products can carry anywhere from 6 to 24 VDC which can damage Dante and Ethernet circuitry.
