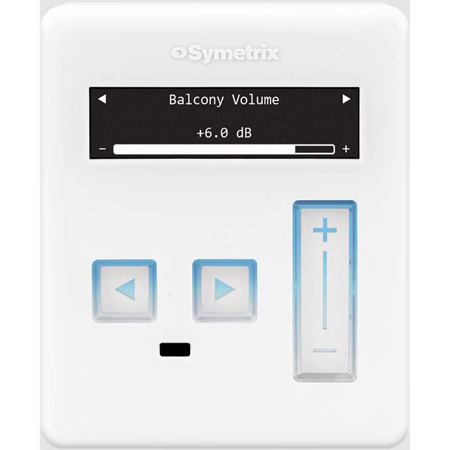

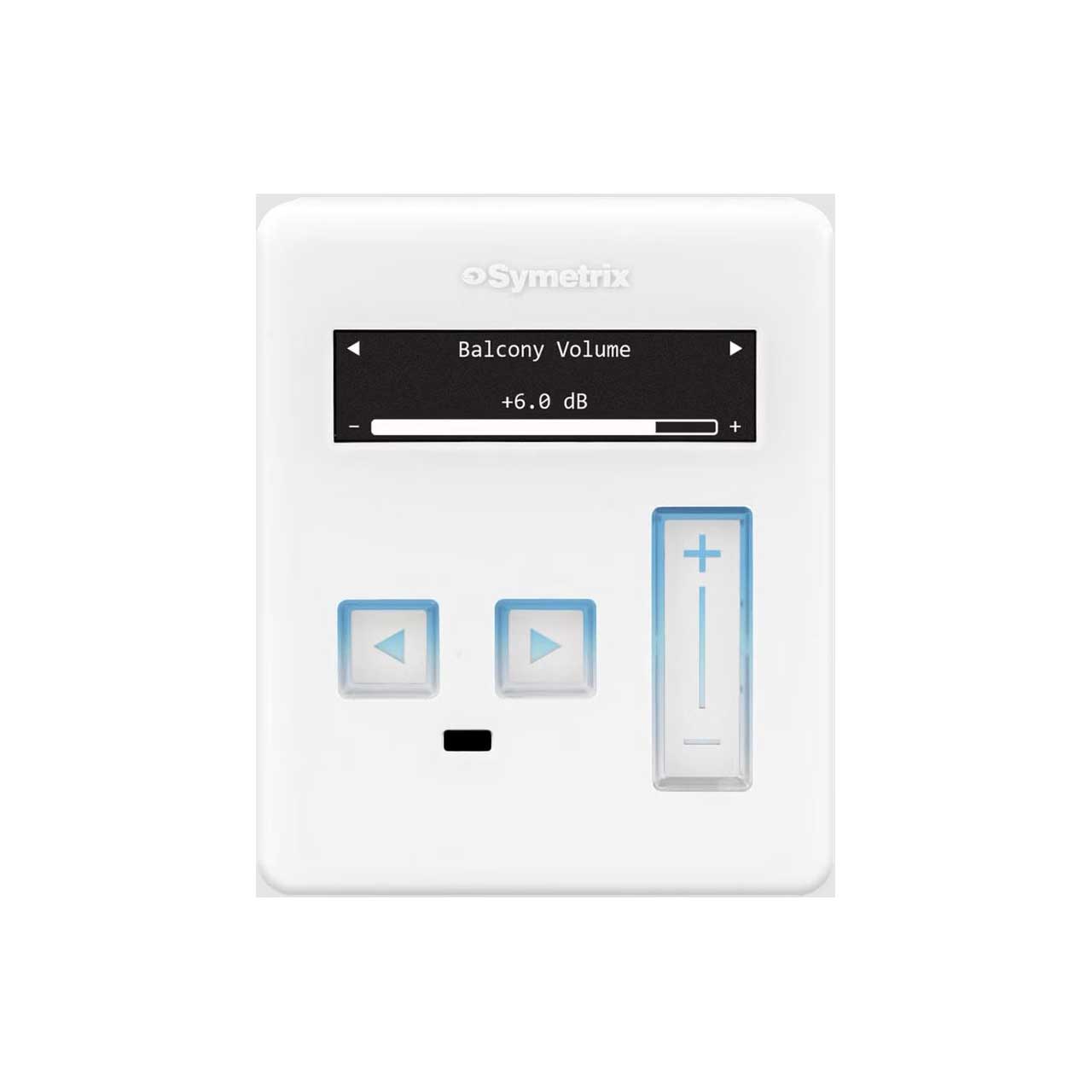

Symetrix ARC-3 (Adaptive Remote Controls) Remote with 2 capacitive buttons, capacitve fader, OLED display, surface and wall mount options included, white.
The ARC-3 is a menu-driven remote control with thirty-two menus, each menu with up to thirty-two items used to control basic audio functions or complex logic-based events including volume, preset selection, source selection, room combining, and more. The white on black OLED display is graphics and multi-lingual capable with 256x64 pixel resolution to enhance readability and usability. A contemporary capacitive touch interface with LED highlighting provides users with instant operational feedback.
Symetrix ARC wall panels offer user control of Symetrix DSP systems. They install easily using standard Cat5/6 cabling, and are easily programmed using Composer. Available in Black, Silver, and White.
Product Highlights
-Contemporary capacitive touch interface with LED highlighting provides users with instant operational feedback.
-White on black OLED display, with 256x64 pixel resolution, is graphics and multi-lingual capable to enhance readabilityand usability.
-32 menus, each with up to 32 items, provide system control from basic audio functions to complex logic-based events, including volume, preset selection, source selection, room combining, and more.
-Compatible with Symetrix open-architecture DSPs: Radius, Edge, Prism, and Solus NX series.
-Programmed with Composer, the same software application used to configure Symetrix DSP hardware.
-Connect to DSPs via CAT5/6. Multiple ARCs are daisy-chained using the dual RJ45 connectors on each ARC.
-Control parameters are stored in DSP hardware and can be easily recalled and modified.
-Can be mixed and matched seamlessly with the complete family of flexible and modular ARCs to provide any acoustic space with optimal multi-user, multi-location control.
-Security features assure that only qualified users can make adjustments. PIN code support prevents tampering.
What You Need to Provide
-A Windows® PC with 1 GHz or higher Pentium® and:
-Windows 10® or higher.
-410 MB free storage space.
-1024x768 graphics capability.
-16-bit or higher colors.
-Internet connection.
-1 GB or more of RAM as required by your operating system.
-CAT5/6 cables to connect any ARC to any device with an RJ45 ARC port.
Note! ARC-3 is not compatible with Jupiter, Zone Mix 761, or Voice Processor 2x DSPs. The "ARC" RJ45 connectors on Symetrix products can carry anywhere from 6 to 24 VDC which can damage Dante and Ethernet circuitry.
