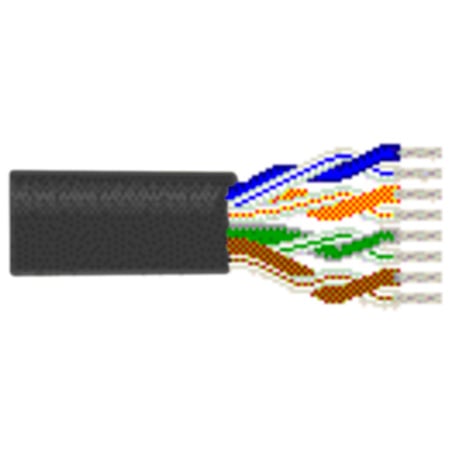

Belden 1752A Multi-Conductor Enhanced CAT5e Bonded-Pair - Black - 1000 Foot

ITEM #: BL-1752A-1000BK MFG #: 1752A 0101000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$898.30

Our Price:

$730.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1752A 0101000 - Overview

Belden 1752A CAT5e+ (350MHz), 4-Bonded-Pair, U/UTP-Unshielded, Tray - CM, Premise Patch Cable, 24 AWG Bonded Stranded (7x32) Tinned Copper Conductors, Polyolefin Insulation, PVC Jacket, RJ-45 Compatible. Suitable for Premise Patch Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, Noisy Environments applications.

  • Specifications:

    • Pairs: 4
    • AWG: 24
    • Stranding: 7x32
    • Material: TC - Tinned Copper
    • Operating Temperature Range: -20°C To +80°C
    • Bulk Cable Weight: 25 lbs/1000 ft.
    • Max. Recommended Pulling Tension: 40 lbs.
    • Min. Bend Radius/Minor Axis: 1 in.
    • Min. Bend/Installation: 2.200 in.
    • DCR @ 20°C (Ohm/100 m): 9
    • Voltage: 300 V RMS
    • DCR Unbalance @ 20°C (%): 3


  • GTIN:

    0612825122210
