World's First 8K 4x2 HDMI Matrix Switcher
The AVPro Edge AC-MX-42X four input by two output HDMI matrix switcher can handle 8K60 & 4K120 signals throughout each input and output. This matrix switcher is the ideal home theater switcher for the next generation of video signals.

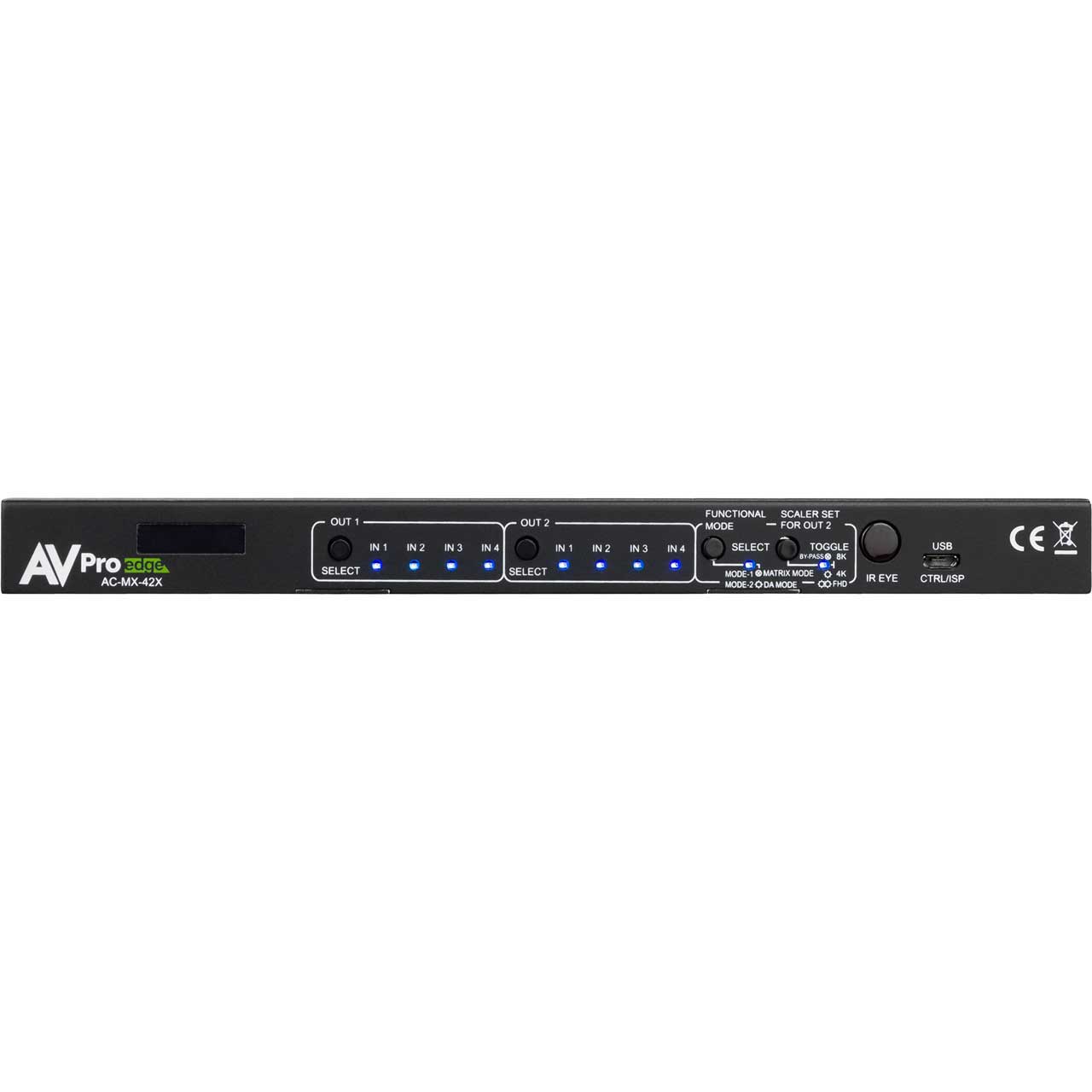

AVPro Edge's best developers have been hard at work bringing our integrators an easy-to-use web based user interface that allows them to set up, troubleshoot, and control this 8K 4x2. The AVPro Edge user interface (AEUI) allows for easy configuration and sets up the 8K 4x2. This 8K matrix switcher also comes with a screen on the unit that can tell you the IP address for connecting directly to your control system.
From built-in scaling to complete EDID control and configuring, you can customize every aspect of this device to work perfectly for your system.
Where To Install
8K Home Theater Upgrade - Do you want to offer your current customers an 8K Home Theater? For your customer to connect multiple sources that are both 8K & 4K, they must have a Matrix Switcher. Displays have one HDMI port that is better than the others. Connecting to the 8K 4x2 allows users to use the best HDMI port all the time and get the most optimized pictures possible. You can now have your gaming console, streaming device, and satellite receiver connected to a controllable matrix switcher that works with any 3rd party control system like Control 4, Crestron, or Josh.ai.

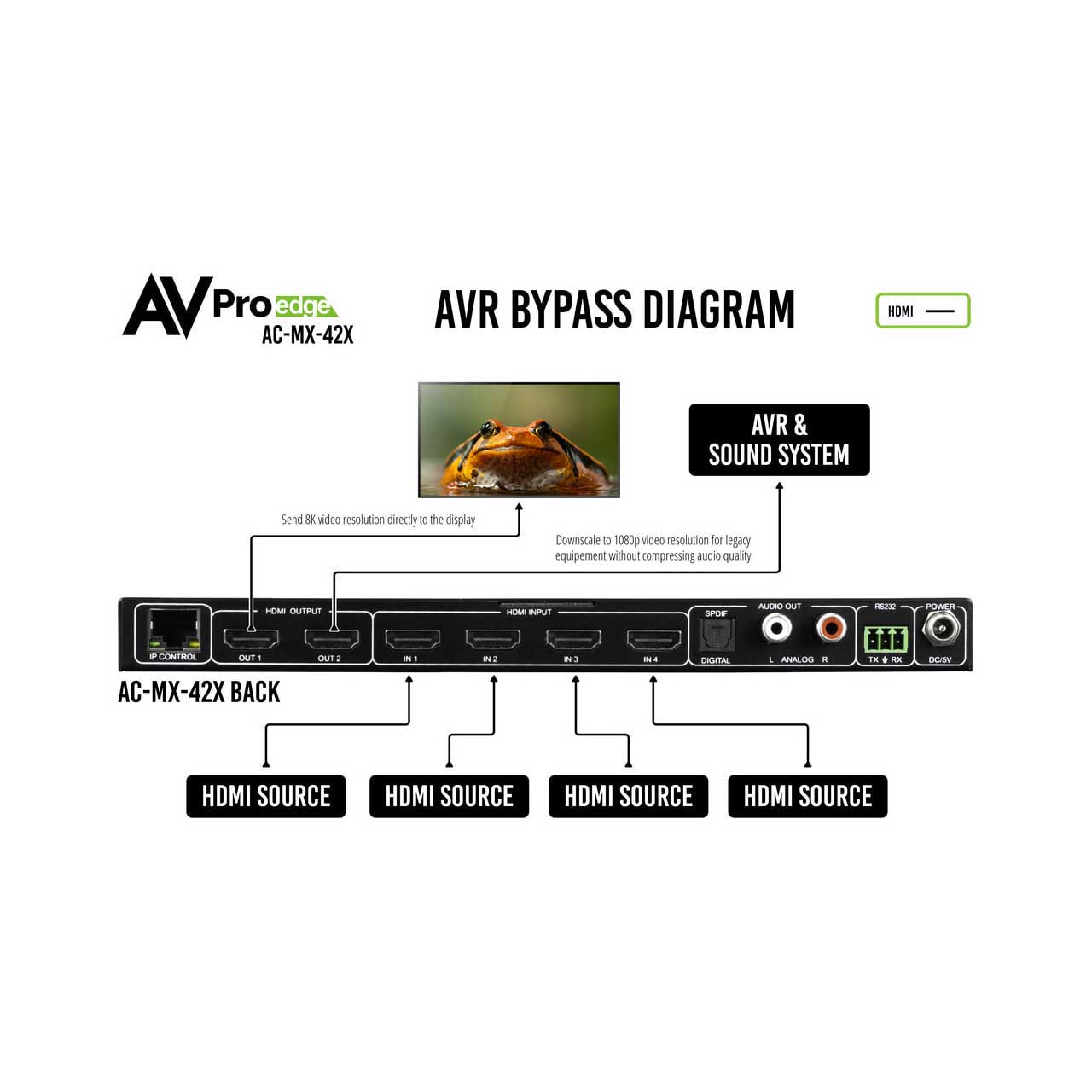

Legacy (4K/1080p) AVR Workaround - With 8K Televisions and 8K gaming consoles being a standard part of every luxury home, integrators can run into significant problems using an AVR to route massive 8K signals. With AVPro Edge's 8K 4x2 matrix switcher, you can cleanly route uncompressed video from 8K & 4K sources directly to your 8K display or projector. At the same time, you can send a down-scaled signal to your AVR. This workaround ensures you get the highest quality sound without having to sacrifice your video. With this device, you can send 8K HDR content with full bitstream audio from HDMI 2.1 sources like Xbox Series X or PS5 gaming consoles directly to your TV and have a down-scaled mirrored output go to your current AVR.
Dual Output for working with Dual Screens - This matrix switcher has two outputs allowing you to control the content on two different 8K displays. Perfect for condo or apartment installations where 8K televisions are being installed or add a second display to your home theater mounted near a home bar or the adjacent room.
Downscale the same 8K signal for the 4K/1080p display. With the built-in downscaler, you can have the second display be a 4k or even 1080p legacy model and send full 8k content to the TV that can handle it. This ability to downscale gives your customers what they want, a picture on the 8K screen, while not worrying about HDMI compatibility issues.
AVPro Edge User Interface
Managing HDMI signals can be challenging, from interoperability between sources and displays, changes in signal type coming from different types of content, to Hollywood protection with HDCP; each one of these things can cause havoc on the installation. With AVPro Edge's User Interface, we put the power back in the hands of the installers. Integrators can create their custom EDID strings to perfect the signal coming from the source or scale an image to work with a legacy display,
