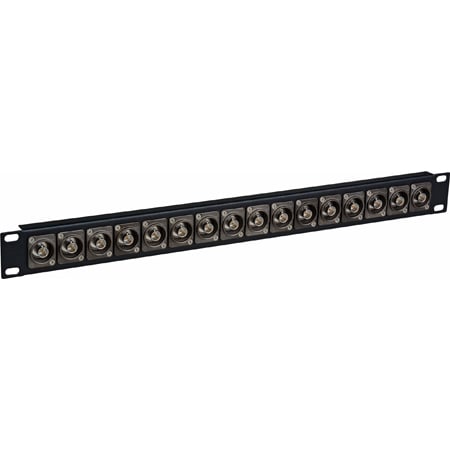

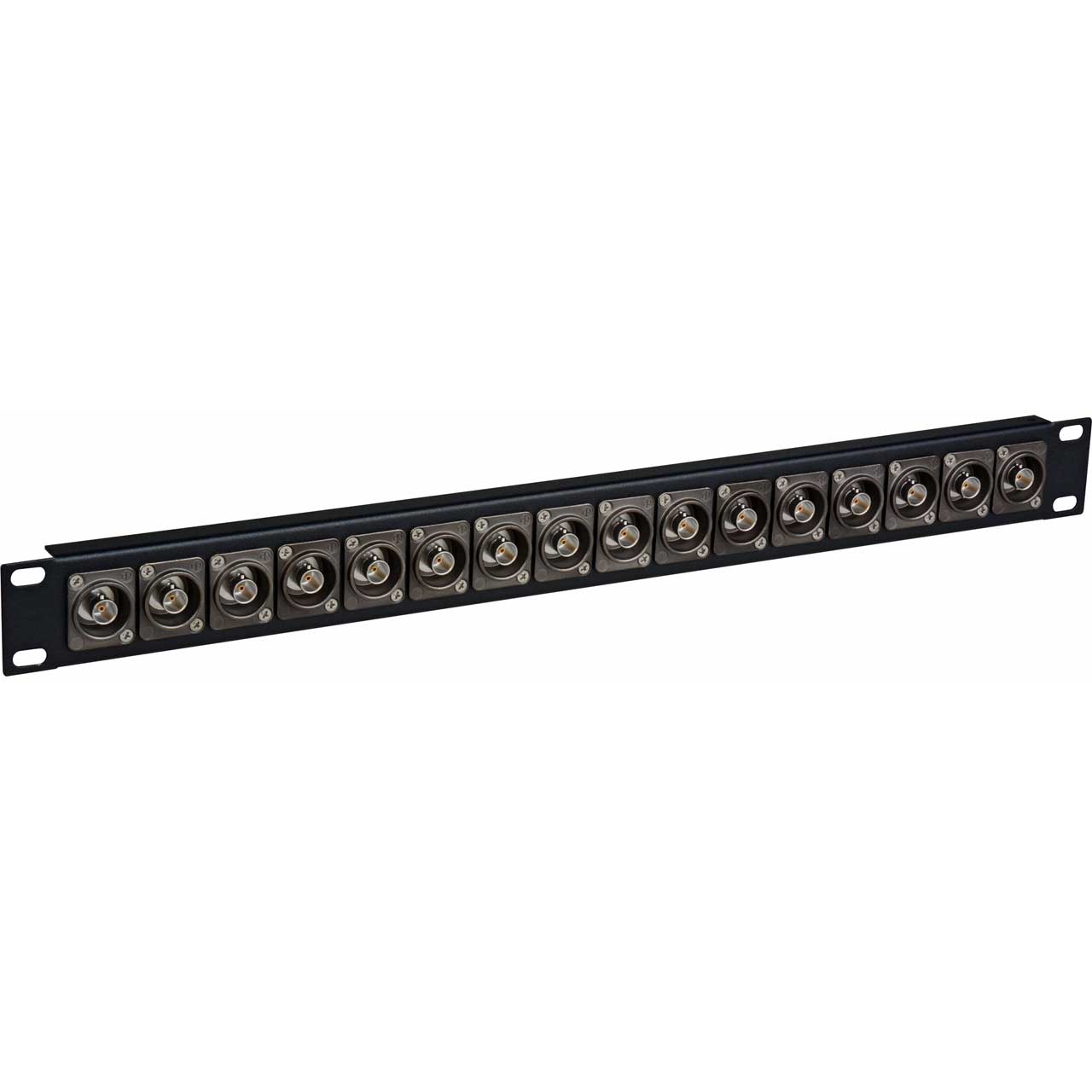

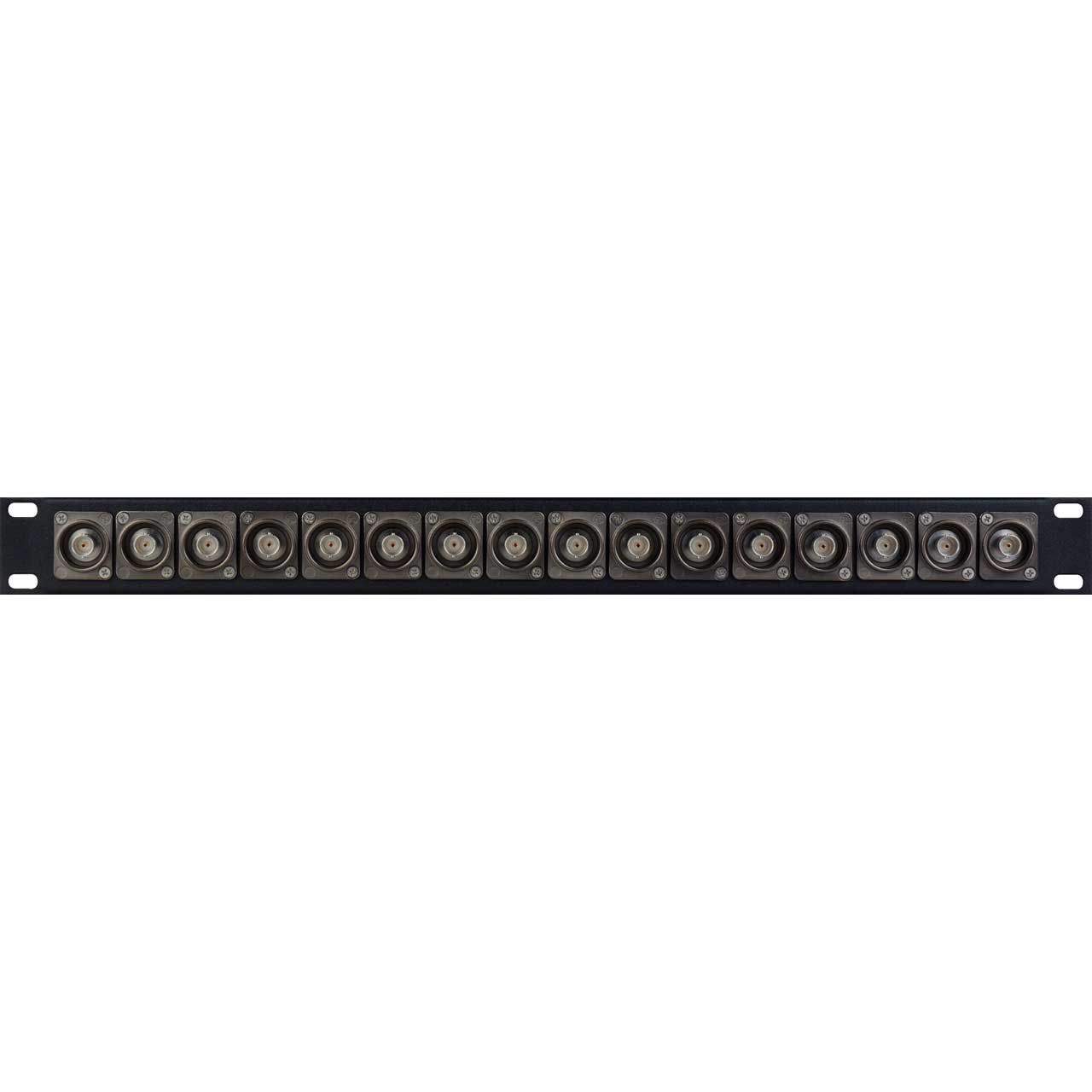

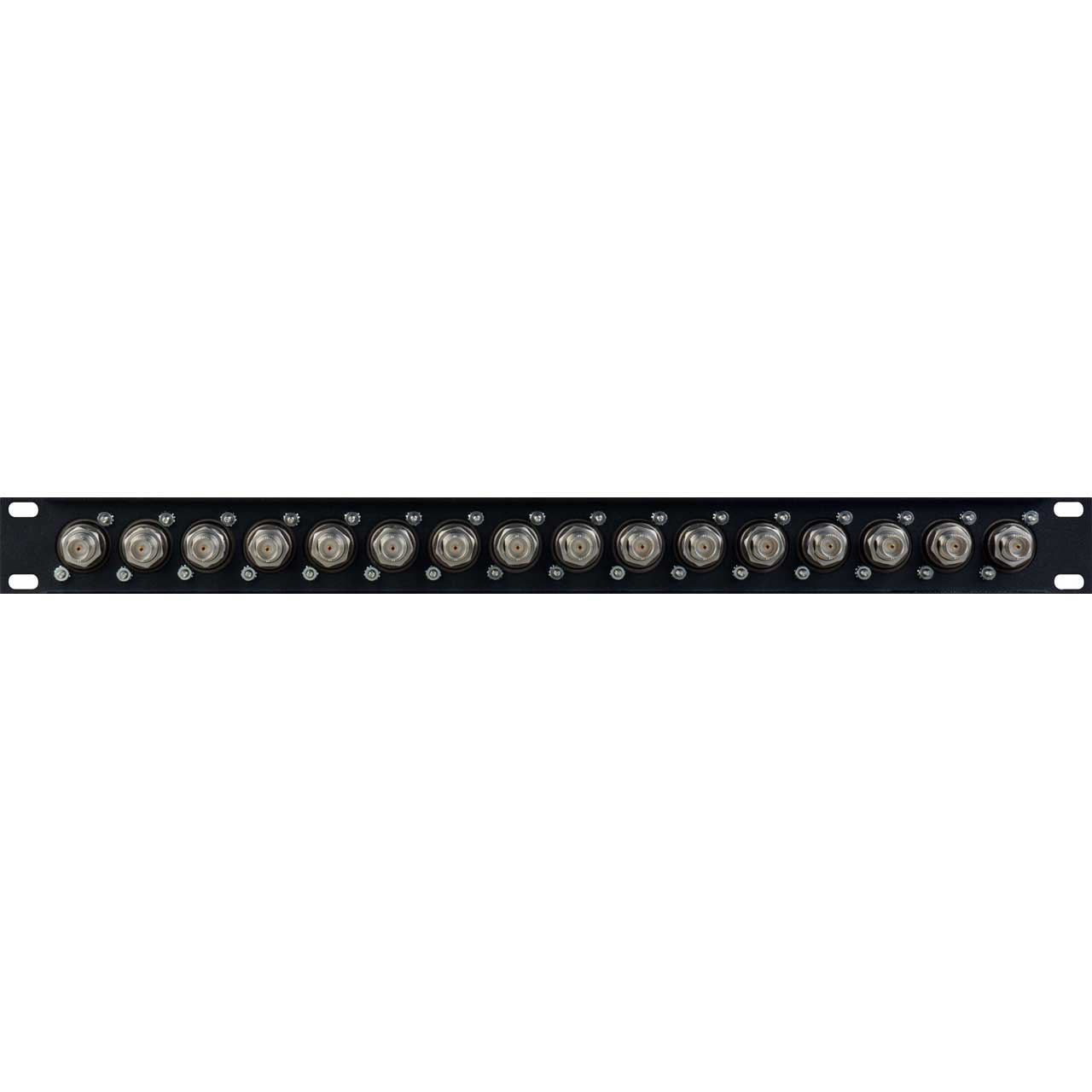

My Custom Shop 16-Port 4K/8K 12G-SDI Feed-Through Grounded BNC Patch Panel - 1RU

Name: My Custom Shop 16-Port 4K/8K 12G-SDI Feed-Through Grounded BNC Patch Panel - 1RU
Brand: My Custom Shop
SKU: 16X1UHD-BNCR
Price: 330.49 USD
Availability: InStock

ITEM #: 16X1UHD-BNCR MFG #: 16X1UHD-BNCR

My Custom Shop

List Price:

$363.95

Our Price:

$330.49

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

16X1UHD-BNCR - Overview

My Custom Shop proudly builds video rack panels and patchbays in their US facility using only quality components from suppliers such as Neutrik, Switchcraft, Canare, and Senko. With 20 years of experience in the custom metal plate and panel industry, My Custom Shop now offers a diverse variety of standard models in 1, 2, and 3RU sizes, with connector options including BNCs, RCAs, F-connectors, HDMI and more.

Features:
- Corrosion Resistant
- Designed for 4K/8K UHD, 12G-SDI Equipment Patching
- Quality Neutrik BNC Connectors
- SMPTE ST 2082-1, ST 2081-1, ST424, ST292 Compliant
- Available in 1RU and 2RU Configurations
Specifications:
- Neutrik NBB75DFGX Grounded 75 Ohm 4K/8K UHD D-Style Chassis Mount BNC Connector
- Low Return Loss
- Optimized Gold Plated Cage Type Center Contact For UHD Signals As 4K Or 8K Swiss Black Chrome Plating Grounded Panel Mount Standard D-Shape Housing Provides Flush Mounting And Protection From Damage
- Fully Compatible with Conventional BNC Cable Connectors
- Contact Resistance: Inner ≤ 3 mΩ / Outer ≤ 2 mΩ
- Dielectric Strength: 1.5 kVDC
- Insulation Resistance: 5 GΩ
Warranty:
- 1 Year
