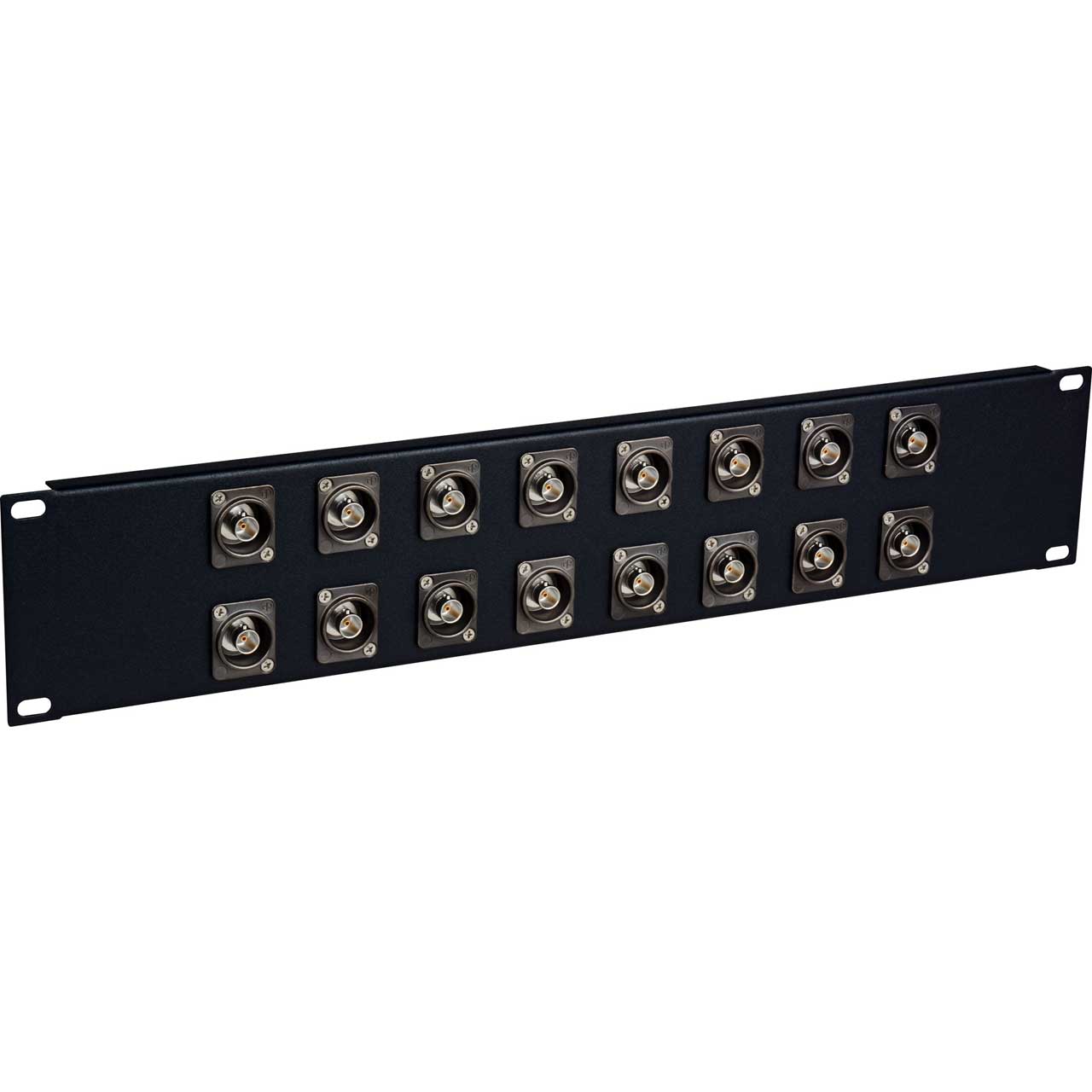

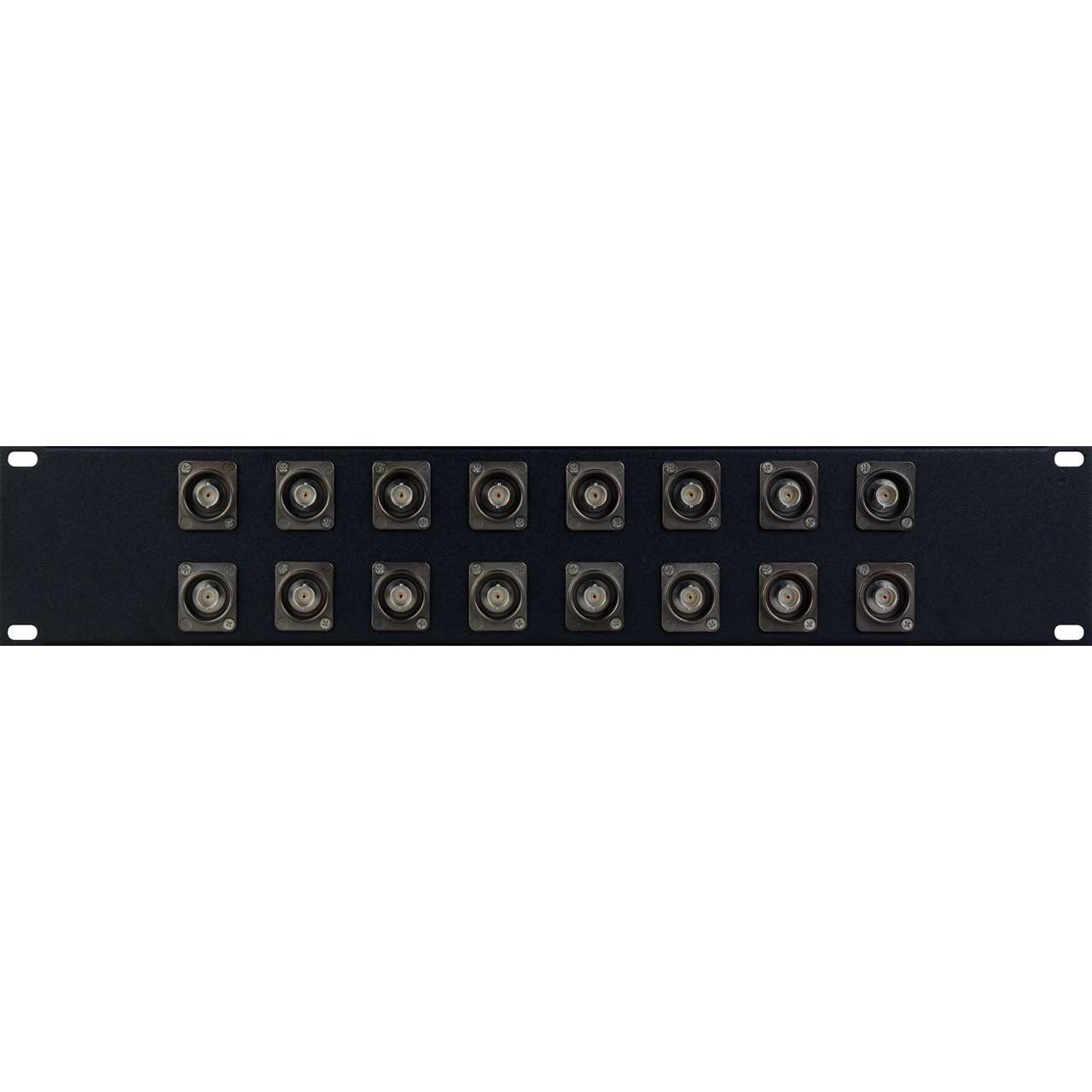

My Custom Shop 16-Port 4K/8K 12G-SDI Feed-Through BNC Patch Panel - 2RU

ITEM #: 16XUHD-BNCR MFG #: 16XUHD-BNCR

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
My Custom Shop
Free Shipping with $49 Minimum Order

List Price:

$368.95

Our Price:

$334.95

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

16XUHD-BNCR - Overview

The My Custom Shop 16XUHD-BNCR 4K/8K 12G-SDI BNC Patch Panel features high performing Neutrik rearTWIST UHD BNC connectors that meet SMPTE ST 2082-1 standards for 12G-SDI transmission. My Custom Shop 12G-SDI patch panels are designed for 4K/8K infrastructure and equipment patching for control rooms, production facilities and remote broadcast. Available in 1RU configuration with 8 or 16 connectors and 2RU with 16 or 32 connectors.

  • Features:

    • Corrosion Resistant
    • Designed for 4K/8K UHD, 12G-SDI Equipment Patching
    • Quality Neutrik BNC Connectors
    • SMPTE ST 2082-1, ST 2081-1, ST424, ST292 Compliant
    • Available in 1RU and 2RU Configurations


  • Specifications:

    • Neutrik NBB75DFGX Grounded 75 Ohm 4K/8K UHD D-Style Chassis Mount BNC Connector
    • Low Return Loss
    • Optimized Gold Plated Cage Type Center Contact For UHD Signals As 4K Or 8K Swiss Black Chrome Plating Grounded Panel Mount Standard D-Shape Housing Provides Flush Mounting And Protection From Damage
    • Fully Compatible with Conventional BNC Cable Connectors
    • Contact Resistance: inner ≤ 3 mΩ / outer ≤ 2 mΩ
    • Dielectric Strength: 1.5 kVDC
    • Insulation Resistance: 5 GΩ


  • Warranty:

    • 1 Year
