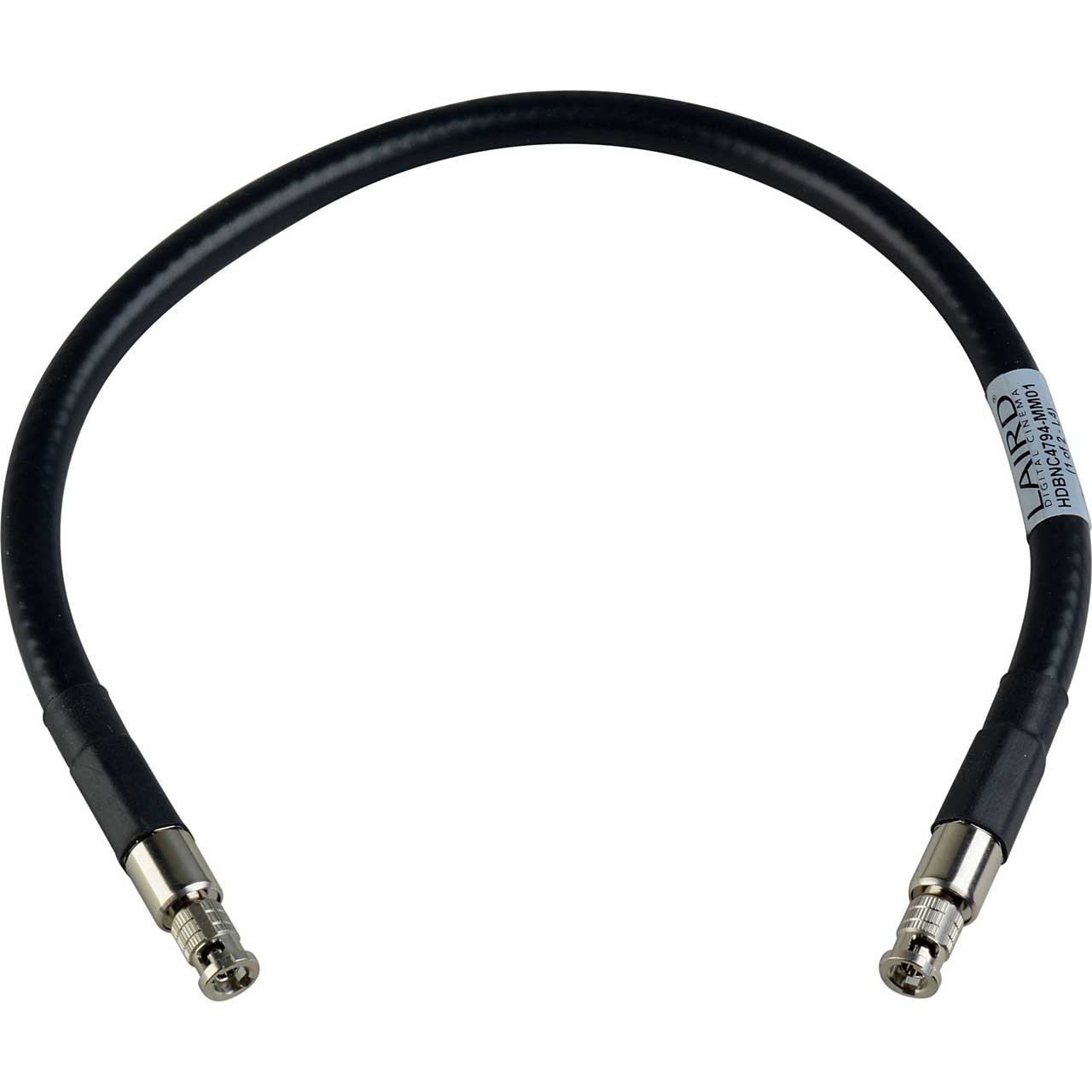

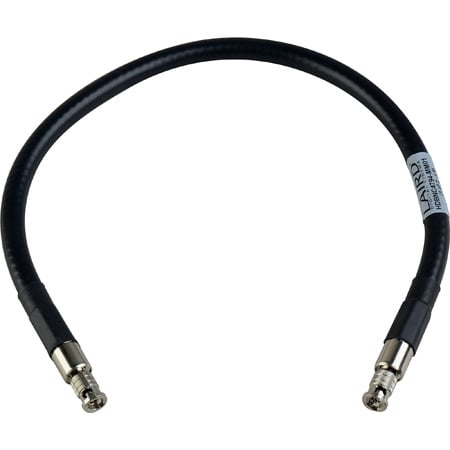

Laird Belden 4794R HD-BNC Male to Male 12G-SDI Cable - 3 Foot

ITEM #: HDBNC4794-MM03 MFG #: HDBNC4794-MM03

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$52.49

Our Price:

$46.95

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    HDBNC4794-MM03 - Overview

    The Laird HDBNC4794 Series of HD-BNC to BNC male adapter cables are designed for transmitting high resolution uncompressed 12G-SDI / 4K UHD video signals. Ideal for high density jackfields, routers and signal distribution systems where RF performance is critical. The HD-BNC utilizes a bayonet style mating analogous to traditional BNCs for a reliable coupling. These Laird cables are built with Belden low loss 4794R coax rated for 12G-SDI runs over 300 feet. The cable's new braid design, silver-plated copper conductor, and a new polyethylene formula are all design features that contribute to significant RL improvement and an 8 dB improvement on cable attenuation compared to existing coaxes. Fully compatible with SMPTE ST-2082-1 and ST-2081-1 standards.

    • Features:

      • 12GHz, 4K UHD Signal Transmission
      • Durable 16AWG, Precision Coax Cable
      • 12G SDI Optimized Amphenol BNC Connectors
      • Superior Pull Strength for Secure Connections
      • Maximize broadcast signal integrity
      • Meets SMPTE 259, 292, 424, 425, 2081-1, 2082-1 Standards

    • Specifications:

      • Belden 12G SDI Coax Cable with PVC Jacket Low-Loss Serial Digital 16AWG Cable Insulation: Gas-injected Foam HDPE Conductor: Silver-plated Copper Outer Shield: Duofoil bonded to the Core + Tinned Copper Braid Shield Conductor DC Resistance: 4.000 DCR@20°C(Ohm/1000ft) Outer Shield Resistance: 1.900 DCR@20°C(Ohm/1000ft) Nominal Inductance: 0.091 ΜH/ft Nominal Impedance: 75Ω Nominal Capacitance Conductor to Shield: 15.5 pF/ft Transmission Distance: 12G signals up to 321 feet, 6G up to 471 feet, and 3G up to 686 feet Amphenol Connectors Meet SMPTE Standards for 12G-SDI Durability: 500 Cycles

    • Warranty:

      • 1 Year
