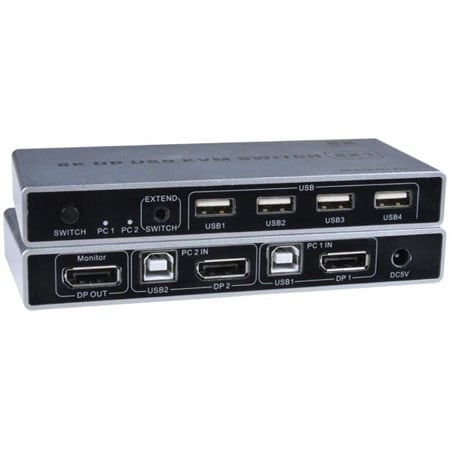

NTI KEEMUX-DPUSB-2 8K DisplayPort USB KVM Switch - 2-Port

KEEMUX-DPUSB-2 - Overview

• Features:

  • DisplayPort 1.4
  • Multi-Stream Transport (MST)
  • Up to 30-bit Deep Color
  • RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • Dolby TrueHD, DTS-HD Master, stereo audio.
  • Bandwidth up to 32.4 Gbps
  • HDCP compliant


• Specifications:

  • Hosts:
  • Two female DisplayPort connectors.
  • Two female USB Type B connectors.
  • Supports USB-enabled computers with Windows OS and DisplayPort video.

    Monitor:
  • Supports resolutions up to Ultra-HD 8K (7680x4320) @30Hz, 4Kx2K (3840x2160) @60Hz, and HDTV 1080p @144Hz.
  • One female DisplayPort connector.
  • Supports Multi-Stream Transport - connect multiple DisplayPort monitors from one monitor port on the switch.
  • Resolution dependent on number of daisy-chained monitors - cannot exceed 32.4Gbps.
  • Requires DisplayPort 1.2 or 1.4 compliant PC. (MACs not supported)

    Devices:
  • Four female transparent USB 2.0Type A ports for connecting USB devices such as keyboards, mice, printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
  • Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • Backwards compatible with USB 1.1/1.0.
  • Keyboard and mouse are hot-pluggable.

    Dimensions
  • WxDxH (in): 5.75x2.5x0.82 (146x64x21 mm)

    Environmental
  • Operating temperature: 23 to 158°F (-5 to 70°C).
  • Operating/storage relative humidity: 5 to 90% non-condensing RH

    Power
  • Input: 110 to 220 VAC at 50 or 60Hz via AC adapter (included).
  • Output: 5VDC, 3A
  • Power consumption: 11.25W, fully loaded.
  • Each USB hub port supports full 500mA current.

    Cables
  • Interface cables between the computers and the switch are required for proper operation.
  • Two 4.92-foot male-to-male DisplayPort interface cables included.
  • Two 4.6-foot male USB Type A to male USB Type B interface cables included.


• Item Includes:

  • 1x 8K DisplayPort KVM 2x1 Switcher
  • 1x 110 or 220V@50/60Hz; 5VDC, 3A Adapter
  • 1x Country-specific power cord
  • 2x 59 Inch DisplayPort Cable (1500mm)
  • 2x 55 Inch USB Cable (1400mm)
  • 1x Switching Button with cable
  • 1x URL Slip with path to this manual
