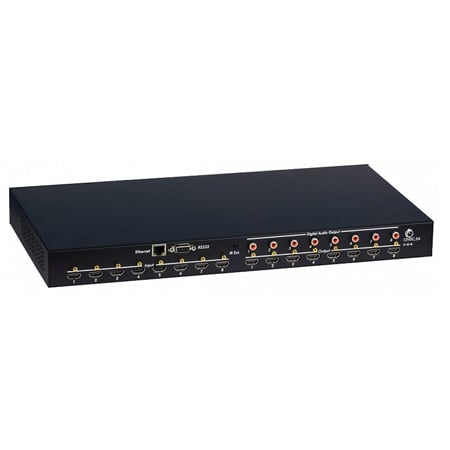

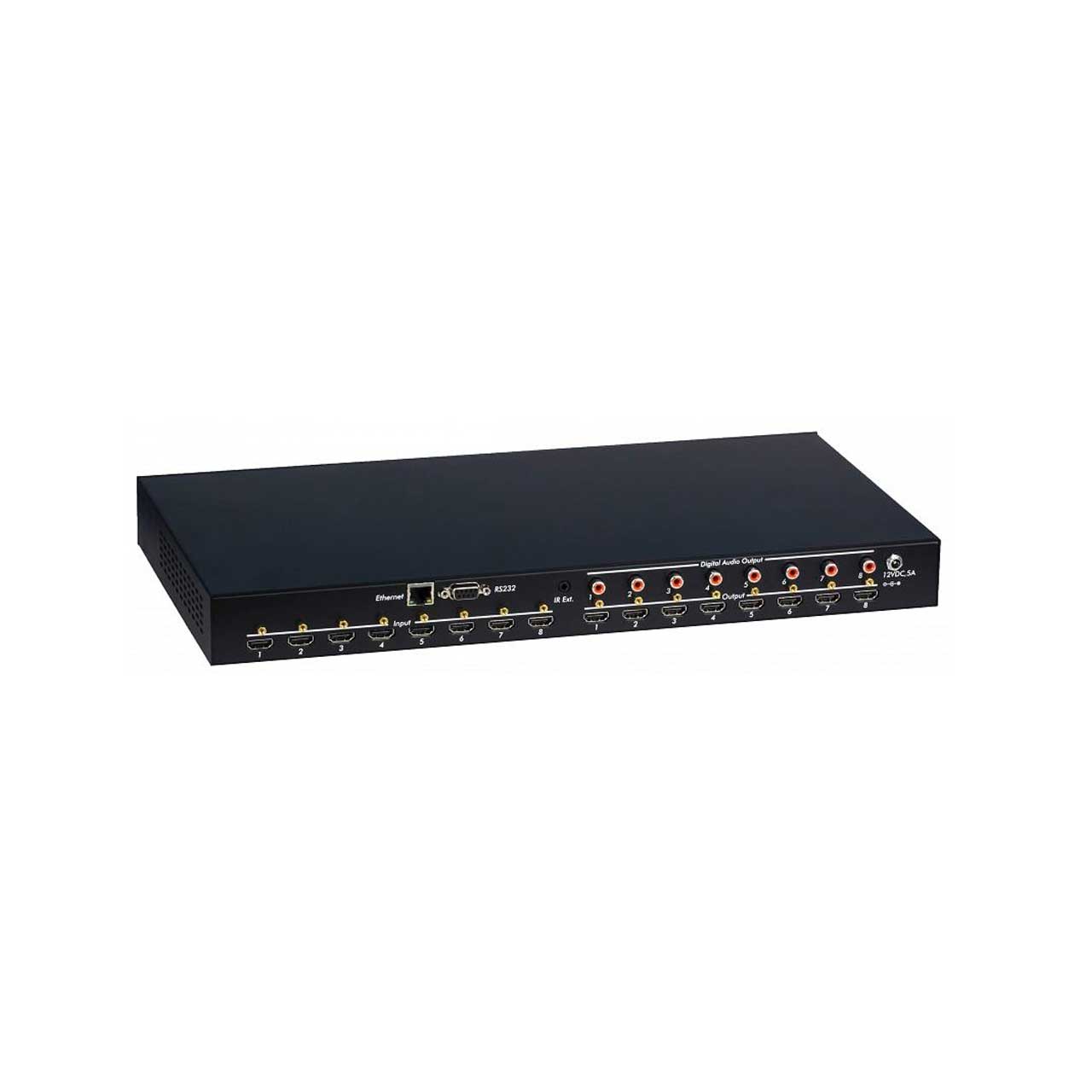

MuxLab 500443 8x8 4K/60 HDMI Matrix Switcher - US

ITEM #: MUX-500443 MFG #: 500443

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$2,746.00

Our Price:

$1,895.00

Special Price:

$1,663.86

Availability: In Stock
iAvailability Description Popup


500443 - Overview

The HDMI 8x8 Matrix, 4K/60 (4:4:4) connects eight HDMI sources to eight displays. This matrix provide eight HDMI outputs and each HDMI output is supporting up to 4K/60 (4:4:4) plus all 3D formats and supporting independent EDID control, with scaling capability so that different displays each with different resolutions can be simultaneously supported. It works with Blu-Ray players, Media Players/Streamers, Cameras, Set-Top boxes, Home Theater systems, and game consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel.

  • Features:

    • Supports HDMI 2.0 (4K/60, 4:4:4)
    • HDCP 2.2 compliant
    • Full HDR support
    • Powerful EDID management
    • Supports independent port scaling and displays with different resolutions
    • Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio & DTS:X
    • Supports a Coax digital audio out (S/PDIF)
    • Available Window’s GUI control software
    • Controllable via front panel, IR, RS232 and Telnet
    • Fits on a standard 19" rack

  • Specifications:

    • Environment: HDMI 2.0a
    • Devices: 4K Blu-Ray, media players/streamers, projectors, monitors, TV, PC, laptops.
    • Transmission: Transparent to the user.
    • Video Bandwidth: 18Gbps
    • Maximum Pixel Clock: 594Mhz
    • Signals: HDMI 2.0a (4K/60 4:4:4) protocol and HDCP 1.4 & 2.2
    • Video Resolution: VESA and SMPTE 480p to 2160p (4K) With 3D
    • Bit depth: 8, 10, 12
    • Connectors: Eight (8) HDMI connectors, for HDMI Input
    • Connectors: Eight (8) HDMI connectors, for HDMI Output
    • Connectors: One (1) 3.5mm Jack, for IR Sensor
    • Connectors: One (1) DB9 connector for RS232 management
    • Connectors: One (1) RJ45 Shielded connector for Ethernet
    • Connectors: Eight (8) Coax Digital Audio Outputs
    • Connectors: One (1) 2.1mm barrel locking connector for Power
    • Audio Support: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio & DTS:X
    • Power Supply: One (1) 110-240VAC to 12VDC/5.0A power supply
    • Temperature Operating: 0° to 40°C Storage: -20° to 85°C
    • Humidity: Up to 95% non-condensing
    • Enclosure: Metal enclosure
    • Rackmount Bracket Included
    • Dimensions: 17.20" x 1.69" x 8.86" (437mm x 43mm x 225mm)
    • Weight: 9.69lbs (4.40kg)
    • Compliance Regulatory: FCC, CE, RoHS
    • Warranty: 2 years

  • Warranty:

    • 2 Years

  • GTIN:

    0627699014431
