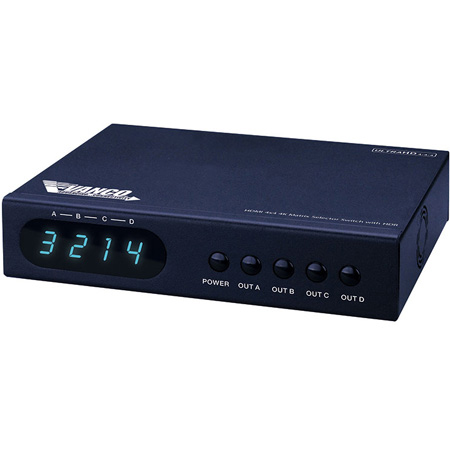

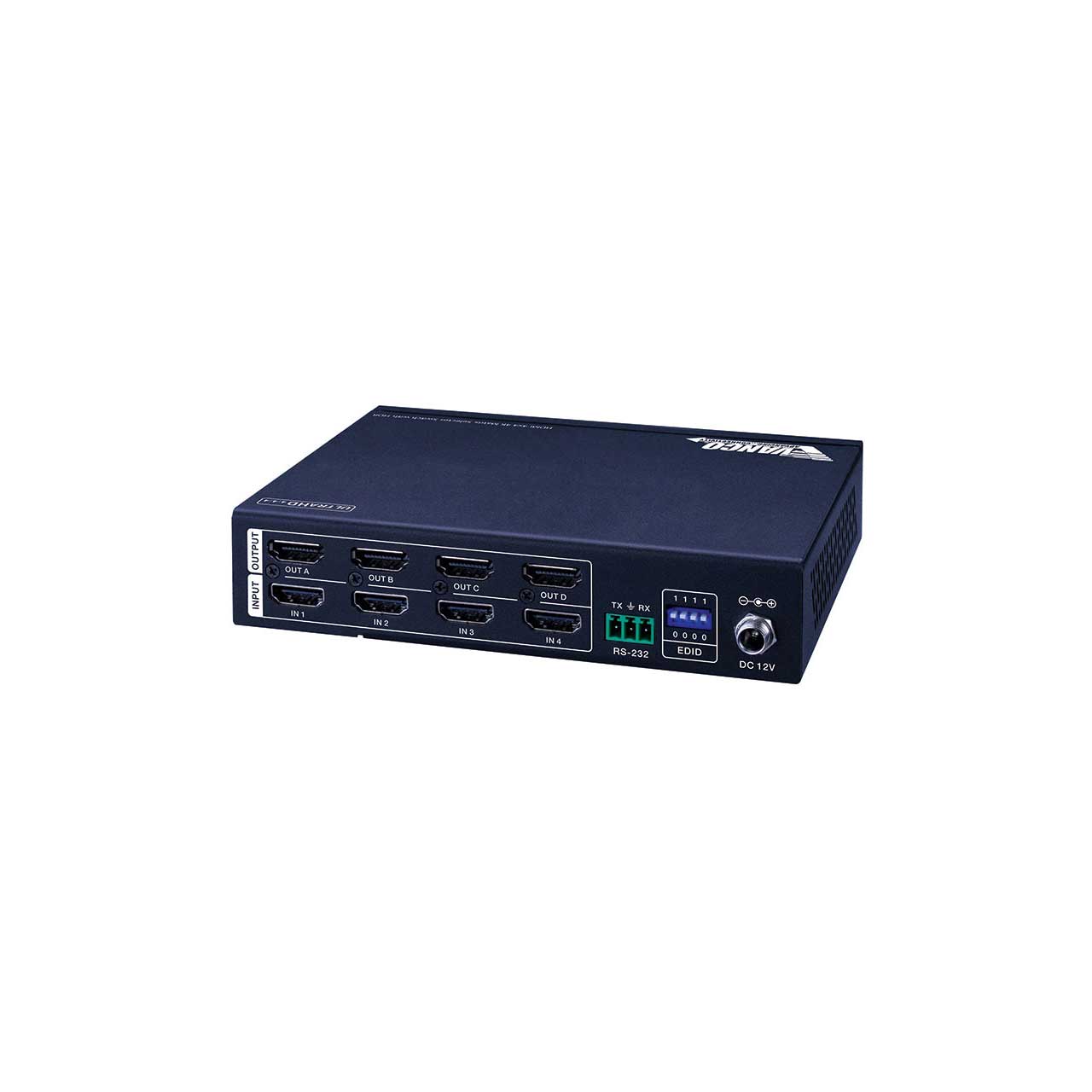

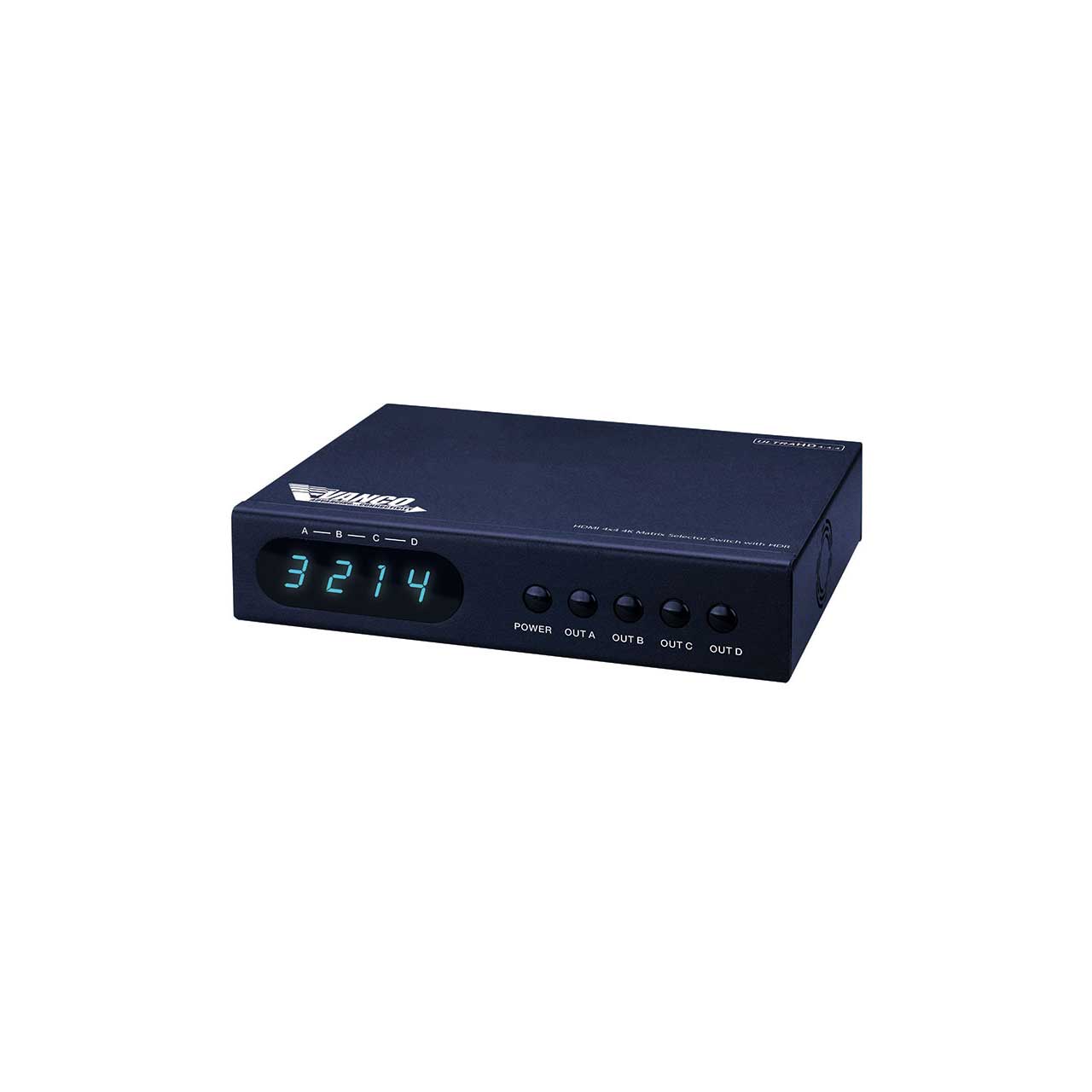

Vanco HDMX4K44 HDMI 4x4 4K Ultra Compact Matrix Selector Switch with IR RS-232 and HDR

ITEM #: VCO-HDMX4K44 MFG #: HDMX4K44

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,109.99

Our Price:

$924.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    HDMX4K44 - Overview

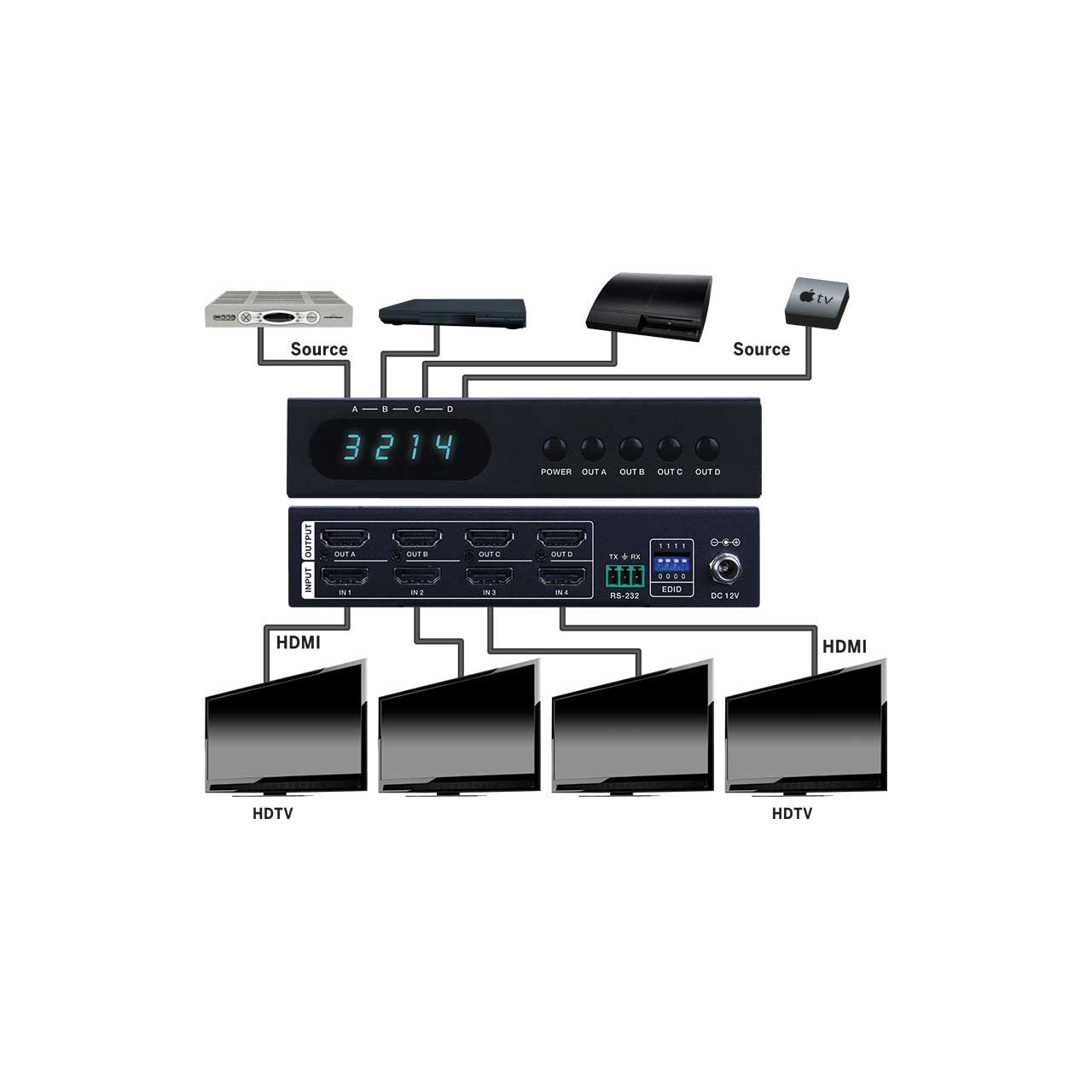

    The Vanco HDMX4K44 is a 4x4 Ultra Compact Matrix Selector Switch with IR and RS-232, allows 4 HDMI sources to be distributed to up to 4 displays simultaneously. Have multiple sources displayed simultaneously on any display or have a single source split to multiple displays, flexibility for the perfect solution. Equipped with HDMI 2.0, the HDMX4K44 is capable of transmitting 4K@60Hz, 4:4:4 Chroma Subsampling, and HDR. For control, the HDMX4K44 includes an IR remote control for IR switching, as well as RS-232 for third party integration in addition to manual controls.

    For reliable HDMI distribution with 4K and HDR in mind and an ultra compact form factor, the HDMX4K44 is a great choice for any application.

    • Features:

      • Allows up to 4 HDMI sources to be distributed simultaneously to up to 4 displays
      • Supports 4K@60Hz, 4:4:4 Chroma Subsampling, with HDR
      • Supports both HDR10 and Dolby Vision
      • HDCP 2.2 Compliant
      • Supports Deep Color and 3D
      • Supports Dolby Atmos/Dolby, DTS, PCM audio formats
      • EDID adjustment via RS-232 or manually adjustable
      • Control via RS-232, IR remote control, or manual control for switching
      • Power Supply: 12V DC, 2.5A
      • Dimensions: 5.9" W x 1.26" H x 4.37" D

    • Specifications:

      • Video Bandwidth: 18 Gbps (600 MHz)
      • Video Resolution: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p/60, 2160p/60
      • Input Ports: 4xHDMI, 1xRS-232
      • Output Ports: 4xHDMI
      • HDMI Connector: Type A 19 pin female
      • Receiver Control Ports: IR IN, IR OUT
      • ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
      • Power Supply: 12V/2.5A DC (US/EU standards, CE/FCC/UL certified)
      • Dimensions: 5.9" W x 1.26" H x 4.37" D (150mm W x 32.2mm H x 111mm D)
      • Weight: 585g
      • Chassis Material: Metal
      • Silkscreen Color: Black
      • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
      • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
      • Relative Humidity: 20~90% RH (non-condensing)
      • Power Consumption: 30W (max)/1W (Standby)

    • Item Includes:

      • HDMX4K44 4x4 HDMI Matrix
      • 12V/2,5A Power Adapter
      • (1) HDMI Matrix IR Remote
      • (1) RS-232 Cable
      • Product Manual

    • GTIN:

      0741835110075
