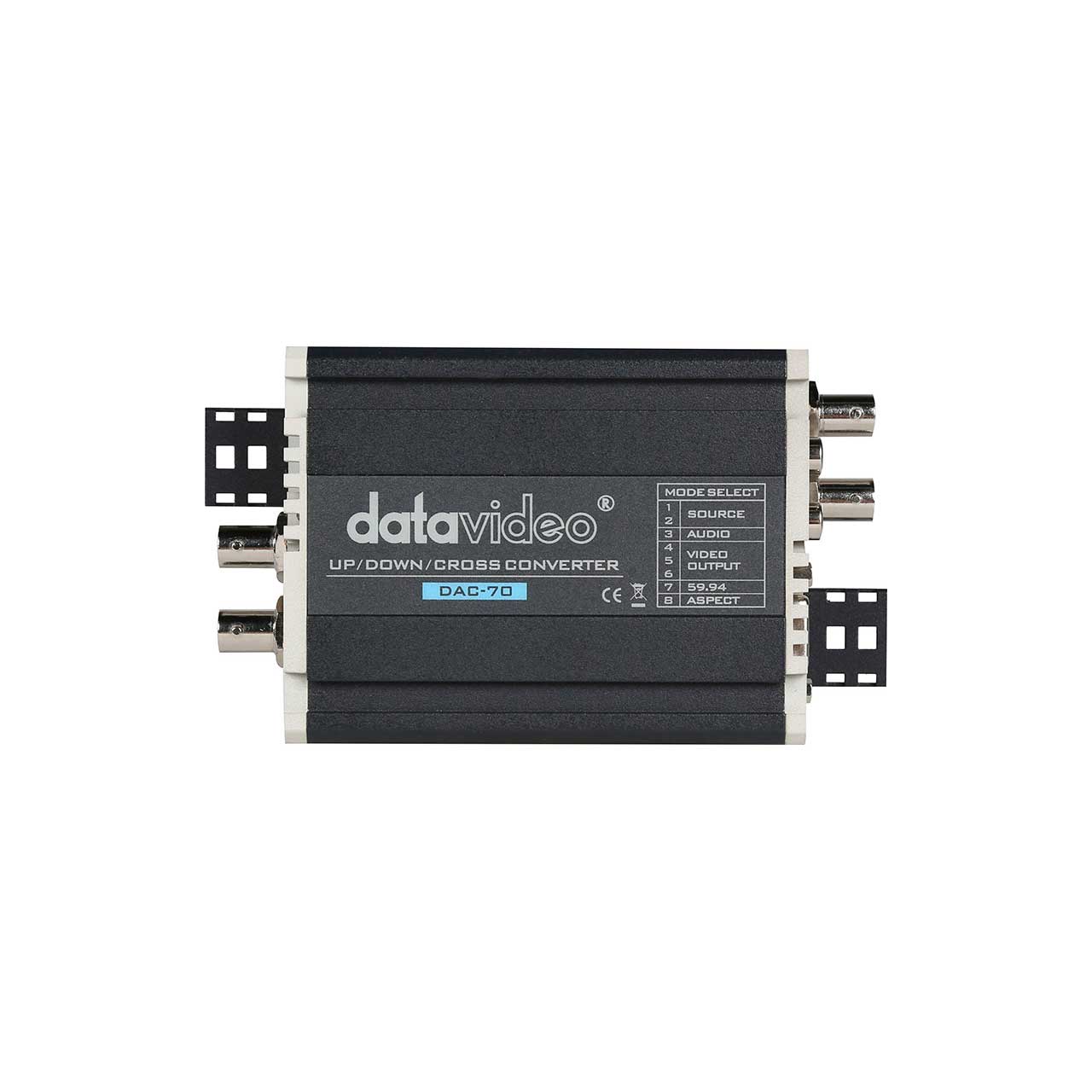

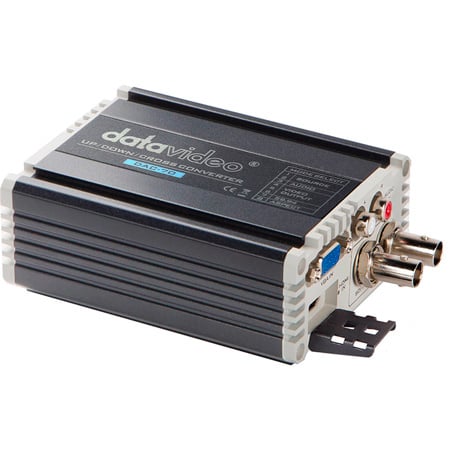

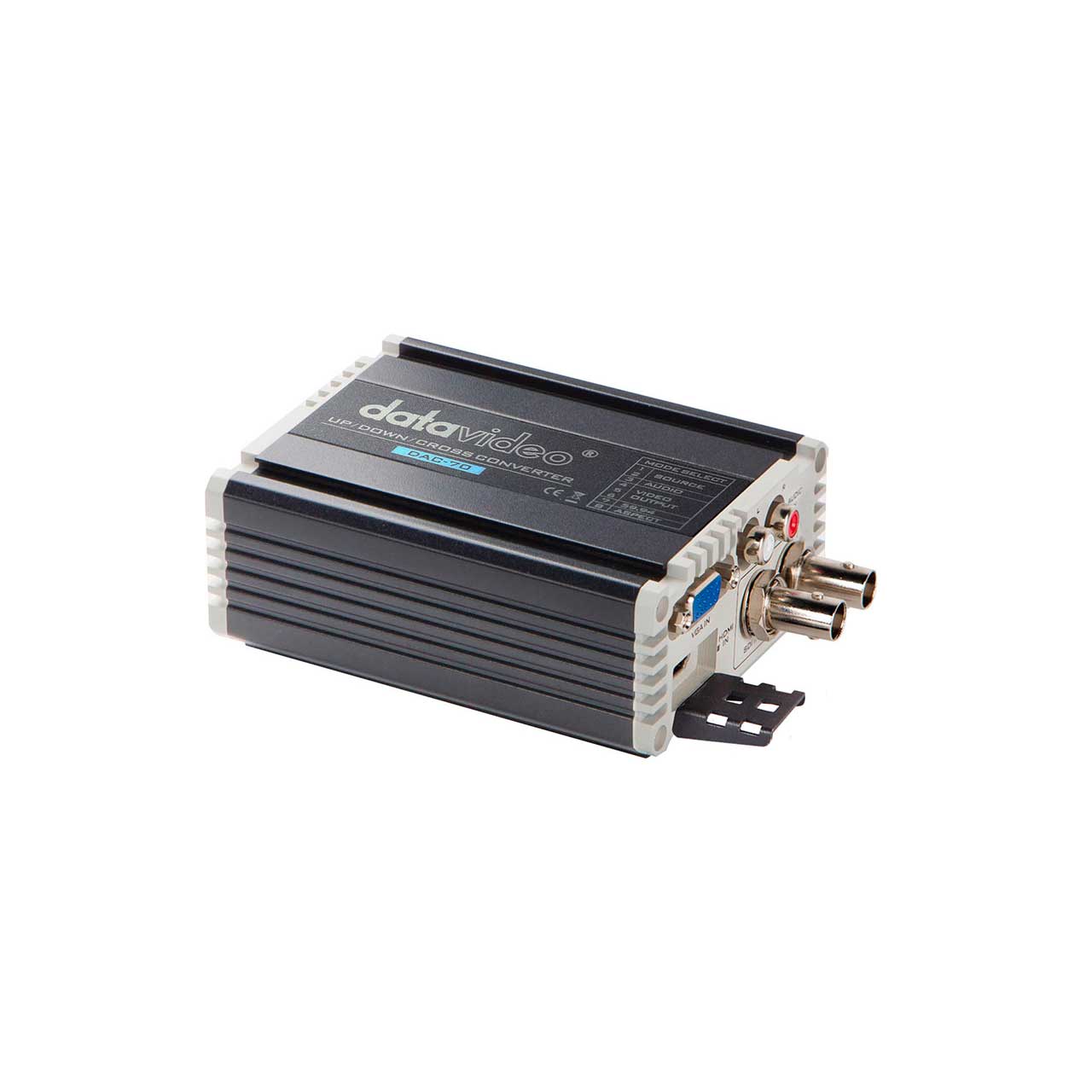

Datavideo DAC-70 VGA / HDMI / 3G/HD/SD Cross-Converter

DAC-70 - Overview

• Features:

  • Cross-Conversion: DAC-70 can up-convert and down-convert between many 3G, HD, and SD video formats.
  • 10-bit: DAC-70 supports 10-bit processing with high-quality video filtering.
  • Low SDI Jitter: DAC-70 is built with high-quality standards for low SDI jitter with long SDI cable lengths.
  • Multi-Channel Audio: Multi-channel audio is supported (Up to 8 Channels embedded)
  • Firmware Upgradable: The firmware is upgradable via the DAC-70's mini-USB port.
  • RMK-2 Compatible: DAC-70 is compatible with the RMK-2 holder, for holding multiple converters and distribution amplifiers in a 2RU space.


• Specifications:

  • Supported Input Formats
  • 3G-SDI: 1080p (50/59.94/60)
  • HD-SDI: 1080p (23.98/24/25/29.97/30)
  • HD-SDI: 1080i (50/59.94/60)
  • HD-SDI: 720p (50/59.94/60)
  • SD-SDI: 525i, 625i
  • HDMI: 1080p (23.98/24/25/29.97/30/50/59.94/60)
  • HDMI: 1080i (50/59.94/60)
  • HDMI: 720p (50/59.94/60)
  • HDMI: 480p, 576p
  • HDMI: 800x600@60Hz, 1024x768@60Hz,1280x1024@60Hz 1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz
  • VGA: 800x600@60Hz, 1024x768@60Hz,1280x1024@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz
  • *HDMI supports YUV / RGB color space

    Supported Output Formats
  • SDI/HDMI: 1080p (23.98/24/25/29.97/30/50/59.94/60)
  • SDI/HDMI: 1080i (50/59.94/60)
  • SDI/HDMI: 720p (50/59.94/60)
  • SDI/HDMI: 525i, 625i

    Audio Support
  • Input- Analog Audio L/R: Stereo
  • Input- SDI embedded audio up to 8CH, 48KHz, PCM audio
  • Input- HDMI embedded audio up to 8CH, 44.1/48/96KHz, PCM audio
  • Output- SDI/HDMI embedded audio up to 8CH, 48KHz, PCM audio

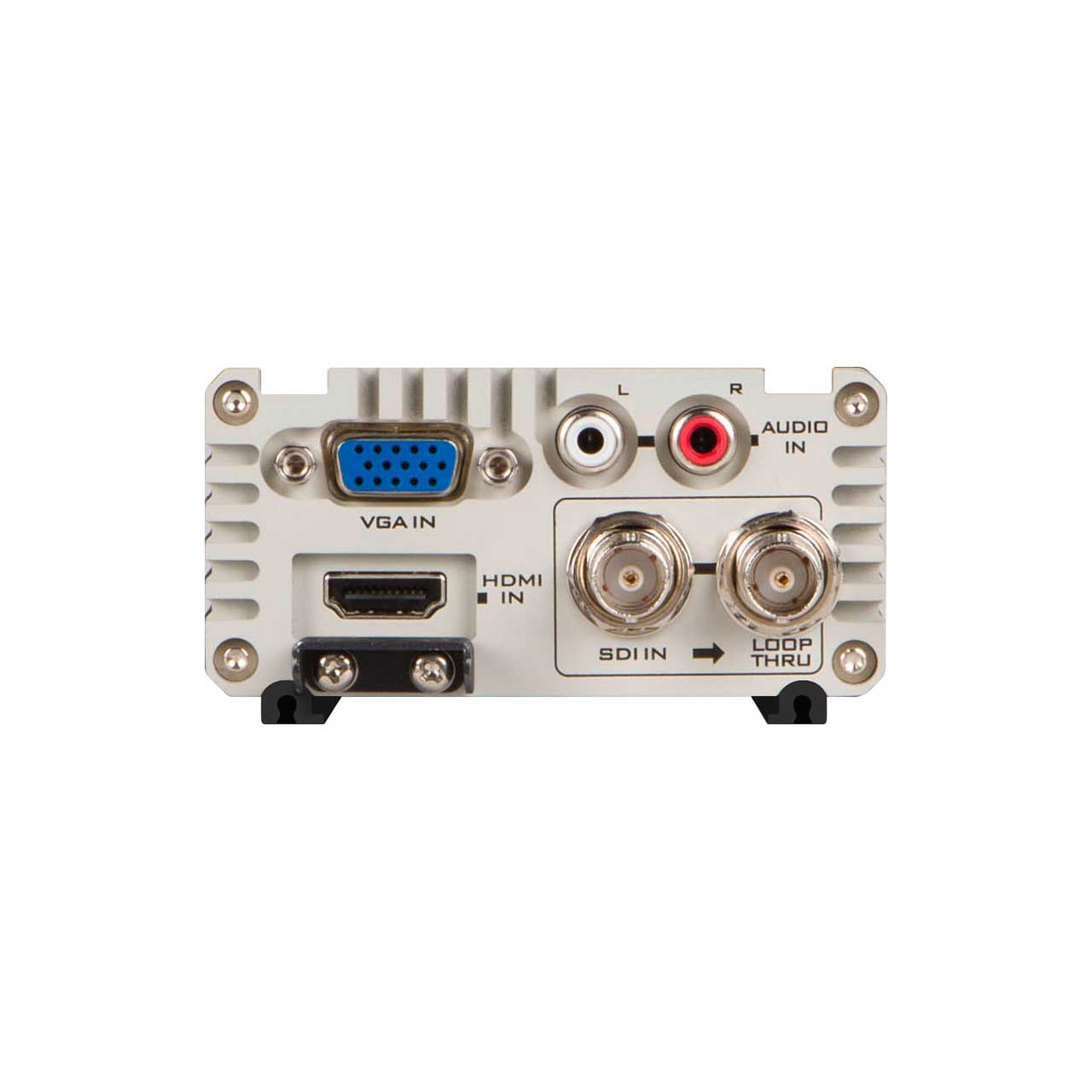

    Inputs
  • 1x VGA
  • 1x HDMI
  • 1x 3G/HD/SD-SDI
  • 1x Analog Audio Left/Right Pair

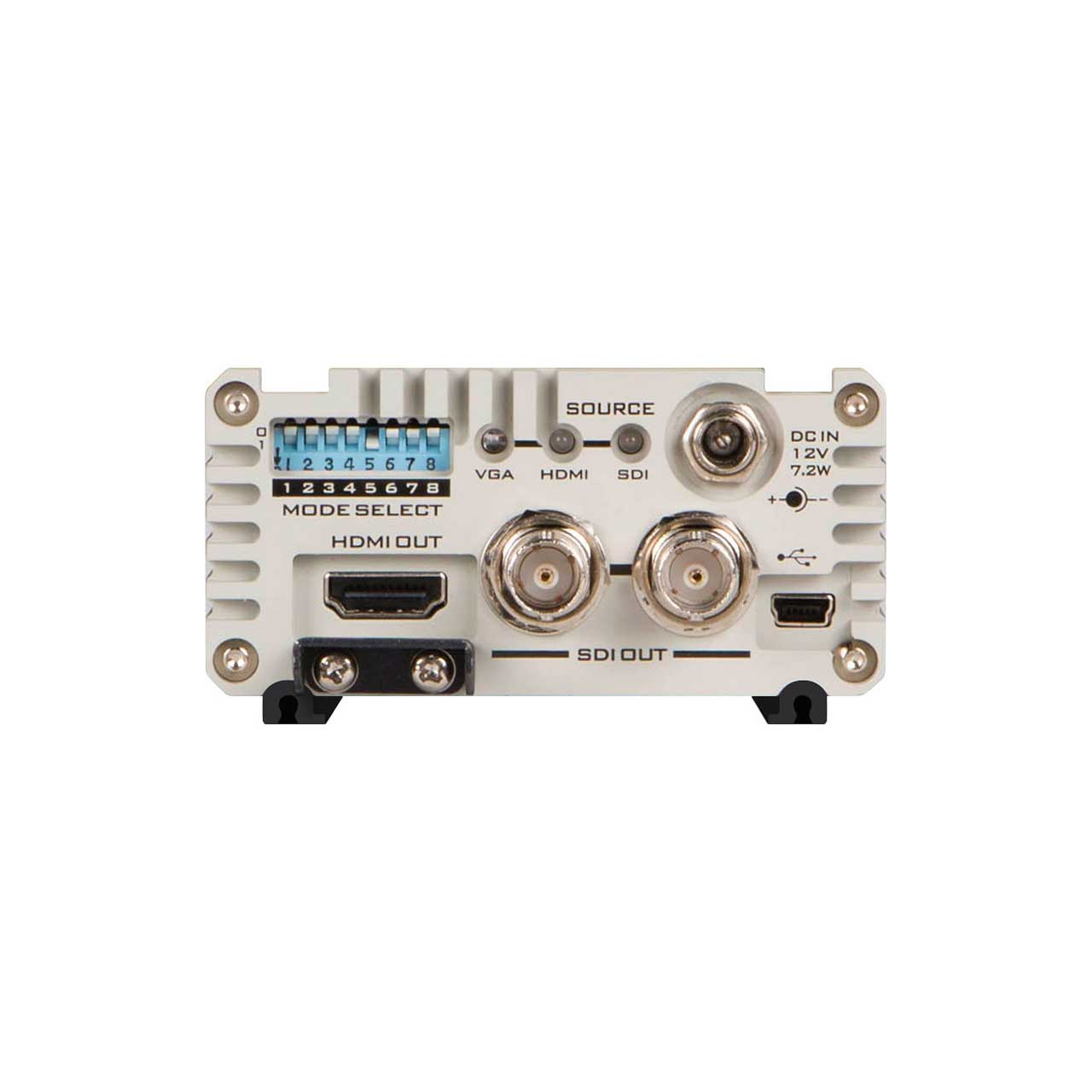

    Outputs
  • 2x 3G/HD/SD-SDI
  • 1x HDMI
  • 1x 3G/HD/SD-SDI Loop-Through


• Item Includes:

  • DAC-70 Unit
  • Instruction Manual
  • Power Supply and Cord (12V / 1.0A)


• GTIN:

  0672255004326
