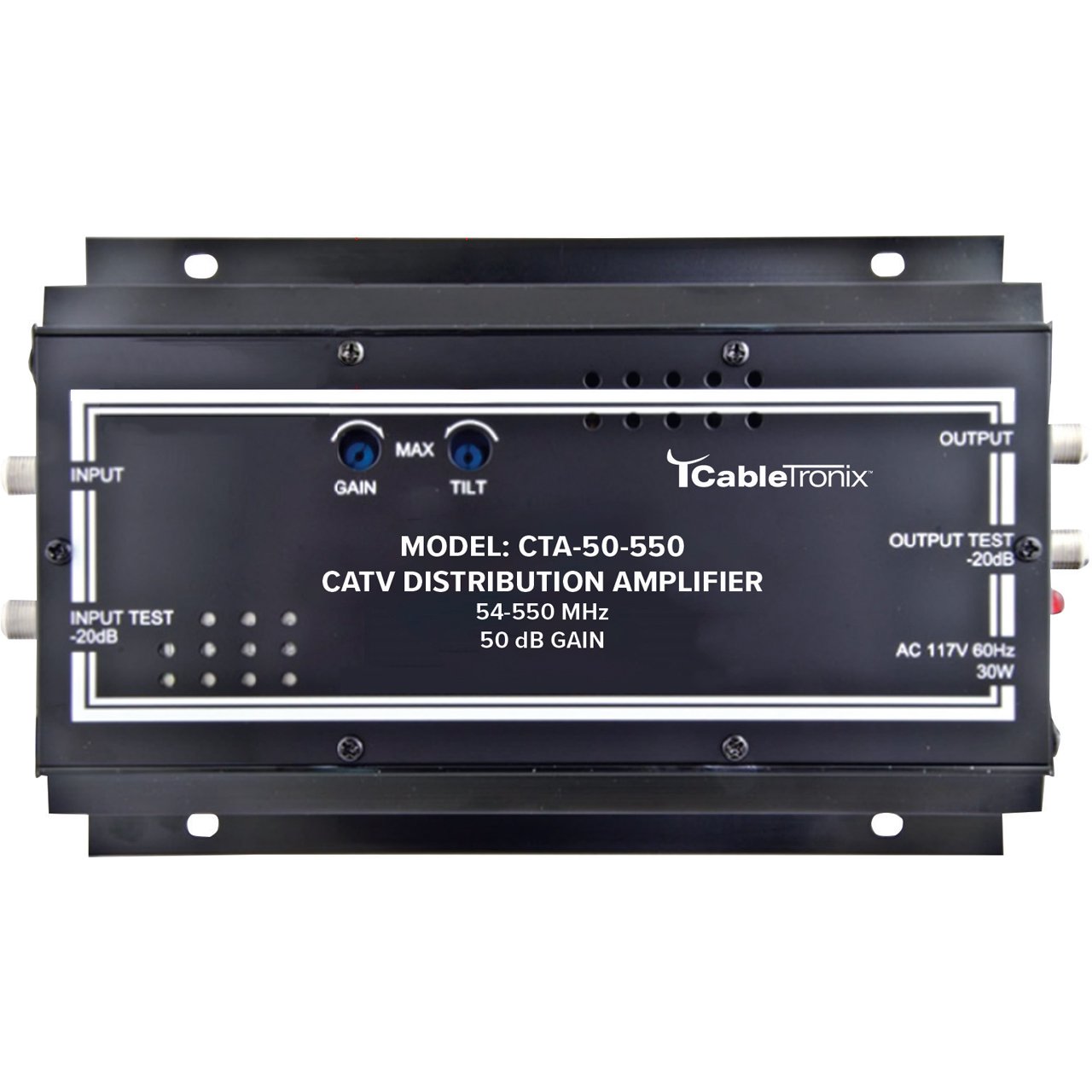

Cabletronix CTA-50-550 Indoor CATV RF Distribution Amplifier - 54-550MHz - 50dB Gain - 0-18 dB Variable - 117 VAC/60 Hz

Name: Cabletronix CTA-50-550 Indoor CATV RF Distribution Amplifier - 54-550MHz - 50dB Gain - 0-18 dB Variable - 117 VAC/60 Hz
Brand: Cabletronix
SKU: CT-CTA-50-550
Price: 169.00 USD
Availability: PreSale

ITEM #: CT-CTA-50-550 MFG #: CTA-50-550

Cabletronix

List Price:

$289.99

Our Price:

$169.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

CTA-50-550 - Overview

The Cabletronix CTA-50-550 is a professional quality broadband launch amplifier designed to produce clean signals for a commercial grade CATV network. Employing a push/pull design, the CTA-50-550 produces high output levels with extremely low distortion and harmonic content. As a broadband amplifier with a frequency range of (54-550)MHz, the CTA-50-550 supports CATV channels (2-78), with forward path amplification only. Power supply included!

Features:
- Frequency Range: 54-550 MHz
- Gain: +50 dB
- Adjustable Range: 0-18 dB variable
- Slope: 0-18 dB variable
- Power Input: 117 VAC, 60 Hz
Specifications:
- RF
- Bandwidth: 54-550 MHz
- Gain: 50 dB
- Gain Adjust Range: 0-18 dB variable
- Slope Adjust Range: 0-18 dB variable
- Flatness: ± 0.5 dB per Channel
- Noise Figure: 7 dB
- Maximum Output: 45 dBmV for 54 Channels
- Cross Modulation: -57 dB
- Second Order Beats: -70 dB
- Composite Triple Beat: -61 dB
- Return Loss In: 13 dB
- Return Loss Out: 15 dB
- Test Ports: -20dB

  General
- Power Requirements: 117 VAC, 60 Hz
- Operating Temperature: 32-122°F (32-122°C)
- Connectors: All "F" Type
- Dimensions 8"x 5.35"x 2.03" (203.2 x 135.9 x 51.6 mm)
- Weight 3.19 lbs. (1.45 kg)
- Warranty 2 Years Limited
Item Includes:
- 1x CTA-50-550 CATV Distribution Amplifier
- 1x CTA-50-550 Instruction manual
- 1x CTA-50-550 Power Supply
Warranty:
- 2 Years Limited
