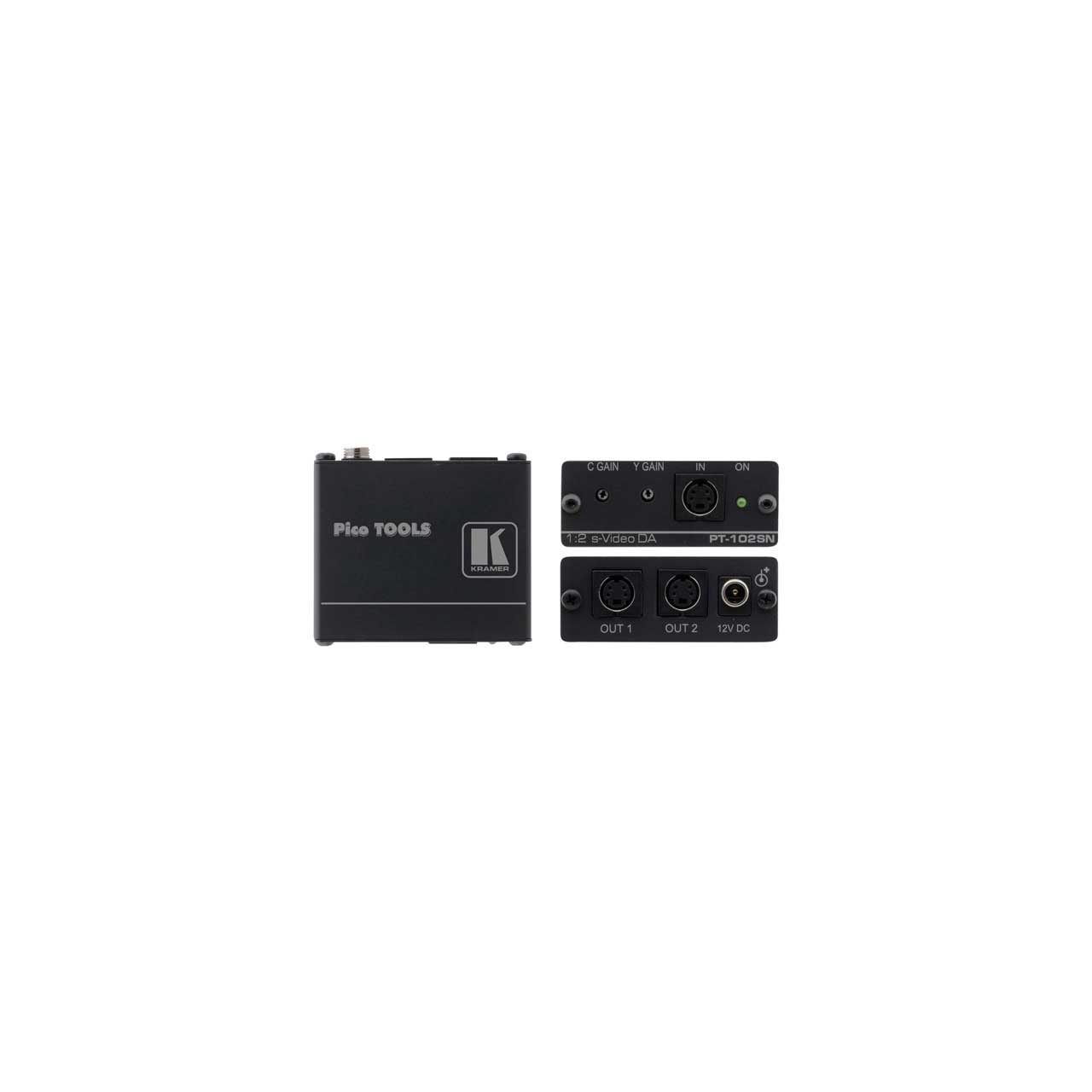

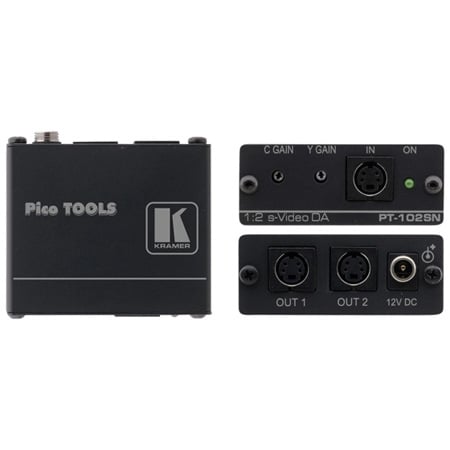

Kramer PT-102SN 1x2 s-Video (Y/C) Distribution Amplifier

ITEM #: KR-PT102SN MFG #: PT-102SN

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Kramer
Free Shipping with $49 Minimum Order

List Price:

$140.00

Our Price:

$112.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

PT-102SN - Overview

Pico Tools 1x2 s-Video Distribution Amplifier

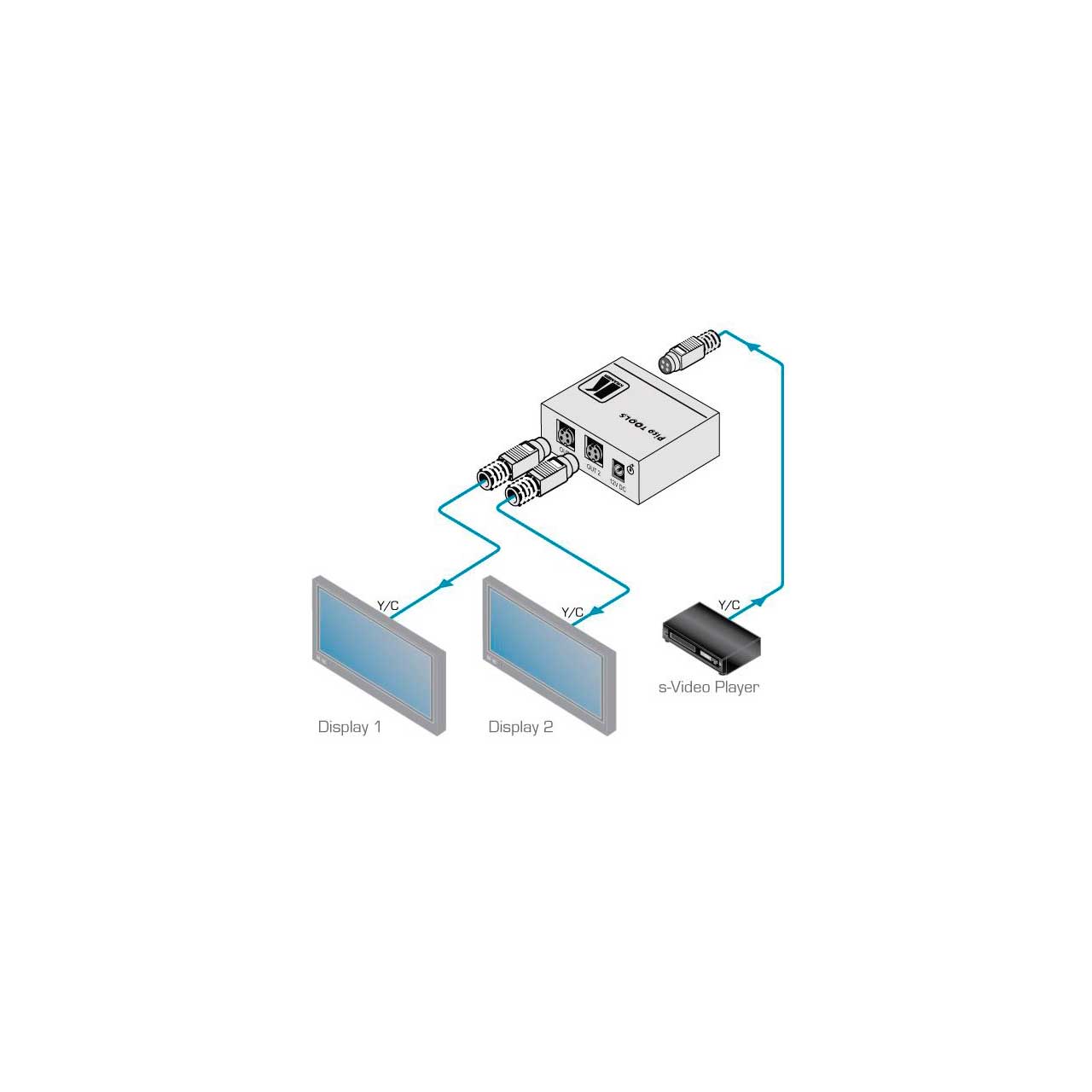

The Kramer PT-102SN is a high-performance video distribution amplifier for s-Video (Y/C) video signals. The unit takes one input, provides correct buffering and isolation, and distributes the signal to two identical outputs.

Perfect for:
Audio/video duplication studios.
Retail showrooms, home theater systems.
CCTV and security systems.

  • Features:

    • Bandwidth (Y) - 150MHz (-3dB).
    • Y & C Level (Gain) Controls.
    • Ultra Compact PicoTOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.


  • Specifications:

    • INPUTS: 1 s-Video on a 4-pin connector.

    • OUTPUTS: 2 s-Video on 4-pin connectors.

    • MAX. OUTPUT LEVEL: 1.3Vpp.

    • BANDWIDTH (-3dB): 150MHz.

    • DIFF. GAIN: 0.05%.

    • DIFF. PHASE: 0.05Deg.

    • K-FACTOR: <0.05%.

    • S/N RATIO: 76dB @5MHz.

    • CONTROLS: Gain: luma: -1.9dB to +5.1dB chroma: 0dB to +6.8dB, @5MHz.

      COUPLING: AC.

    • POWER SOURCE: 12V DC, 25mA.


  • Item Includes:

    • PT-102SN Amp
    • Power supply
    • Mounting bracket


  • Warranty:

    • Limited 7 Year Warranty


  • GTIN:

    7291063000004
