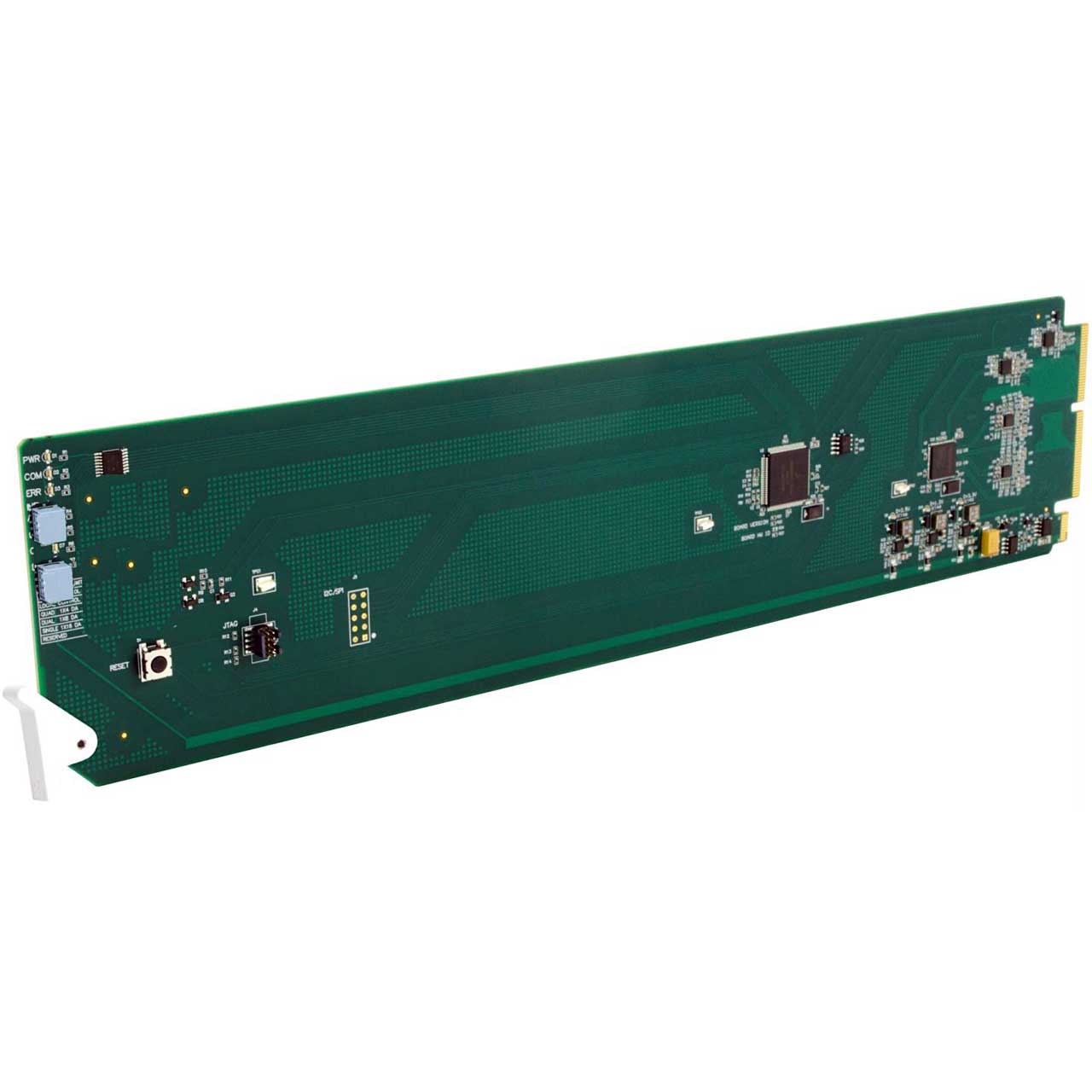

Cobalt Digital ROYAL 9910DA-AV-EQ Analog Video Distribution Amplifier with EQ openGear Card

ROYAL 9910DA-AV-EQ - Overview

• Features:

  • Multi-mode input provides differential or single-ended input and hi-Z looping or card-terminated operation
  • Signal path can be set as DC or AC coupled
  • User adjustable EQ and gain with easily accessible controls on front of card edge. EQ optimizes performance for input cable lengths exceeding 1000 ft (300m).
  • User-selectable input clamping (none, fast, or slow clamping selectable)
  • Remote monitoring via DashBoard software or OGCP-9000 Remote Control Panel


• Specifications:

  • Power: 2 Watts

    Analog Video Input
  • Number of inputs: 1
  • Impedance: User selectable as hi-Z looping or card-terminated 75O
  • Level: 1 Vp-p, nominal
  • Return Loss: 46 dB @ 3.58 MHz
  • Input modes: User selectable as differential/single-ended and AC or DC coupled

    Analog Video Outputs
  • Number of DA outputs: up to (8)
  • Impedance: 75Ω
  • Level: 1 Vp-p, nominal
  • Looping Output: (1)

    Performance
  • Frequency response: >0.05 dB @ 3.58 MHz
  • Differential Gain: >0.15% @ 3.58 MHz
  • Differential Phase: >0.15° @ 3.58 MHz
  • S/N: >60 dB; 5 MHz BW
