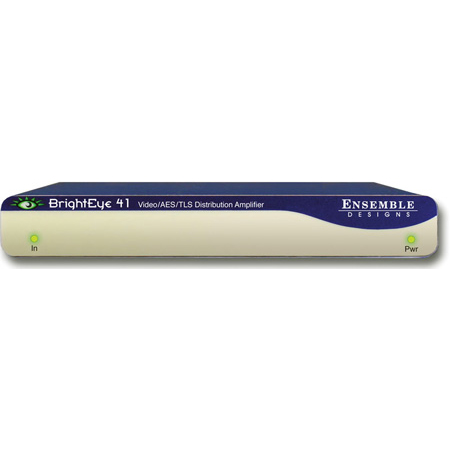

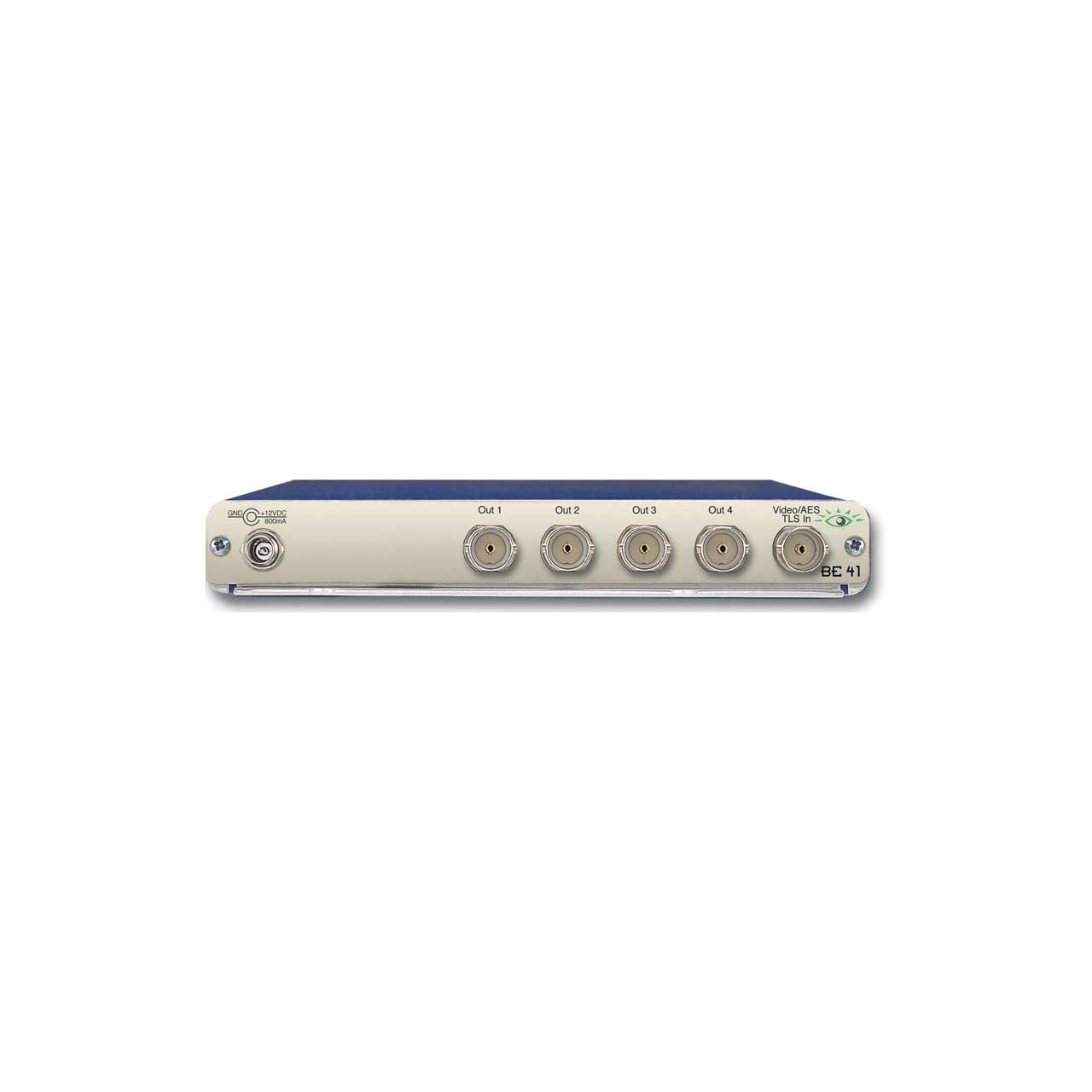

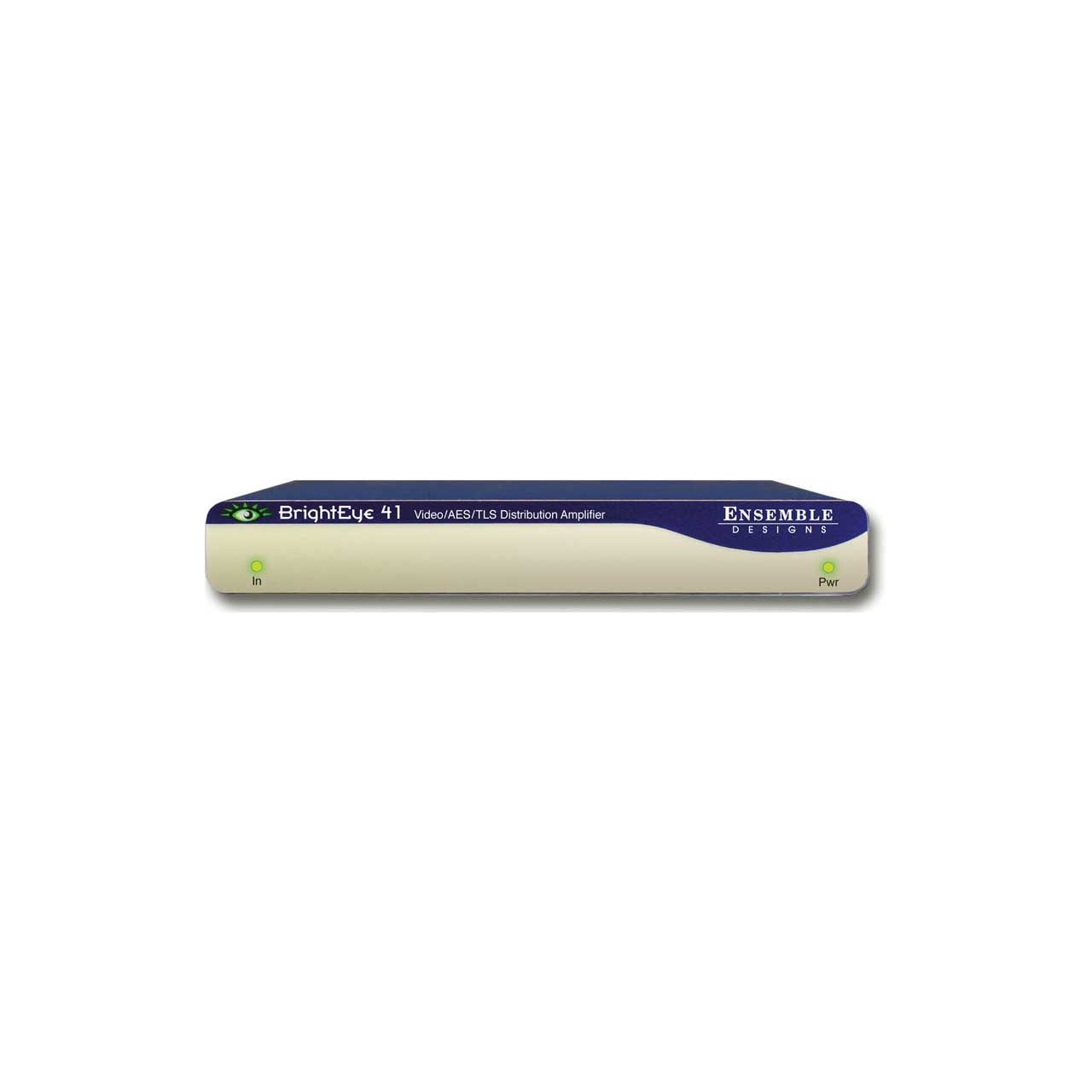

Ensemble Designs BrightEye 41 Analog Video/AES/Tri-Level Sync Dist Amp

BE41 - Overview

• Features:

  • Use with Converters and SPGs in Order to Have More Outputs
  • DA for Analog Video Signals
  • DA for High Definition Tri-Level Sync
  • DA for AES Digital Audio, AC-3 and Dolby E
  • DA for SMPTE 310M


• Specifications:

  • Input Signal
  • Number: One, terminating
  • Signal Type: NTSC/525, PAL/625
  • Composite video, AES digital audio or HD Tri-Level Sync
  • Impedance: 75 Ω
  • Return Loss: >40 dB to 5 MHz

    Output Signal
  • Number: Four
  • Signal Type: Follows Input
  • Impedance: 75 Ω
  • Return Loss: >40 dB to 5 MHz
  • DC offset: Follows input +/- 50 mV
  • Delay: 10 ns (14Ý NTSC, 17Ý PAL)
  • Frequency Response: Ý0.1 dB, 0 to 5.5 MHz
  • Ý0.3 dB, 0 to 10 MHz
  • Signal to Noise: 68 dB
  • K Factor: 2T Pulse <0.25%
  • Differential Phase: 10-90% apl <0.1 deg
  • Differential Gain: 10-90% apl <0.15%
  • Gain Stability: <0.2 dB variation over operating temp

    General Specifications
  • Size: 5.625” W x 0.8” H x 5.5” D (143 mm x 20 mm x 140 mm) including connectors
  • Weight: 14 oz
  • Power: 12 volts, 1 watt (100-230 VAC modular power supply not included)
  • Temperature Range: 0 to 40Ý C ambient
  • Relative Humidity: 0 to 95Ý non-condensing
