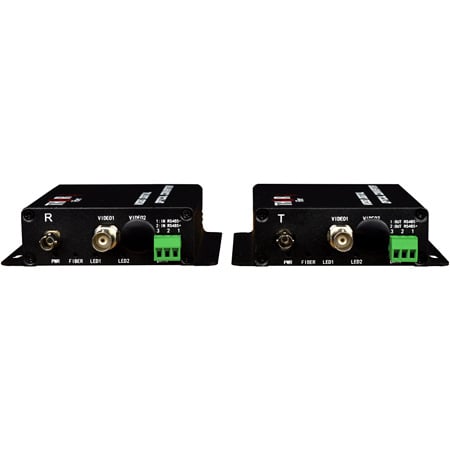

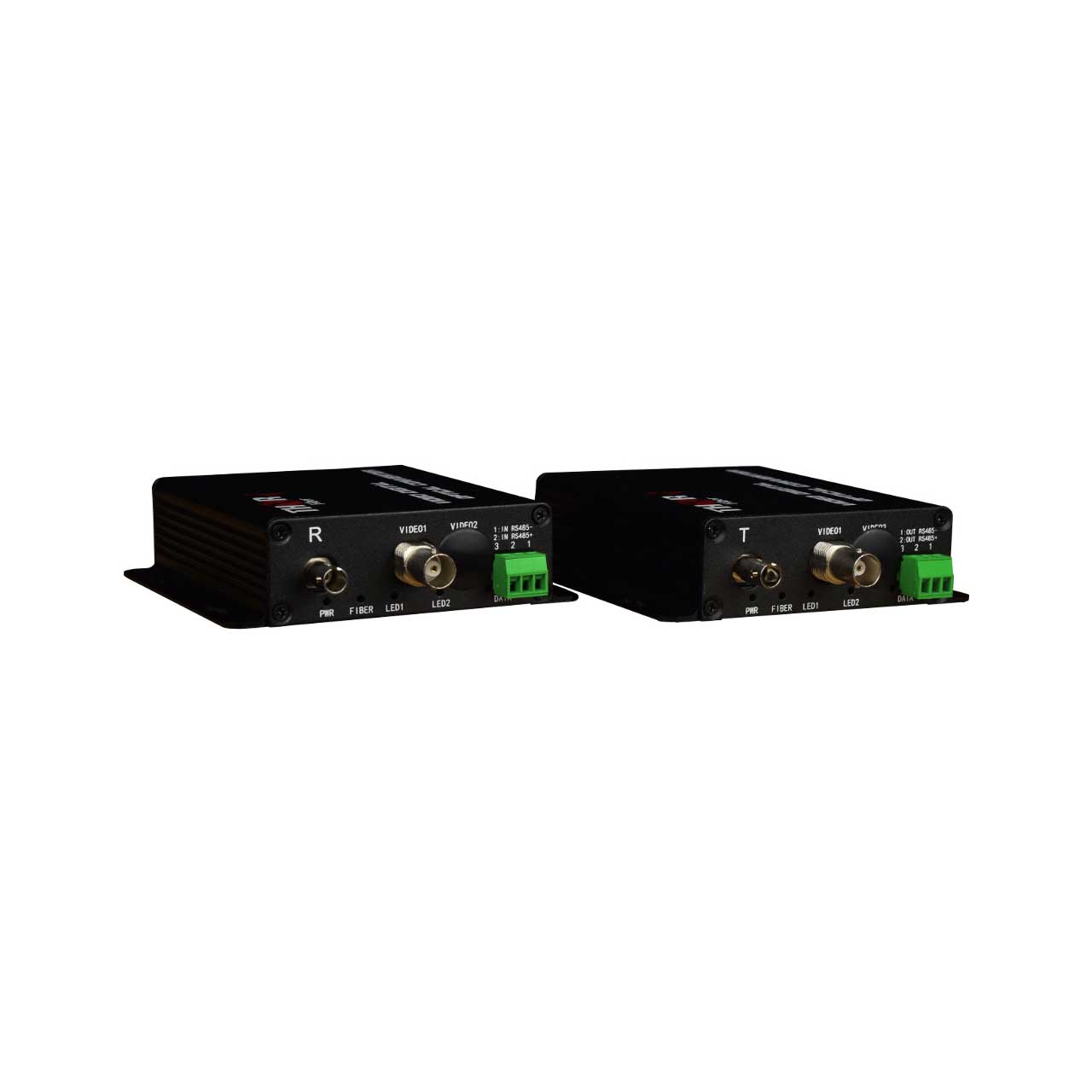

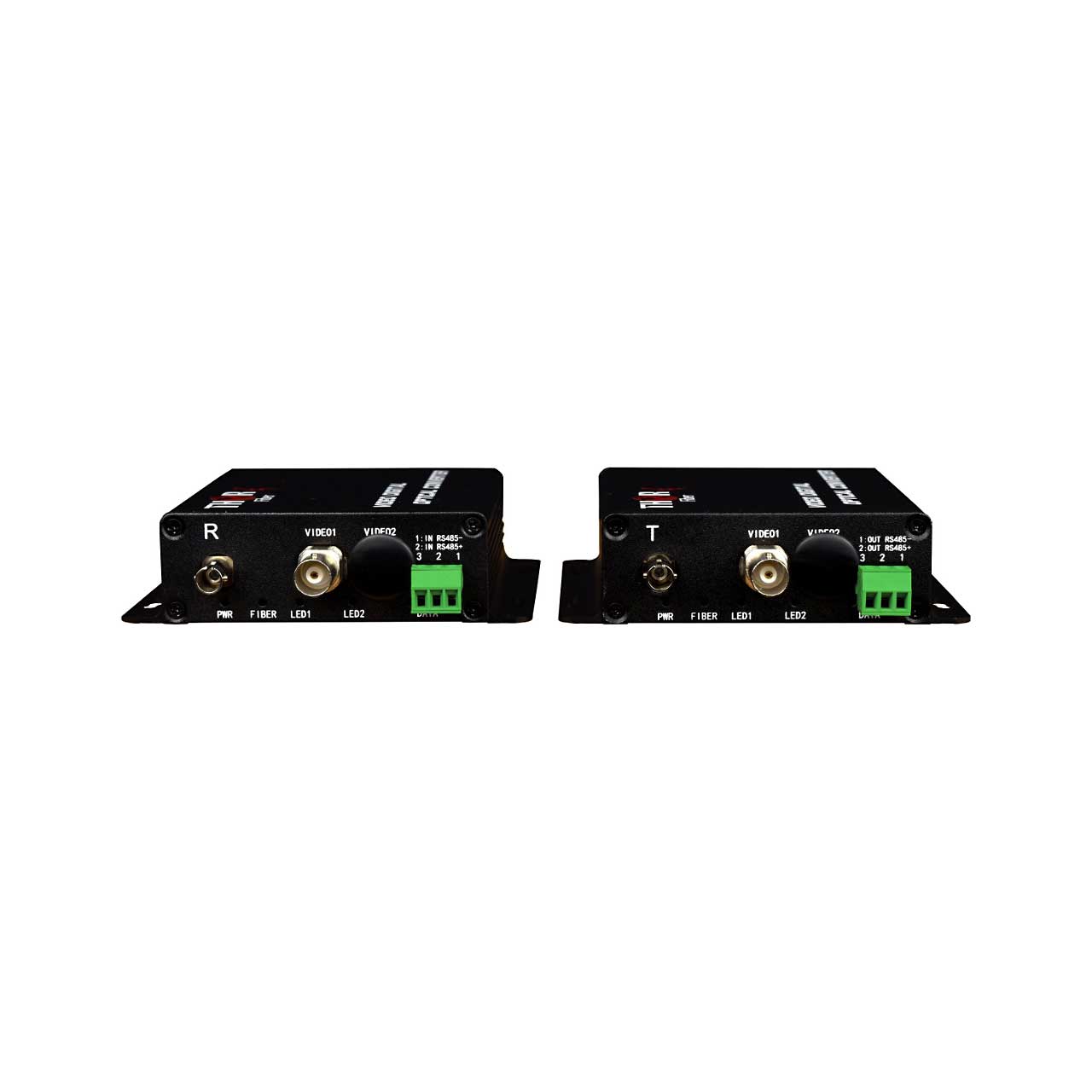

Thor F-1V-TxRx 1 Channel Composite Video over Fiber Transmitter and Receiver

ITEM #: THR-1V-TXRX MFG #: F-1V-TXRX

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$474.00

Our Price:

$395.00

Availability: In Stock
iAvailability Description Popup


F-1V-TXRX - Overview

Thor Fiber F-1V-TxRx 1 Channel Composite Video over Fiber Transmitter and Receiver for easy transport of all your video over a singlemode(20km) or multimode(3000ft) fiber. There are many high end security cameras out there that still shoot in standard composite video. Thor's line of compact fiber transmitters/receivers are designed to extend the life of this equipment.Thor fiber optic security transmitters still use the same high end 10 bit digital encoding that our broadcast transmitters use, just in a less expensive chassis. Thor units come with standard singlemode optics with a transmittion distance of up to 20 km. Other options for special wavelength optics and power outputs are availible opon request. Easy to use and compact units make launching a scalable composite over fiber video solution easy and affordable.

  • Features:

    • 1 CVBS kit over Fiber
    • Up to 20km of singleMode Fiber
    • or 3000Ft of Multimode Fiber
    • Led Lights
    • RS485 control
    • ST/PC Connectors
    • Compact Form Factor
    • Includes Power Supplies

  • Specifications:

    • 1 Ch Analog component video (CVBS): NTSC, PAL, Secam
    • Number of Inputs: 1
    • Frequency Response: > 10 MHz (-3 dB) ± 0.2 dB to 5 MHz
    • Input / Output Impedance: 75Ω
    • Connector: BNC
    • Phase diffrential: 0.5
    • Diffrential Gain: 0.5%
    • Y / C Delay: <10ms
    • System Gain: > Unity Gain, ± 3%
    • Power Supply: 12V DC
    • Power Consumption: <10W
    • Temperature: 0 to +70°
    • Humidity: 0 to 95%
    • Connector Standard: ST/PC -- alternative connectors available for a fee
    • Distance 20km Standard: 40/60/80km (Model Specific)
    • Fiber Type: Singlemode and multimode (model specific)
    • Status: LEDs Indicator Lights
