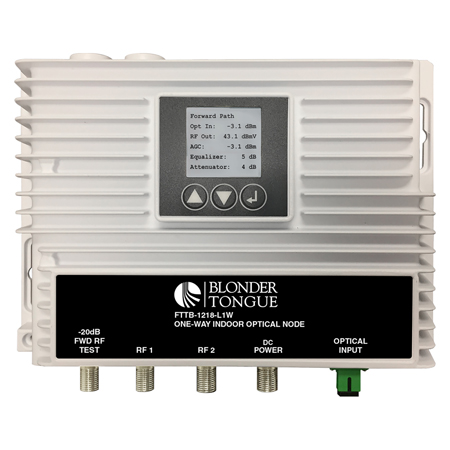

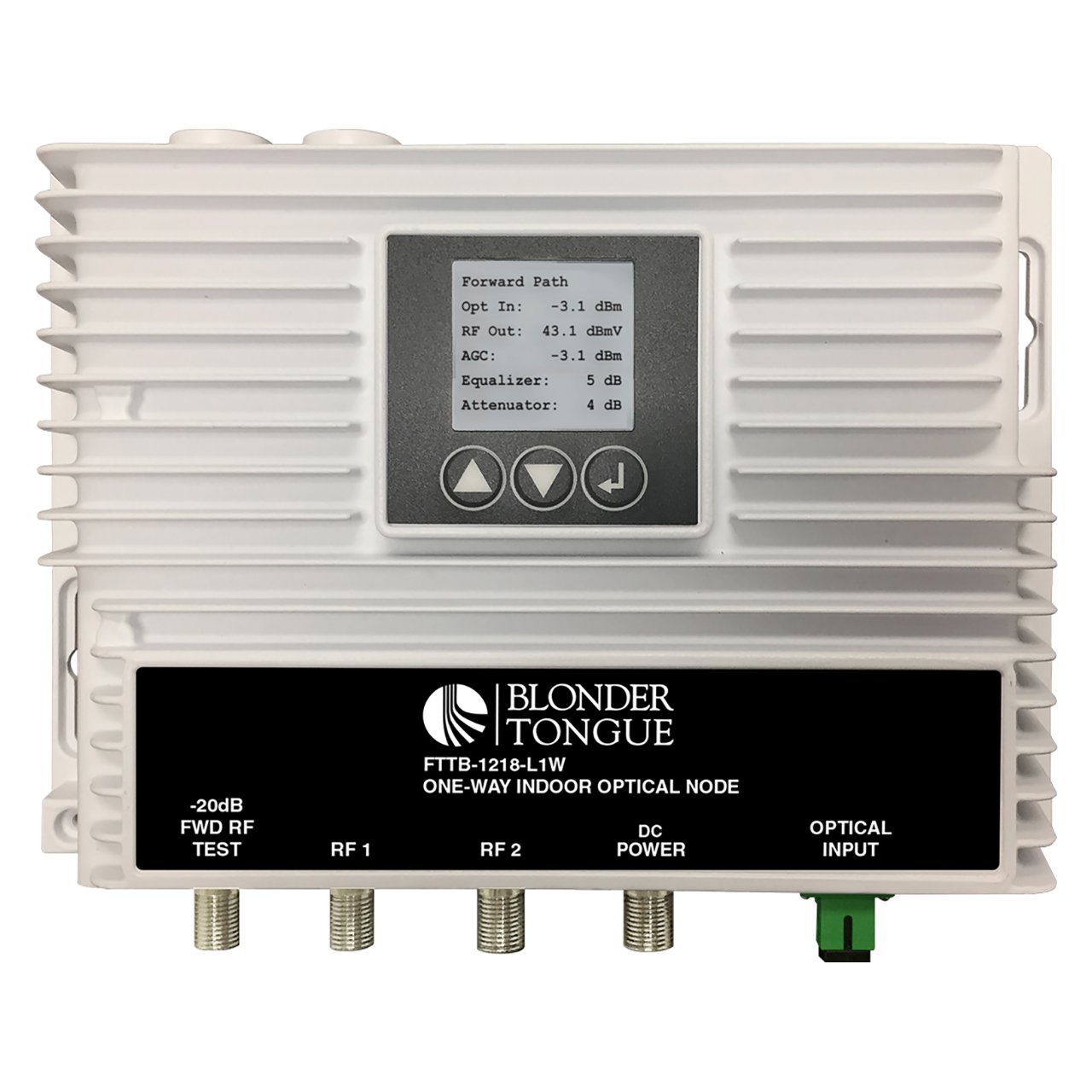

Blonder Tongue FTTB-1218-L1W One-Way Indoor Optical Node with Dual High-RF Outputs - SC/APC Singlemode - 54-1218Mhz

FTTB-1218-L1W - Overview

• Features:

  • Optical and RF Parameters Configured via User-Friendly LCD Menu with Three Key Navigation
  • 1218 MHz Forward RF Bandwidth
  • High Performance and Low Power Consumption GaAs Technology
  • Dual +44 dBmV RF Outputs with Automatic Gain Control (AGC)
  • Variable Attenuator and Slope Controls
  • Die-Cast Aluminum Housing for Indoor Installation
  • -20 dB RF Test Port
  • One 18 VDC "F" Connector Input Port for Local/Remote Powering


• Specifications:

  Optical and RF Performance
  • Optical:
    - Input Optical Wavelength: 1210~1650nm
    - Optical Input Connector: SC/APC, Single Mode
    - Optical Return Loss: 50dB
    - Optical Input Power: -6dBm - 3dBm
    - AGC Effective Optical Input Range: -4dBm - 3dBm
  • RF:
    - RF Bandwidth: 54MHz - 1218MHz
    - RF Output Level: Dual 44dBmV; 0dB attenuation & slope
    - AGC RF Output Stability: ± 1.5dB
    - Range: RF Flatness: ± 0.75dB
    - RF Return Loss: >16dB
    - RF Output Impedance: 75Ω
    - RF Test Port: -20dB
    - CNR: ≥ 51dB at -1.0dBm
    - CSO: <-62 dBc at 77 CW carriers
    - CTB: <-65 dBc at 77 CW carriers

    LCD Control and Monitoring
  • User-Adjustable Controls:
    - Equalizer: 0dB - 15dB (1dB step)
    - Attenuator: 0dB - 15dB (1dB step)
  • Monitoring:
    - Optical Input Level: < -4.0dBm or > +3.0dBm
    - RF Output Level: < 10.0dBmV or > 50.0dBmV
    - AGC Attenuator: 0dB - 15dB (Status Only)
  • System Status: Power: < +16.5V or > +19.5V (18V ±1.5V)

    General
  • Connectors:
    - Fiber Port: 1x SC/APC Female
    - RF Ports: 2x F-Female
    - -20dB RF Test Port: 1x F-Female
    - 18V DC Port: 1x F-Female for DC power input
  • Chassis Dimensions: (LxWxH) 6.85" x 4.9" x 1.54" (174mm x 124mm x 39mm)
  • Weight: 1.18lbs (0.54kg)
  • Power Supply: 18 V 1.3A DC Adaptor, UL Certified
  • Power Consumption: ≤ 9W
  • Working Temperature: -4°F - 140°F (-20°C - 60°C)
  • Storage Temperature: -40°F - 185°F (-40°C - 85°C)
  • Humidity: 5% - 95% Non-condensing

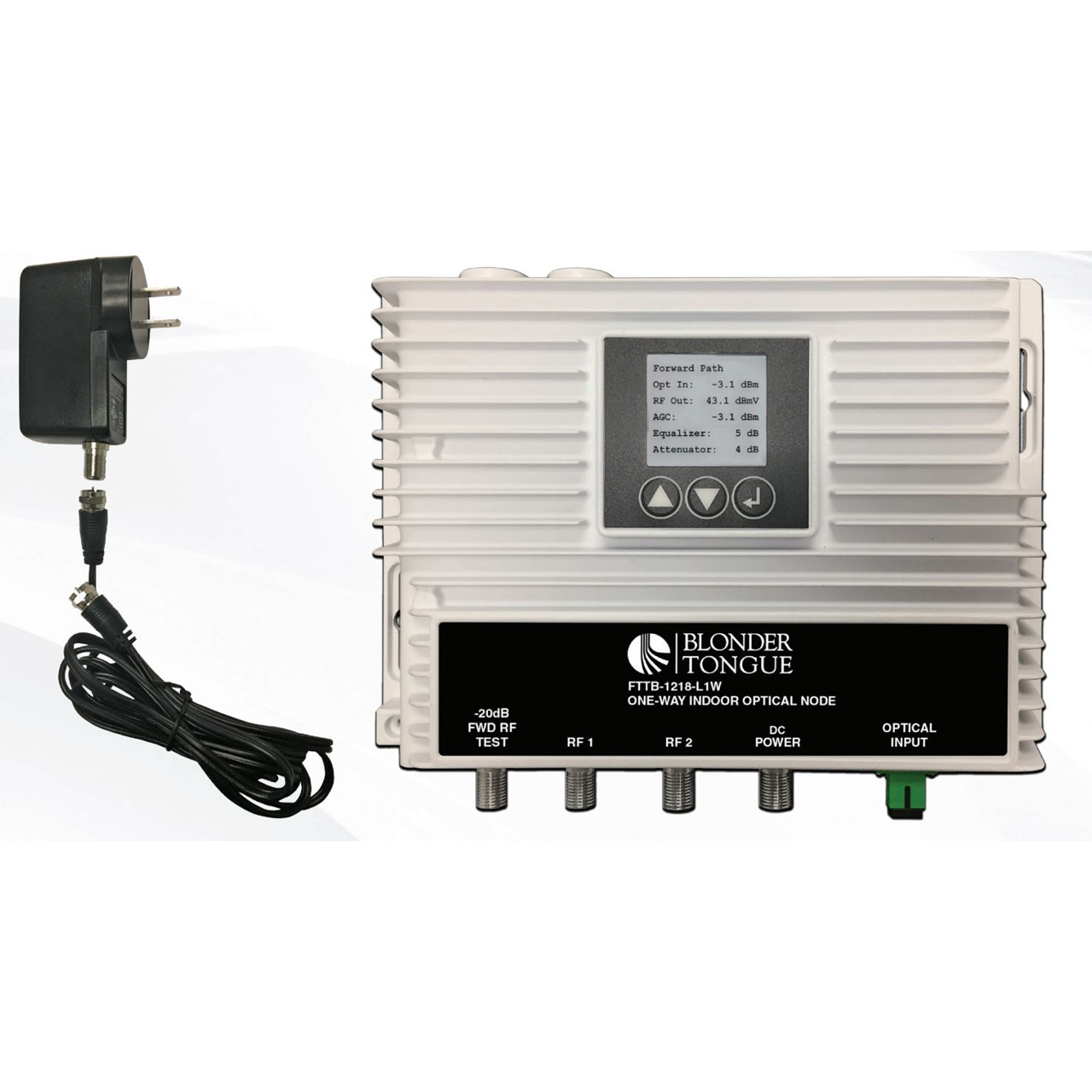

• Item Includes:

  • 1x One-Way Indoor Optical Node; 54-1218 MHz; Dual 44 dBmV Output w/ AGC
  • 1x Power supply
