Camplex TAC1 Simplex OM1 Multimode ST Fiber Optic Tactical Cable - 1000 Foot

ITEM #: HF-T1M1-ST-1000 MFG #: HF-T1M1-ST-1000

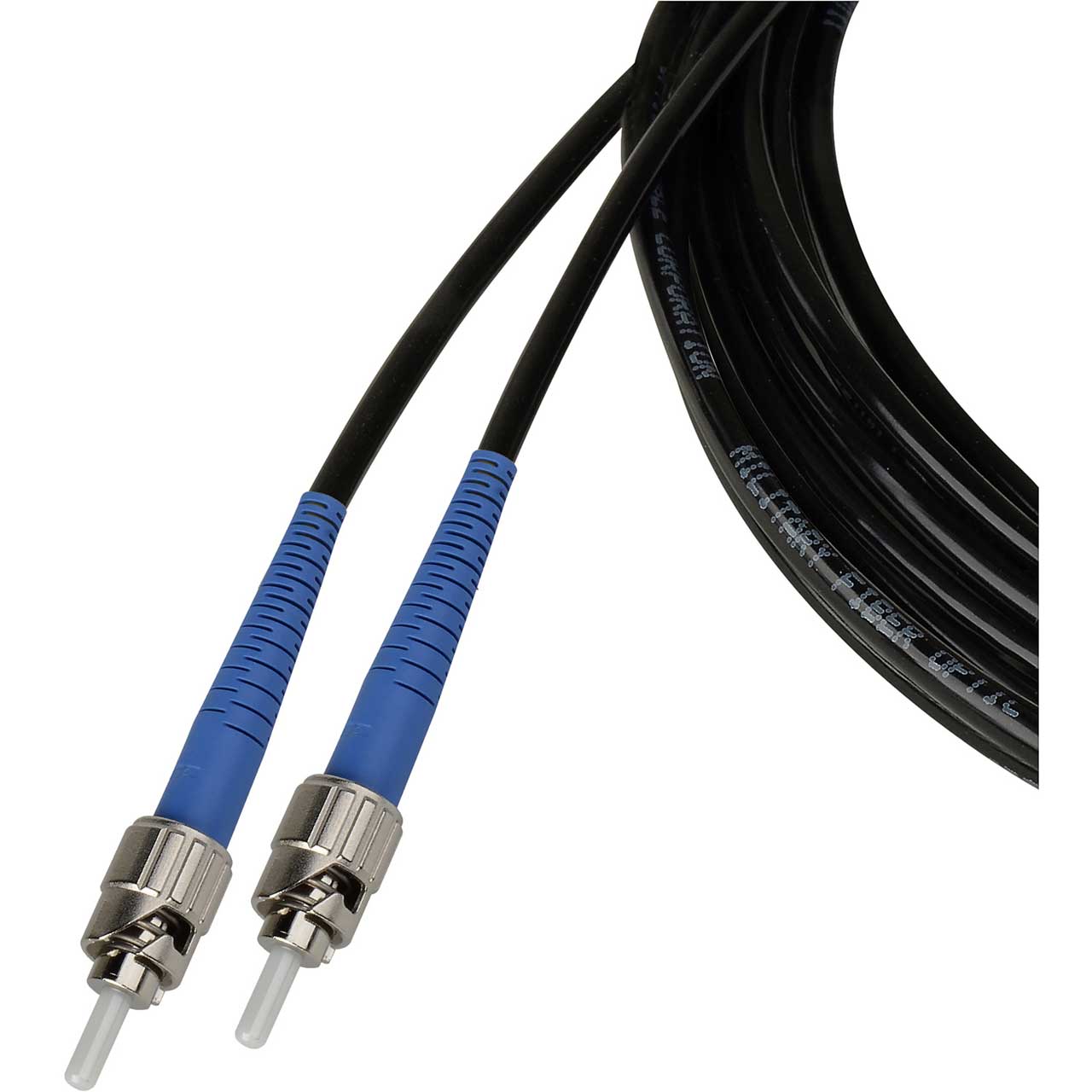

Primary Image
Camplex
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$972.49

Our Price:

$850.95

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

HF-T1M1-ST-1000 - Overview

Extremely Rugged & Lightweight ST Simplex OM1 Multimode Tactical Cables for Broadcast & Pro-Audio Applications! This cable is designed for Military Tactical deployment applications and meets all outdoor tactical needs for broadcast applications requiring an outdoor rated crush and impact resistant design. The tough Polyurethane Core-Locked design is perfect for any situation where ordinary PVC jacket cables do not provide adequate protection in the field. Featuring Senko ST and LC premium fiber connectors. All assemblies are machine polished and interferometer tested to industry standards. All products are 100% tested and ship with a complete set of test documentation. SC, LC and FC UPC and APC connectors are also available. Custom Lengths & Configurations Always Available!

  • Features:

    • Strong & Lightweight Broadcast Deployable Cable
    • Indoor/Outdoor Rated Jacket
    • Typical RL <-55dB and IL<0.25dB
    • Wide Temperature Range (typically -55°C to 85°C)
    • 500µm Primary Acrylate Buffer with 900µm Secondary Hard Elastomeric Buffer (Ultra-Fox Plus)
    • Polyurethane Core-Locked Outer Jacket Provides Excellent Crush & Impact Resistance
    • Rugged Metal Dust Caps with Cable Lanyards


  • Specifications:

    • Core/Cladding Diameter (µm) 62.5/125
    • Orange Multimode
    • ITU-T G.652
    • Maximum Cabled Attenuation (dB/km) 0.5/0.5
    • Wavelength (nm) 1310/1550
    • Numeric Aperture 0.275
    • Gigabit Ethernet Distance (m) 275/550
    • 10-Gigabit Ethernet Distance (m) 33/300
    • Maximum Cabled Attenuation (dB/km) 3.5/1.5
    • Minimum Laser EMB Bandwidth (MHz-km) 200/500
    • Minimum OFL LED Bandwidth (MHz-km) 200/500
    • Industry Standard Designation M1 62.5µm A

    • Core/Cladding Diameter (µm) 9/125
    • Typical RL <-55dB and IL<0.25dB.
