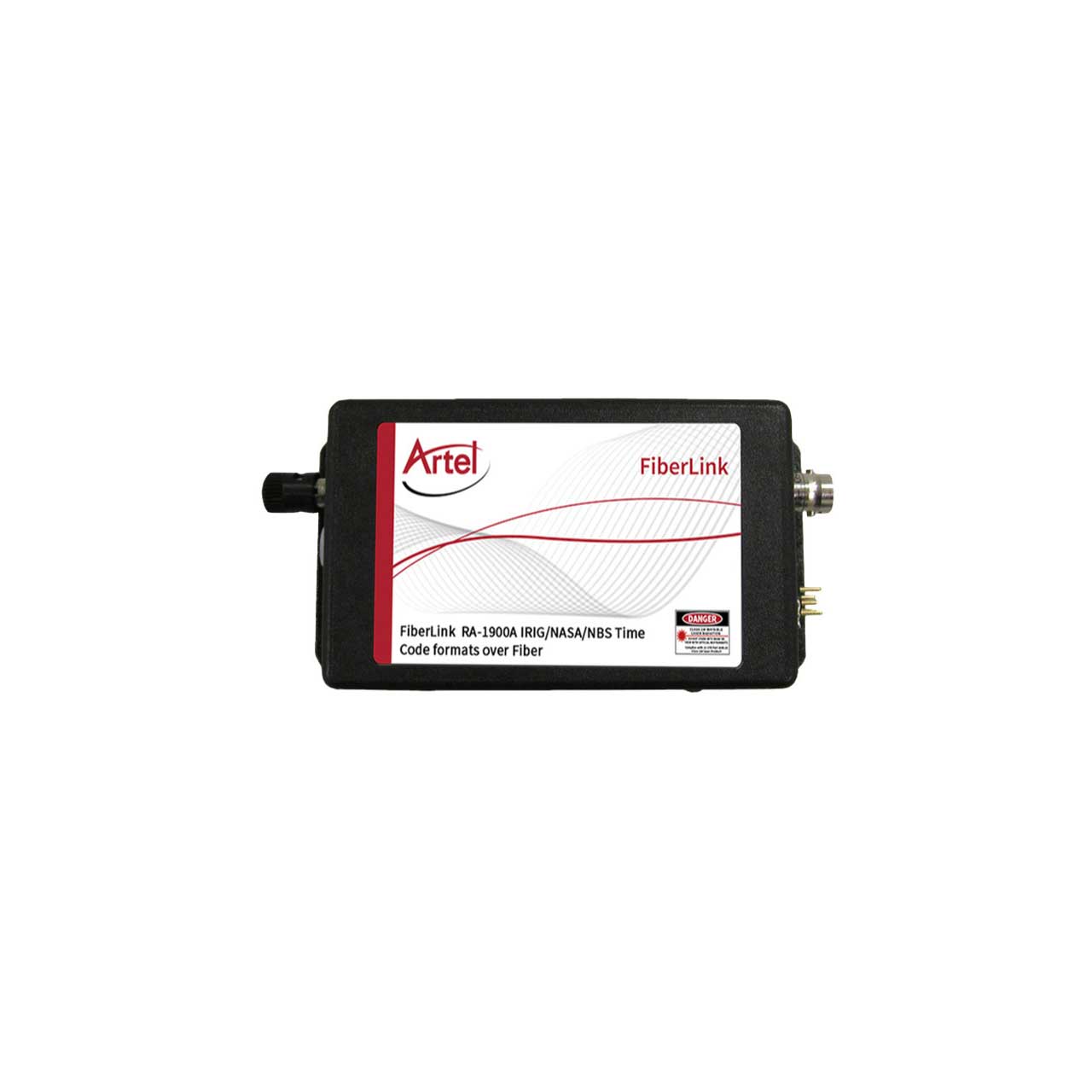

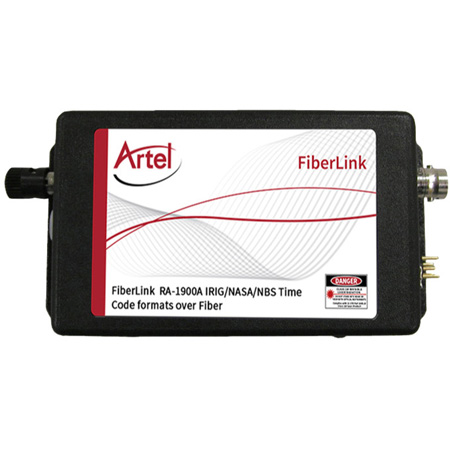

Artel XA-1900-7-ST Fiberlink IRIG - 1310nm - Single Mode Transmitter - 1 Fiber - ST Box

ITEM #: ARTL-XA-1900-7ST MFG #: XA-1900-7-ST

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,815.00

Our Price:

$1,557.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    XA-1900-7-ST - Overview

    The FiberLink XA-1900-7ST IRIG Fiber Optic Transmitter is designed to convert wide band IRIG analog signals into modulated light for transmission over fiber optic cables. The transmitter employs linear, intensity modulation and is suitable for use with most optical fibers. The XA-1900 employs a single ended, unbalanced input which is compatible with all IRIG input formats. There is only one operating control on the XA-1900 series. This is an input attenuator, designed to allow input signals larger than the normal 1 volt rms level to be accommodated. The XA-1903 is a 10 channel optical output version of the XA-1900 and is designed for IRIG signal distribution applications.

    The FiberLink XA-1900 converts an incoming time code signal into a varying current that intensity modulates the transmitting LED located in the optical connector on the unit. The modulated light is then applied to a fiber optic cable

    • Features:

      • High Performance Plug and Play Products
      • Stand Alone and Card Cage Versions Available
      • Solutions for Most Video, Audio, and Data Formats
      • Multi mode and Single Mode Versions
      • Designed and Manufactured in the USA
      • Training and Installation Support Available
      • 24x7x365 Technical Support Available

    • Specifications:

      • General Specifications
      • Number of Fibers: 1 Fiber
      • Operating Temperature: -4 to + 140°F
      • Operating Power: (per unit) +15 to +25 volts DC @ 250 mA or 14 to 18 volts AC, 50/60 Hz
      • Dimensions XA-1900 (WxHxL): 5 x 1.25 x 2.5 Inches
      • Weight: Approx. 1 Lb
      • Optical Connectors ST: Multimode, ST or FCPC: Single Mode
      • Indicator LEDs Box: None
      • Card Transmitter: Power, IRIG present, Alarm
      • Card Receiver: Power, IRIG present, Alarm
      • Optical Wavelength MM: 850 nm & 1310 nm
      • SM: 1310 nm
      • Optical Fiber: 0 or 62.5 micron (MM) multimode fiber, 8/10 micron (SM) single mode
      • MTBF XA-1900: 195,000 hours
      • Plastic Material: UL-94 V0 or V1 Standard

        Data Specifications
      • Number of Channels: 1
      • Number of Outputs per Channel: 10
      • IRIG Compatibility: A through H
      • System Bandwidth: (+0, -3 dB) 20 Hz to 100 kHz
      • Input/Output Load Impedance: 600 Ohms nominal
      • Input/Output Signal Voltage: 1 volt rms
      • Signal/Noise Ratio: 67 dB typical
      • Noise Floor (full bandwidth): 1.3 mv rms maximum

        Operating Loss Budget & Maximum Usable Distance*
      • Wavelength/Loss (dB)/Distance (Km)
        850nm MM/0-10dB/0-3.5 (62.5u)
        850nm MM/0-10dB/0-4 (50u)
        1310nm MM/0-13dB/0-10 (62.5u)
        1310nm MM/0-13dB/0-12 (50u)
        1310nm SM/0-13dB/0-20
        PLEASE NOTE: *For system to operate properly, operating loss budget must not be exceeded.
