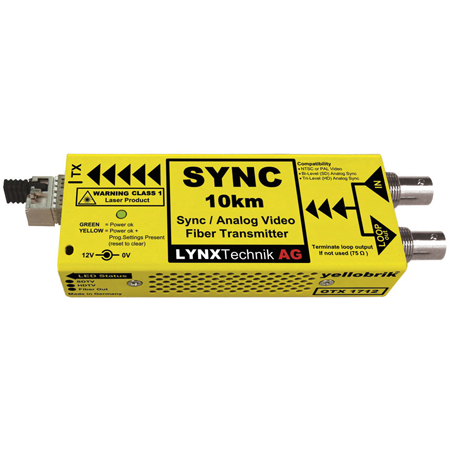

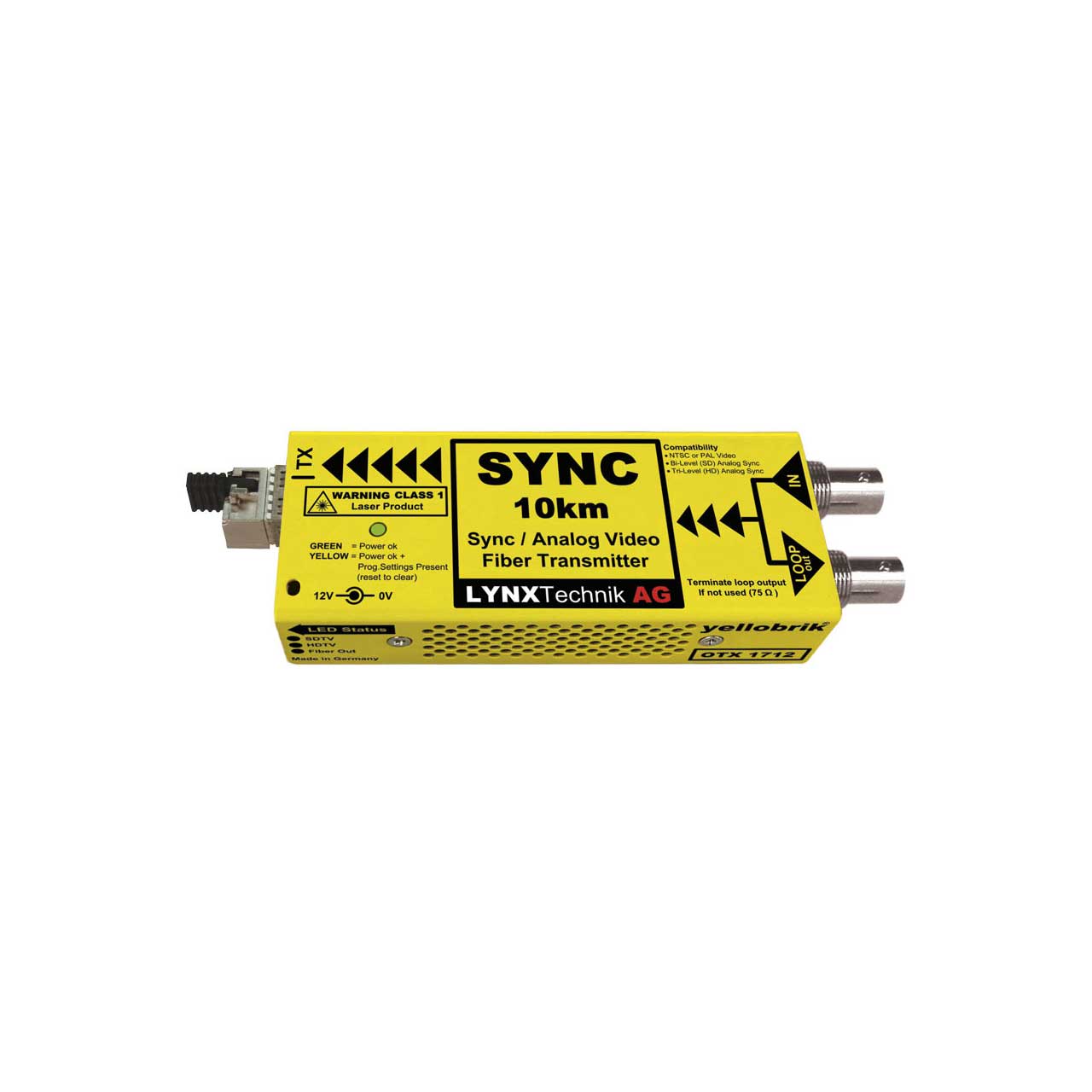

The LYNX Technik OTX 1712-2 LC is an LC Analog Sync / Video Fiber Optic Receiver (Singlemode LC) that works with the ORX-1702-2 LC (sold separately). This compact analog sync or NTSC/PAL composite video to fiber optic transmitter is specifically designed to combat the restrictions involved with the distribution of broadcast quality analog reference and composite video signals over long distances. When paired with the fiber optic receiver ORX 1702-2 (LNX-ORX-1702-1LC sold separately) you have a very cost effective optical transmission system for analog sync reference signals or NTSC/PAL composite video. This device is particularly useful for reference sync distribution between remote installations to maintain correct synchronization. Unlike other very basic analog to fiber conversion solutions, the OTX 1712-2 incorporates technology to maintain a very high degree of sync and burst phase stability during the conversion and fiber transmission.
The module converts the NTSC/PAL video signal to an SDI signal (including reference and other relevant information) before it is converted to fiber. Therefore when the OTX 1712-2 is used for NTSC or PAL video sources it is possible to convert the fiber signal directly to SDI if required using an SDI receiver (e.g. ORX 1802).
The OTX 1712-2 provides a passive loop output and support for LC, ST or SC singlemode fiber connections. An LC version suitable for multimode fiber is also available.
Operation of the OTX 1712-2 is fully automatic. The analog video or sync input format is automatically detected, converted and transmitted over the fiber optic connection. LEDs are provided on the side of the module to indicate the module operating mode (SDTV or HDTV)
