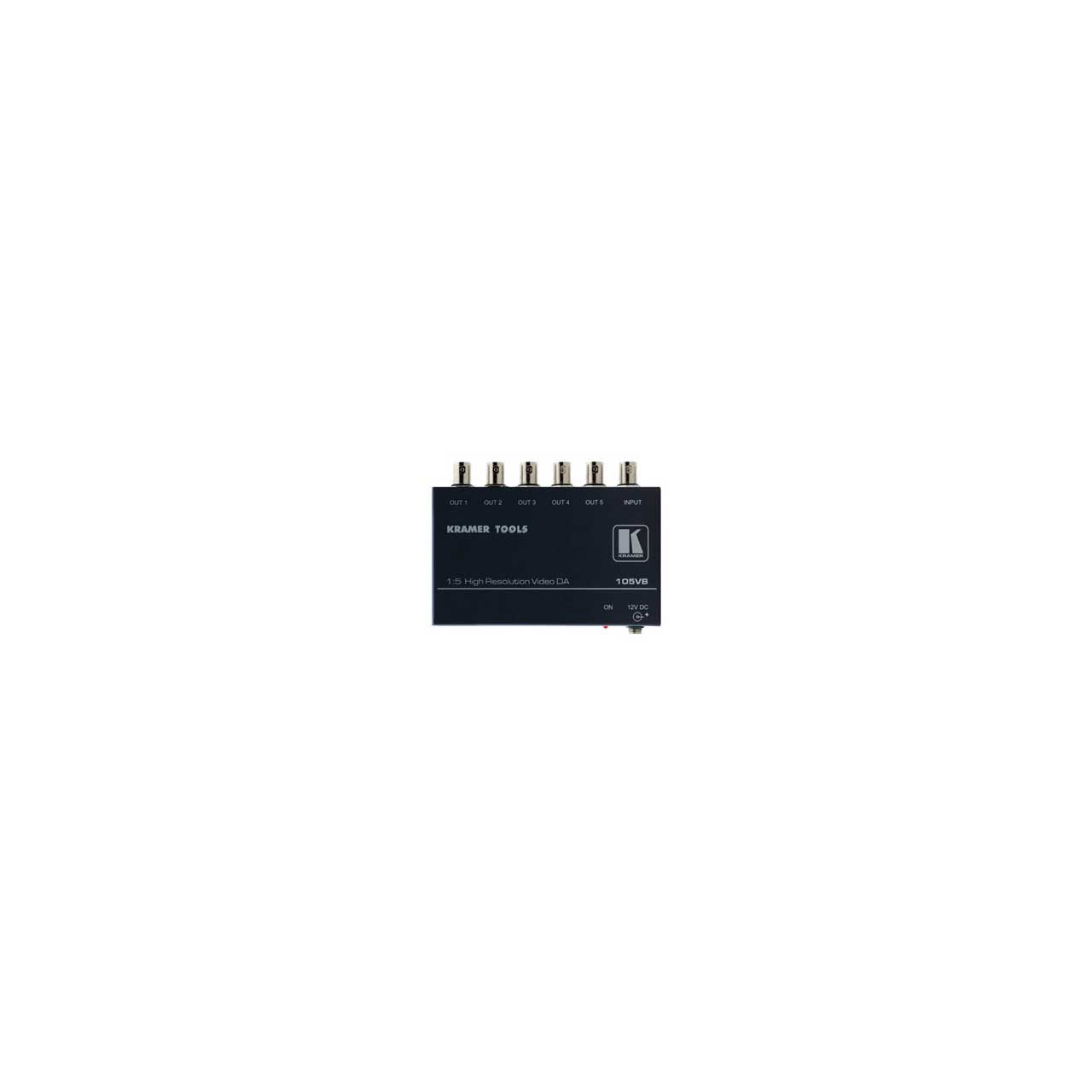

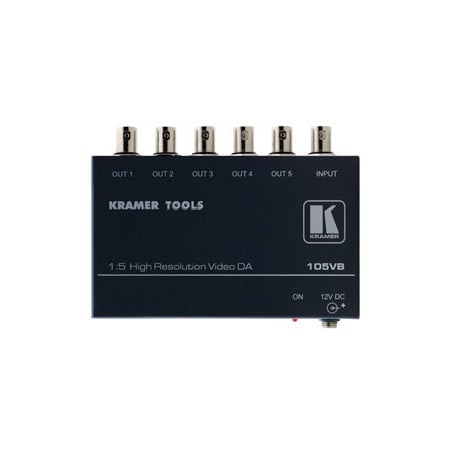

Kramer 105VB 1x5 Composite BNC Video Distribution Amplifier 400 MHz

105VB - Overview

1:5 Composite 400 MHz Video Distribution Amplifier

• Features:

  • Bandwidth - 400MHz (-3dB).
  • Connectors - BNC (105V has RCA).
  • Level (Gain) Control.
  • Compact Kramer TOOLS™ - 3 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.


• Specifications:

  • INPUT
  • 1 composite video, 1Vpp/75Ω on a BNC connector

    OUTPUTS
  • 5 composite video, 1Vpp/75Ω on BNC connectors

    MAX. VIDEO OUTPUT
  • 2Vpp

    VIDEO BANDWIDTH (-3DB)
  • 400MHz

    DIFF. GAIN
  • 0.1%

    DIFF. PHASE
  • 0.1Deg

    K-FACTOR
  • <0.05%

    S/N RATIO
  • 80dB

    CONTROL
  • Up to +6dB

    COUPLING
  • AC

    POWER CONSUMPTION
  • 12V DC, 100mA


• Item Includes:

  • KR-105VB Distribution Amplifier
  • Power Supply
  • Mounting Bracket


• Warranty:

  • 7 Year Limited Warranty


• Applications:

  • Video duplication studios.
  • Any professional display system requiring an identical picture on several monitors.
  • CCTV and home theater use.
  • Rental and staging applications.


• GTIN:

  7290012307096
