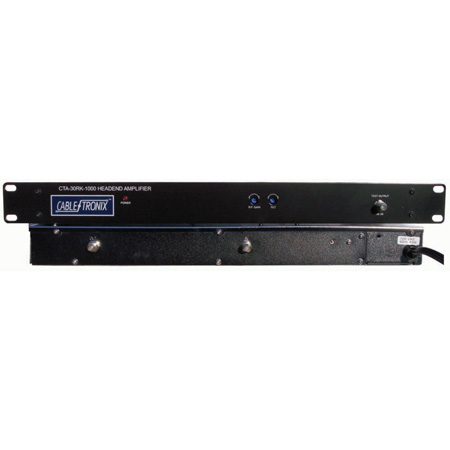

Cabletronix CTA-30RK-1000 Rack Mountable Commercial Distribution Amplifier - 30 dB Gain Forward - 1000 MHz Freq. Range

Name: Cabletronix CTA-30RK-1000 Rack Mountable Commercial Distribution Amplifier - 30 dB Gain Forward - 1000 MHz Freq. Range
Brand: Cabletronix
SKU: CT-CTA-30RK-1000
Price: 214.95 USD
Availability: PreSale

ITEM #: CT-CTA-30RK-1000 MFG #: CTA-30RK-1000

Cabletronix

List Price:

$219.00

Our Price:

$214.95

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

CTA-30RK-1000 - Overview

The CTA-30RK-1000 is a professional quality 19" rack mountable broadband launch amplifier designed to produce Clean signals for a commercial grade private cable network. Employing a pushpull design, the CTA-30RK-1000 produces High output levels with extremely low distortion and harmonic content. As a broadband amplifier with a frequency range of 54-1000 MHz, The CTA-30RK1000 supports up to 158 channels.

Application
Designed for commercial grade headend systems, the CTA-30RK-1000 when Combined with a Cabletronix CTHC-12G, CTHC-24G, or other 3rd party combiners, serves as a launch amplifier to distribute Signals to a private cable network's RF plant.

Features:
- Broadband coverage from 54 - 1,000 MHz
- Supports up to 158 channels
- 30 dB gain
- Adjustable gain and slope controls
- Input and output test ports
- Double shielded RFI enclosure
- Competitive performance specs
Specifications:
- RF Bandwidth: 54 - 1000 MHz
- Gain: 30 dB
- Gain Adjustable Range: 18 dB
- Slope: 12 dB
- Flatness: ±1.5 dB per channel, any 100 MHz band
- Maximum Output: (levels vary with number of channels)
  7 channels, 44 dBmV Max. Input Level, 66 dBmV Max. Output Level
  12 channels, 41 dBmV Max. Input Level, 63 dBmV Max. Output Level
  36 channels, 32 dBmV Max. Input Level, 54 dBmV Max. Output Level
  54 channels, 23 dBmV Max. Input Level, 45 dBmV Max. Output Level
- Noise Figure: 7.5 dB
- Second Order Beats: -60 dB (129 channels @ 13 dBmV input level)
- Composite Triple Beat: -58 dB (129 channels @ 13 dBmV input level)
- Cross Modulation: -54 dB (129 channels @ 13 dBmV input level)
- Return Loss In: 16 dB to 750 MHz (Typical)
- Return Loss Out: 16 dB 751-1,000 MHz (Typical)
- Test Points: -20 dB

  General
- Power Input: 117 VAC, 60 Hz, 25W
- Dimensions (WxHxD): 19 x 1.75 x 3"
- Weight: 4Lbs
- Operating Temperature Range: 32° to 122°F
Warranty:
- 1 year warranty
