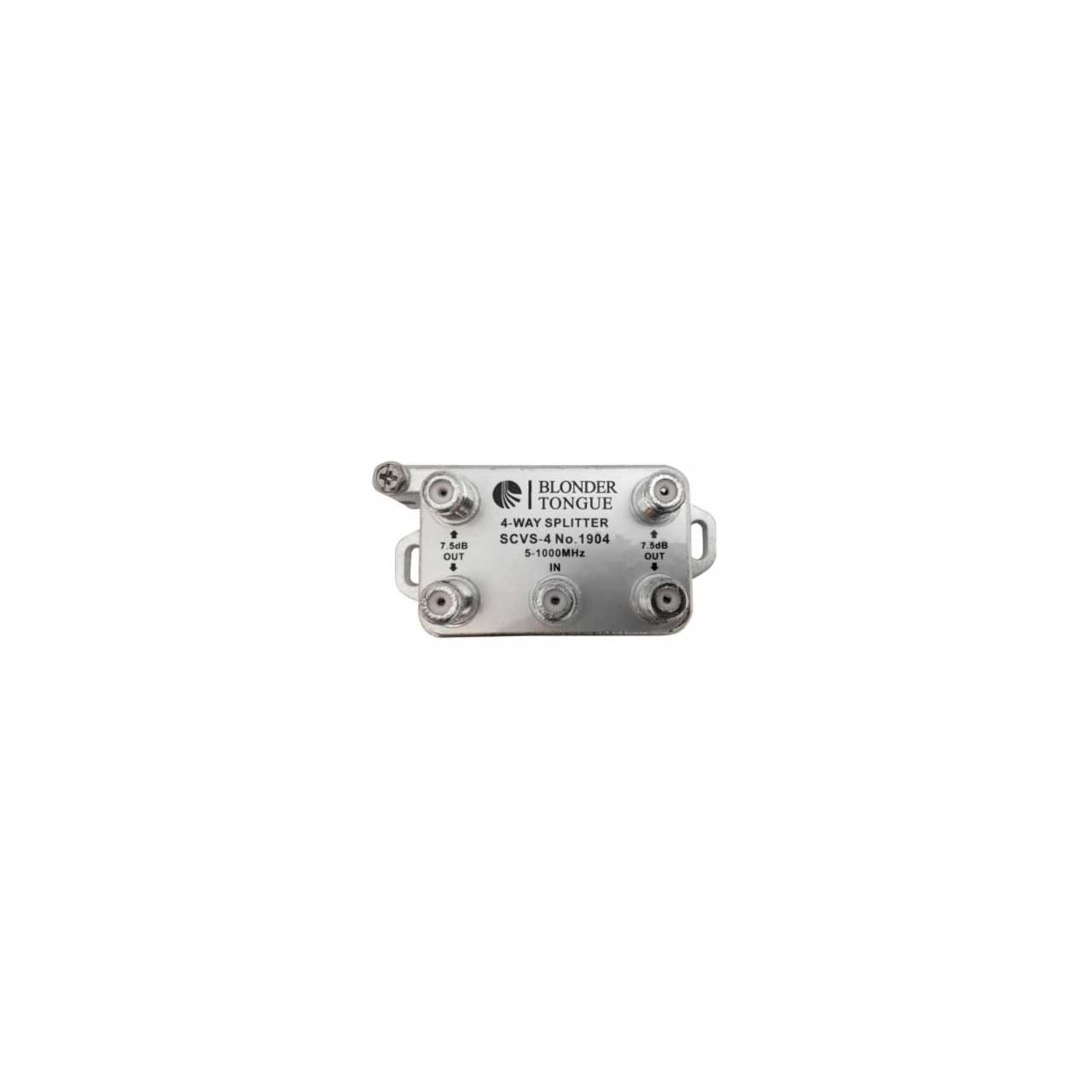

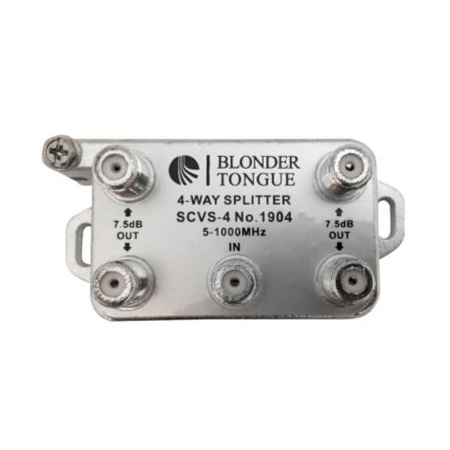

Blonder Tongue SCVS-4 4-way L-Style RF Splitter 5-1000 MHz

ITEM #: SCVS-4 MFG #: SCVS-4

Primary Image
Blonder Tongue
Free Shipping with $49 Minimum Order

Our Price:

$4.52

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SCVS-4 - Overview

The Blonder tounge SCVS-4 is a 4-way RF splitter with a range of 5-1000 MHz, In-Line style, and a solder back with 120 dB RFI shielding.

  • Features:

    • Superior Performance to 1000 MHz
    • Die Cast Housing
    • RFI Shielding 120dB
    • Built-in Ground Block


  • Specifications:

    • Number of Outputs:
    • 4

    • Frequency Range (MHz):
    • 5-1000

    • Splitter Loss (dB) (max)
    • 5-500 MHz: 7dB
    • 500-860 MHz: 7.5
    • 860-1000MHz: 8

    • Input Return Loss (dB) (min)
    • 5-40 MHz: 16
    • 40-500 MHz: 20
    • 500-860 MHz: 18
    • 860-1000 MHz: 16

    • Isolation Between Outputs (dB) (min)
    • 5-40 MHz: 22
    • 40-500 MHz: 25
    • 500-860 MHz: 25
    • 860-1000 MHz: 22
